2006 Chevrolet Colorado PCM Failure: Symptoms, Replacement, and Programming
The powertrain control module (PCM) in the 2006 Chevrolet Colorado manages engine and transmission functions. Failures may cause drivability issues, warning lights, or communication errors with diagnostic tools.
Quick Summary
- PCM controls engine and transmission operations in the 2006 Colorado.
- Replacement involves capturing data before removal and performing a relearn procedure.
- Factory labor time for PCM replacement is 0.8 hours, plus 0.5 hours for relearn.
- Common symptoms include reduced power, stalling, or stored trouble codes.
- Flagship One units arrive VIN-programmed, eliminating additional programming steps.
If your 2006 Chevrolet Colorado is experiencing unexplained drivability issues—like stalling, reduced power, or warning lights—it may signal a failing powertrain control module (PCM). This critical component oversees engine and transmission performance, and when it malfunctions, symptoms can range from subtle to severe. Understanding the role of the PCM, how to replace it, and what steps follow can help you make informed decisions about repairs. This guide covers the essentials, including labor times, programming requirements, and common failure signs specific to your vehicle.
What the PCM Does in a 2006 Chevrolet Colorado
The PCM in your 2006 Chevrolet Colorado acts as the brain for both the engine and transmission, regulating fuel delivery, ignition timing, and shift points. It continuously monitors sensor inputs to optimize performance and emissions. A faulty PCM may disrupt these functions, leading to poor drivability or even a no-start condition. When replacement becomes necessary, you’ll need a module that matches your vehicle’s specifications—such as replacement engine computers for the Colorado—to ensure proper operation. Without a functioning PCM, the vehicle may fail to run or operate inefficiently.

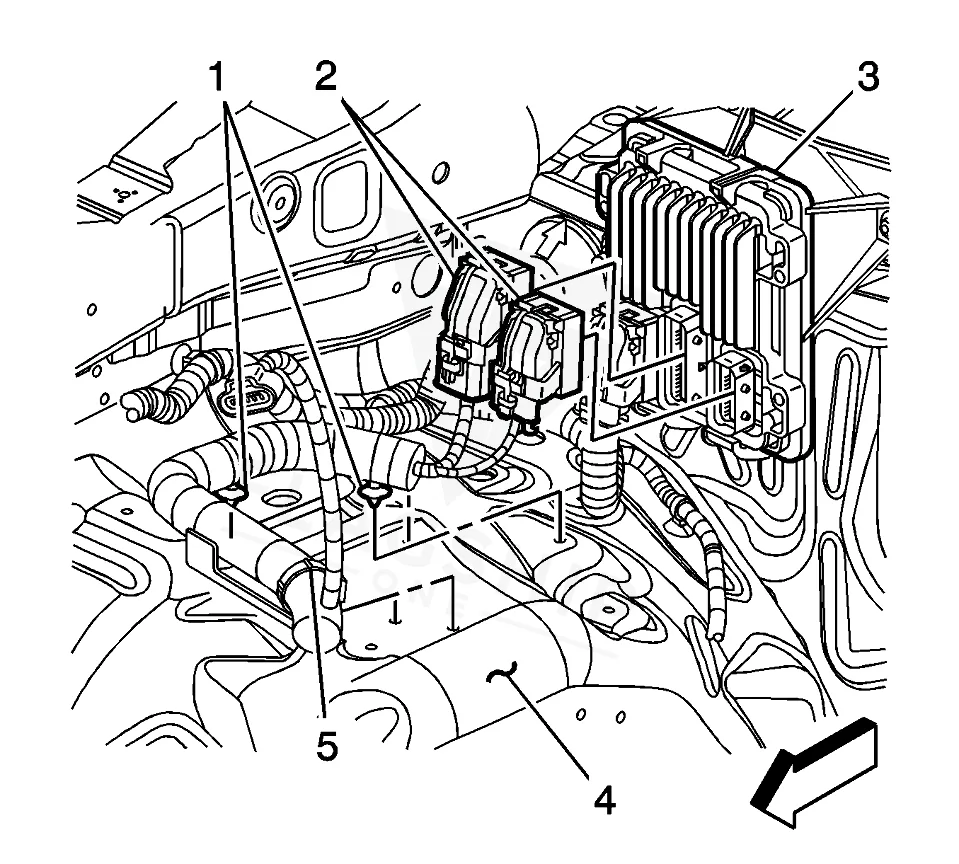

Where the PCM Is Located and What Replacement Involves
The PCM in the 2006 Chevrolet Colorado is typically mounted in the engine bay. Replacing it involves disconnecting the battery, removing the electrical connector, and disengaging the mounting bracket tabs. Factory labor time for PCM removal and reinstallation is 0.8 hours. After installation, a relearn procedure is required, which adds another 0.5 hours of labor. Care must be taken to avoid touching the connector pins or circuit board components to prevent electrostatic damage. Always capture the PCM data with a scan tool before removal to restore it to the new unit.
How to Reach the PCM on the 2006 Chevrolet Colorado
- Remove the faulty PCM and install the new service PCM.
- Remove any debris from around the control module connector.
- Disconnect the PCM harness connectors from the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM in your 2006 Chevrolet Colorado, the factory requires a reprogramming procedure to restore vehicle-specific data. This includes performing a CKP variation learn and using the Service Programming System (SPS) if the module needs updates. However, a VIN-programmed replacement unit from Flagship One arrives ready to install, eliminating the need for these additional steps. This ensures your vehicle’s engine and transmission operate correctly without further programming delays.
Symptoms of a Failing PCM
A failing PCM in the 2006 Chevrolet Colorado may cause a variety of symptoms. You might notice the engine stalling, reduced power, or difficulty starting. Warning lights, such as the check engine or service engine soon light, may illuminate, often accompanied by trouble codes. Common codes include internal control module memory checksum error, which indicates a potential internal failure. Other signs may include erratic shifting, poor fuel economy, or a complete loss of communication with diagnostic tools. If these symptoms appear, the PCM should be inspected promptly.
Module Trouble Codes on the 2006 Chevrolet Colorado
The 2006 Chevrolet Colorado may store specific trouble codes when the PCM fails. These codes help diagnose internal module issues and guide repairs.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2006 Chevrolet Colorado address PCM-related concerns. Bulletin #05-06-04-060 covers multiple trouble codes, including P0601, P0602, P0603, P0604, and P1621, which may appear in the PCM or other control modules. Bulletin #07-06-04-003 focuses on reduced engine power, warning lights, and codes like P1516, P2135, and P2138, often resolved by PCM replacement. These bulletins highlight common failure patterns and recommended fixes for this vehicle.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
| 07-06-04-003 | LSJ, L61, LK5, L52, LL8 Engine – Reduced Engine Power, MIL/SES Light, DTC P1516, P2135, P2138 ( | — |
Protecting the PCM in Your 2006 Chevrolet Colorado
- Maintain a healthy charging system to prevent voltage spikes that may damage the PCM.
- Keep electrical connectors clean and securely fastened to avoid intermittent faults.
- Avoid jump-starting with improper voltage, as it can harm sensitive electronics.
- Address trouble codes promptly to prevent cascading failures in related systems.
- Ensure the PCM connector seals remain intact to protect against moisture and corrosion.
Frequently Asked Questions
How do I know if my 2006 Chevrolet Colorado PCM is failing?
Common signs include stalling, reduced power, or warning lights. Trouble codes like P0601 or P0606 may also appear. If the vehicle fails to communicate with a scan tool, the PCM could be the issue. Testing other components first can help rule out simpler problems.
Can I replace the PCM in my 2006 Colorado myself?
Replacement is straightforward if you’re comfortable with basic tools and electrical work. However, the factory requires capturing PCM data before removal and performing a relearn procedure afterward. A professional shop can handle these steps if you’re unsure.
Why does the 2006 Colorado PCM need reprogramming after replacement?
The PCM stores vehicle-specific data, including fuel maps and transmission calibrations. Reprogramming ensures the new module matches your vehicle’s configuration. Skipping this step may result in poor performance or drivability issues.
If your 2006 Chevrolet Colorado is showing signs of PCM failure, you have options. A repair shop can diagnose and replace the module, but labor and programming costs can add up. Alternatively, a pre-programmed replacement unit simplifies the process, reducing downtime and ensuring your vehicle runs as intended without additional programming steps.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Chevrolet Colorado with a lifetime warranty, free shipping and no core charge. The full Chevrolet Colorado module lineup covers other engine configurations as well.
Final Thoughts
The 2006 Chevrolet Colorado relies on its PCM for smooth engine and transmission operation. If you’re experiencing drivability issues or warning lights, addressing the PCM early can prevent further complications. Whether you choose a repair or a pre-programmed replacement, understanding the process helps you make the best decision for your vehicle.
