2005 Chevrolet Colorado PCM Replacement, Relearn and Programming Overview
In the 2005 Chevrolet Colorado, the powertrain control module (PCM) manages engine and transmission functions. Failure typically disrupts fuel delivery, shift timing, and diagnostic communication, leading to loss of power, stalling, or error lights.
Quick Summary
- PCM removal requires a scan tool to back up data before disconnection.
- Replacement involves disengaging the bracket tabs and avoiding contact with connector pins.
- After install, both PCM and ECM relearn cycles of 0.5 hours each are needed.
- CKP variation learn must be performed if programming occurs.
When a 2005 Chevrolet Colorado experiences erratic acceleration, a lingering Service Engine Soon light, or diagnostic trouble codes, the powertrain control module often lies at the core of the issue. This guide walks you through what the PCM does, how to access and replace it, and the post‑install steps required to restore full vehicle function. By following these steps, you can understand the process and make an informed decision about repair or replacement.
What the PCM Does in a 2005 Chevrolet Colorado
The PCM in a 2005 Chevrolet Colorado serves as the central computer that coordinates engine timing, fuel injection, and transmission shift commands. It translates sensor inputs into actions that keep the powertrain operating smoothly, which is why any malfunction can affect drivability. Proper operation is essential for emissions compliance and fuel efficiency. The module also stores calibration data that must be preserved during service, making careful handling critical. replacement PCM for the Colorado ensures the vehicle returns to factory specifications after a swap.

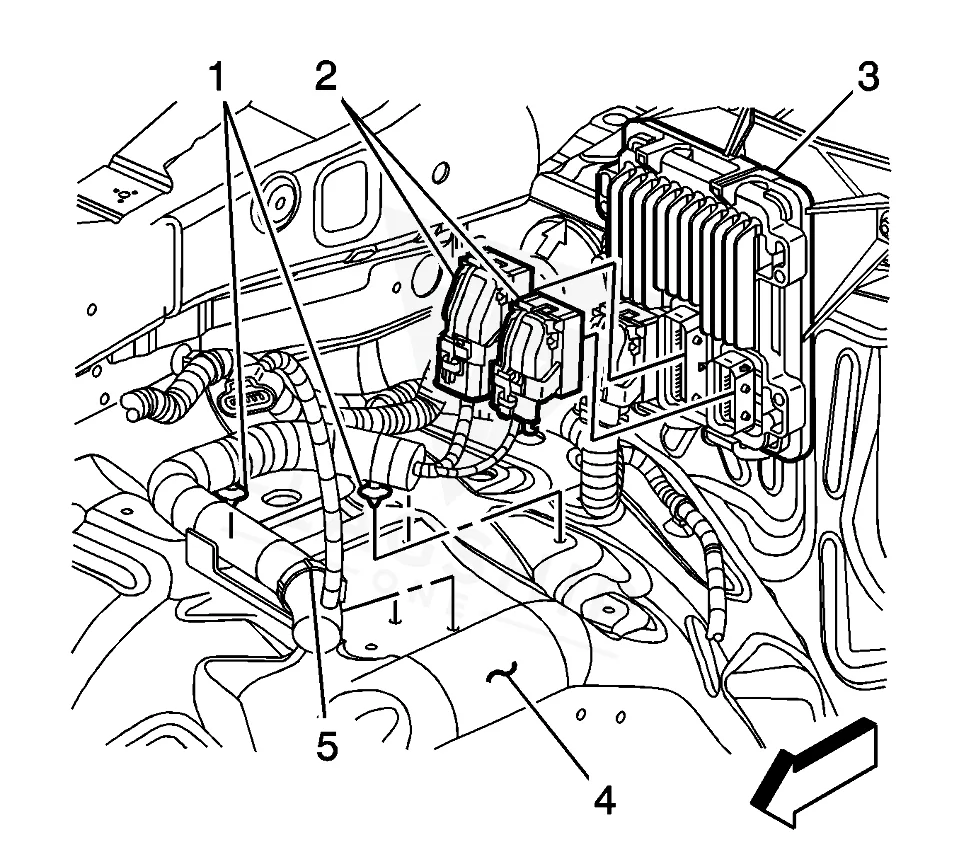

Where the PCM Is Located and What Replacement Involves
The PCM is mounted within the engine compartment, secured by a bracket with removable tabs. To replace it, first disconnect the battery, then use a scan tool to capture existing PCM data as mandated by factory caution. After disengaging the bracket tabs, remove the module without touching the connector pins or soldered components to avoid ESD damage. Reinstall the new unit, reattach the bracket, and reconnect the battery. Labor times are listed as 0.8 hours for removal and installation of the PCM and an additional 0.5 hours for the required relearn procedure.
How to Reach the PCM on the 2005 Chevrolet Colorado
- Remove the faulty PCM and install the new service PCM.
- Remove any debris from around the control module connector.
- Disconnect the PCM harness connectors from the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory guidelines state that after installing a new PCM, you must capture and restore the original data, then perform a CKP variation learn. Flagship One supplies units that arrive pre‑programmed to the vehicle’s VIN, so those steps are already completed. You still need to run the PCM relearn for 0.5 hours and verify proper operation. a VIN-programmed replacement unit simplifies the process by eliminating the need for on‑site coding.
Symptoms of a Failing PCM
Typical signs of a failing PCM in this model include a persistent Service Engine Soon light, reduced power, rough idle, and transmission shift irregularities. Diagnostic trouble codes such as processor clock fault often appear, indicating internal communication errors. Drivers may also notice difficulty starting the engine or intermittent loss of sensor data, which can lead to stalling or no‑start conditions.
Module Trouble Codes on the 2005 Chevrolet Colorado
The following internal trouble codes have been documented for the 2005 Chevrolet Colorado and may appear when the PCM or related modules detect a fault:
Factory Service Bulletins Worth Knowing
Service bulletin #04-07-30-039 and its amendment #04-07-30-039A advise diagnosing DTC P0756, inspecting for debris, and reprogramming the PCM when the SES light is on with poor acceleration. Bulletin #05-06-04-060 addresses shared DTCs P0601 through P0604, P1621, and related codes across the PCM, ECM, and transmission modules, recommending thorough diagnostic checks.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-07-30-039 | Diagnostic Trouble Code (DTC) P0756, Service Engine Soon (SES) Light ON, Poor Performance/Accel | Some customers may comment about the SES light being on, poor performance and/or poor |
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
Protecting the PCM in Your 2005 Chevrolet Colorado
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean ground connections and sensor plugs regularly.
- Use proper jump‑start procedures to prevent excessive voltage.
- Address diagnostic codes promptly before they cascade.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
Can I replace the PCM on my 2005 Chevrolet Colorado without a scan tool?
A scan tool is needed to back up the existing PCM data before removal, as required by the factory caution. Skipping this step may require additional reprogramming later.
What relearn procedures are required after installing a new PCM in this vehicle?
Both the PCM and ECM relearn cycles, each taking about 0.5 hours, must be performed, followed by the CKP variation learn if programming is involved.
Do Flagship One PCM replacements need any on‑site programming?
Flagship One units arrive VIN‑programmed, so the factory‑required data restoration and coding are already completed, leaving only the relearn steps.
When the PCM in a 2005 Chevrolet Colorado fails, you can choose a new factory‑spec unit or a refurbished replacement that meets the same performance standards. Both options require the same removal steps and post‑install relearn, but a refurbished part may offer cost savings while still delivering reliable operation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Chevrolet Colorado with a lifetime warranty, free shipping and no core charge. The full Chevrolet Colorado module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM in your 2005 Chevrolet Colorado involves careful data capture, proper mounting, and required relearn procedures. Whether you opt for a new or refurbished unit, following the outlined steps helps ensure your vehicle returns to normal performance.
