2006 BMW 5 Series ECM/PCM Replacement & Common Failure Signs
The engine control module (ECM) or powertrain control module (PCM) in your 2006 BMW 5 Series manages fuel delivery, ignition timing, and emissions systems. Failures may cause stalling, misfires, or a no-start condition.
Quick Summary

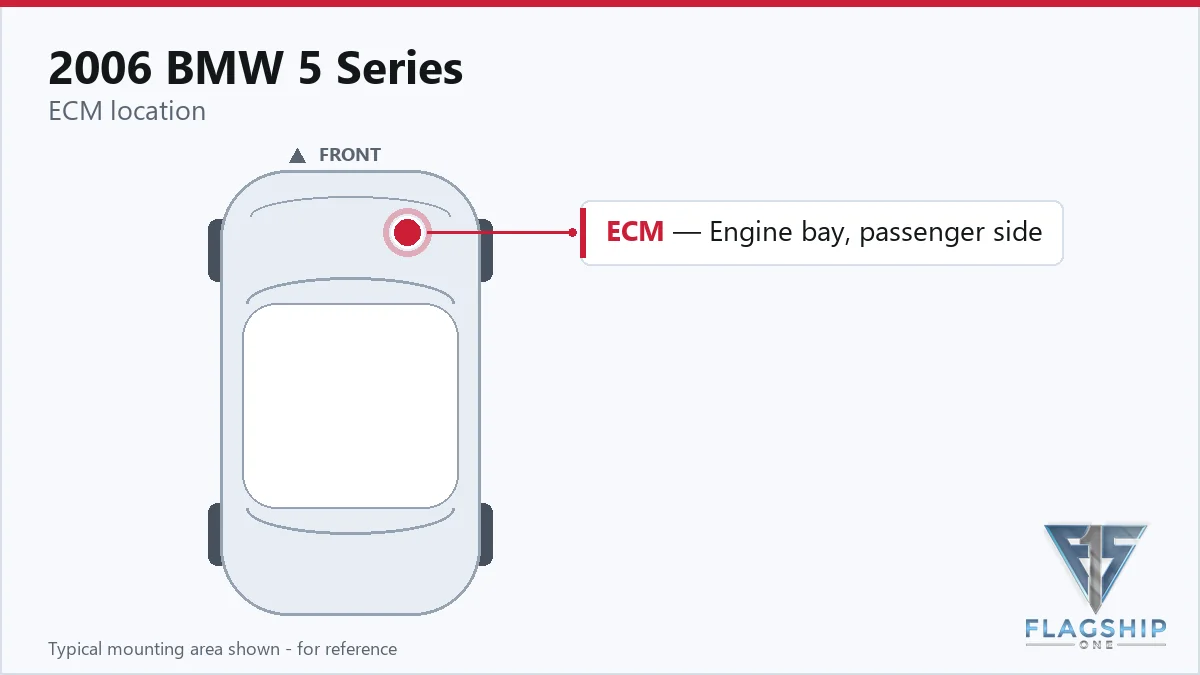

- The ECM/PCM in the 2006 BMW 5 Series is located in the electronics box (E-box) in the engine compartment.
- Replacement typically requires 0.6 hours for removal and installation, plus 0.5 hours for relearn procedures.
- Factory cautions emphasize ESD protection and fault memory checks before servicing.
- Programming is required after replacement, but Flagship One units arrive VIN-ready.
- Common symptoms include check engine lights, stored faults, and drivability issues.
If your 2006 BMW 5 Series is experiencing erratic engine behavior, a faulty engine control module (ECM) or powertrain control module (PCM) may be the cause. These critical components regulate fuel, ignition, and emissions systems, and their failure can lead to poor performance or even a no-start condition. Understanding the replacement process, labor requirements, and symptoms of failure helps you make informed decisions. This guide covers what the module does, where it’s located, and what to expect during replacement, including factory-required programming steps that are already handled with a pre-programmed unit.
What the PCM Does in a 2006 BMW 5 Series
In your 2006 BMW 5 Series, the ECM/PCM acts as the brain of the engine and transmission, coordinating fuel injection, ignition timing, and emissions controls. A malfunctioning module may disrupt these systems, leading to poor throttle response, stalling, or stored fault codes. Replacing it requires careful handling to avoid electrostatic damage, and the vehicle relies on precise calibration to operate correctly. When sourcing a replacement, engine control modules for the 5 Series ensure compatibility and proper function, as these units must match the vehicle’s specific configuration.
What Replacing the PCM Involves
How to Reach the PCM on the 2006 BMW 5 Series
- Release bolts.
- Remove electronics box cover.
- Unlock and detach all plug connections on DME control unit.
- Unlock DME control unit and remove.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM/PCM in your 2006 BMW 5 Series, the factory requires a 0.5-hour relearn procedure to synchronize the module with the vehicle’s systems. This step ensures proper communication with sensors and other control units. However, when using a VIN-programmed replacement unit, this process is already completed, saving you time and potential calibration errors. Always verify that the new module matches your vehicle’s specifications before installation.
Symptoms of a Failing PCM
A failing ECM/PCM in your 2006 BMW 5 Series may trigger symptoms like a check engine light, rough idling, or intermittent stalling. You might also notice poor acceleration or transmission shifting issues, as the module controls both engine and gearbox functions. Common fault codes, such as internal control module memory checksum error, often indicate internal module failure. If your scan tool shows communication errors or multiple unrelated codes, the ECM/PCM may be the root cause.
Factory Service Bulletins Worth Knowing
A factory service bulletin addresses check engine light illumination with faults stored in the DME/ECM of the 2006 BMW 5 Series. The recommended service action involves reprogramming the control units via OBD to resolve the issue. This procedure may restore proper function without requiring module replacement, depending on the severity of the fault.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Check Engine Light Illuminated, Faults Stored in DME/ECM | — |
| — | Service Action: Program Control Units – DME (OBD) | — |
Protecting the PCM in Your 2006 BMW 5 Series
- Maintain a stable charging system to avoid voltage spikes that can damage the ECM/PCM.
- Keep electrical connections clean and secure, especially in the engine compartment.
- Address check engine lights promptly to prevent cascading issues.
- Avoid jump-starting with improper voltage, as it may harm sensitive electronics.
- Ensure the E-box cover is properly sealed to prevent moisture intrusion.
- Use dielectric grease on connectors to protect against corrosion.
Frequently Asked Questions
How do I know if my 2006 BMW 5 Series ECM is bad?
Common signs include a no-start condition, stalling, or a check engine light with stored fault codes. If your scan tool shows communication errors or multiple unrelated codes, the ECM may be failing. A professional diagnosis can confirm the issue.
Can I replace the ECM/PCM in my 2006 BMW 5 Series myself?
Replacement is possible if you follow factory procedures, including ESD protection and proper relearn steps. However, programming is required afterward, which may necessitate professional tools. A pre-programmed unit simplifies the process.
What happens if I don’t relearn the ECM after replacement in my 2006 BMW 5 Series?
Without a relearn procedure, the new module may not communicate correctly with the vehicle’s sensors, leading to poor performance, shifting issues, or a no-start condition. Factory guidelines specify this step to ensure proper function.
If your 2006 BMW 5 Series requires an ECM/PCM replacement, you have options. A new or refurbished module can restore proper function, but ensure it’s programmed to your VIN to avoid additional labor. Pre-programmed units eliminate the need for post-install calibration, saving time and reducing potential errors.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 BMW 5 Series with a lifetime warranty, free shipping and no core charge. The full BMW 5 Series module lineup covers other engine configurations as well.
Final Thoughts
A faulty ECM/PCM in your 2006 BMW 5 Series can lead to frustrating drivability issues, but replacement is straightforward with the right preparation. Whether you opt for a new or refurbished unit, ensure it’s properly programmed to match your vehicle’s specifications. Addressing the problem promptly can restore smooth operation and prevent further complications.
