2004 BMW 5 Series (2.5L) PCM/ECM Replacement & Programming Guide
The engine control module (ECM), also called the DME (Digital Motor Electronics), manages fuel injection, ignition timing, and emissions on your 2004 BMW 5 Series (2.5L). Failure typically causes a Check Engine Light, stored fault codes, and drivability issues like stalling or poor performance.
Quick Summary

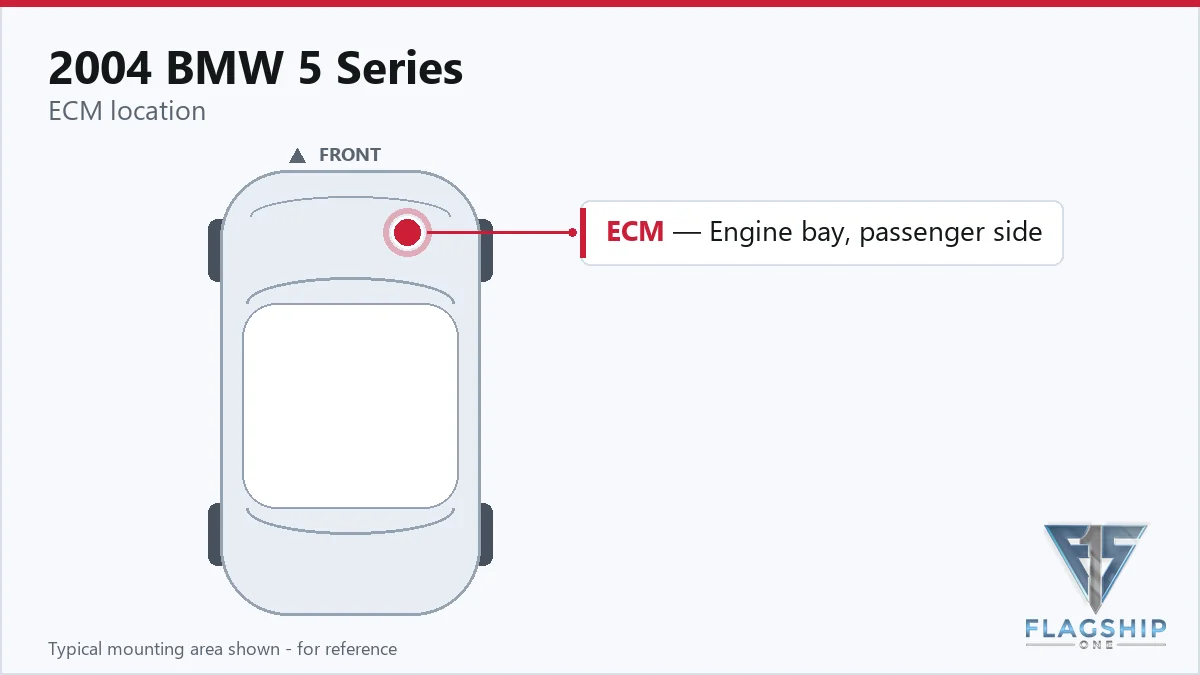

- The ECM is located in the E-box in the engine compartment, accessed by unlocking the cover with a slide and releasing two bolts.
- Factory labor time for ECM removal and replacement is 0.6 hours, plus a 0.5-hour relearn procedure.
- A service bulletin addresses Check Engine Light illumination with faults stored in the DME/ECM.
- Electrostatic discharge (ESD) protection must be observed during handling.
- Flagship One supplies units pre-programmed to your VIN, eliminating the factory relearn step.
If your 2004 BMW 5 Series (2.5L) has a Check Engine Light on and the scan tool shows faults in the DME (Digital Motor Electronics), the engine control module may need replacement. This guide explains what the ECM does, where it is located, and what the factory procedure requires for removal, installation, and programming. You will learn the labor times involved, the necessary precautions, and how a pre-programmed replacement unit can save you the post-install relearn step. The information here is based on factory service data and a relevant service bulletin.
What the PCM Does in a 2004 BMW 5 Series
The engine control module (ECM) in your 2004 BMW 5 Series (2.5L) is the central computer that manages fuel delivery, ignition timing, idle speed, and emissions controls. It receives signals from sensors like the crankshaft position sensor and oxygen sensors, then adjusts actuators such as fuel injectors and the throttle. When the ECM fails, it may stop communicating with the scan tool or store incorrect data, leading to a Check Engine Light and drivability problems. The module is part of the DME system and is specific to your vehicle’s engine and transmission configuration. If you need a replacement, you are looking for replacement engine computers for the 2004 BMW 5 Series that match the original part number and software calibration.
What Replacing the PCM Involves
How to Reach the PCM on the 2004 BMW 5 Series
- Release bolts.
- Remove electronics box cover.
- Unlock and detach all plug connections on DME control unit.
- Unlock DME control unit and remove.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2004 BMW 5 Series (2.5L), the factory procedure requires a relearn process that takes 0.5 hours. This step synchronizes the module with the vehicle’s immobilizer, throttle adaptation, and other learned values. Without it, the engine may not start or may run poorly. Flagship One provides a VIN-programmed replacement unit that arrives with the correct software already loaded, so the relearn step is already completed. This means you can install the module and start the engine without needing a dealer scan tool or additional programming time.
Symptoms of a Failing PCM
Common failure symptoms of the ECM in a 2004 BMW 5 Series (2.5L) include a no-start condition where the engine cranks but does not fire, intermittent stalling while driving, misfire codes that return after clearing, and a Check Engine Light that stays on. The scan tool may show a loss of communication with the DME module. In some cases, the vehicle may enter a limp-home mode with reduced power. Transmission shifting may also become erratic if the ECM is not sending proper signals to the transmission control unit. Addressing these symptoms promptly can prevent secondary damage to sensors or wiring.
Factory Service Bulletins Worth Knowing
A factory service bulletin addresses the condition of a Check Engine Light illuminated with faults stored in the DME/ECM. The bulletin notes that the faults may be related to internal module issues or communication errors. While no specific bulletin number is provided in the available data, the guidance includes reading fault memory before replacement and following ESD precautions. This bulletin reinforces the importance of proper diagnosis before replacing the ECM.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Check Engine Light Illuminated, Faults Stored in DME/ECM | — |
Protecting the PCM in Your 2004 BMW 5 Series
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the ECM.
- Keep engine ground straps and module connector terminals clean and tight to ensure reliable electrical contact.
- Avoid jump-starting the vehicle with a running donor car; use a battery charger or follow the manufacturer’s jump-start procedure.
- Address any Check Engine Light or stored fault codes promptly to prevent further stress on the module.
- Inspect the E-box cover seal and connector gasket for cracks or moisture intrusion that could corrode pins.
Frequently Asked Questions
How do I know if the ECM is bad on my 2004 BMW 5 Series (2.5L)?
Common signs include a no-start condition, a Check Engine Light that stays on, and fault codes that point to internal module errors or communication loss. A professional scan tool can confirm if the DME is not responding or if the faults are consistent with a failed ECM.
Can I replace the ECM myself on a 2004 BMW 5 Series?
Yes, the removal and installation are straightforward if you have basic mechanical skills. The module is in the E-box in the engine compartment, accessed by unlocking the cover and removing two bolts. However, you must follow ESD precautions and the factory relearn procedure unless you use a pre-programmed unit.
What does the relearn procedure involve for a 2004 BMW 5 Series ECM?
The factory relearn takes 0.5 hours and typically requires a dealer-level scan tool to synchronize the new module with the immobilizer and throttle adaptation. A pre-programmed unit from Flagship One arrives with the VIN already set, so no relearn is needed.
When your 2004 BMW 5 Series (2.5L) needs an ECM, you have two main options: repair the original module or replace it with a refurbished unit. Repair may be possible for some internal faults, but replacement is often more reliable. A refurbished module that is pre-programmed to your VIN eliminates the factory relearn step, saving you the 0.5-hour labor and the need for a dealer scan tool.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 BMW 5 Series with a lifetime warranty, free shipping and no core charge. The full BMW 5 Series module lineup covers other engine configurations as well.
Final Thoughts
The engine control module in your 2004 BMW 5 Series (2.5L) is a critical component that manages engine performance. If you experience a Check Engine Light or drivability issues, proper diagnosis and replacement with a pre-programmed unit can restore reliable operation. Flagship One offers refurbished modules ready to install, so you can get back on the road quickly.
