2005 Dodge Neon PCM and ECM Replacement Guide
In the 2005 Dodge Neon, the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing, and transmission shift logic. Failure typically disrupts communication with the vehicle’s sensors, leading to loss of engine control and error codes.
Quick Summary
- PCM and ECM share the same housing next to the air cleaner, making access straightforward.
- Factory removal reaches the module without removing major components.
- Replacement labor is listed at 0.7 hours for the 2.4 L version.
- A post‑install relearn takes an additional 0.5 hours.
- Flagship One units arrive pre‑programmed, eliminating the need for on‑site coding.
When a 2005 Dodge Neon exhibits erratic engine behavior or communication loss, the powertrain control module and engine control module become likely suspects. Understanding how these computers operate, where they sit, and what steps follow a swap can help you decide between a repair or a refurbished replacement. This guide walks you through the essential facts so you can approach the job with confidence.
What the PCM Does in a 2005 Dodge Neon
The PCM/ECM in a 2005 Dodge Neon directs fuel injection, ignition timing, and transmission shift points based on sensor input. It also monitors internal diagnostics and reports faults to the scan tool. Maintaining accurate control is vital for smooth acceleration and emissions compliance. For owners seeking a swap, replacement powertrain control modules for the 2005 Dodge Neon provide a direct fit and retain original performance specifications.

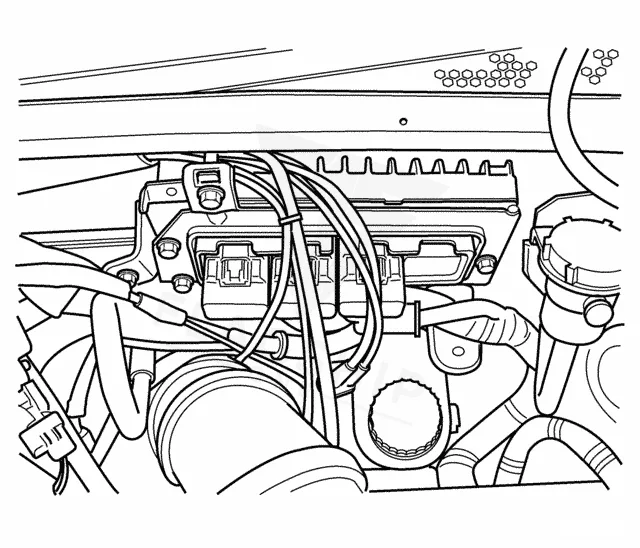

Where the PCM Is Located and What Replacement Involves
The control module sits beside the air cleaner assembly, allowing the factory removal method to reach it without extensive disassembly. Labor for removing and reinstalling the 2.4 L PCM or ECM is recorded as 0.7 hours. After the unit is secured, an additional 0.5 hours is allocated for the engine control module relearn procedure to ensure the new computer syncs with the vehicle’s sensors.
How to Reach the PCM on the 2005 Dodge Neon
- Disconnect the negative battery cable.
- Remove and relocate the air cleaner box ().
- Unlock and disconnect the electrical connectors (CONNECTORS INSTALLED) at the PCM.
- Remove the wiring harness clip () from the PCM bracket.
- Remove the mounting bolts from the bottom of the PCM bracket ().
- Remove the nut and bracket screws.
- Remove both parts.
- Remove the assembly, PCM and bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 2.0L | 0.5 hr |
| Powertrain Control Module R&R | 2.4L | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | 2.0L | 0.5 hr |
| Engine Control Module R&R | 2.4L | 0.7 hr |
Programming Requirements After Replacement
Factory service requires a post‑install relearn to synchronize the new module with the vehicle’s existing systems. Flagship One units arrive pre‑configured for the VIN, so a VIN-programmed replacement unit already satisfies that requirement, removing the need for on‑site programming steps.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the Neon include a no‑start condition, intermittent stalling, loss of power, and the appearance of diagnostic codes. You may also notice the scan tool unable to communicate with the vehicle’s computer. One common fault is communication failure which indicates internal processor trouble and often accompanies these symptoms.
Module Trouble Codes on the 2005 Dodge Neon
The following internal trouble codes are documented for the 2005 Dodge Neon’s control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0600 | Module-internal fault | Full P0600 guide → |
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #18-029-07 outlines a generic powertrain control module procedure for this model, providing guidance on removal, installation, and verification steps.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-029-07 | 18-029-07 Generic Powertrain Control Module (PCM) Procedure | — |
Protecting the PCM in Your 2005 Dodge Neon
- Maintain a healthy charging system to avoid voltage drops.
- Ensure all ground connections are clean and tight.
- Avoid high‑voltage spikes from improper jump‑starts.
- Address any diagnostic codes promptly.
- Inspect connector seals for moisture intrusion.
Frequently Asked Questions
Can I replace the PCM in my 2005 Dodge Neon myself?
The module is accessible next to the air cleaner, and labor time is modest, but you should have the proper diagnostic tools and follow the factory removal steps to avoid damage.
What error codes indicate a PCM failure on a 2005 Dodge Neon?
Codes P0600 and P0601 are commonly associated with internal PCM communication problems and should be investigated when the engine exhibits no‑start or stalling symptoms.
Do I need to program a new PCM after installation?
Factory procedures require a relearn, but a Flagship One VIN‑programmed unit eliminates the need for additional on‑site coding.
When the Neon’s control module fails, you can either have it repaired by a dealer or install a refurbished replacement that meets factory specifications. Both approaches restore the vehicle’s engine management, but a pre‑programmed unit can reduce downtime and simplify the post‑install process.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Dodge Neon with a lifetime warranty, free shipping and no core charge. The full Dodge Neon module lineup covers other engine configurations as well.
Final Thoughts
Whether you choose repair or a refurbished PCM/ECM, addressing the issue promptly will keep your 2005 Dodge Neon running reliably. Consider a Flagship One unit to streamline the installation and avoid extra programming steps.
