2004 Dodge Neon PCM and ECM Replacement Guide
The powertrain control module (PCM) in your 2004 Dodge Neon 2.0L is the main computer that manages engine timing, fuel delivery, and emissions. When it fails, the engine may not start, run poorly, or trigger internal fault codes like P0600 or P0601.
Quick Summary
- The PCM is located next to the air cleaner assembly for straightforward access.
- Factory labor time for PCM replacement on the 2.0L engine is 0.5 hours.
- After replacement, a factory relearn procedure is required to match the module to the vehicle.
- Common failure symptoms include no-start, stalling, and communication loss with a scan tool.
- A pre-programmed replacement unit eliminates the need for dealer-level programming.
If your 2004 Dodge Neon with the 2.0L engine is experiencing intermittent stalling, a no-start condition, or diagnostic trouble codes that point to the powertrain control module (PCM), you are likely facing a module replacement. The PCM is the brain of the engine management system, controlling ignition timing, fuel injectors, and emissions components. When it fails, the vehicle may become undrivable. This guide explains what the PCM does in your Neon, where it is located, what the factory replacement procedure involves, and how a pre-programmed unit can save you time and money. You will also learn about common failure symptoms and the internal trouble codes that indicate module failure.
What the PCM Does in a 2004 Dodge Neon
The powertrain control module in your 2004 Dodge Neon 2.0L is a sealed electronic unit that continuously monitors sensor inputs—such as crankshaft position, throttle position, and oxygen sensors—and adjusts engine operation accordingly. It also controls the automatic transmission shift points if equipped. When the PCM fails, the engine may lose spark or fuel delivery, causing a no-start condition. For this vehicle, replacement PCMs for the 2004 Neon are available as either new factory units or remanufactured modules that have been tested and programmed. The module’s internal memory stores adaptive learning data, which is why a relearn procedure is necessary after installation. Without a functioning PCM, the Neon cannot run properly, making it a critical component for daily driving.
Where the PCM Is Located and What Replacement Involves

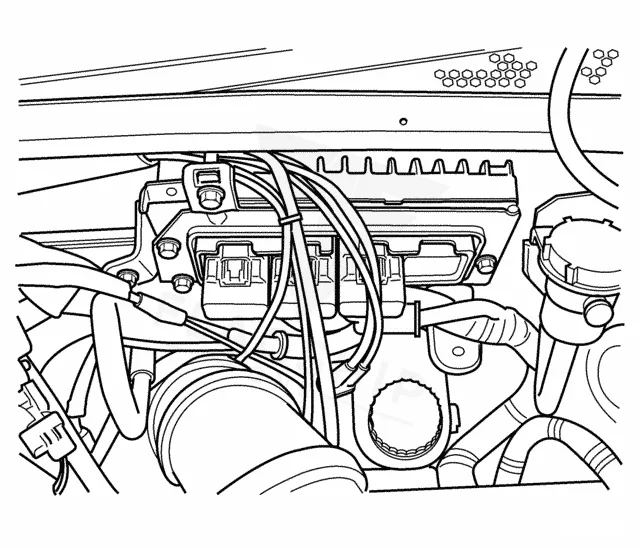

The PCM on the 2004 Dodge Neon 2.0L is located next to the air cleaner assembly, according to the factory removal procedure. Access typically involves removing the air cleaner housing and possibly a cover or bracket. The factory book time for replacing the PCM on the 2.0L engine is 0.5 hours. For the 2.4L engine variant, the book time is 0.7 hours. The procedure includes disconnecting the battery, unplugging the electrical connectors, removing mounting bolts, and installing the new module. After installation, the system requires a relearn procedure to synchronize the module with the vehicle’s security and emissions systems. The labor time does not include diagnostic time or the relearn process itself.
How to Reach the PCM on the 2004 Dodge Neon
- Disconnect the negative battery cable.
- Remove and relocate the air cleaner box ().
- Unlock and disconnect the electrical connectors (CONNECTORS INSTALLED) at the PCM.
- Remove the wiring harness clip () from the PCM bracket.
- Remove the mounting bolts from the bottom of the PCM bracket ().
- Remove the nut and bracket screws.
- Remove both parts.
- Remove the assembly, PCM and bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 2.0L | 0.5 hr |
| Powertrain Control Module R&R | 2.4L | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | 2.0L | 0.5 hr |
| Engine Control Module R&R | 2.4L | 0.7 hr |
Programming Requirements After Replacement
After installing a new or remanufactured PCM in your 2004 Dodge Neon, the factory procedure requires an engine control module relearn, which takes an additional 0.5 hours of labor. This relearn involves a specific drive cycle to teach the module the vehicle’s idle and fuel trim parameters. However, when you purchase a VIN-programmed replacement unit from Flagship One, the module arrives with your vehicle’s VIN and calibration data already loaded. That means the dealer-level programming step is already completed, and you can proceed directly to the relearn drive cycle. This saves you the time and expense of a trip to the dealership for initial programming.
Symptoms of a Failing PCM
Common symptoms of a failing PCM in a 2004 Dodge Neon include the engine cranking but not starting, intermittent stalling while driving, misfire codes that do not clear, and a complete loss of communication with a scan tool. You may also notice erratic transmission shifting or the check engine light illuminating with internal module codes. One specific fault that can appear is serial communication fault P0601, which indicates an internal memory error within the PCM. Other symptoms include the cooling fan running constantly, the vehicle entering a limp-home mode, or the fuel pump not priming. If you experience any of these issues and have ruled out wiring and sensor problems, the PCM itself is likely the cause.
Module Trouble Codes on the 2004 Dodge Neon
The following diagnostic trouble codes are documented as module-internal faults for the 2004 Dodge Neon. These codes indicate a problem within the PCM itself rather than a sensor or circuit issue, and they typically require module replacement.
| Code | Meaning | Full Guide |
|---|---|---|
| P0600 | Module-internal fault | Full P0600 guide → |
| P0601 | Internal memory checksum error | Full P0601 guide → |
Protecting the PCM in Your 2004 Dodge Neon
- Keep the battery and charging system in good condition; voltage spikes from a failing alternator can damage the PCM.
- Ensure all ground connections and PCM connectors are clean, tight, and free of corrosion.
- Avoid jump-starting the vehicle with a running donor car; use a battery pack or follow proper jump-start procedures to prevent voltage surges.
- Address any diagnostic trouble codes promptly, especially P0600 or P0601, before they lead to complete module failure.
- Inspect the PCM connector seal and housing for moisture intrusion, which can cause internal corrosion.
Frequently Asked Questions
How do I know if the PCM in my 2004 Dodge Neon 2.0L is bad?
Common signs include a no-start condition, stalling, or the check engine light showing codes P0600 or P0601. You may also lose communication with a scan tool. If you have verified power and grounds to the module and ruled out other components, the PCM is likely faulty.
Can I replace the PCM in my 2004 Dodge Neon myself?
Yes, the PCM is located next to the air cleaner assembly and is accessible with basic hand tools. The factory book time is 0.5 hours for the 2.0L engine. However, you will need to perform a relearn procedure after installation, or purchase a pre-programmed unit to avoid dealer programming.
What does the engine control module relearn involve for a 2004 Neon?
The factory relearn procedure takes about 0.5 hours and typically requires a specific drive cycle that includes idling, acceleration, and deceleration to allow the PCM to adapt to the vehicle’s sensors and fuel trims. A pre-programmed unit from Flagship One eliminates the need for initial programming but still requires the relearn drive cycle.
When your 2004 Dodge Neon 2.0L needs a new PCM, you have two main options: a factory replacement that requires dealer programming, or a remanufactured unit that arrives pre-programmed to your VIN. The latter saves you the additional labor and cost of a dealership visit. Flagship One offers remanufactured PCMs for the Neon that are tested and ready to install, with the relearn drive cycle as the only remaining step.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Dodge Neon with a lifetime warranty, free shipping and no core charge. The full Dodge Neon module lineup covers other engine configurations as well.
Final Thoughts
The powertrain control module is a vital component in your 2004 Dodge Neon 2.0L. Recognizing the symptoms of failure and understanding the replacement process can help you get back on the road quickly. Whether you choose a new or remanufactured unit, ensure it is properly programmed for your vehicle to avoid complications. Flagship One provides a convenient solution with VIN-programmed modules that simplify the repair.
