2004 Mitsubishi Lancer Evolution ECM Replacement and Programming Guide
The Engine Control Module (ECM) in the 2004 Mitsubishi Lancer Evolution is the main computer managing fuel, ignition, and boost. Failure often results from voltage spikes, heat, or age, leading to no-start, poor performance, or communication loss with diagnostic tools.
Quick Summary
- The ECM is located behind the glove box; access requires removing the glove box assembly and harness cover.
- Factory book time for ECM removal and replacement is 0.4 hours.
- After ECM installation, a Powertrain Control Module Relearn procedure is required, with a book time of 0.5 hours.
- When replacing immobilizer-related parts like the ECM, you must follow the factory glove box removal and installation procedure from GROUP 52A, INTERIOR.
- Flagship One supplies VIN-programmed units that eliminate the need for the post-installation relearn.
If you own a 2004 Mitsubishi Lancer Evolution with the 2.0L turbo engine, you know the importance of a properly functioning Engine Control Module. This computer governs everything from fuel delivery and ignition timing to boost control and emissions. When the ECM begins to fail, the car may exhibit frustrating symptoms like intermittent stalling, hard starting, or a complete no-start condition. Understanding what the ECM does, where it lives, and what replacement involves can save you time and money. This article explains the role of the ECM in your Lancer Evolution, describes the factory-recommended replacement procedure, and covers the programming steps required after installation. You will also learn common failure symptoms, diagnostic trouble codes, and practical tips to protect the module from premature failure. Whether you are a DIY owner or working with a shop, this information helps you make informed decisions about repairing or replacing the ECM in your 2004 Mitsubishi Lancer Evolution.
What the PCM Does in a 2004 Mitsubishi Lancer Evolution
The Engine Control Module in the 2004 Mitsubishi Lancer Evolution is a sophisticated computer that continuously monitors and adjusts engine parameters to optimize performance, fuel economy, and emissions. It receives input from sensors such as the mass airflow sensor, throttle position sensor, crankshaft position sensor, and oxygen sensors, then calculates the correct fuel injector pulse width, ignition timing, and boost pressure from the turbocharger. The ECM also controls the idle air control valve, variable valve timing, and the cooling fans. Because the Lancer Evolution is a high-performance turbocharged vehicle, the ECM’s role is especially critical; any malfunction can lead to reduced power, poor drivability, or even engine damage. When the ECM fails, it often cannot be repaired and must be replaced with a known-good unit. For owners seeking replacement ECMs for the Lancer Evolution, it is essential to choose a module that is pre-programmed with the correct calibration for your specific vehicle. The ECM also communicates with the immobilizer system, so replacement units must be properly matched to the vehicle’s security module to enable starting.
Where the PCM Is Located and What Replacement Involves

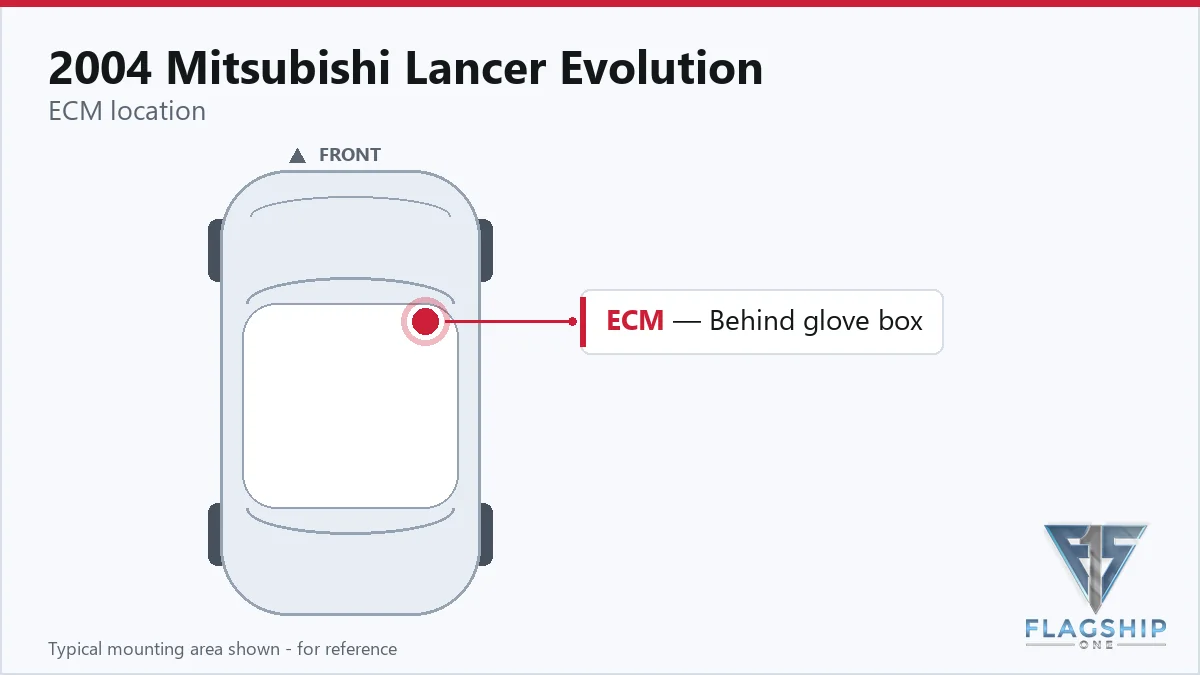

The ECM on the 2004 Mitsubishi Lancer Evolution is mounted behind the glove box on the passenger side of the dashboard. To access it, you must first remove the glove box assembly, then remove the harness cover that protects the module and its wiring. The factory book time for ECM removal and replacement is 0.4 hours, which reflects the straightforward access once the interior trim is out of the way. A critical caution from the factory: when replacing any immobilizer system related parts—and the ECM is considered such a part—you must follow the pre-removal and post-installation operation for glove box assembly removal and installation as described in GROUP 52A, INTERIOR. This ensures that the immobilizer system remains synchronized and that no damage occurs to the trim or wiring. After installing the new ECM, the factory procedure requires a Powertrain Control Module Relearn, which has a book time of 0.5 hours. This relearn allows the ECM to adapt to the vehicle’s specific components and driving conditions.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.4 hr |
Programming Requirements After Replacement
After replacing the ECM in a 2004 Mitsubishi Lancer Evolution, the factory procedure requires a Powertrain Control Module Relearn. This step typically takes 0.5 hours of labor and involves using a scan tool to reset adaptive values and allow the module to learn idle, fuel trim, and other parameters. Additionally, because the ECM is part of the immobilizer system, the replacement unit must be programmed to match the vehicle’s existing immobilizer code; otherwise, the engine may not start. Flagship One eliminates these post-installation steps by supplying a VIN-programmed replacement unit that arrives ready to install. The module is pre-loaded with the correct calibration and immobilizer data for your specific 2004 Lancer Evolution, so you can simply install it, reconnect the battery, and start the engine without needing a scan tool or dealer visit. This saves the 0.5-hour relearn time and avoids potential immobilizer-related issues.
Symptoms of a Failing PCM
A failing ECM in the 2004 Mitsubishi Lancer Evolution can produce a range of symptoms that mimic other problems. The most common sign is a no-start condition where the engine cranks but does not fire, often because the ECM is not sending fuel or spark commands. Intermittent stalling, especially during acceleration or when the engine is hot, is another frequent complaint. You may also notice poor performance such as hesitation, surging, or reduced power under boost. The check engine light may illuminate with codes related to fuel trim, ignition, or sensor circuits. A dead scan-tool communication—where a diagnostic tool cannot connect to the ECM—is a strong indicator of module failure. In some cases, the ECM may store a anchor text internal control module fault code, which points to a processor or memory issue. Other symptoms include erratic idle, misfire codes that do not clear, and transmission shifting problems in automatic models. If you experience any of these issues, diagnosing the ECM early can prevent being stranded.
Protecting the PCM in Your 2004 Mitsubishi Lancer Evolution
- Maintain a healthy charging system: keep the battery and alternator in good condition to avoid voltage spikes that can damage the ECM.
- Clean and tighten all ground connections and ECM connector pins annually, especially in regions with road salt or moisture.
- Avoid jump-starting the vehicle with a running donor car; instead, use a battery charger or follow the factory jump-start procedure to prevent voltage surges.
- Address any check engine light or drivability codes promptly; ignoring them can allow underlying issues to stress the ECM.
- Inspect the ECM connector seal and the harness cover for cracks or water intrusion; replace damaged seals to keep moisture out.
- Use a quality battery with the correct cold cranking amps and ensure the battery terminals are clean and tight to maintain stable voltage.
Frequently Asked Questions
How do I know if the ECM in my 2004 Mitsubishi Lancer Evolution is bad?
Common signs include a no-start condition, intermittent stalling, poor acceleration, and a check engine light with codes like P0601. If a scan tool cannot communicate with the ECM, that is a strong indicator of failure. However, always rule out wiring and sensor issues first.
Can I replace the ECM in my 2004 Lancer Evolution myself?
Yes, the ECM is accessible behind the glove box, and the factory book time for removal and replacement is 0.4 hours. You will need to remove the glove box assembly and harness cover. However, you must follow the immobilizer-related precautions and perform a Powertrain Control Module Relearn after installation unless you use a pre-programmed unit.
What is the Powertrain Control Module Relearn and why is it needed?
The relearn is a factory procedure that allows the new ECM to adapt to your vehicle’s specific components, such as idle speed and fuel trim. It takes about 0.5 hours of labor with a scan tool. Flagship One units come VIN-programmed, so this step is already completed.
Will a used ECM from a salvage yard work in my 2004 Lancer Evolution?
A used ECM may work, but it must be reprogrammed to match your vehicle’s immobilizer system and VIN. Without proper programming, the engine may not start. Additionally, used modules may have unknown internal faults. A new or refurbished VIN-programmed unit is more reliable.
What does the immobilizer system have to do with ECM replacement?
The ECM is part of the immobilizer system in the 2004 Lancer Evolution. When you replace the ECM, you must follow the factory glove box removal and installation procedure from GROUP 52A, INTERIOR to avoid damaging the immobilizer components. The new ECM must also be programmed with the correct immobilizer code to enable starting.
When your 2004 Mitsubishi Lancer Evolution needs a new ECM, you have two main options: have a shop perform the factory replacement procedure including the 0.5-hour relearn, or choose a pre-programmed replacement unit that skips that step. For a high-performance turbocharged vehicle like the Lancer Evolution, using a module that arrives ready to install can reduce downtime and eliminate immobilizer complications.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Mitsubishi Lancer Evolution with a lifetime warranty, free shipping and no core charge. The full Mitsubishi Lancer Evolution module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module in your 2004 Mitsubishi Lancer Evolution is a vital component that directly affects performance and reliability. Understanding its location, replacement procedure, and programming requirements helps you make the right choice when failure occurs. Whether you repair or replace, ensure the new ECM is properly matched to your vehicle for a trouble-free driving experience.
