2004 Kia Sorento PCM and ECM Replacement Guide
The powertrain control module in your 2004 Kia Sorento is the primary computer that manages engine and transmission functions. It processes data from dozens of sensors to control fuel delivery, ignition timing, and shift scheduling. When this module fails internally, your vehicle may not start, run poorly, or set unrelated fault codes.
Quick Summary
- Powertrain control module replacement on the 3.5L Sorento takes roughly 1.4 hours of book time for the R&R procedure alone.
- A separate relearn procedure adds another 0.5 hours after the new module is installed and powered up.
- The factory service procedure requires accessing the module through the intake manifold area.
- Units ordered from Flagship One arrive pre-programmed with your vehicle identification number, eliminating a step you would otherwise perform at the dealer.
- This module can fail without setting obvious fault codes, making diagnosis challenging when symptoms appear unrelated.
If your 2004 Kia Sorento has developed starting problems, intermittent stalling, or operates roughly with no clear explanation, the powertrain control module may be at fault. This computer coordinates nearly every aspect of how your 3.5L engine and automatic transmission function together. Unlike sensors that fail and trigger specific trouble codes, the module itself can degrade internally and produce vague or shifting symptoms that seem unrelated. This guide explains how the module operates in your Sorento, what replacement involves, and why choosing a pre-programmed replacement unit matters for your repair timeline and budget.
What the PCM Does in a 2004 Kia Sorento
The powertrain control module in your 2004 Kia Sorento serves as the central nervous system for the 3.5L V6 engine and its accompanying automatic transmission. This computer receives continuous data from the crankshaft position sensor, camshaft position sensors, mass airflow meter, throttle position sensor, and numerous other inputs. It uses this information to calculate real-time fuel injection pulses, spark advance angles, and transmission shift points. Without this module functioning correctly, your engine cannot maintain proper combustion, and the transmission may shift harshly or fail to shift at all.
replacement engine computers for the Sorento are engineered to the same specifications as the original equipment, but an aging or failed unit may deliver incorrect commands to actuators even when sensor inputs are normal. The module also stores calibration data specific to your vehicle, which is why any replacement must be matched to your Sorento’s exact configuration. When the internal processor or memory within this module degrades, symptoms can range from subtle drivability complaints to complete engine shutdown.

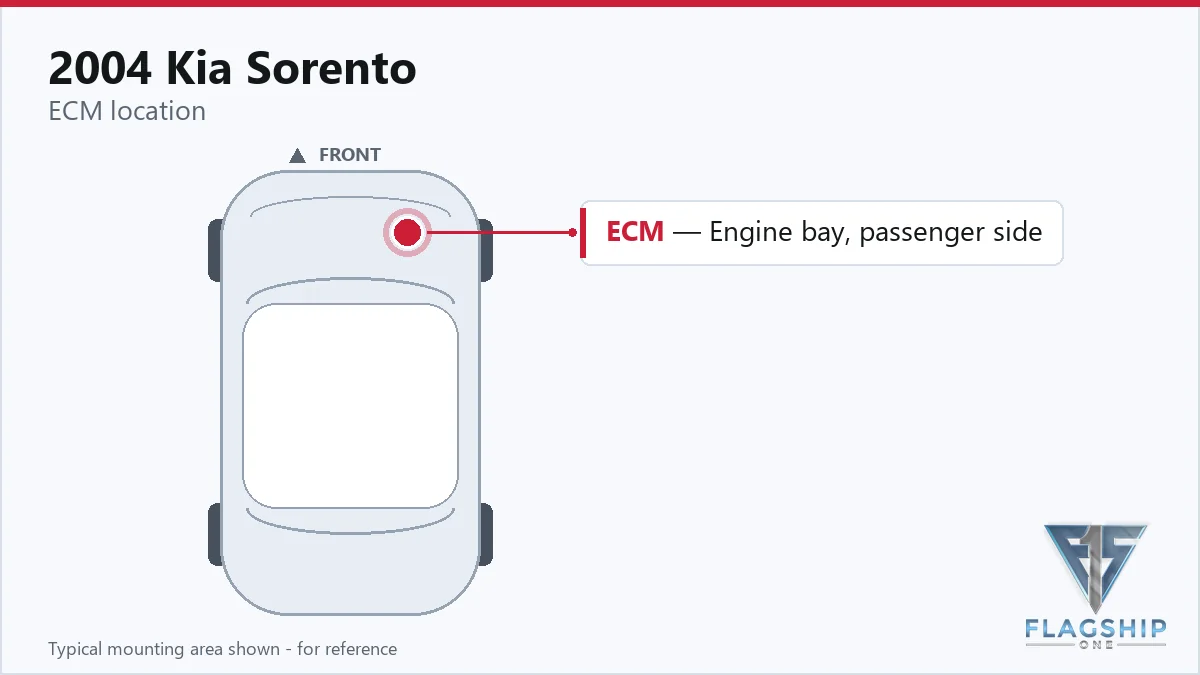

Where the PCM Is Located and What Replacement Involves
The factory service procedure directs technicians to access the control module by working through the intake manifold area in the engine bay. This location means the module is mounted in a region exposed to engine heat and vibration over time, which contributes to eventual wear. Labor book time for powertrain control module removal and installation on the 3.5L Sorento is listed at 1.4 hours. This figure covers the physical act of disconnecting the old unit, extracting it from its mounting location, and securing the new module in place. A separate relearn procedure requires an additional 0.5 hours of labor to complete the initialization process that allows the new module to synchronize with your vehicle’s unique sensor array and drivetrain characteristics.
How to Reach the PCM on the 2004 Kia Sorento
- Remove the water temperature sensor from the intake manifold.
- If the resistance deviates from the standard value greatly, replace the sensor.
- Apply sealant LOCTITE 962T or the equivalent to the threaded portion.
- Install the water temperature sensor and tighten it to the specified torque.
- Securely connect the harness connector.
- Connect the voltmeter between 1 and 4 of the MAP sensor connector.
- Measure the voltage of terminals.
- If the voltage deviates from the standard value, replace the MAP sensor assembly.
- Disconnect the throttle position sensor connector.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new powertrain control module in your 2004 Kia Sorento, the factory procedure requires a relearn process so the module can adapt to your specific vehicle calibration and verify communication with all downstream controllers. This post-installation step involves connecting a factory-grade diagnostic tool to the OBD-II port and running a sequence of tests that align the new module with your engine and transmission. If you obtain a replacement unit independently, you would normally need to complete this relearn procedure yourself or schedule time at a dealership.
Units from Flagship One arrive with your vehicle identification number already programmed into the module, so this step is completed before the part reaches your door. This means you can proceed directly to the physical installation without arranging dealer appointments or diagnostic tool access for the programming phase.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the powertrain control module begins failing in your 2004 Kia Sorento, symptoms often appear inconsistent or confusing compared to a straightforward sensor failure. You may experience intermittent no-start conditions where the engine cranks normally but refuses to fire, followed by normal starts on subsequent attempts. Stalling at idle or during deceleration frequently occurs without warning. Misfire-related trouble codes such as P0300 through P0306 may appear across multiple cylinders even when spark plugs and wires test normally.
Scan tool communication may become sluggish or fail entirely, preventing you from reading live data streams or clearing stored codes. The check engine light may illuminate for unrelated systems because the module cannot properly process incoming signals. Transmission shifting may feel harsh, delayed, or unpredictable as the module loses its ability to coordinate clutch apply and release sequences. In some cases, a failing module will set the P1330 ignition timing code, which relates to a malfunction in the circuits that control spark timing across the cylinders.
Factory Service Bulletins Worth Knowing
Bulletin SST037r1 provides the standard KDS reflash procedure for this vehicle, establishing the proper sequence for module initialization after replacement. This document outlines the steps technicians should follow to ensure the new module achieves proper communication with all vehicle systems before the repair is considered complete. Following this procedure helps prevent return visits caused by incomplete initialization of a newly installed unit.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | TSB • Body Electrical System • [ENG068] Intermittent MIL ON With No Fault Code Stored – Informa | — |
| — | TSB • General Information • [SST037r1] Standard KDS Reflash Procedure (SST037) (Rev 1) | — |
Protecting the PCM in Your 2004 Kia Sorento
- Maintain proper battery voltage by addressing weak or failing batteries promptly, as low voltage causes control module stress during startup cycles.
- Keep all electrical grounds clean and tight, checking ground straps near the engine and body regularly to prevent voltage irregularities from reaching the module.
- Avoid jump-starting your Sorento from vehicles with higher-output electrical systems, as voltage spikes can damage sensitive control module circuits.
- Address any stored trouble codes within a few days of appearance rather than ignoring the check engine light for extended periods.
- Protect the engine compartment wiring harness from chafing or heat damage, particularly near the intake manifold where the module is located.
- Verify that all electrical connectors remain fully seated after any repair work in the engine bay area.
Frequently Asked Questions
How do I know if my 2004 Kia Sorento needs a PCM or ECM replacement?
Diagnosis typically requires a professional scan tool capable of querying the module directly, as many control module failures produce no obvious sensor codes. A technician may observe abnormal data patterns, failed self-tests within the module, or communication errors that point to internal failure rather than a faulty sensor.
Can I install a used powertrain control module from a junkyard in my Sorento?
A used module would need to be reprogrammed with your vehicle identification number and calibration data, which requires expensive dealer-level equipment. The module may also carry unknown failure history that could leave you stranded again shortly after the repair.
What happens if I drive my Sorento with a failing control module?
Operation with a compromised module can range from inconvenient to dangerous. Your engine may stall unexpectedly in traffic, or the transmission may fail to shift properly, potentially causing engine damage from revving beyond safe limits or leaving you stranded.
Replacing the powertrain control module on your 2004 Kia Sorento involves both mechanical removal through the intake manifold area and electronic initialization to synchronize the new unit with your vehicle. Whether you pursue dealer service or an independent shop, understanding the labor steps and programming requirements helps you evaluate repair estimates accurately. A pre-programmed replacement unit eliminates one variable from your repair timeline, allowing the shop to focus on the physical installation rather than scheduling additional appointments for module initialization.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Kia Sorento with a lifetime warranty, free shipping and no core charge. The full Kia Sorento module lineup covers other engine configurations as well.
Final Thoughts
The powertrain control module is the brain of your 2004 Kia Sorento, and its failure can manifest as vague or alarming symptoms that seem disconnected from any single system. Replacing this component requires attention to both the mechanical access through the intake manifold and the electronic initialization afterward. Flagship One provides VIN-programmed replacement units for the Sorento, matching your specific vehicle configuration before the part ships. Contact us to confirm application and discuss your replacement options.
