2004 Ford Crown Victoria Powertrain Control Module Overview
In the 2004 Ford Crown Victoria the Powertrain Control Module manages engine and transmission functions, interpreting sensor data to control fuel, ignition, and shift timing. A failure often triggers the malfunction indicator lamp and stores diagnostic trouble codes such as P0460, indicating a problem with the evaporative emission system.
Quick Summary
- Engine Control Module relearn takes about half an hour of labor.
- Replacing the module also requires roughly half an hour for removal and installation.
- Factory diagnostics and testing of the powertrain control system are typically scheduled for 0.5 hours.
When your 2004 Ford Crown Victoria displays a illuminated malfunction indicator lamp and stores a diagnostic code, the powertrain control module is a common suspect. Understanding what this computer does, where it lives, and how it is serviced can help you make an informed decision about repair or replacement. This guide outlines the module’s role, typical labor times, and what to expect from a factory‑programmed replacement unit, so you can keep your vehicle running smoothly.
What the PCM Does in a 2004 Ford Crown Victoria
The Powertrain Control Module in the 2004 Ford Crown Victoria serves as the central brain for both engine and transmission operations, processing inputs from dozens of sensors to regulate fuel delivery, ignition timing, and shift points. Its proper function is essential for emissions compliance and drivability, and a malfunction can trigger the MIL and store codes like P0460. Replacing it often involves the same steps as a standard 2004 Ford Crown Victoria powertrain control module swap, ensuring the new unit integrates seamlessly with existing wiring and sensors.
Where the PCM Is Located and What Replacement Involves

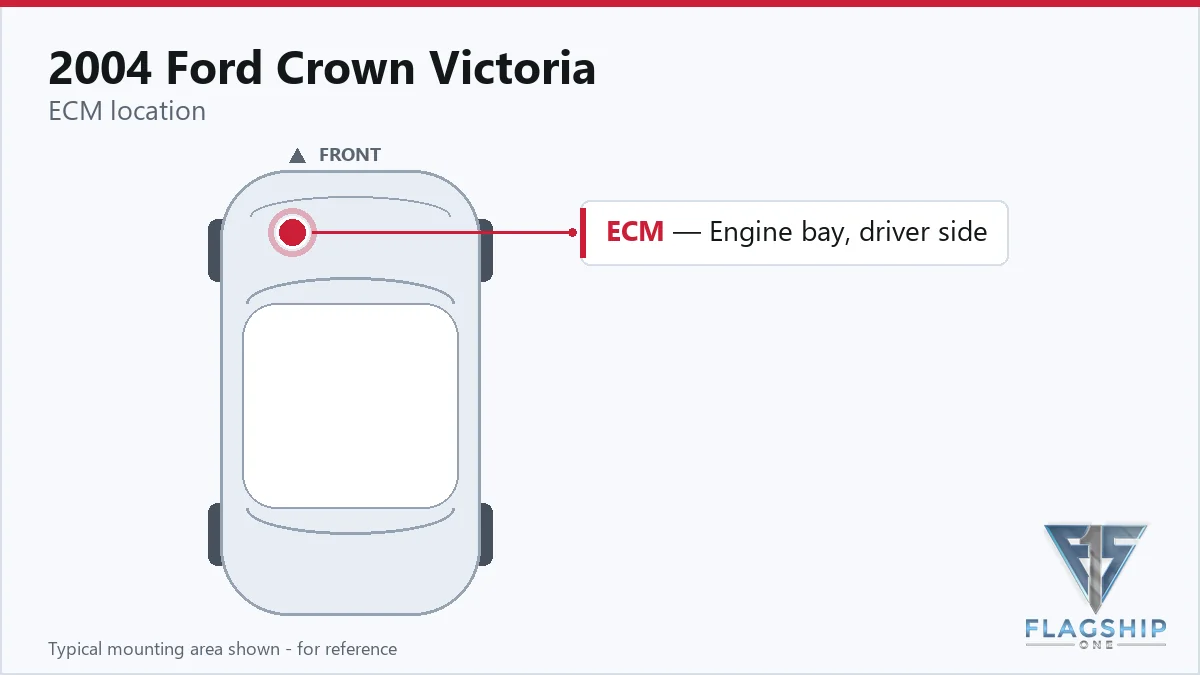

The powertrain control module is positioned in the engine compartment on the left‑hand side, as indicated by the factory component‑location index. Access typically requires removal of surrounding covers and disconnecting the electrical connector, after which the unit can be unbolted and replaced. The labor estimate for removal and installation is listed as 0.5 hours, reflecting the straightforward nature of the task when the component is located as described.
How to Reach the PCM on the 2004 Ford Crown Victoria
- Disconnect the battery ground cable.
- Loosen the bolt and remove the powertrain control module (PCM) electrical connector.
- Remove the PCM cover nuts.
- Remove the PCM cover.
- Remove the under dash sight cover.
- Remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control System Diagnosis & Testing | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for an Engine Control Module relearn, which also takes about 0.5 hours of technician time. Flagship One supplies units that arrive already VIN‑programmed, so this step is effectively completed before the part reaches your shop, eliminating the need for additional programming effort. The only remaining action is to verify the relearn process during final testing.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Typical signs of a failing powertrain control module in a 2004 Ford Crown Victoria include the check engine light staying illuminated, loss of power during acceleration, rough idle, or an inability to shift properly. In many cases the module will also lose communication with a scan tool, making diagnosis harder. Owners may see a stored evaporative purge fault which points to an issue in the emissions control circuit tied to the module’s operation.
Factory Service Bulletins Worth Knowing
Technical Service Bulletin #05-11-03 addresses situations where the malfunction indicator lamp is on and a P0460 code is stored, providing guidance for diagnosis and repair procedures specific to the 2004 Ford Crown Victoria.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 05-11-03 | MIL ON AND DTC P0460 IN MEMORY | — |
Protecting the PCM in Your 2004 Ford Crown Victoria
- Maintain a healthy charging system to avoid voltage irregularities.
- Keep ground connections and connector pins clean and corrosion‑free.
- Use proper jump‑start techniques to prevent voltage spikes.
- Address any stored trouble codes promptly before they worsen.
- Inspect and reseal connector housings to keep moisture out.
Frequently Asked Questions
What does the Powertrain Control Module do in a 2004 Ford Crown Victoria?
It processes sensor data to control fuel, ignition, and transmission functions, ensuring the engine runs efficiently and meets emissions standards.
How long does it take to replace the PCM on a 2004 Ford Crown Victoria?
The labor guide lists about half an hour for removal and another half an hour for installation, plus additional time for any required relearn procedures.
Will a VIN‑programmed replacement unit require any programming after installation?
No, Flagship One units arrive pre‑programmed for the vehicle’s VIN, so only the standard relearn step is needed during final verification.
When the powertrain control module in your 2004 Ford Crown Victoria needs attention, you can choose a repair that follows the factory service bulletin or opt for a refurbished replacement that matches the original specifications. Both paths aim to restore proper engine and transmission management while keeping emissions compliance intact.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Ford Crown Victoria with a lifetime warranty, free shipping and no core charge. The full Ford Crown Victoria module lineup covers other engine configurations as well.
Final Thoughts
The 2004 Ford Crown Victoria relies on a properly functioning powertrain control module for smooth operation. Whether you repair or replace, ensuring the module is correctly installed and programmed will help keep your vehicle reliable.
