2004 Chevrolet Malibu Classic ECM/PCM Replacement Guide

If your 2004 Chevrolet Malibu Classic (2.2L) won’t start, stalls unexpectedly, or runs poorly despite other repairs, the Engine Control Module may be the culprit. This computer manages critical engine functions including fuel delivery, ignition timing, emissions systems, and — in this model — automatic transmission operation. When the ECM fails, your vehicle may display multiple trouble codes, become difficult to restart after short trips, or simply refuse to crank. This guide explains what the module does, where it’s located, common failure symptoms, and the factory-recommended replacement procedure. You’ll learn what to expect during repair and why choosing a properly programmed replacement matters for getting your Malibu back on the road reliably.

What the PCM Does in a 2004 Chevrolet Malibu Classic

The Engine Control Module in your 2004 Chevrolet Malibu Classic serves as the brain of the engine management system. Unlike some vehicles that separate the engine computer (ECM) from the transmission controller (TCM), this model uses a Powertrain Control Module that integrates both functions. The PCM receives input from dozens of sensors throughout the engine and transmission, then adjusts fuel injector pulse width, ignition advance, automatic shift points, and emissions control devices in real time to maintain smooth operation while meeting federal emissions standards. This module also interfaces with the malfunction indicator lamp (MIL), commonly called the check engine light, to alert you when the OBD system detects a problem. In this specific vehicle, the PCM also controls the idle air bypass valve to maintain stable idle speed during warm-up and when electrical loads change. When the internal processor or memory within the module becomes corrupted or damaged, the entire system may default to a failsafe mode that prevents serious engine damage but leaves your vehicle inoperable. Replacement engine computers for the Malibu Classic must match the original calibration to ensure proper operation of all connected systems.

Flagship One keeps Chevrolet Malibu Classic replacement engine computers in stock for exactly this failure pattern.

Where the PCM Is Located and What Replacement Involves

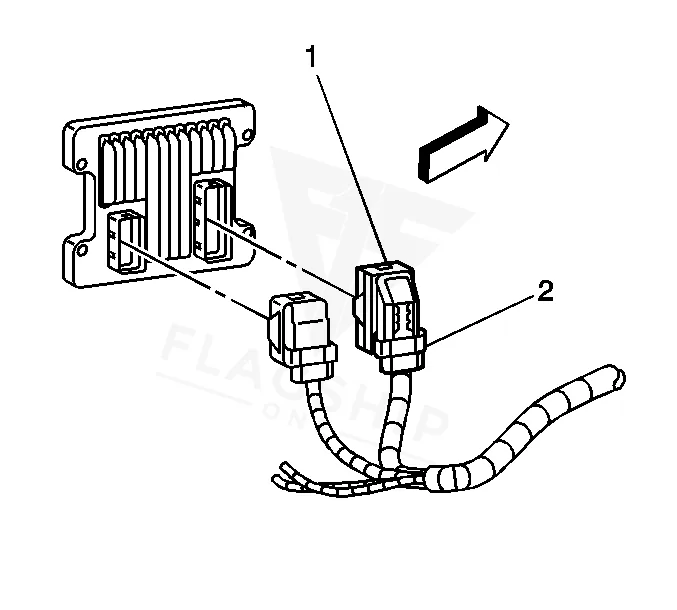

The Engine Control Module on your 2004 Chevrolet Malibu Classic is located in the passenger compartment, behind the right side kick panel adjacent to the right front door. Access requires removing the interior trim panel and protecting the carpet from damage during the procedure. The module itself is enclosed in a metal housing with a single electrical connector that must be carefully disconnected. Book time for ECM R&R on this vehicle is 0.9 hours according to standard labor guides, with an additional 0.5 hour allocated for the relearn procedure that follows replacement. During installation, the technician must ensure the ignition remains OFF when connecting or disconnecting the module to prevent internal damage to the PCM circuitry. After securing the new module and reconnecting the harness, the vehicle requires a programmed relearn sequence to establish communication with the remaining vehicle modules. The factory procedure also specifies recording the remaining engine oil life before disconnecting the old module, as the replacement unit will default to 100% if not properly configured during programming.

Programming Requirements After Replacement

After replacing the Engine Control Module in your 2004 Chevrolet Malibu Classic, the factory procedure requires performing a PCM relearn procedure to establish communication between the new module and the vehicle’s other control systems. This relearn process takes approximately 0.5 hours of labor time and ensures the PCM recognizes the transmission range sensor, throttle position sensor, and other inputs correctly. Additionally, the technician must input the remaining engine oil life percentage that was recorded from the original module; otherwise, the system will reset to 100% and the oil change reminder will be inaccurate. Flagship One addresses these requirements by shipping a VIN-programmed replacement unit that arrives ready to install, eliminating the need for dealer programming appointments or aftermarket calibration tools.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the Engine Control Module in your 2004 Chevrolet Malibu Classic begins to fail, you may experience several distinct symptoms that distinguish this issue from other drivability problems. The most common indicator is a no-start condition where the engine cranks normally but the PCM provides no fuel or spark, often accompanied by multiple unrelated trouble codes appearing simultaneously. Intermittent stalling, particularly during low-speed maneuvers or when coming to a stop, frequently indicates a weakening PCM that cannot maintain proper idle control or fuel delivery adjustments. Some owners report that their Malibu runs poorly after a short soak (heat soak) then seems to recover once the engine cools, suggesting thermal stress on internal components. Misfire codes that move between cylinders, a scan tool that cannot establish communication with the PCM, or an illuminated check engine light that persists despite replacing sensors are all strong indicators of internal PCM faults. In some cases, automatic transmission shifting may become harsh or erratic because the integrated TCM portion of the module is affected.

Module Trouble Codes on the 2004 Chevrolet Malibu Classic

The 2004 Chevrolet Malibu Classic may store several module-internal trouble codes when the PCM experiences internal failures. These codes indicate various memory, communication, and processor faults within the control module itself rather than sensor or actuator issues elsewhere in the vehicle.

Factory Service Bulletins Worth Knowing

Factory service bulletins addressing the 2004 Chevrolet Malibu Classic include several relevant publications. Bulletin #04-06-04-063 addresses engine idle flair when the clutch is depressed and low speed decel stall when coming to a stop, recommending PCM reprogramming to correct these conditions. Bulletin #06-06-04-037 provides information regarding normal characteristics of the malfunction indicator lamp during OBD inspection and testing, helping technicians distinguish actual faults from expected behaviors. Bulletin #07-00-89-043 covers warranty administration procedures regarding the use of parts and components, including control module calibrations, not issued through official General Motors channels. These bulletins indicate that GM recognized specific calibration issues and drivability concerns with this model that could require module replacement or reprogramming.

Protecting the PCM in Your 2004 Chevrolet Malibu Classic

• Maintain proper charging system function — a failing alternator or weak battery creates voltage spikes that can damage internal PCM circuits over time
• Keep all ground connections clean and secure at the engine and body to prevent electrical noise from corrupting module operations
• Avoid jump-starting other vehicles or using boost packs connected directly to the battery, as voltage transients can harm the ECM
• Address check engine lights promptly rather than ignoring them — early diagnosis prevents cascading damage
• Inspect engine compartment connectors and seals periodically for corrosion or damage that could allow moisture intrusion
• Use OEM or quality aftermarket sensors when replacing failed components to prevent erratic signals from overworking the PCM

Frequently Asked Questions

Will a used ECM from a salvage yard work in my 2004 Chevrolet Malibu Classic?

A used ECM may physically fit, but it will require dealer programming to match your specific VIN and configuration. Without proper calibration, the module may not communicate with your vehicle’s security system, transmission, or other modules, leaving your vehicle inoperable.

Can I replace the Engine Control Module myself on my 2004 Malibu Classic?

While technically possible for experienced DIYers, professional installation is recommended due to the need for proper relearn procedures and the risk of electrostatic discharge damage to internal components. Additionally, a VIN-programmed unit from a specialty supplier eliminates the dealer programming requirement.

How do I know if my Malibu Classic needs an ECM replacement or just reprogramming?

If your vehicle displays multiple module-internal trouble codes (P0601-P1683 range), exhibits symptoms across unrelated systems, or fails to start entirely, the module itself is likely faulty. Reprogramming alone cannot repair internal component damage — only replace the faulty unit or have the EEPROM professionally reprogrammed.

When your 2004 Chevrolet Malibu Classic requires Engine Control Module replacement, you have two primary options: a new OEM unit through the dealer at significantly higher cost, or a quality refurbished replacement from Flagship One. Our units arrive VIN-programmed with the correct calibration for your specific vehicle, meaning they’re ready to install without requiring dealer programming appointments or additional software. This approach saves both time and money while restoring your Malibu’s reliability.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Chevrolet Malibu Classic with a lifetime warranty, free shipping and no core charge. The full Chevrolet Malibu Classic module lineup covers other engine configurations as well.

Final Thoughts

The 2004 Chevrolet Malibu Classic relies on its Engine Control Module for virtually every aspect of engine and transmission operation. When this computer fails, prompt diagnosis and replacement with a properly programmed unit restores your vehicle’s drivability. Flagship One specializes in providing module replacements configured specifically for your Malibu, eliminating the complications of dealer-only programming and getting you back on the road with confidence.
