2004 Cadillac Escalade PCM and ECM Replacement Guide
In the 2004 Cadillac Escalade, the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery, and transmission shift commands. Failure of either unit can cause loss of power, erratic shifting, or complete no‑start conditions, often flagged by internal diagnostic codes.
Quick Summary
- Powertrain and engine control modules each require about 1.4 hours for removal and installation.
- A 0.5‑hour relearn step follows any PCM swap to restore engine oil‑life data.
- Improper handling of the PCM connector while ignition is on can damage the module.
- Factory bulletins note intermittent second‑gear launch issues linked to PCM programming.
When a 2004 Cadillac Escalade begins to exhibit low‑power acceleration, unexpected gear changes, or diagnostic trouble codes, the control modules are a common source. This guide explains what the PCM and ECM do in this vehicle, outlines the labor involved in swapping them, and highlights the programming steps required to keep the engine‑oil life tracking accurate. By the end, you’ll understand the key precautions and what to expect from a professional replacement.
What the PCM Does in a 2004 Cadillac Escalade
The Powertrain Control Module in a 2004 Cadillac Escalade serves as the brain for both engine and transmission, interpreting sensor inputs to control fuel injection, ignition timing, and shift schedules. It also stores the remaining engine‑oil life, which the vehicle uses to schedule oil‑change reminders. Because the PCM directly influences drivability, any malfunction can produce power loss or erratic shifting. Proper replacement ensures the vehicle retains its calibrated performance characteristics. replacement PCM for 2004 Escalade is essential to maintain these functions.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment, accessible after removing the protective cover and disconnecting the battery. The connector must be unplugged with the ignition OFF to avoid internal damage. Removal and installation of either module are quoted at 1.4 hours in the labor guide. After the PCM is seated, a 0.5‑hour relearn procedure records the remaining oil life, while the ECM swap does not require additional programming beyond the standard install time.

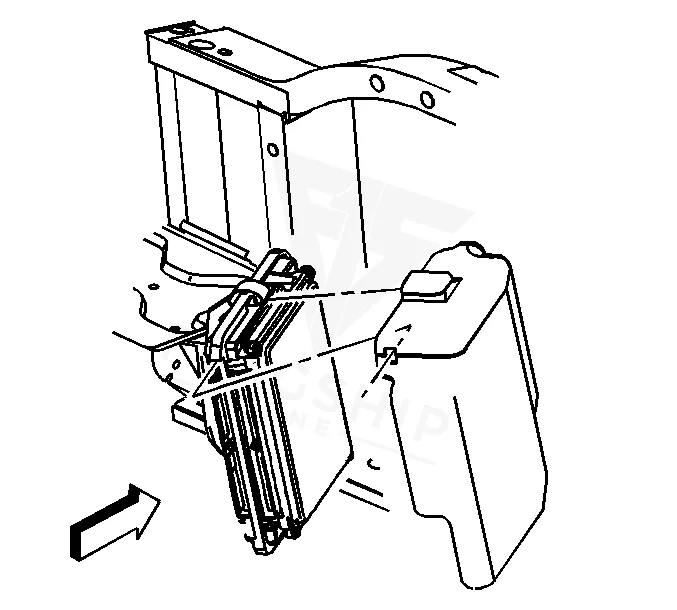

How to Reach the PCM on the 2004 Cadillac Escalade
- Remove any debris from around the PCM connector surfaces.
- Disconnect the negative battery cable.
- Release the PCM cover mounting tabs.
- Release the PCM cover from the mounting brackets.
- Remove the PCM cover.
- Loosen the PCM electrical connector bolts.
- Disconnect the PCM electrical connectors.
- Release the spring latch from the PCM.
- Release the PCM mounting tabs from the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Escalade | 1.4 hr |
| Powertrain Control Module R&R | Escalade ESV | 1.4 hr |
| Powertrain Control Module R&R | Escalade EXT | 1.4 hr |
| Powertrain Control Module Relearn | Escalade | 0.5 hr |
| Powertrain Control Module Relearn | Escalade ESV | 0.5 hr |
| Powertrain Control Module Relearn | Escalade EXT | 0.5 hr |
| Engine Control Module R&R | Escalade | 1.4 hr |
| Engine Control Module R&R | Escalade ESV | 1.4 hr |
Programming Requirements After Replacement
Following a module swap, the factory procedure calls for recording the residual engine‑oil life; if this step is missed, the oil‑life counter defaults to 100 percent. Flagship One units arrive pre‑configured, so the VIN‑specific data is already loaded. a VIN-programmed replacement unit eliminates the need for separate programming steps after installation.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2004 Cadillac Escalade include hesitation on launch, loss of power during acceleration, unexpected gear shifts, and occasional no‑start conditions. Diagnostic scans often reveal internal fault codes such as processor malfunction, which points to a processor error within the control module. These issues may appear intermittently, especially after several thousand miles.
Module Trouble Codes on the 2004 Cadillac Escalade
The Escalade’s control modules can generate a range of internal diagnostic codes, each indicating a specific fault condition.
Factory Service Bulletins Worth Knowing
Bulletin #05-07-30-013 (May 9 2005) describes an intermittent second‑gear start and low‑power launch that may be resolved by reprogramming the PCM. Bulletin #04-06-04-011 (Mar 15 2004) outlines new procedural requirements for PCM replacement under warranty.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 05-07-30-013 | 4L60-E/4L65-E Automatic Transmission Second Gear Start, Lack/Loss of Power When Accelerating fr | Some customers may comment on a slip on launch, low power on a launch or a second gear start when accelerating from a stop. This condition is usually very… |
| 04-06-04-011 | Warranty Admin. – New Procedural Requirements for Powertrain Control Module (PCM) Replacement – | — |
Protecting the PCM in Your 2004 Cadillac Escalade
- Maintain a healthy charging system to avoid voltage spikes.
- Keep ground straps and connector pins clean and corrosion‑free.
- Use proper jump‑start techniques to prevent excess voltage reaching the PCM.
- Address any diagnostic codes promptly before they recur.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
Can a faulty PCM cause my 2004 Cadillac Escalade to shift poorly?
Yes, the PCM controls shift timing, so a malfunction can produce delayed or unexpected gear changes, especially in low‑speed acceleration.
Is a PCM relearn required after replacement in a 2004 Escalade?
The factory procedure includes a 0.5‑hour relearn to record remaining engine‑oil life; skipping this step may reset the oil‑life counter to 100 percent.
Do I need special tools to replace the ECM in my 2004 Escalade?
The labor guide lists 1.4 hours for removal and installation, and the only special requirement is to disconnect the ignition before handling the connector.
When the PCM or ECM fails in a 2004 Cadillac Escalade, you can choose a repair with a new factory‑programmed unit or a refurbished replacement that meets original specifications. Both approaches restore the vehicle’s control logic, but a refurbished module from Flagship One offers a cost‑effective solution while maintaining the required programming.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Cadillac Escalade with a lifetime warranty, free shipping and no core charge. The full Cadillac Escalade module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in your 2004 Cadillac Escalade can resolve power‑loss and shifting issues. Consider a VIN‑programmed replacement to simplify post‑install steps and keep your vehicle running as intended.
