2003 Cadillac Escalade PCM Replacement Guide
In the 2003 Cadillac Escalade the Powertrain Control Module (PCM) serves as the central computer that monitors engine speed, transmission shift points, and emissions controls. Failure typically results in loss of engine power, erratic shifting, or a complete no‑start condition as the vehicle can no longer coordinate fuel delivery and gear changes.
Quick Summary
- Clunk noises during a 3‑2 downshift may indicate PCM software issues.
- Replacing the PCM generally requires 1.4 hours of labor.
- A post‑install relearn of engine oil life takes about 0.5 hours.
- Improper connector handling can cause electrostatic damage.
When a 2003 Cadillac Escalade exhibits a noticeable clunk while coming to a stop, the underlying cause often traces back to the Powertrain Control Module. This article explains what the PCM does in this SUV, outlines the steps required for a safe removal and installation, and highlights the programming precautions that keep your vehicle running smoothly after the repair.
What the PCM Does in a 2003 Cadillac Escalade
The Powertrain Control Module in the 2003 Cadillac Escalade processes inputs from the engine, transmission, and emissions sensors to command fuel injection, ignition timing, and shift strategy. It stores critical parameters such as remaining engine oil life, so any replacement must retain that information to avoid a default 100 % reading. Proper operation is essential for reliable power delivery and compliance with emissions standards. The module also communicates diagnostic trouble codes that technicians use to pinpoint faults. 2003 Cadillac Escalade replacement PCMs are designed to match the factory specifications for this model.

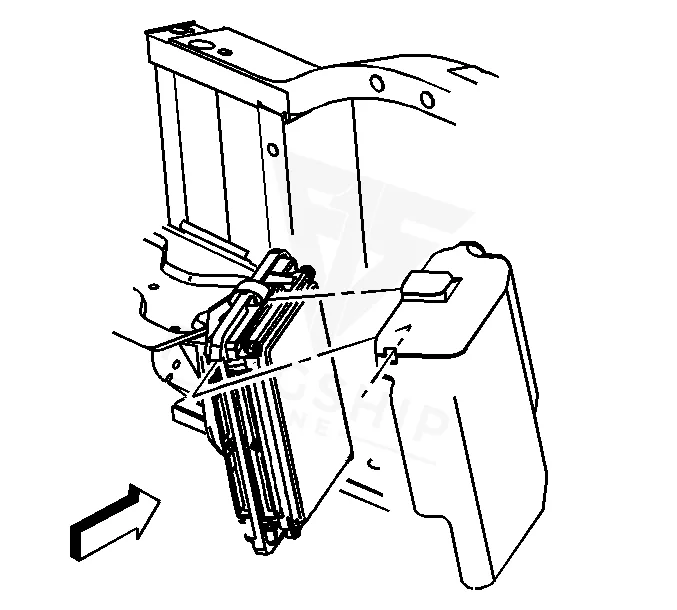

Where the PCM Is Located and What Replacement Involves
The PCM is mounted within the engine compartment, typically secured to the firewall near the battery. Removal involves disconnecting the power connector with the ignition off to protect internal circuitry, as the factory cautions against energizing the unit during disconnection. Reinstallation follows the same steps in reverse, and the labor estimate for the swap is listed as 1.4 hours in the service guide. After the hardware is in place, a 0.5‑hour relearn procedure records the remaining engine oil life.
How to Reach the PCM on the 2003 Cadillac Escalade
- Remove any debris from around the PCM connector surfaces.
- Disconnect the negative battery cable.
- Release the PCM cover mounting tabs.
- Release the PCM cover from the mounting brackets.
- Remove the PCM cover.
- Loosen the PCM electrical connector bolts.
- Disconnect the PCM electrical connectors.
- Release the spring latch from the PCM.
- Release the PCM mounting tabs from the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Escalade | 1.4 hr |
| Powertrain Control Module R&R | Escalade ESV | 1.4 hr |
| Powertrain Control Module R&R | Escalade EXT | 1.4 hr |
| Powertrain Control Module Relearn | Escalade | 0.5 hr |
| Powertrain Control Module Relearn | Escalade ESV | 0.5 hr |
| Powertrain Control Module Relearn | Escalade EXT | 0.5 hr |
| Engine Control Module R&R | Escalade | 1.4 hr |
| Engine Control Module R&R | Escalade ESV | 1.4 hr |
Programming Requirements After Replacement
Once the new unit is bolted in, the factory procedure calls for a PCM relearn that captures the existing oil‑life value and updates internal calibration tables. Flagship One supplies units that arrive already VIN‑programmed, so the required relearn step is completed before the part reaches the shop. a VIN‑programmed replacement unit eliminates the need for field programming and reduces the chance of an incorrect oil‑life reset.
Symptoms of a Failing PCM
Typical signs of a failing PCM in a 2003 Cadillac Escalade include a no‑start condition, intermittent stalling, rough idle, and transmission shift irregularities. Diagnostic scans often reveal communication loss or specific fault codes such as processor clock signal malfunction, which points to internal timing issues within the module.
Module Trouble Codes on the 2003 Cadillac Escalade
The following trouble codes are commonly stored by the PCM when it detects internal failures in the 2003 Cadillac Escalade:
Factory Service Bulletins Worth Knowing
Service Bulletin #03-07-30-028, dated June 27 2003, addresses a driveline clunk that may be heard during a 3‑2 downshift at roughly 24 km/h (15 mph). The bulletin recommends reprogramming the PCM to resolve the issue, noting that the noise can be more pronounced on rapid stops.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 03-07-30-028 | Driveline Clunk When Stopping (Reprogram Powertrain Control Module (PCM)) – (Jun 27, 2003) | Some customers may comment on a clunk noise when stopping. This noise may occur on a 3–2 downshift at approximately 24 km/h (15 mph) and may be more noticeable… |
Protecting the PCM in Your 2003 Cadillac Escalade
- Maintain a healthy charging system to avoid voltage fluctuations.
- Ensure all ground straps and connector pins are clean and tight.
- Use surge‑protective devices when jump‑starting to limit voltage spikes.
- Address any stored diagnostic codes promptly to prevent module stress.
- Inspect connector seals regularly to keep moisture out of the PCM housing.
Frequently Asked Questions
What should I do if my 2003 Cadillac Escalade shows a PCM‑related error code?
Start by verifying the code with a scan tool, then check the PCM connector for corrosion or loose pins. If the connector is sound, a replacement PCM with a proper relearn may be required.
Can I replace the PCM myself on a 2003 Cadillac Escalade?
The replacement can be performed with basic hand tools, but the ignition must be off when disconnecting the PCM connector to avoid internal damage. A post‑install oil‑life relearn is also required.
Will a refurbished PCM affect my vehicle’s warranty?
A refurbished unit that meets factory specifications and includes the necessary programming will not void the vehicle’s warranty, provided it is installed according to the service manual.
When the PCM needs attention on a 2003 Cadillac Escalade, you can choose a brand‑new factory unit or a fully refurbished replacement that matches the original specifications. Both options restore the vehicle’s control logic, but a refurbished part from Flagship One arrives pre‑programmed, saving you the extra relearn step and reducing shop time.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Cadillac Escalade with a lifetime warranty, free shipping and no core charge. The full Cadillac Escalade module lineup covers other engine configurations as well.
Final Thoughts
Replacing the Powertrain Control Module in your 2003 Cadillac Escalade restores reliable engine and transmission coordination. Consider a Flagship One replacement to simplify programming and keep your SUV performing as intended.
