2004 Buick Rainier PCM Relearn and Replacement Guide
In the 2004 Buick Rainier the Powertrain Control Module manages engine and transmission functions, interpreting sensor data to control fuel, ignition and shift timing. A failure often triggers diagnostic codes, loss of cruise control, or harsh shifting, requiring removal, replacement and specific post‑install programming.
Quick Summary
- PCM removal may require up to 1.4 hours of labor.
- Relearn procedures include separate steps for powertrain and engine control modules.
- Factory caution: remaining engine oil life must be recorded to avoid defaulting to 100 %.
- Service bulletins address SES light and shift issues with PCM reprogramming.
When a 2004 Buick Rainier exhibits a Service Engine Soon light, harsh shift feel, or cruise‑control loss, the Powertrain Control Module is a common source. Understanding how the PCM functions, where it resides, and what post‑install steps are required helps you decide between a repair or a replacement. This guide explains the module’s role, the labor involved in swapping it, the programming that follows, and practical steps to keep it operating reliably.
What the PCM Does in a 2004 Buick Rainier
The Powertrain Control Module in a 2004 Buick Rainier acts as the central computer that coordinates engine output, transmission shifting and emissions control. It receives inputs from numerous sensors, then commands actuators to maintain performance and fuel efficiency. Because it governs both powertrain and emission functions, any fault can affect drivability and trigger multiple diagnostic codes. Proper operation is essential for smooth shifting and cruise‑control function. replacement powertrain control modules for the 2004 Buick Rainier ensure the vehicle meets factory specifications after a failure.

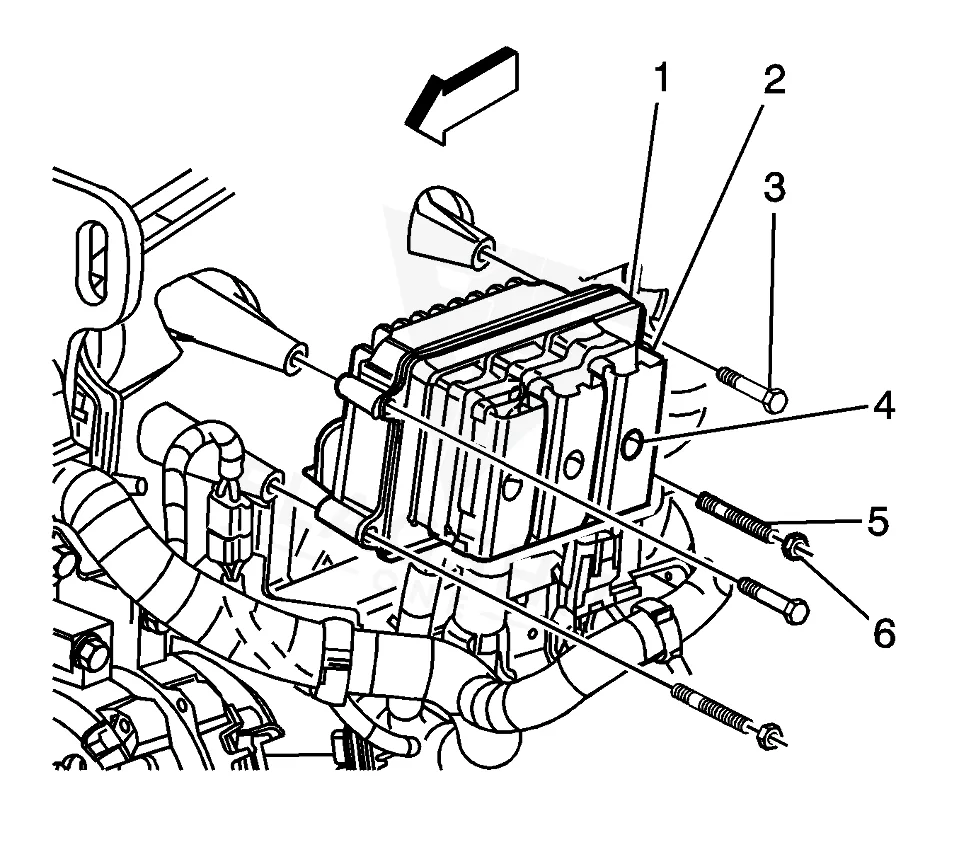

Where the PCM Is Located and What Replacement Involves
The PCM sits beneath a flexible cover that should be moved aside, not removed, unless the cover itself is being replaced. Access requires disconnecting the negative battery cable as a safety precaution. Labor time for removing and reinstalling the module is listed as 1.4 hours, while the Engine Control Module removal and installation also require 1.4 hours. Additional relearn steps add 0.5 hours for each control module, and a reset of the engine module takes 0.3 hours.
How to Reach the PCM on the 2004 Buick Rainier
- Disconnect the negative battery cable.
- Remove the PCM cover retainers.
- Remove the PCM cover.
- Release the spring latch from the PCM.
- Release the PCM mounting tabs from the PCM.
- Remove the PCM.
- Remove any debris from around the PCM connector surfaces.
- Loosen the PCM electrical connector bolts.
- Disconnect the PCM electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure calls for a Powertrain Control Module relearn lasting half an hour and an Engine Control Module relearn of the same duration. The replacement unit arrives already programmed with the vehicle’s VIN, so those steps are effectively completed when you install a a VIN‑programmed replacement unit from Flagship One.
Symptoms of a Failing PCM
Typical signs of a PCM problem in a 2004 Buick Rainier include a Service Engine Soon illumination, harsh or delayed shifting, loss of cruise control, and occasional stalling. You may also see diagnostic trouble codes such as Powertrain control module internal memory error during a scan. These symptoms often point to the need for module removal and reprogramming.
Module Trouble Codes on the 2004 Buick Rainier
The following codes are documented for internal PCM faults on the 2004 Buick Rainier:
Factory Service Bulletins Worth Knowing
Bulletin #04-07-30-041 (Oct 22 2004) advises reprogramming the PCM when the SES light, harsh shift or cruise‑control loss occurs. Bulletin #04-06-04-090B (May 9 2006) recommends PCM reprogramming for a cooling‑fan DTC P0483 and SES light activation.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-07-30-041 | Service Engine Soon Light On, Diagnostic Trouble Code (DTC) P0741, Harsh Shift, Cruise Control | Some customers may comment on a harsh shift, inoperative cruise control, or an SES light |
| 04-06-04-090 | Service Engine Soon (SES) Light On, Cooling Fan DTC P0483 Set (Reprogram Powertrain Control Mod | Some customers may comment that the SES light is |
Protecting the PCM in Your 2004 Buick Rainier
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean all PCM ground connections and sensor plugs.
- Use surge‑protective devices when jump‑starting to limit voltage spikes.
- Address any diagnostic codes promptly to prevent module stress.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What does the PCM do on my 2004 Buick Rainier?
The PCM processes sensor inputs and controls fuel delivery, ignition timing, transmission shift points and emissions functions, keeping the engine and transmission running smoothly.
How long does it take to replace the PCM on a 2004 Buick Rainier?
Factory labor time for removal and reinstallation of the PCM is listed as 1.4 hours, plus additional time for relearn procedures.
Do I need to record engine oil life after installing a new PCM?
Yes, the factory caution notes that the remaining engine oil life must be entered; otherwise the system defaults to 100 % oil life.
When the PCM in a 2004 Buick Rainier requires service, you can choose a repair that follows the factory relearn steps or install a refurbished replacement that arrives pre‑programmed. Both paths restore the vehicle’s control logic, but a VIN‑programmed unit eliminates the need for manual oil‑life entry and reduces installation time.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Buick Rainier with a lifetime warranty, free shipping and no core charge. The full Buick Rainier module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module is vital to the performance of your 2004 Buick Rainier. Whether you opt for a repair or a Flagship One refurbished unit, ensuring proper installation and programming will keep the vehicle running as intended.
