2003 Toyota Corolla Engine Control Module Replacement Relearn Guide
The engine control module in the 2003 Toyota Corolla manages fuel injection, ignition timing, and emissions systems. When it fails, the engine may not start, run roughly, or set diagnostic codes due to lost communication or internal processor errors, leading to drivability problems.
Quick Summary
- Engine control module replacement requires 0.5 hours for removal and installation.
- Relearning the module after installation takes an additional 0.5 hours.
- The module is located in the instrument panel area per factory wiring guide.
- Factory cautions warn that skipping relearn steps can extend adjustment time and cause performance concerns.
- Service bulletin SS002-01 covers ECU flash reprogramming for 2001 and later models.
When the engine computer in a 2003 Toyota Corolla begins to act up, the symptoms can range from a simple check-engine light to a complete no-start condition. This guide walks through what the module does, where it lives, and what the factory expects after a swap. You will learn the book times for removal, installation, and the mandatory relearn, plus the service bulletin that covers flash updates. The goal is to give you a clear picture of the job so you can decide whether to tackle it yourself or hand it to a shop.
What the PCM Does in a 2003 Toyota Corolla
The engine control module coordinates fuel delivery, spark timing, and transmission signals for the 2003 Toyota Corolla, and a failure can cause a no-start condition or erratic shifting; when that happens, replacement engine computers for the Corolla become the logical next step because the unit also stores adaptive values that keep the engine running smoothly across temperature and load changes. Without those learned parameters, the powertrain may idle roughly, hesitate on acceleration, or set emissions-related codes until the relearn process completes.
Where the PCM Is Located and What Replacement Involves

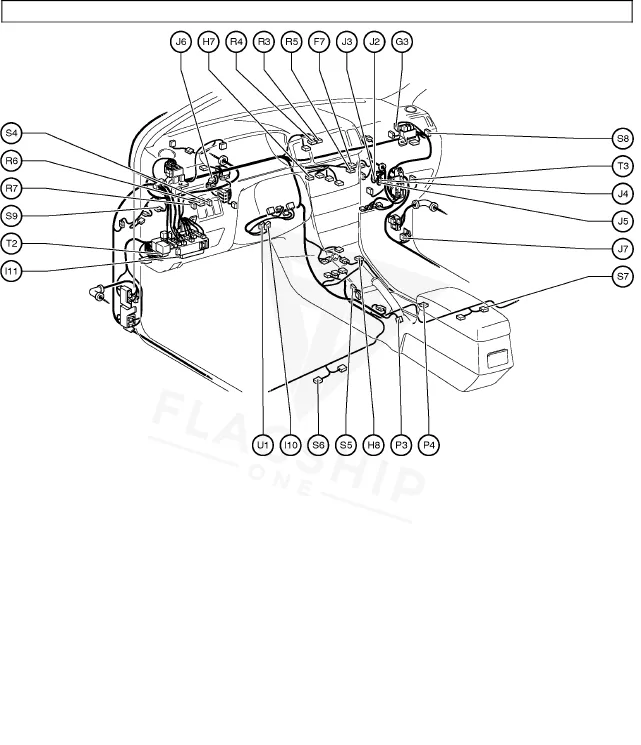

The factory wiring guide shows the engine ECU mounted in the instrument panel, which means accessing it typically involves removing trim pieces and possibly the lower dash cover. Book time for the removal and installation of the module is 0.5 hours, and the same amount is allocated for the required relearn procedure. If the vehicle uses a separate powertrain control module, its R&R and relearn each carry 0.5 hours as well. No torque specifications are provided for the mounting hardware, so follow the shop manual for fastener tightening.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure requires a relearn process that takes 0.5 hours to reset adaptive values; however, a VIN-programmed replacement unit from Flagship One arrives with the calibration already matched to your vehicle, eliminating that step. The service manual also warns that executing the learned-values reset without proper instruction can extend the adjustment period and lead to performance concerns, so using a pre-programmed unit avoids the risk of an incomplete relearn.
Symptoms of a Failing PCM
Common signs of a failing engine computer in the 2003 Corolla include a crank-no-start condition, intermittent stalling at idle, rough running or misfire codes that do not clear, loss of communication with a scan tool, and erratic transmission shifting such as delayed engagement or harsh upshifts. These symptoms often appear after voltage spikes from a bad alternator or jump-start, or when connector corrosion interrupts the module’s power or ground circuits.
Factory Service Bulletins Worth Knowing
Service bulletin SS002-01 addresses ECU flash reprogramming for 2001 and later models, including the 2003 Corolla. The revised procedure outlines the steps for updating the module’s software to correct drivability issues or emissions compliance concerns. Technicians should reference this bulletin before attempting any flash update to ensure the correct calibration file and sequence are used.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| SS002-01 | :SS002-01: 2001 & Later Applicable Models: ECU Flash Reprogramming Process (Revised) | — |
Protecting the PCM in Your 2003 Toyota Corolla
- Keep the charging system in good condition to avoid voltage spikes that can damage the module.
- Inspect and clean battery terminals and ground connections regularly.
- Use a surge-protected jump starter or follow proper jump-start procedures.
- Address check-engine lights promptly to prevent cascading failures.
- Ensure connector seals are intact to keep moisture out of the wiring harness.
Frequently Asked Questions
Can I replace the engine control module on a 2003 Toyota Corolla without a scan tool?
A scan tool is required to perform the mandatory relearn procedure after installation. Without it, the adaptive values will not reset and drivability problems may persist.
Does the 2003 Corolla have separate engine and powertrain control modules?
Some models use a combined unit while others split functions; the labor times provided cover both ECM and PCM removal, installation, and relearn operations.
What does service bulletin SS002-01 mean for my 2003 Corolla?
It provides the factory-approved flash reprogramming process for the ECU, which may resolve certain performance or emissions issues without hardware replacement.
If the module is confirmed faulty, you can choose between a new OEM unit, a refurbished module, or a pre-programmed replacement that arrives ready to install. For the 2003 Corolla, a VIN-matched unit saves the 0.5-hour relearn labor and reduces the chance of post-install issues.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Toyota Corolla with a lifetime warranty, free shipping and no core charge. The full Toyota Corolla module lineup covers other engine configurations as well.
Final Thoughts
The 2003 Toyota Corolla engine control module is a critical component that demands careful handling during replacement. Following the factory relearn steps or using a pre-programmed unit ensures the adaptive values are correct from the start. When you’re ready to move forward, a properly calibrated replacement can get your Corolla back to reliable operation.
