2002 Toyota Corolla ECM Replacement and Relearning Guide
The Engine Control Module (ECM) in your 2002 Toyota Corolla manages fuel injection, ignition timing, and emissions systems. Failures may cause erratic engine behavior, poor performance, or a complete no-start condition.
Quick Summary
- The ECM in your 2002 Corolla controls critical engine functions like fuel delivery and spark timing.
- Replacement typically requires 0.6 hours of labor, plus an additional 0.5 hours for relearning procedures.
- The module is located behind the instrument panel, requiring dashboard disassembly for access.
- Factory service bulletins outline reprogramming procedures for replacement ECMs.
- A pre-programmed replacement unit eliminates the need for post-install dealer programming.
If your 2002 Toyota Corolla is experiencing unexplained stalling, rough idling, or a no-start condition, the Engine Control Module (ECM) may be the culprit. This small but critical computer manages everything from fuel injection to ignition timing, ensuring smooth operation. Replacing it involves more than just swapping parts—proper installation and programming are essential to avoid further issues. Understanding the process helps you make informed decisions, whether you’re tackling the job yourself or working with a mechanic. With the right approach, you can restore your Corolla’s reliability without unnecessary delays or complications.
What the PCM Does in a 2002 Toyota Corolla
The Engine Control Module (ECM) in your 2002 Toyota Corolla acts as the brain of the engine, continuously monitoring sensors and adjusting fuel delivery, ignition timing, and emissions controls. Without it, your vehicle may struggle to start, run inefficiently, or even stall unexpectedly. When this module fails, it often triggers warning lights on the dashboard and can leave you stranded. Replacing it requires careful handling, as the replacement engine computers for the Corolla must be compatible with your vehicle’s specific configuration. A faulty ECM can disrupt communication with other systems, leading to broader performance issues if not addressed promptly.

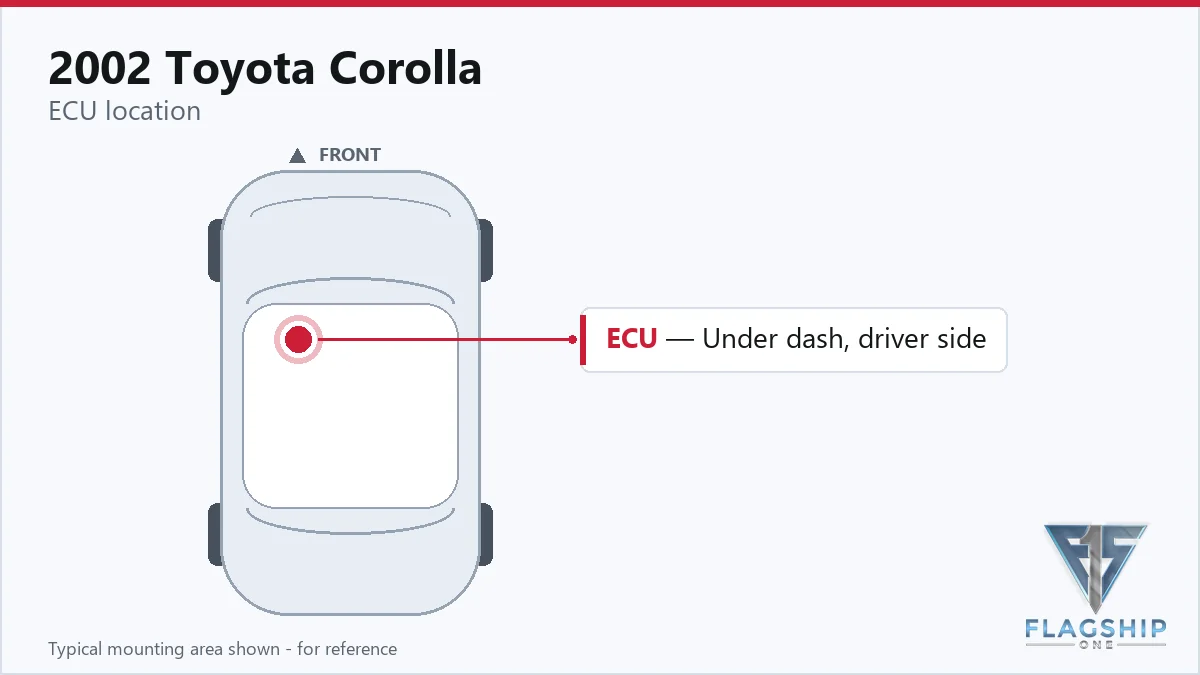

Where the PCM Is Located and What Replacement Involves
In the 2002 Toyota Corolla, the ECM is tucked behind the instrument panel, making access a bit more involved than in some other vehicles. To replace it, the dashboard trim and possibly the glove box or lower panel must be removed. The labor guide estimates 0.6 hours for the removal and reinstallation process. Once exposed, the module is secured with mounting hardware, and the wiring harness must be carefully disconnected and reconnected. After installation, the vehicle typically requires a relearn procedure, which adds another 0.5 hours of labor. Proper reassembly is critical to avoid dashboard rattles or electrical issues later on.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM in your 2002 Toyota Corolla, the factory procedure requires a relearn process to synchronize the module with the vehicle’s systems. This step, which takes about 0.5 hours, ensures proper communication with sensors and other components. However, if you install a VIN-programmed replacement unit, this step is already completed, saving you time and potential dealer visits. The relearn process may involve using specialized diagnostic tools to reset adaptive values, so having the right equipment—or a pre-programmed module—is key to a smooth repair.
Symptoms of a Failing PCM
A failing ECM in your 2002 Toyota Corolla may cause a range of symptoms, from intermittent stalling to a complete no-start condition. You might notice the engine running rough, misfiring, or hesitating under acceleration. Warning lights, such as the check engine light, often illuminate, and you may see codes related to sensor or module communication. In some cases, the vehicle may enter a limp mode, limiting power to prevent further damage. A common fault code associated with ECM issues is internal control module memory checksum error, which indicates a problem with the module’s internal memory or processing. If your Corolla exhibits these symptoms, addressing the ECM promptly can prevent more serious drivability issues.
Factory Service Bulletins Worth Knowing
Toyota has issued service bulletins outlining the reprogramming process for the ECM in the 2002 Corolla. Bulletin #SS002-01 covers the general ECU flash reprogramming procedure for 2001 and later models, while #SS002-07 provides updated instructions for 2001–2008 Toyota vehicles using the Techstream diagnostic tool. These bulletins detail the steps required to update or replace the module’s software, ensuring compatibility with the vehicle’s systems. Following these procedures is essential for a successful repair, especially if the replacement ECM is not pre-programmed.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| SS002-01 | :SS002-01: 2001 & Later Applicable Models: ECU Flash Reprogramming Process (Revised) | — |
| SS002-07 | :SS002-07: 01-08 Applicable Toyota: Techstream ECU Flash Reprogramming Procedure | — |
Protecting the PCM in Your 2002 Toyota Corolla
- Keep your vehicle’s battery and charging system in good condition to avoid voltage spikes that can damage the ECM.
- Ensure all electrical connectors are clean and securely fastened to prevent corrosion or poor contact.
- Avoid jump-starting the vehicle with improper voltage, as this can harm sensitive electronics like the ECM.
- Address any check engine lights or trouble codes promptly to prevent cascading failures.
- Inspect the ECM’s connector seals for damage, as moisture intrusion can cause internal corrosion.
- Use a quality scan tool to monitor ECM health during routine maintenance checks.
Frequently Asked Questions
Can I replace the ECM in my 2002 Toyota Corolla myself?
Replacing the ECM is possible if you’re comfortable with dashboard disassembly and electrical work. However, the module must be programmed to your vehicle’s VIN, which typically requires dealer-level tools unless you use a pre-programmed unit. Proper reassembly is critical to avoid rattles or electrical issues.
Why does my 2002 Corolla need an ECM relearn after replacement?
The relearn process synchronizes the new ECM with your vehicle’s sensors and adaptive values. Without it, the engine may run poorly or trigger warning lights. This step ensures the module communicates correctly with the fuel, ignition, and emissions systems.
How do I know if my 2002 Corolla’s ECM is failing?
Common signs include stalling, rough idling, a no-start condition, or warning lights on the dashboard. A scan tool may reveal codes like P0601, indicating an internal ECM fault. If these symptoms appear, testing the module’s voltage and ground connections can help confirm the issue.
If your 2002 Toyota Corolla is showing signs of ECM failure, you have options. A dealer replacement may involve higher costs and additional programming time, while a refurbished or pre-programmed unit can simplify the process. Choosing a VIN-matched replacement eliminates the need for post-install programming, getting you back on the road faster. Consider your budget and timeline when deciding the best approach for your vehicle.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Toyota Corolla with a lifetime warranty, free shipping and no core charge. The full Toyota Corolla module lineup covers other engine configurations as well.
Final Thoughts
The ECM in your 2002 Toyota Corolla plays a vital role in engine performance and reliability. If you’re experiencing drivability issues, addressing this module promptly can save you from further headaches. Whether you opt for a dealer repair or a pre-programmed replacement, understanding the process ensures a smoother outcome. Keep your Corolla running smoothly by staying proactive about maintenance and repairs.
