2003 Chevrolet Trailblazer PCM/ECM Replacement Guide

When a 2003 Chevrolet Trailblazer begins to exhibit no‑start conditions, intermittent stalling, or a cascade of diagnostic trouble codes, the underlying cause often traces back to the vehicle’s control computers. The Powertrain Control Module and Engine Control Module serve as the brain for engine and transmission operations, translating sensor data into precise actuator commands. Understanding how these modules function, where they reside, and what the factory requires for a proper reinstall can help you decide whether to pursue a repair or a refurbished replacement. This guide walks you through the module’s role, the physical removal steps, the programming cautions, and the symptoms that typically signal a failure, giving you a clear picture of what to expect and how to protect the new unit once installed.

What the PCM Does in a 2003 Chevrolet Trailblazer

The Powertrain Control Module in a 2003 Chevrolet Trailblazer acts as the central processor that coordinates engine timing, fuel injection, and transmission shift schedules. It receives input from the throttle position sensor, crankshaft position sensor, and numerous other inputs, then issues commands to the fuel injectors, ignition coils, and transmission solenoids. Because it integrates both powertrain and emission controls, any malfunction can lead to drivability issues, increased emissions, or a complete loss of power. The Engine Control Module, while focused primarily on engine management, works in tandem with the PCM to ensure that combustion events occur at the correct moment and that emissions stay within regulatory limits. Together, these computers maintain the vehicle’s performance envelope and fuel efficiency. For replacement, you will encounter replacement engine control modules for the Trailblazer that match the original specifications and firmware version, ensuring seamless integration with the vehicle’s existing wiring harness and sensor suite.

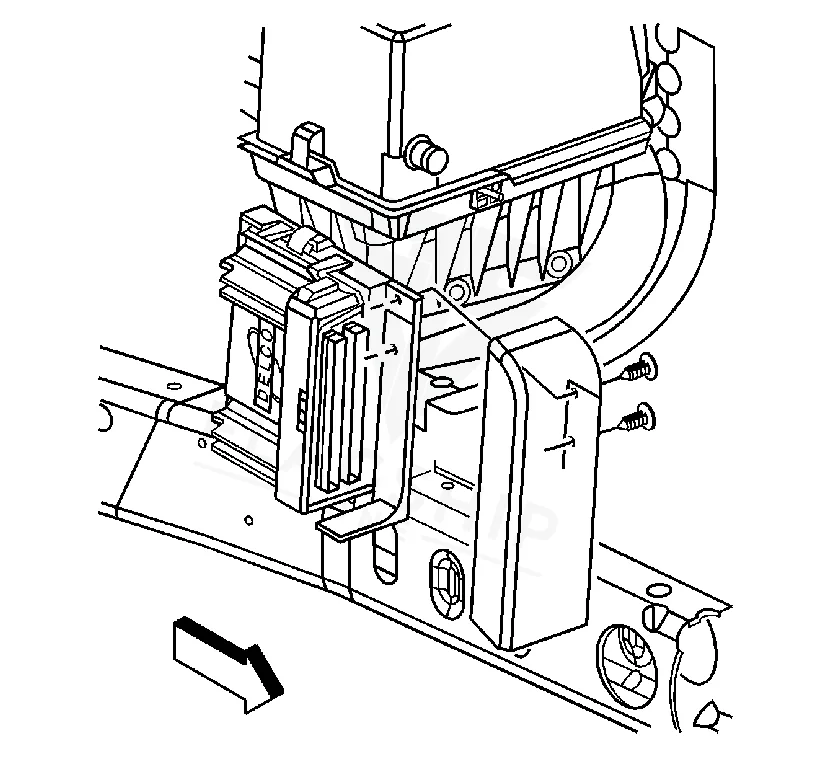

Where the PCM Is Located and What Replacement Involves

Both the PCM and ECM are mounted in the engine compartment of the 2003 Chevrolet Trailblazer, typically secured to the firewall or a bracket near the intake manifold. Removal follows the same labor time of 1.4 hours for each module, as indicated in the factory book. The technician must disconnect the battery, release the module connectors, and remove the mounting bolts before extracting the unit. Installation reverses the process: position the new module, torque the bolts to the factory specification (if provided), reconnect all electrical plugs, and re‑secure the battery connection. After the hardware is in place, a relearn procedure is required, adding another 0.5 hours to verify that the vehicle’s adaptive strategies recognize the new module and that sensor calibrations are restored.

Programming Requirements After Replacement

Once the PCM or ECM is physically installed, the factory service procedure mandates a specific programming sequence to align the module with the vehicle’s VIN and calibration data. The process normally involves using a Tech 2™ scan tool, selecting the Reprogram ECU option, and employing the Off‑Board Programming Adapter when the vehicle is not present. Flagship One supplies a VIN-programmed replacement unit that arrives already matched to your Trailblazer, so the off‑board step is unnecessary. Nevertheless, the factory cautions that you must not interrupt the programming sequence or turn off the ignition, and all PCM and DLC connections must be verified as secure before proceeding. When the unit is pre‑programmed, the only remaining requirement is the standard relearn routine, which the technician completes in the allotted 0.5 hours.

Symptoms of a Failing PCM

A failing PCM or ECM in a 2003 Chevrolet Trailblazer often reveals itself through a combination of drivability and diagnostic cues. You may experience a complete no‑start condition, intermittent stalling at idle, rough acceleration, or unexpected transmission shifts. Scan‑tool readings frequently surface internal processor codes such as internal processor fault alongside other P060x series codes. In addition, the vehicle might lose communication with the diagnostic interface, preventing real‑time data retrieval. These symptoms arise because the module can no longer translate sensor inputs into accurate actuator commands, leading the engine control strategy to default to limp‑home mode or shut down entirely. Prompt identification of these signs can help avoid further damage to related components and reduce the time spent on troubleshooting.

Module Trouble Codes on the 2003 Chevrolet Trailblazer

The following internal trouble codes are documented for the 2003 Chevrolet Trailblazer and may appear when the PCM or ECM experiences a fault:

Protecting the PCM in Your 2003 Chevrolet Trailblazer

• Maintain a healthy charging system to avoid voltage irregularities that can corrupt module memory.
• Inspect and clean all ground straps and connector pins regularly.
• Avoid jump‑starting the vehicle with excessive voltage spikes that could damage the PCM or ECM.
• Address any diagnostic trouble codes promptly to prevent prolonged stress on the control modules.
• Ensure that connector seals remain intact to keep moisture out of the module housing.
• Periodically verify that the battery terminals are tight and free of corrosion.

Frequently Asked Questions

Can I replace the PCM on my 2003 Chevrolet Trailblazer without professional tools?

Physical removal can be done with basic hand tools, but the factory requires a Tech 2™ scan tool for programming. Using a pre‑programmed unit eliminates the need for off‑board programming, yet the relearn step still needs a scan tool.

What does the P0601 code indicate on a Trailblazer?

P0601 signals an internal processor fault within the PCM or ECM. It typically points to a hardware failure that prevents the module from executing its control algorithms.

How long does it take to reinstall a replacement ECM in this model?

The labor guide lists 1.4 hours for removal and installation, plus an additional 0.5 hours for the required relearn procedure.

Is off‑board programming ever required for a Trailblazer PCM replacement?

Off‑board programming is used when the vehicle is not present, but a VIN‑programmed replacement from Flagship One removes that step, leaving only the relearn process.

What should I check before installing a new control module?

Verify that all PCM and DLC connectors are secure, confirm the battery is disconnected, and ensure the Techline™ software is up to date before beginning the installation.

When the PCM or ECM in your 2003 Chevrolet Trailblazer fails, you can choose a direct repair or install a refurbished unit that matches the original specifications. Both paths require the same removal time and post‑install relearn, but a pre‑programmed replacement eliminates the need for off‑board programming, reducing shop time and potential errors. Evaluate your budget and the condition of the existing hardware to decide which approach best fits your situation.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Chevrolet Trailblazer with a lifetime warranty, free shipping and no core charge. The full Chevrolet Trailblazer module lineup covers other engine configurations as well.

Final Thoughts

The 2003 Chevrolet Trailblazer’s powertrain and engine control modules are critical to reliable operation. Whether you opt for a repair or a pre‑programmed replacement, following the factory cautions and completing the relearn step will help restore performance. Contact a qualified technician to assess the best solution for your vehicle.
