2004 Chevrolet Trailblazer PCM/ECM Replacement and Programming Guide
The powertrain control module (PCM) in your 2004 Chevrolet Trailblazer manages engine and transmission functions. Failures may cause erratic shifting, stalling, or warning lights, often linked to internal faults or corrupted data.
Quick Summary
- PCM replacement typically takes 1.4 hours of labor for the 2004 Trailblazer or Trailblazer EXT.
- A 0.5-hour relearn procedure is required after module installation.
- Factory cautions include disconnecting the battery and recording oil life before replacement.
- Internal trouble codes like P0601 may indicate PCM failure.
- Flagship One units arrive pre-programmed to your VIN, eliminating additional setup steps.
If your 2004 Chevrolet Trailblazer is experiencing rough shifts, an illuminated Service Engine Soon light, or cruise control issues, the powertrain control module (PCM) may be the culprit. This critical component oversees engine and transmission performance, and its failure can disrupt drivability. Replacing or reprogramming the PCM requires careful attention to factory procedures, including battery disconnection and oil life preservation. Understanding the process helps you anticipate labor times and avoid common pitfalls, ensuring your vehicle runs smoothly after the repair.
What the PCM Does in a 2004 Chevrolet Trailblazer
The powertrain control module in your 2004 Chevrolet Trailblazer acts as the brain for engine and transmission operations. It regulates fuel delivery, ignition timing, and shift patterns to optimize performance and efficiency. When it malfunctions, you may notice poor acceleration, erratic shifting, or warning lights. Replacing it involves installing replacement engine computers for the Trailblazer, which must be programmed to match your vehicle’s specifications. A faulty PCM can lead to drivability issues, so timely replacement is key to maintaining reliability.
Where the PCM Is Located and What Replacement Involves

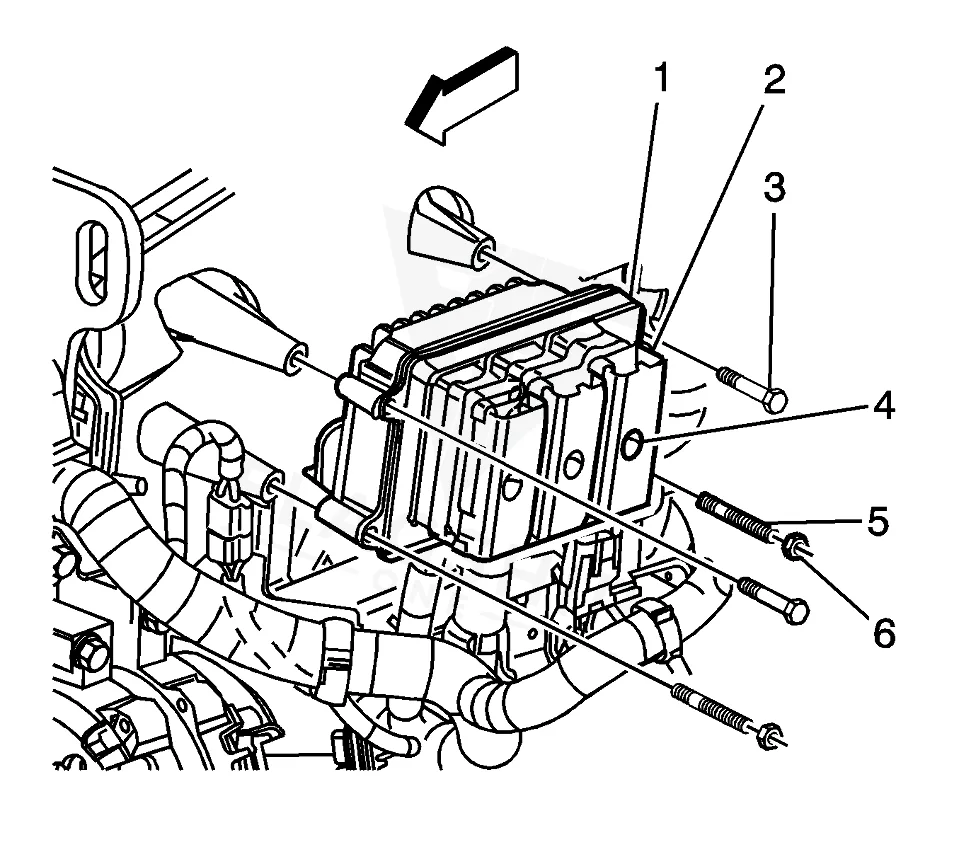

The PCM in your 2004 Chevrolet Trailblazer is located behind the engine cover, near the firewall. Replacement involves removing the cover, which is typically flexible enough to stay out of the way during the process. Labor time for removal and reinstallation is 1.4 hours for both the Trailblazer and Trailblazer EXT. After installation, a 0.5-hour relearn procedure is required to synchronize the module with your vehicle’s systems. Always disconnect the negative battery cable before starting work to prevent electrical issues.
How to Reach the PCM on the 2004 Chevrolet Trailblazer
- Disconnect the negative battery cable.
- Remove the PCM cover retainers.
- Remove the PCM cover.
- Release the spring latch from the PCM.
- Release the PCM mounting tabs from the PCM.
- Remove the PCM.
- Remove any debris from around the PCM connector surfaces.
- Loosen the PCM electrical connector bolts.
- Disconnect the PCM electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Trailblazer | 1.4 hr |
| Powertrain Control Module R&R | Trailblazer EXT | 1.4 hr |
| Powertrain Control Module Relearn | Trailblazer | 0.5 hr |
| Powertrain Control Module Relearn | Trailblazer EXT | 0.5 hr |
| Engine Control Module R&R | Trailblazer | 1.4 hr |
| Engine Control Module R&R | Trailblazer EXT | 1.4 hr |
| Engine Control Module Relearn | Trailblazer | 0.5 hr |
| Engine Control Module Relearn | Trailblazer EXT | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM in your 2004 Chevrolet Trailblazer, the factory requires a relearn procedure to ensure proper operation. This includes programming the remaining engine oil life, which defaults to 100% if not recorded. However, a VIN-programmed replacement unit from Flagship One arrives pre-configured, eliminating the need for additional programming steps. This saves time and reduces the risk of errors during the installation process.
Symptoms of a Failing PCM
A failing PCM in your 2004 Chevrolet Trailblazer may cause a range of symptoms, including stalling, rough idling, or a no-start condition. You might also notice shifting issues, such as harsh or delayed gear changes, or an inoperative cruise control. Warning lights, like the Service Engine Soon indicator, often accompany these problems. Internal faults, such as a control module memory error, can trigger these symptoms, signaling the need for inspection or replacement.
Module Trouble Codes on the 2004 Chevrolet Trailblazer
The 2004 Chevrolet Trailblazer’s PCM may log specific internal trouble codes when it malfunctions. These codes help diagnose issues like memory errors or communication faults, guiding repairs.
Factory Service Bulletins Worth Knowing
Factory service bulletin #04-07-30-041 addresses issues in some 2004 Chevrolet Trailblazers, including a Service Engine Soon light, harsh shifting, or inoperative cruise control. The bulletin recommends reprogramming the powertrain control module to resolve these symptoms, particularly when diagnostic trouble code P0741 is present.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-07-30-041 | Service Engine Soon Light On, Diagnostic Trouble Code (DTC) P0741, Harsh Shift, Cruise Control | Some customers may comment on a harsh shift, inoperative cruise control, or an SES light |
Protecting the PCM in Your 2004 Chevrolet Trailblazer
- Maintain a healthy charging system to prevent voltage spikes that can damage the PCM.
- Keep electrical connections clean and secure to avoid corrosion or poor contact.
- Avoid jump-starting with improper voltage, which may harm sensitive electronics.
- Address warning lights or trouble codes promptly to prevent further damage.
- Ensure the PCM connector seals remain intact to protect against moisture intrusion.
Frequently Asked Questions
How do I know if my 2004 Trailblazer’s PCM needs replacement?
Symptoms like stalling, rough shifting, or a no-start condition may indicate PCM failure. Internal trouble codes, such as P0601 or P0603, often confirm the issue. A diagnostic scan can help determine if replacement is necessary.
Can I drive my 2004 Trailblazer with a bad PCM?
Driving with a faulty PCM may lead to poor performance, stalling, or transmission issues. While the vehicle might still run, it’s best to address the problem promptly to avoid further damage or unsafe driving conditions.
What’s the difference between PCM replacement and reprogramming for my Trailblazer?
Replacement involves installing a new module, while reprogramming updates the existing unit’s software. Reprogramming may resolve issues like shifting problems or cruise control failures, but replacement is needed if the module itself is faulty.
If your 2004 Chevrolet Trailblazer requires a PCM replacement, consider whether a repair or a pre-programmed unit is the best option. A refurbished replacement can save time and ensure proper functionality, especially if the original module is beyond repair. Evaluate your vehicle’s symptoms and labor costs to make an informed decision.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2004 Chevrolet Trailblazer with a lifetime warranty, free shipping and no core charge. The full Chevrolet Trailblazer module lineup covers other engine configurations as well.
Final Thoughts
The 2004 Chevrolet Trailblazer relies on its PCM for smooth engine and transmission operation. If you’re experiencing drivability issues, addressing the module promptly can restore performance. Whether you opt for reprogramming or replacement, understanding the process helps you make the right choice for your vehicle.
