2003 Chevrolet Blazer PCM and ECM Guide: Replacement and Programming
The Powertrain Control Module (PCM) or Engine Control Module (ECM) in your 2003 Chevrolet Blazer 4.3L is the main computer that manages engine and transmission operation. When it fails, you may experience no-start, stalling, or check-engine lights. Replacement requires careful handling and a relearn procedure.
Quick Summary
- The PCM/ECM controls fuel, spark, and transmission shift points in the 2003 Blazer 4.3L.
- Factory labor time for PCM replacement under the hood is 1.0 hour; under the instrument panel it is 1.8 hours.
- A 0.5-hour relearn procedure is required after installing a new module.
- Factory cautions stress turning the ignition OFF before disconnecting PCM connectors to avoid internal damage.
- Flagship One units arrive pre-programmed with your VIN, eliminating the need for a dealer relearn.
If your 2003 Chevrolet Blazer 4.3L is experiencing a no-start condition, erratic shifting, or a persistent check-engine light, the Powertrain Control Module (PCM) or Engine Control Module (ECM) may be the culprit. This computer is the brain of your Blazer’s engine and transmission management system. Understanding what the module does, where it is located, and what replacement involves can help you make an informed repair decision. This guide covers the symptoms of a failing PCM, the factory-recommended replacement procedure, and how a pre-programmed unit from Flagship One can save you time and hassle. We will also review relevant factory service bulletins and internal trouble codes specific to this vehicle.
What the PCM Does in a 2003 Chevrolet Blazer
The Powertrain Control Module (PCM) in your 2003 Chevrolet Blazer 4.3L is a single computer that integrates engine and transmission control. It receives input from sensors such as the crankshaft position sensor, throttle position sensor, and oxygen sensors, then adjusts fuel delivery, ignition timing, and shift patterns accordingly. When the PCM fails, it can cause a wide range of drivability issues. For this vehicle, replacement PCMs for the Blazer are available as either new OEM units or remanufactured modules. The PCM is also referred to as the Engine Control Module (ECM) in some service literature, but they are the same component. A faulty PCM may trigger internal diagnostic trouble codes like P0601, indicating a memory checksum error, or P0706, which relates to the gear range indicator. Understanding the role of this module is key to diagnosing problems accurately.

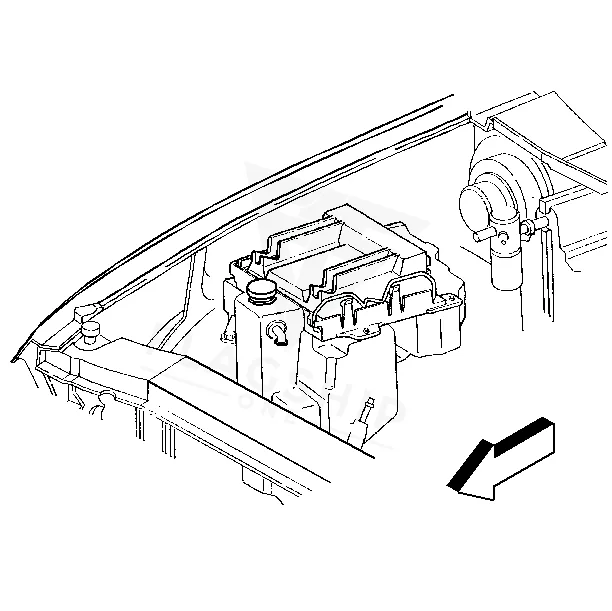

Where the PCM Is Located and What Replacement Involves
The PCM/ECM in the 2003 Chevrolet Blazer 4.3L can be located in one of two positions depending on the vehicle’s configuration. Under the hood, it is typically mounted near the driver-side firewall. Alternatively, it may be located under the instrument panel, inside the cabin. Factory labor time for removal and replacement is 1.0 hour if the module is under the hood, and 1.8 hours if it is under the instrument panel. After installing the new module, a 0.5-hour relearn procedure is required. The factory cautions that the ignition must be turned OFF when disconnecting or reconnecting the PCM connectors to prevent internal damage. Additionally, avoid touching connector pins or circuit board components to prevent electrostatic discharge damage.
How to Reach the PCM on the 2003 Chevrolet Blazer
- Remove any debris from the PCM connector surfaces before.
- Disconnect the negative battery cable.
- Remove the PCM from the PCM mounting bracket.
- Disconnect the PCM electrical connectors.
- Remove the replacement PCM from the packaging.
- Slide the PCM retainer into the PCM bracket slots.
- Pull the PCM retention bar into position.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Under Hood | 1.0 hr |
| Powertrain Control Module R&R | Under Inst. Panel | 1.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | Under Hood | 1.0 hr |
| Engine Control Module R&R | Under Inst. Panel | 1.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM/ECM in your 2003 Chevrolet Blazer 4.3L, the factory procedure requires a 0.5-hour relearn process. This involves using a scan tool to program the module with the correct VIN and calibrations. However, when you purchase a VIN-programmed replacement unit from Flagship One, that step is already completed. The module arrives ready to install, with your vehicle’s specific software loaded. This eliminates the need for a dealer visit or specialized equipment. Simply install the module, reconnect the battery with the ignition off, and the vehicle should start and run normally. The factory cautions about turning the ignition off during connector handling still apply to prevent damage.
Symptoms of a Failing PCM
A failing PCM/ECM in the 2003 Chevrolet Blazer 4.3L can produce a variety of symptoms. The engine may crank but not start, or it may stall unexpectedly while driving. You might notice erratic shifting, the gear range indicator reading incorrectly (for example, always showing ‘2’ or ‘D2’), or the Service Engine Soon (SES) light illuminated. Diagnostic trouble codes such as internal control module fault may be stored. Other common issues include misfire codes, dead communication with a scan tool, and intermittent electrical problems. If you experience any of these symptoms, especially in combination, the PCM should be inspected. Factory service bulletin #04-07-30-029 addresses a no-start condition and incorrect gear range indicator related to PCM programming.
Module Trouble Codes on the 2003 Chevrolet Blazer
The following diagnostic trouble codes are documented as module-internal faults for the 2003 Chevrolet Blazer 4.3L. These codes indicate problems within the PCM/ECM itself, such as memory errors, communication failures, or internal circuit malfunctions. They are listed here for reference when diagnosing a suspected module failure.
Factory Service Bulletins Worth Knowing
Factory service bulletins relevant to the 2003 Chevrolet Blazer 4.3L PCM/ECM include bulletin #04-07-30-029 (June 30, 2004). This bulletin addresses a Service Engine Soon light, diagnostic trouble code P0706, an incorrect gear range indicator, and a no-start condition. The remedy is to reprogram the Powertrain Control Module. Bulletin #02-06-04-057E (March 2, 2006) covers labor operation assignments for all control module reprogramming. Bulletin #07-00-89-043 (August 23, 2007) discusses warranty administration regarding the use of parts and components, including control module calibrations, not issued through General Motors.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-07-30-029 | Service Engine Soon (SES) Light On, Diagnostic Trouble Code (DTC) P0706, Gear Range Indicator I | Some customers may comment that the SES light is on. Some may comment that the vehicle will not start. Others may comment that the gear range indicator always… |
| 02-06-04-057 | Warranty Admin. – Labor Operation Assignments for All Control Module Reprogramming – (Mar 2, 20 | — |
| 07-00-89-043 | Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issue | — |
Protecting the PCM in Your 2003 Chevrolet Blazer
- Keep the battery and charging system in good condition; voltage spikes can damage the PCM.
- Ensure all ground connections and PCM connectors are clean and tight to prevent intermittent faults.
- Avoid jump-starting the vehicle with incorrect polarity or using a fast charger on the battery while connected.
- Address diagnostic trouble codes promptly; ignoring them can lead to further module stress.
- Inspect the PCM connector seals for damage or moisture intrusion, especially in wet climates.
Frequently Asked Questions
How do I know if the PCM in my 2003 Chevrolet Blazer 4.3L is bad?
Common signs include a no-start condition, stalling, erratic shifting, or the gear range indicator reading incorrectly. You may also see diagnostic trouble codes like P0601 or P0706. A scan tool that cannot communicate with the module is another strong indicator.
Can I replace the PCM in my 2003 Blazer myself?
Yes, replacement is straightforward if you have basic mechanical skills. The module is located either under the hood or under the instrument panel. Factory labor time is 1.0 or 1.8 hours depending on location. Be sure to turn the ignition off before disconnecting connectors to avoid damage.
Do I need to program a new PCM for my 2003 Chevrolet Blazer?
Factory procedure requires a 0.5-hour relearn using a scan tool. However, if you purchase a VIN-programmed unit from Flagship One, the programming is already done. You can install it and drive without a dealer visit.
When your 2003 Chevrolet Blazer 4.3L needs a PCM or ECM, you have options. You can attempt a repair if the issue is minor, but internal failures typically require replacement. A refurbished or new module from Flagship One comes pre-programmed with your VIN, saving you the time and cost of a dealer relearn. This is especially valuable given the 0.5-hour relearn time required by the factory procedure.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2003 Chevrolet Blazer with a lifetime warranty, free shipping and no core charge. The full Chevrolet Blazer module lineup covers other engine configurations as well.
Final Thoughts
The PCM/ECM in your 2003 Chevrolet Blazer 4.3L is a critical component for engine and transmission control. Recognizing symptoms like no-start, stalling, or incorrect gear indication can lead you to the right diagnosis. Replacement is manageable with the correct labor times and factory cautions in mind. Choosing a VIN-programmed unit simplifies the process and gets your Blazer back on the road quickly.
