2001 Chevrolet Blazer PCM and ECM Replacement Guide
In the 2001 Chevrolet Blazer, the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing, and emissions. Failure typically results from internal circuit damage or connector corrosion, leading to loss of engine control and related diagnostic trouble codes.
Quick Summary
- Labor times range from 0.5 to 1.8 hours depending on access point.
- Both PCM and ECM require a relearn step after installation.
- Ignition must be OFF when disconnecting PCM connectors to avoid damage.
- Off‑board programming is used when the vehicle is not present.
When a 2001 Chevrolet Blazer experiences intermittent power‑train symptoms, the PCM or ECM may need replacement. This guide explains what the modules do, where they reside, the labor involved, and the programming steps required after a swap. By following the outlined precautions and procedures, you can understand how the repair restores proper engine management and avoid common pitfalls.
What the PCM Does in a 2001 Chevrolet Blazer
The PCM in the 2001 Chevrolet Blazer acts as the central computer that coordinates fuel injection, spark timing, and emissions controls, while the ECM focuses on engine‑specific parameters. Both modules are essential for smooth operation, and a malfunction can trigger a range of drivability issues. Proper replacement ensures that the vehicle’s control logic remains intact, and replacement engine computers for the 2001 Chevrolet Blazer helps maintain performance and emissions compliance.

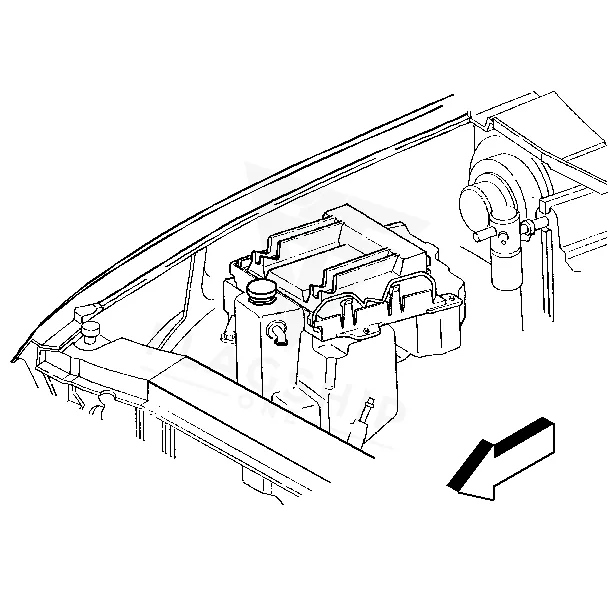

Where the PCM Is Located and What Replacement Involves
The PCM and ECM are accessed from either under the hood or behind the instrument panel. Removing the unit from under the hood is listed at one hour of labor, whereas reaching it behind the instrument panel requires about one point eight hours. After removal, a 0.5‑hour relearn procedure is required for each module. The factory cautions that the ignition must be turned off while disconnecting the PCM connectors and any power sources to prevent internal damage.
How to Reach the PCM on the 2001 Chevrolet Blazer
- Remove any debris from the PCM connector surfaces before.
- Disconnect the negative battery cable.
- Remove the PCM from the PCM mounting bracket.
- Disconnect the PCM electrical connectors.
- Remove the replacement PCM from the packaging.
- Slide the PCM retainer into the PCM bracket slots.
- Pull the PCM retention bar into position.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Under Hood | 1.0 hr |
| Powertrain Control Module R&R | Under Inst. Panel | 1.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | Under Hood | 1.0 hr |
| Engine Control Module R&R | Under Inst. Panel | 1.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for a control‑module relearn and, when necessary, off‑board programming using a Tech 2® with the appropriate adapter. Flagship One units arrive pre‑loaded, so a VIN‑programmed replacement unit eliminates the need for those additional steps.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in this Blazer include engine no‑start, rough idle, stalling, and loss of communication with a scan tool. You may also see diagnostic codes such as processor communication error which indicates internal processor problems. Addressing these symptoms promptly can prevent further drivetrain issues.
Module Trouble Codes on the 2001 Chevrolet Blazer
The following codes are documented for internal module faults in the 2001 Chevrolet Blazer:
Factory Service Bulletins Worth Knowing
Service bulletins relevant to this vehicle include #02-06-04-057 (Labor Operation Assignments for All Control Module Reprogramming, March 2, 2006), #07-00-89-043 (Use of Parts and Components Not Issued Through General Motors, August 23, 2007), and #02-09-41-001 (DTCs B1001, B1271 or B1780 Set When Replacing/Reprogramming Other Modules, May 24, 2002).
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 02-06-04-057 | Warranty Admin. – Labor Operation Assignments for All Control Module Reprogramming – (Mar 2, 20 | — |
| 07-00-89-043 | Warranty Admin. – Use of Parts and Components (Including Control Module Calibrations) Not Issue | — |
| 02-09-41-001 | Info – DTCs B1001, B1271 or B1780 Set When Replacing/Reprogramming Other Modules – (May 24, 200 | — |
Protecting the PCM in Your 2001 Chevrolet Blazer
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure connectors and grounds are clean and securely fastened.
- Avoid jump‑starting the vehicle without proper voltage regulation.
- Address any diagnostic codes as soon as they appear.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
Can I replace the PCM on my 2001 Chevrolet Blazer without a scan tool?
You can physically replace the PCM, but the factory requires a relearn and programming step that typically needs a scan tool or off‑board adapter.
What is the risk of disconnecting the PCM with the ignition on?
Connecting or disconnecting the PCM while the ignition is on may cause internal damage to the module, as noted in the factory caution.
Do I need to replace both the PCM and ECM together?
It is not mandatory to replace both at the same time; each module can be serviced independently if only one shows fault codes.
When the PCM or ECM in your 2001 Chevrolet Blazer fails, you can choose a new factory‑spec unit or a refurbished replacement. Both options restore the vehicle’s control functions, but a refurbished part from Flagship One arrives VIN‑programmed, simplifying the post‑install process.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Chevrolet Blazer with a lifetime warranty, free shipping and no core charge. The full Chevrolet Blazer module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2001 Chevrolet Blazer can resolve a range of engine‑control issues. Consider your repair options and ensure proper programming to get your vehicle back on the road.
