2002 Pontiac Bonneville PCM Replacement and Relearn Guide
In the 2002 Pontiac Bonneville, the Powertrain Control Module (PCM) manages engine timing, fuel delivery, and emission controls. Failure typically results in loss of diagnostic communication, erratic engine behavior, and the inability to complete emissions tests.
Quick Summary
- PCM removal and install each require about 1.4 hours of labor.
- Relearn procedures add roughly half an hour for each module.
- Off‑Board Programming is used when the vehicle is not present.
- Factory cautions warn against interrupting programming or disconnecting the ignition.
When a 2002 Pontiac Bonneville experiences PCM‑related faults, the repair path often involves removal, replacement, and a series of relearn steps. This guide explains what the PCM does, where it lives, how long the work typically takes, and what programming safeguards must be observed. By the end, you will understand the essential steps and how a Flagship One replacement can simplify the process.
What the PCM Does in a 2002 Pontiac Bonneville
The Powertrain Control Module in a 2002 Pontiac Bonneville coordinates engine and transmission functions, interpreting sensor data to control fuel injection, ignition timing, and emission systems. Its role is critical because it ensures the engine runs smoothly and complies with emissions standards. A malfunction can prevent the vehicle from starting or communicating with diagnostic tools. The module is one of the key replacement engine computers for the Bonneville that must be correctly programmed to match the vehicle’s VIN.
Where the PCM Is Located and What Replacement Involves

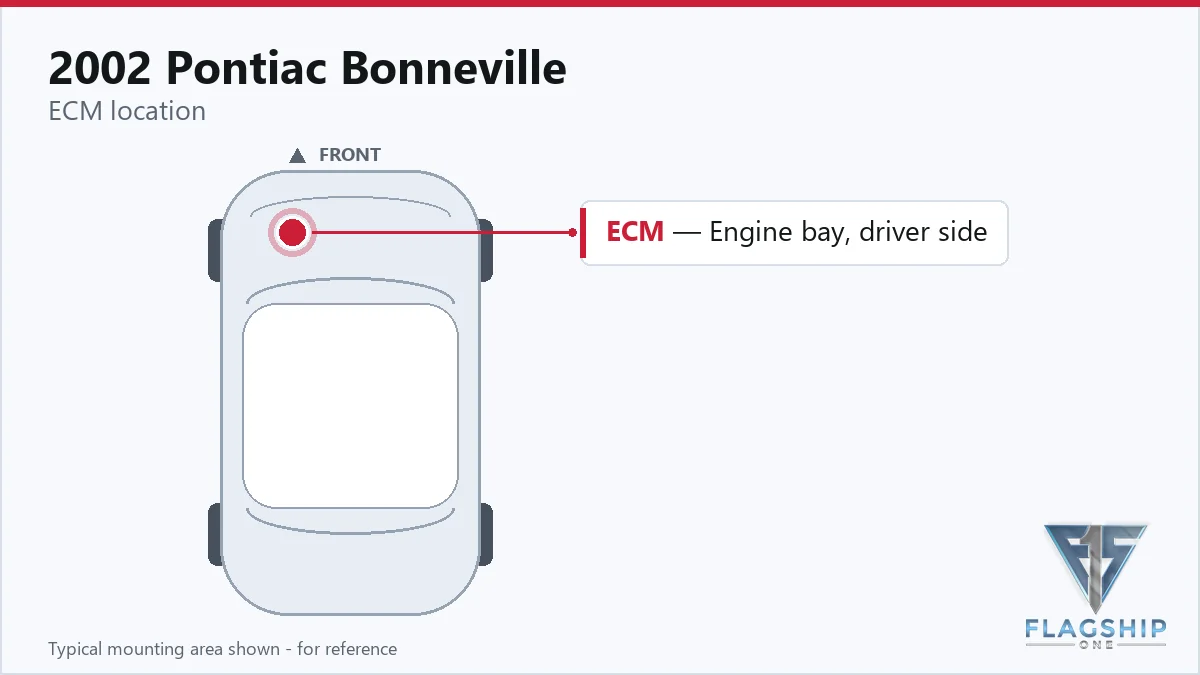

The PCM is positioned next to the air cleaner assembly, accessible via the factory removal procedure that reaches the control module without removing major components. Removing and reinstalling the module typically takes 1.4 hours each, according to the labor guide. After installation, a relearn of the PCM itself requires an additional 0.5 hours, and the Powertrain Control Module also needs a 0.5‑hour relearn to complete the process.
How to Reach the PCM on the 2002 Pontiac Bonneville
- Remove and replace the module.
- Disconnect the negative battery cable.
- Disconnect the intake air temperature (IAT) sensor electrical.
- Loosen the clamp securing the air intake duct to the air.
- Remove the air intake duct from the throttle body.
- Remove the 2 screws from the 2 air cleaner.
- Remove the cover assembly from the air cleaner housing.
- Remove the PCM and the harness from the PCM.
- Disconnect the PCM connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.4 hr |
Programming Requirements After Replacement
After the PCM is installed, the factory procedure calls for an Off‑Board Programming sequence using Tech 2, the Reprogram ECU option, and the Off‑Board Programming Adapter. The process must not be interrupted, and the ignition should remain on to avoid damage. A Flagship One unit arrives as a VIN‑programmed replacement unit so those programming steps are already satisfied, eliminating the need for on‑site reprogramming.
Symptoms of a Failing PCM
Typical signs of a faulty PCM in a 2002 Pontiac Bonneville include a no‑start condition, intermittent stalling, and loss of communication with scan tools. Drivers may also notice erratic idle or failed emissions tests. One of the diagnostic codes that can appear is the internal control module memory checksum error, indicating a problem within the PCM itself.
Module Trouble Codes on the 2002 Pontiac Bonneville
The following codes are documented for the PCM in this vehicle and can help pinpoint the exact fault:
Factory Service Bulletins Worth Knowing
Service bulletins #04-06-04-024 and #04-06-04-023 (April 7, 2004) address PCM communication failures with non‑Tech2 equipment, requiring reprogramming. Bulletin #02-06-04-057E (March 2, 2006) outlines labor assignments for all PCM reprogramming tasks.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-06-04-024 | Powertrain Control Module (PCM) Will Not Properly Communicate On-Board Diagnostic Freeze Frame | Some customers may comment that their vehicle’s engine is unable to be properly serviced or tested using non-TECH2® (Generic) service or test equipment. When… |
| 04-06-04-023 | Powertrain Control Module (PCM) Will Not Properly Communicate On-Board Diagnostic EGR Test Resu | Some customers may comment that their vehicle’s engine is unable to be properly serviced or tested using non-TECH2® (Generic) service or test equipment. When… |
| 02-06-04-057 | Warranty Admin. – Labor Operation Assignments for All Control Module Reprogramming – (Mar 2, 20 | — |
Protecting the PCM in Your 2002 Pontiac Bonneville
- Maintain a healthy charging system to avoid voltage fluctuations.
- Keep ground connections and connector pins clean and free of corrosion.
- Avoid high‑current jump‑starts that can spike the PCM’s power supply.
- Promptly address any diagnostic trouble codes before they recur.
- Inspect and preserve the sealing grommets on PCM connectors.
Frequently Asked Questions
Can I replace the PCM on my 2002 Pontiac Bonneville without a scan tool?
Physical replacement is possible, but the factory requires an Off‑Board Programming step to ensure the new unit functions correctly. Skipping that step may leave the vehicle unable to communicate with diagnostic equipment.
What labor time should I expect for PCM removal on a 2002 Pontiac Bonneville?
The standard book time for removing the Powertrain Control Module is about 1.4 hours, and the same applies to reinstalling it.
Why does the factory caution against turning off the ignition during PCM programming?
Interrupting power can cause programming failure or damage the module, leaving the vehicle with unresolved faults and potentially requiring a full replacement.
When the PCM needs service on a 2002 Pontiac Bonneville, you can choose a brand‑new unit or a refurbished replacement that matches the original specifications. Both options require the same removal and relearn steps, but a VIN‑programmed replacement from Flagship One eliminates the off‑board programming requirement, simplifying the repair.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Pontiac Bonneville with a lifetime warranty, free shipping and no core charge. The full Pontiac Bonneville module lineup covers other engine configurations as well.
Final Thoughts
The 2002 Pontiac Bonneville’s PCM is vital for engine control and emissions compliance. Whether you opt for a new or refurbished unit, following the proper removal, relearn, and programming procedures ensures reliable operation. Consider a Flagship One replacement to streamline the process.
