2002 Chevrolet Tracker ECM Replacement & PCM Programming Guide

If your 2002 Chevrolet Tracker (2.0L) has developed starting issues, running problems, or is storing multiple trouble codes, the Engine Control Module or Powertrain Control Module may be the culprit. These units are the central computing hub for your vehicle’s powertrain, managing everything from fuel injection timing to emission controls. This guide explains what these modules do, common failure symptoms, the replacement process, and what you need to know about programming a new unit into your Tracker.

What the PCM Does in a 2002 Chevrolet Tracker

The Engine Control Module in your 2002 Chevrolet Tracker serves as the primary processor for the 2.0L engine’s operating parameters. It receives input from dozens of sensors throughout the powertrain — including the coolant temperature sensor, throttle position sensor, and oxygen sensors — then calculates and delivers the appropriate fuel delivery and ignition timing commands. The PCM version integrates transmission control logic alongside engine management. When the internal memory corrupts, the module can lose the ability to process sensor data correctly, causing drivability complaints ranging from rough idle to complete no-start. Replacement engine computers for the 2002 Chevrolet Tracker must be programmed with the vehicle’s specific VIN and configuration data to function properly.

Flagship One keeps Chevrolet Tracker replacement engine computers in stock for exactly this failure pattern.

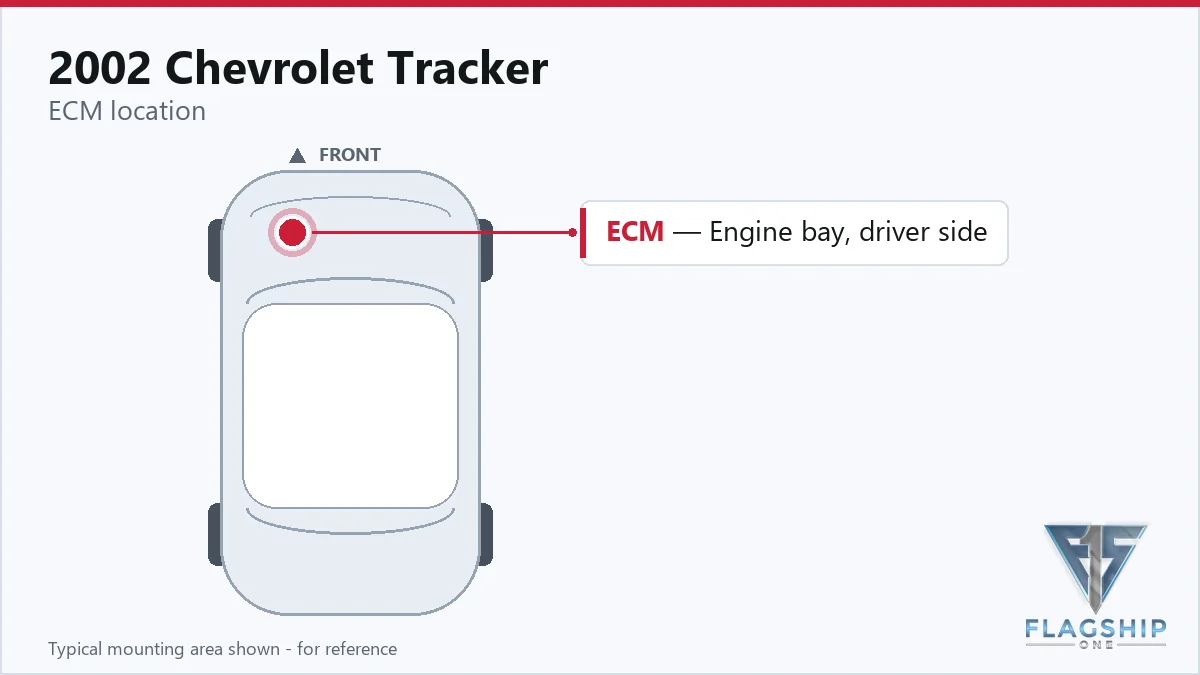

Where the PCM Is Located and What Replacement Involves

The control module on the 2002 Chevrolet Tracker is typically located in the engine compartment, mounted to the firewall or inner fender panel. Access requires removing associated wiring harness connections and mounting hardware. Book time for ECM R&R is 0.9 hours, with an additional 0.5 hours allocated for the relearn procedure. PCM replacement follows a similar pattern — 0.5 hours for R&R and 0.5 hours for relearn. The vehicle must remain powered off during module installation, and the battery should be fully charged before any programming attempt. Always disconnect the negative battery terminal before beginning module replacement to prevent voltage spikes that could damage sensitive electronics.

Symptoms of a Failing PCM

When the ECM or PCM fails on a 2002 Chevrolet Tracker, several patterns commonly emerge. The vehicle may refuse to start entirely, or start and then stall unexpectedly. Misfire codes (P0300 series) often appear alongside module-internal faults. In some cases, the scan tool cannot communicate with the module at all — the DLC appears dead even though other vehicle systems respond. Transmission shifting may become erratic or the vehicle may default to limp mode. A common internal code like P0601 indicates internal memory checksum failure within the control module, which directly points to module replacement rather than sensor or wiring issues. If your Tracker is exhibiting multiple unrelated trouble codes along with hard-starting behavior, the control module itself is a strong candidate for root cause.

Module Trouble Codes on the 2002 Chevrolet Tracker

The following module-internal trouble codes are documented for the 2002 Chevrolet Tracker (2.0L): P0601, P0602, P0603, P0604, P0605, P0606, P0607, P062F, P1600, P1621, P1627, P1680, P1681, and P1683. These codes indicate various internal processor, memory, or calibration failures within the ECM/PCM itself rather than faults in external sensors or wiring.

Factory Service Bulletins Worth Knowing

Factory guidance emphasizes that control module programming should only be performed when directed by a specific service procedure or General Motors service bulletin. Programming a module at any other time will not permanently correct a customer’s concern. Additionally, if a VIN was previously stored in the Tech 2 scan tool, the technician must select “Request Info Again” to ensure proper vehicle identification before programming begins. Always verify that connections between the Techline terminal, scan tool, DLC, and PCM are clean and secure before initiating any reprogramming sequence.

Protecting the PCM in Your 2002 Chevrolet Tracker

• Maintain your vehicle’s charging system — a weak or failing alternator can cause voltage fluctuations that stress the control module
• Keep all ground connections clean and secure, particularly those near the engine compartment
• Avoid jump-starting other vehicles if possible, as voltage spikes during boost starts can damage sensitive module circuitry
• Address check engine light codes promptly rather than ignoring them — early intervention may prevent complete module failure
• Inspect and preserve connector seals and weatherstripping to prevent moisture intrusion into the module and wiring harness
• Use only quality replacement parts when repairing sensor or wiring issues to avoid cascading damage to the control module

Frequently Asked Questions

Will any used ECM from a 2002 Chevrolet Tracker work in my vehicle?

No — control modules are VIN-matched to the specific vehicle. A used module from another Tracker will not communicate properly without expensive dealer programming, and some modules may be locked to a different vehicle identification number entirely.

Can I replace the ECM myself on a 2002 Chevrolet Tracker?

Mechanical replacement is straightforward for experienced DIYers, but the required programming step typically needs a Tech 2 scan tool or equivalent. Flagship One units arrive VIN-programmed, which may eliminate the programming requirement depending on your state’s emissions inspection needs.

How do I know if my Tracker needs an ECM or a PCM?

The 2002 Chevrolet Tracker with the 2.0L engine uses a combined PCM that handles both engine and transmission control. Your vehicle’s build records or a scan tool can confirm the exact part number, but the replacement unit provided will match your application’s requirements.

When your 2002 Chevrolet Tracker requires a new control module, you have two primary paths: a genuine new or refurbished unit from the dealer at significant cost, or a quality replacement from Flagship One that arrives pre-programmed with your VIN. For many Tracker owners, the Flagship One option provides substantial savings while delivering a unit ready for installation. Consider your budget, warranty preferences, and whether your state requires dealer programming for emissions testing when making your decision.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2002 Chevrolet Tracker with a lifetime warranty, free shipping and no core charge. The full Chevrolet Tracker module lineup covers other engine configurations as well.
