2001 Toyota Highlander PCM/ECM Replacement Guide
The engine control module (ECM) or powertrain control module (PCM) in your 2001 Toyota Highlander is the main computer that manages engine and transmission functions. Failure can cause drivability issues, no-start conditions, and diagnostic trouble codes.
Quick Summary
- The ECM/PCM is located in the instrument panel according to the factory wiring guide.
- Replacement labor for the 3.0L engine is 0.5 hours for removal and installation, plus 0.5 hours for a relearn procedure.
- Factory programming requires a Diagnostic Tester connected to the DLC3 connector and selecting the ECU CAL menu.
- Two service bulletins apply: SS002-01 (ECU flash reprogramming process) and EG041-05 (ECM calibration update for 2.4L models, now obsolete).
If your 2001 Toyota Highlander with the 3.0L engine is experiencing erratic behavior, no-start conditions, or check engine lights, the engine control module (ECM) or powertrain control module (PCM) may be at fault. This guide explains what the module does, where it is located, how long replacement takes, and what the factory programming procedure involves. You will also learn about common symptoms, relevant service bulletins, and how a pre-programmed replacement unit can simplify the repair.
What the PCM Does in a 2001 Toyota Highlander
The ECM/PCM in your 2001 Toyota Highlander is the central computer that controls fuel injection, ignition timing, transmission shifting, and emissions systems. It receives data from sensors throughout the vehicle and adjusts engine operation in real time. When this module fails, your Highlander may not start, may stall, or may run poorly. Replacing it with a quality unit, such as replacement engine computers for the Highlander, restores proper function. The module also stores diagnostic trouble codes that help pinpoint issues. Keeping the ECM/PCM in good condition is essential for reliable performance and passing emissions tests.
Where the PCM Is Located and What Replacement Involves

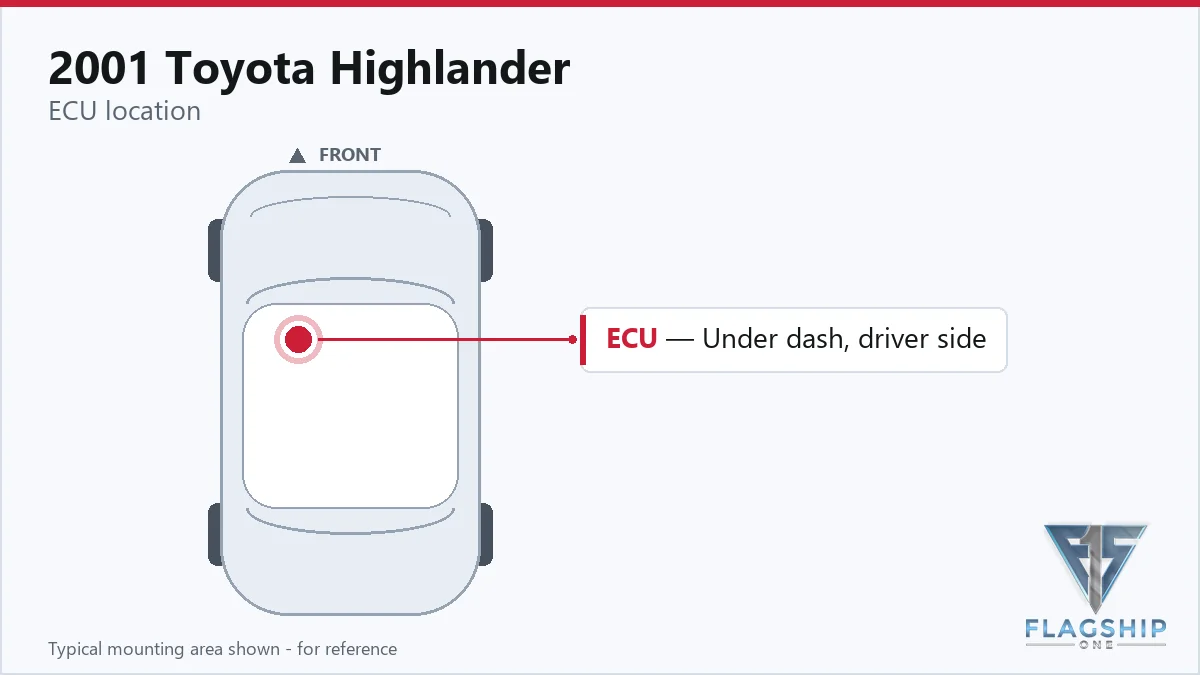

The factory wiring guide’s component grid places the engine ECU in the instrument panel of your 2001 Toyota Highlander. To access it, you typically need to remove lower trim panels near the steering column or glove box. The book time for removing and installing the ECM or PCM on the 3.0L engine is 0.5 hours. After installation, a relearn procedure is required, which adds another 0.5 hours of labor. The relearn allows the module to adapt to your vehicle’s specific sensors and driving habits. No special torque values are provided in the available facts, so standard fastener care applies.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | 3.0L | 0.5 hr |
| Engine Control Module R&R | 2.4L | 0.4 hr |
| Powertrain Control Module R&R | 2.4L | 0.4 hr |
| Powertrain Control Module R&R | 3.0L | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM/PCM, the factory procedure requires connecting a Diagnostic Tester to the vehicle’s DLC3 connector. From the ECU REPROGRAM MAIN MENU, select CURRENT Procedure ECU CAL. The menu then offers options including GET CAL FROM PC, CURRENT ECU CAL, UPDATE ECU CAL, CAL ON TESTER, and CLEAR CAL DATA. If the ECU calibration ID does not match the New Calibration ID, you must proceed to Flash Reprogram ECM (PCM). However, when you choose a VIN-programmed replacement unit from Flagship One, these steps are already completed, so you can install the module and drive without additional programming.
Symptoms of a Failing PCM
A failing ECM/PCM in your 2001 Toyota Highlander can cause a variety of symptoms. You may experience a no-start condition, intermittent stalling, or rough running. The check engine light may illuminate with codes such as catalyst efficiency code if the module’s calibration is outdated. Other common signs include loss of communication with a scan tool, erratic transmission shifting, and misfire codes that do not point to a specific cylinder. If you notice any of these issues, diagnosing the module early can prevent further drivability problems.
Factory Service Bulletins Worth Knowing
Two factory service bulletins apply to your 2001 Toyota Highlander. TSB #SS002-01 covers the ECU flash reprogramming process for 2001 and later applicable models, providing updated procedures for reflashing the module. TSB #EG041-05 addresses an ECM calibration update for 2001-2003 Highlander models with the 2AZ-FE (2.4L) engine, targeting M.I.L. ‘ON’ conditions for DTC P0420 and/or P0430. Note that this second bulletin is now obsolete, but it may still be relevant for vehicles with the 2.4L engine.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| SS002-01 | :SS002-01: 2001 & Later Applicable Models: ECU Flash Reprogramming Process (Revised) | — |
| EG041-05 | :EG041-05: 01-03 Highlander (2AZ-FE): ECM Calibration Update: M.I.L. ‘ON’ DTC P0420 and/or P043 | — |
Protecting the PCM in Your 2001 Toyota Highlander
- Keep your charging system in good condition; a failing alternator can send voltage spikes to the ECM.
- Inspect and clean ground connections and module connectors regularly to prevent corrosion.
- Avoid jump-starting your vehicle with a running donor car; use a battery pack or follow proper procedures.
- Address any diagnostic trouble codes promptly to prevent further damage to the module.
- Ensure the ECM connector seals are intact and properly seated to keep moisture out.
Frequently Asked Questions
How do I know if the ECM in my 2001 Toyota Highlander is bad?
Common signs include no-start, stalling, misfire codes that don’t trace to a cylinder, and loss of scan tool communication. A professional diagnosis can confirm module failure.
Can I replace the ECM in my 2001 Highlander myself?
Yes, if you have basic mechanical skills. The module is located in the instrument panel, and the book time for removal and installation is 0.5 hours. However, you will need to perform a relearn procedure after installation.
What is the difference between an ECM and a PCM for my 2001 Highlander?
In many Toyota vehicles, the terms are used interchangeably. The module controls both engine and transmission functions. The labor times for ECM and PCM replacement are identical for the 3.0L engine.
When your 2001 Toyota Highlander’s ECM fails, you have options: repair the original module or replace it with a refurbished unit. A refurbished module from Flagship One is a cost-effective solution that comes pre-programmed with your vehicle’s VIN, eliminating the need for a dealer visit. This ensures a direct fit and reliable performance.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Toyota Highlander with a lifetime warranty, free shipping and no core charge. The full Toyota Highlander module lineup covers other engine configurations as well.
Final Thoughts
The ECM/PCM in your 2001 Toyota Highlander is a critical component for engine and transmission control. Understanding its location, replacement labor, and programming requirements helps you make an informed repair decision. For a hassle-free fix, consider a pre-programmed replacement unit that skips the factory relearn steps.
