2001 Lexus LX470 Engine Computer Module Service Guide
The powertrain control module in your 2001 Lexus LX470 is the central computer that manages engine and transmission operations. When this unit fails internally, the engine may not start, run poorly, or default to a limited-power mode to protect drivetrain components.
Quick Summary
- The engine control module for your LX470 is located behind the instrument panel in the cabin.
- Factory book time for R&R and relearn procedures totals one hour combined.
- Reprogramming with factory software is required after installing a replacement unit.
- Flagship One units arrive VIN-programmed, eliminating the flash procedure step.
- Symptoms of failure include no-start conditions, stalling, and communication losses.
If your 2001 Lexus LX470 has developed starting problems, unusual drivability symptoms, or is throwing engine-related trouble codes, the powertrain control module may be at fault. This module serves as the central computer for your 4.7-liter V8, overseeing fuel delivery, ignition timing, and emissions controls while communicating with the transmission controller. When this component fails internally, the results can range from a simple check engine light to a complete no-start condition. This guide explains where the module resides in your LX470, what replacement involves, and why choosing a pre-programmed replacement from Flagship One can streamline your repair. You will learn the factory-recommended procedures, common failure symptoms, and what steps Flagship One has already handled so your installation proceeds smoothly.
What the PCM Does in a 2001 Lexus LX470
The engine control module in your 2001 Lexus LX470 functions as the primary computer for the 4.7L V8 powertrain. This unit continuously monitors dozens of sensors, including mass airflow, crankshaft position, oxygen sensors, and throttle position, using that data to calculate optimal fuel injection volume and spark advance in real time. It also manages emissions control components and maintains bidirectional communication with the automatic transmission controller to coordinate shift firmness and timing. Without a functioning ECU, the engine cannot meet emissions standards and may operate in a severely limited capacity. Replacement engine computers for the 2001 Lexus LX470 must be programmed with vehicle-specific calibration data to ensure proper operation of all connected systems. The module stores adaptive memory values learned during normal driving, which are lost during replacement and rebuilt over subsequent operation.
Flagship One keeps Lexus LX470 replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves

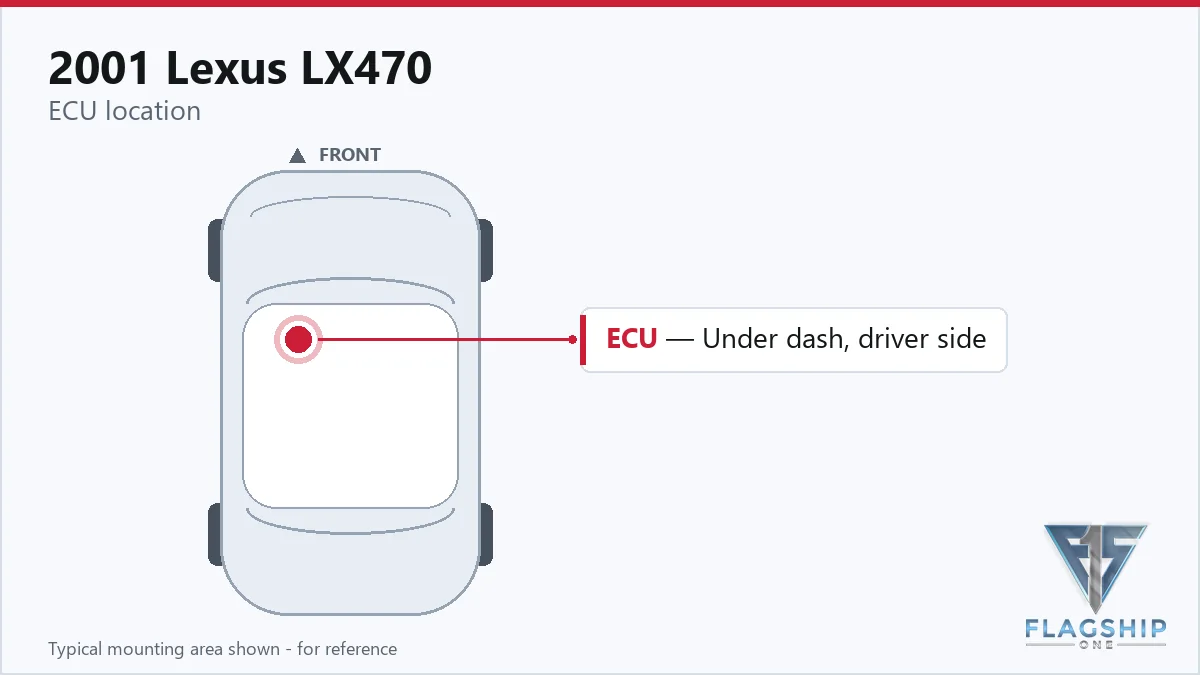

According to the factory wiring guide for your LX470, the engine control unit is mounted behind the instrument panel inside the passenger compartment. This location differs from many vehicles that place the ECU in the engine bay, meaning access requires interior disassembly rather than hood-side work. The removal and installation procedure carries a book time of 0.5 hours, with an additional 0.5 hours allocated for relearning procedures after the new module is in place. Total labor to complete both steps is one hour, assuming straightforward access and no complicating factors from broken clips or corroded connectors. No specific torque values are noted in the factory documentation for this procedure. The instrument panel must be partially disassembled to reach the ECU mounting location, which typically involves removing knee bolsters, lower trim panels, and potentially the cluster hood to create adequate working room for the swap.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the physical replacement of your 2001 Lexus LX470 engine computer, the factory repair protocol calls for a relearn procedure using the Techstream diagnostic system. This process allows the new module to establish communication with vehicle sensors and adapt to the specific characteristics of your engine. The procedure includes verifying that no new fault codes set during the repair and confirming that critical data such as the VIN has been properly written to the new unit. You may also choose to purchase a VIN-programmed replacement unit that arrives from Flagship One already configured with your vehicle’s identification number. This means the flash programming step that would otherwise require factory software access has already been completed, and installation can proceed directly to the relearn procedure.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the powertrain control module in your 2001 Lexus LX470 begins to fail, several distinct symptoms may appear. The engine may crank but fail to start, or it could start and immediately stall once warm. Acceleration often becomes sluggish, and the transmission may shift harshly or fail to shift at all, sometimes triggering a fail-safe mode that limits the vehicle to second gear. A persistent check engine light frequently accompanies these issues, and in some cases the scan tool will show no communication with the module at all. Misfire codes and fuel delivery trouble codes commonly set when the ECU can no longer properly process sensor inputs. P0601 Internal Memory Check Sum Error may appear when the module detects internal data corruption. These symptoms often develop gradually, starting as intermittent issues before becoming constant, and addressing them promptly helps avoid being stranded with a no-start vehicle.
Factory Service Bulletins Worth Knowing
Factory service bulletin SS001-01 addresses the ECU flash reprogramming process for 2001 and later applicable models, providing the official procedure for updating module calibration. Technical service bulletin SS002-07 covers the Techstream ECU flash reprogramming procedure specifically for 2001 through 2008 Lexus models, including your LX470. Both bulletins establish the standard diagnostic and programming steps that should be followed when a replacement powertrain control module is installed. These documents confirm that proper initialization using factory-approved diagnostic equipment is a required part of any module replacement on this vehicle.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| SS001-01 | :SS001-01: ECU Flash Reprogramming Process: 2001 & Later Applicable Models (Revised) | — |
| SS002-07 | :SS002-07: 01-08 Applicable Lexus: Techstream ECU Flash Reprogramming Procedure | — |
Protecting the PCM in Your 2001 Lexus LX470
- Keep battery terminals clean and secure to prevent voltage fluctuations that may damage the ECU.
- Address any battery or charging system issues promptly to avoid prolonged low-voltage conditions.
- Verify ground connections at the engine and body are free of corrosion and properly tightened.
- Avoid jump-starting the vehicle incorrectly, as reverse polarity can destroy sensitive electronics.
- Investigate and resolve check engine lights quickly before underlying issues damage the module.
- Maintain the integrity of all connector seals and protective covers during any service work.
Frequently Asked Questions
How do I know if the ECU in my 2001 Lexus LX470 is actually bad versus a sensor failure?
Diagnostic trouble codes stored in the module can help differentiate between sensor failures and ECU problems. Codes like P0601 or P0600 that specifically reference loss of communication with the controller itself often indicate internal module failure rather than an external fault.
Can I install a used ECU from a junkyard in my 2001 Lexus LX470?
A used unit may appear cheaper initially, but it would still require programming to match your vehicle’s VIN and calibration. Used modules may also have unknown histories and could fail soon after installation. A professionally refurbished replacement unit typically offers better reliability.
What happens if the new ECU is not properly programmed for my LX470?
An improperly programmed module may not communicate with the engine sensors, leading to poor running conditions, no-start situations, or transmission shifting problems. The factory requires specific calibration data to be written to the replacement unit before it can function correctly.
Deciding between repair and replacement for your 2001 Lexus LX470 powertrain control module depends on the nature of the failure and your diagnostic findings. In cases where the module has lost its programming or sustained internal damage, replacement is typically more practical than attempting board-level repairs. Professional refurbishment services rebuild failed units to factory specifications, while new genuine parts from the dealer carry premium pricing. Flagship One offers VIN-programmed replacement modules that arrive ready for installation, avoiding the need to source factory calibration files or pay for programming at a dealership.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Lexus LX470 with a lifetime warranty, free shipping and no core charge. The full Lexus LX470 module lineup covers other engine configurations as well.
Final Thoughts
The powertrain control module is essential for your 2001 Lexus LX470 to run properly, managing everything from cold starts to transmission shifting. Factory service procedures require programming after replacement, but Flagship One eliminates that step by shipping units already configured with your vehicle’s VIN. For a repair that minimizes downtime and expense, a pre-programmed replacement may be the practical solution for your situation.
