1999 Lexus LX470 PCM/ECM Replacement and Relearn Procedure and Timing
The powertrain and engine control modules in the 1999 Lexus LX470 manage fuel injection, ignition timing, and emissions. When these units fail, the vehicle may exhibit stalling, misfires, or a loss of power. Replacing them restores proper engine management. continuously.
Quick Summary
- Each module operates for 0.5 hours during replacement.
- Relearn procedures are required after removal.
- ECM and PCM are interchangeable in the LX470.
- Factory wiring places the engine ECU in the instrument panel.
When a 1999 Lexus LX470 experiences erratic running or a sudden loss of power, the culprit may be its powertrain or engine control module. These components dictate how fuel, ignition, and emissions systems behave. Replacing or resetting them can restore reliable performance. This guide explains the replacement process, location, required relearn steps, and how Flagship One’s VIN‑programmed units streamline the job. By following these instructions, you’ll understand what to expect and how to keep your LX470 running smoothly.
What the PCM Does in a 1999 Lexus LX470
The powertrain control module (PCM) in the 1999 Lexus LX470 manages engine timing, fuel delivery, and transmission shifts, while the engine control module (ECM) focuses on fuel injection and ignition timing. Together they keep the vehicle operating within design parameters. If either unit fails, the engine may misfire, stall, or refuse to start. The modules communicate with each other through the vehicle’s CAN bus, ensuring coordinated operation. Proper function of these units is critical for maintaining power, fuel economy, and emissions compliance. Lexus LX470 engine computers are available if the OEM units are out of warranty or beyond repair.

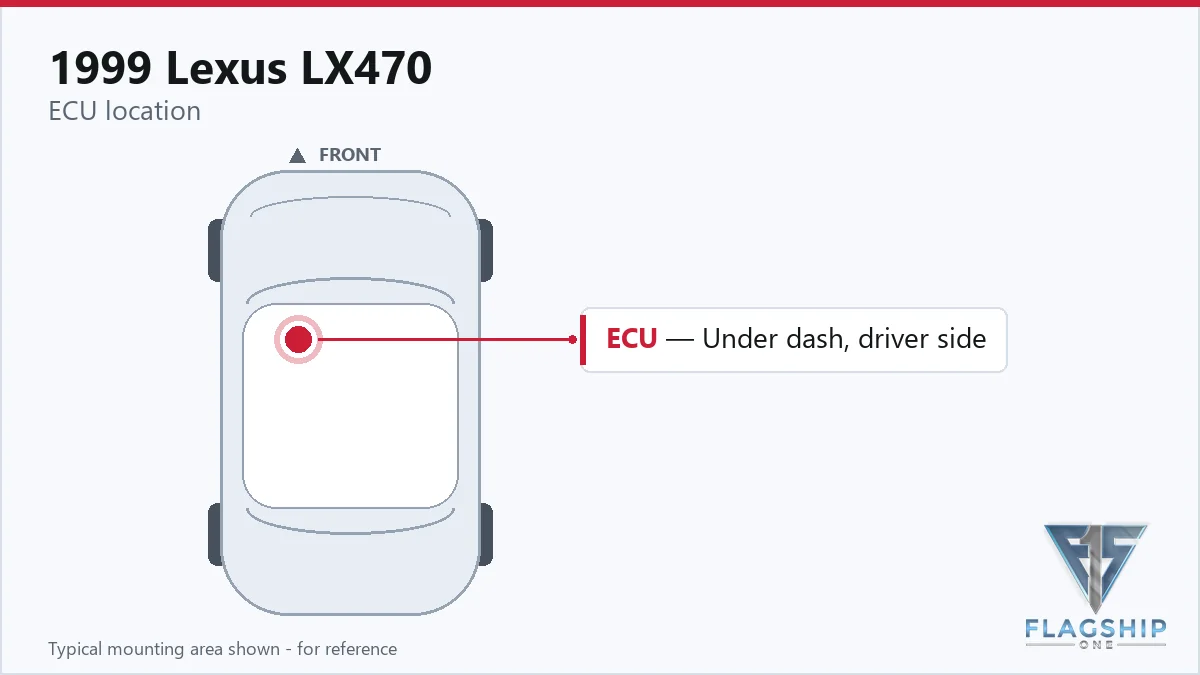

Where the PCM Is Located and What Replacement Involves
The engine ECU is mounted within the instrument panel, requiring removal of the dash panel and a 0.5‑hour labor time for removal. After extraction, the replacement unit is installed in the same location and secured with the original mounting hardware. The total labor for a complete PCM or ECM swap is 0.5 hours, plus an additional 0.5 hours for relearn procedures. The instrument panel offers direct access to the ECU connectors, making the replacement straightforward for technicians familiar with the LX470’s dashboard layout.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Flagship One units come VIN‑programmed, eliminating the need for an external programming session after installation. The factory procedure normally requires a relearn of memory functions and a reset of the PCM or ECM, but because the unit is already configured, the technician only needs to complete the relearn steps. This streamlines the process and reduces on‑site time. VIN‑programmed replacement unit ensures that the module is ready for use immediately after installation.
Symptoms of a Failing PCM
Common signs of a failing PCM or ECM on the 1999 Lexus LX470 include engine misfires, stalling during acceleration, or a complete failure to start. The vehicle may also display a check engine light or lose power during operation. When codes such as Powertrain Control Module Memory Function Failure appear, it indicates that the PCM’s memory functions are compromised, necessitating a reset or replacement.
Factory Service Bulletins Worth Knowing
The service bulletin TC002‑03, applicable to models from 1998‑2005, addresses the ECM reset memory function. Technicians should reference this bulletin when performing resets or replacements to ensure compliance with the factory procedure.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| TC002-03 | :TC002-03: ECM Reset Memory Function: 98-05 Applicable Models (Revised) | — |
Protecting the PCM in Your 1999 Lexus LX470
- Maintain a healthy charging system to protect ECU power supply.
- Keep all ECU connectors clean and free of corrosion.
- Avoid exposing the vehicle to excessive voltage spikes during jump‑starts.
- Address any diagnostic codes promptly to prevent further damage.
- Inspect connector seals regularly to prevent moisture ingress.
Frequently Asked Questions
What should I do if my 1999 Lexus LX470 won’t start after a PCM replacement?
First, verify that the relearn procedure was completed correctly. Check all connector connections for tightness and inspect for any visible damage. If the vehicle still fails to start, scan for diagnostic codes to identify any remaining issues.
How long does a PCM or ECM replacement take on a 1999 Lexus LX470?
The replacement itself typically requires 0.5 hours of labor, plus an additional 0.5 hours for relearn steps, totaling roughly one hour for a complete swap.
Will the Flagship One unit need any post‑installation programming?
No, Flagship One units are VIN‑programmed out of the factory, so no additional programming is required after installation.
When your 1999 Lexus LX470 shows symptoms of a failing PCM or ECM, you have options. A professional repair will reset the existing module, while a refurbished replacement offers a more cost‑effective solution with the same functionality. Either choice can restore reliable performance, but a VIN‑programmed unit ensures a quick, hassle‑free installation.

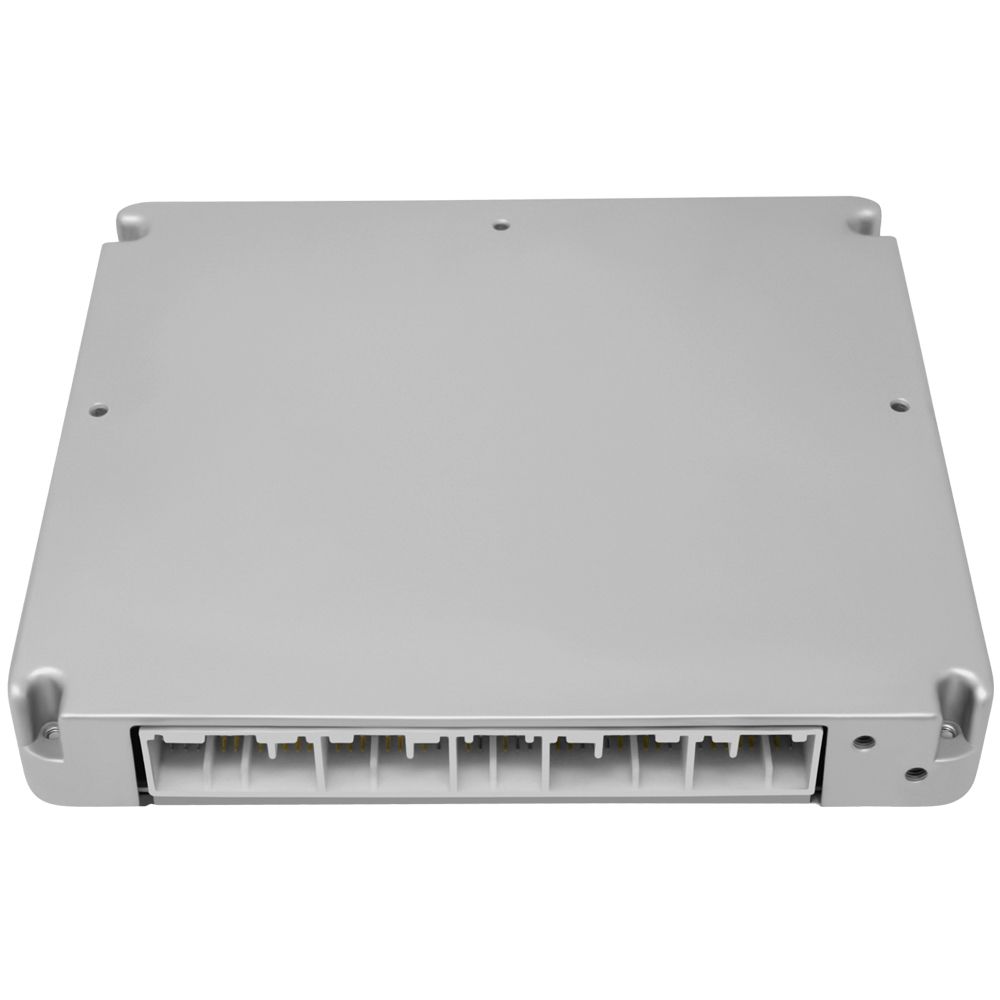

Flagship One stocks a refurbished, VIN-programmed PCM for the 1999 Lexus LX470 with a lifetime warranty, free shipping and no core charge. The full Lexus LX470 module lineup covers other engine configurations as well.
Final Thoughts
If your 1999 Lexus LX470 is experiencing engine misfires or a loss of power, replacing the PCM or ECM can bring back dependable operation. With the right tools and knowledge, the process is straightforward and effective.
