2001 Chrysler PT Cruiser Powertrain Control Module Overview
The Powertrain Control Module in a 2001 Chrysler PT Cruiser manages engine and transmission commands. Failure can interrupt fuel delivery, throttle response, and shift timing, often triggering diagnostic codes and loss of driveability.
Quick Summary
- PCM relearn typically requires 0.5 hours of labor.
- Replacement and removal each take about 0.4‑0.5 hours.
- The unit resides in the engine compartment for straightforward access.
- Factory programming uses VIN and mileage data via DRB Scan Tool.
When a 2001 Chrysler PT Cruiser exhibits erratic powertrain behavior, the Powertrain Control Module often becomes the focal point of diagnosis. This guide explains what the PCM does, where it lives, how it is replaced, and what steps follow a swap. By the end, you will understand the labor involved, the programming requirements, and how to keep the module operating reliably.
What the PCM Does in a 2001 Chrysler PT Cruiser
In the PT Cruiser, the Powertrain Control Module acts as the central computer that interprets sensor inputs and commands fuel injection, ignition timing, and transmission shift points. It ensures the engine runs smoothly and the transmission shifts correctly, which is why a malfunction can lead to stalling or no‑start conditions. The module’s role is comparable to other replacement powertrain control units for the PT Cruiser found in similar applications, making its proper function essential for overall drivability.

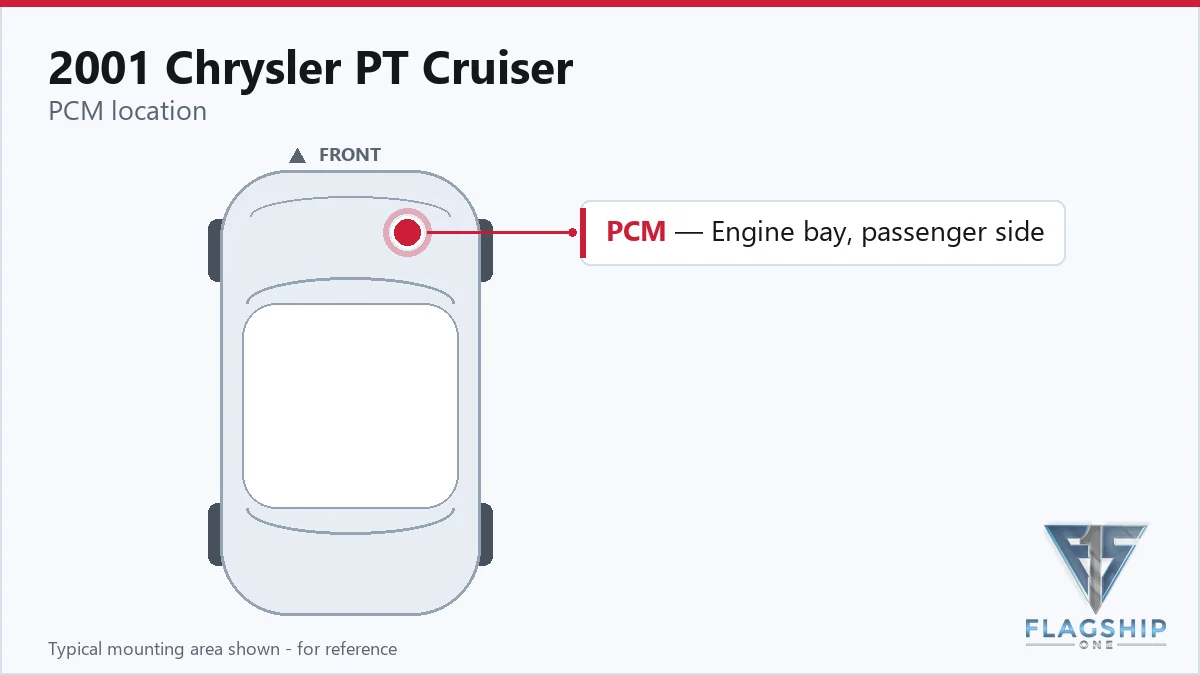

Where the PCM Is Located and What Replacement Involves
The PCM is mounted within the engine compartment of the 2001 PT Cruiser, making it accessible without removing major components. Removing the unit typically requires 0.4 hours of labor, while reinstalling and completing the relearn process adds another 0.5 hours. The procedure involves disconnecting the electrical connector, unbolting the housing, and securing the new module in place before performing the required relearn steps.
How to Reach the PCM on the 2001 Chrysler PT Cruiser
- Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
- Remove the negative battery cable.
- Remove screws attaching PCM to dashpanel bracket.
- Unlock the connector then disconnect both 40-way connectors from the PCM Locking Tabs.
- Lift PCM up to remove it from vehicle.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the PCM is installed, the factory process calls for using the DRB Scan Tool to program the new unit with the vehicle’s original VIN and mileage. Flagship One supplies a a VIN‑programmed replacement unit that arrives pre‑loaded, so the reprogramming step is already satisfied and no additional scan‑tool work is needed on your shop floor.
Symptoms of a Failing PCM
A failing PCM in this PT Cruiser may manifest as a no‑start condition, rough idle, unexpected stall, or erratic shifting. Diagnostic trouble codes often appear, such as internal control module memory checksum error which indicates communication loss within the module. You may also notice the check‑engine light flashing or the transmission refusing to engage properly.
Module Trouble Codes on the 2001 Chrysler PT Cruiser
The PT Cruiser’s PCM can store internal fault codes that help pinpoint a malfunction. The following codes are documented for this model:
| Code | Meaning | Full Guide |
|---|---|---|
| P0600 | Module-internal fault | Full P0600 guide → |
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Factory Service Bulletin #08-030-06 Rev. A outlines the Powertrain Control Module Initialization procedure. Technicians are instructed to follow the specific steps to initialize the PCM after replacement, ensuring proper operation.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-030-06 Rev. A | 08-030-06 Rev. A Powertrain Control Module Initialization | — |
Protecting the PCM in Your 2001 Chrysler PT Cruiser
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all PCM ground connections regularly.
- Use surge protectors when jump‑starting to prevent voltage spikes.
- Address any diagnostic codes promptly before they worsen.
- Verify connector seals are intact to keep moisture out.
Frequently Asked Questions
Can I replace the PCM on my 2001 PT Cruiser myself?
The PCM is reachable in the engine compartment and the labor times are modest, but the replacement requires proper relearn procedures and VIN programming, which are best handled with the correct tools.
What does the P0600 code indicate for a PT Cruiser?
P0600 signals a communication failure between the PCM and other control modules, often pointing to a wiring issue or a faulty PCM itself.
Do I need special equipment to program a new PCM in a PT Cruiser?
Factory guidelines require the DRB Scan Tool to input the VIN and mileage, but a Flagship One unit arrives already programmed, eliminating that step.
When the PCM fails, you can choose a brand‑new factory‑spec unit or a refurbished replacement that meets the same performance standards. Both options restore the PT Cruiser’s engine and transmission control, but a refurbished module from Flagship One may offer cost savings while still delivering the required functionality.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Chrysler PT Cruiser with a lifetime warranty, free shipping and no core charge. The full Chrysler PT Cruiser module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module is vital to the 2001 Chrysler PT Cruiser’s operation. Whether you opt for a new or refurbished unit, ensuring proper installation and programming will keep your vehicle running smoothly.
