2001 Chevrolet Silverado PCM and ECM Replacement Guide
In the 2001 Chevrolet Silverado the Powertrain Control Module and Engine Control Module manage engine speed, transmission shift points, and emissions. Failure of either unit may cause loss of power, erratic shifting, or persistent diagnostic codes.
Quick Summary
- PCM and ECM removal typically require 0.8 to 1.4 hours of labor.
- Factory cautions require the ignition off when disconnecting power to the ECM.
- Unprogrammed replacement units will trigger DTC P0601 or P0602.
- A post‑install relearn may be needed to clear the system.
When the Service Engine Soon indicator appears on your 2001 Chevrolet Silverado, the underlying cause often involves the vehicle’s control modules. This guide explains what the Powertrain Control Module (PCM) and Engine Control Module (ECM) do, how to replace them, and what steps follow the install. You will learn the labor expectations, required cautions, and how Flagship One’s VIN‑programmed units simplify the process.
What the PCM Does in a 2001 Chevrolet Silverado
The PCM in the 2001 Chevrolet Silverado interprets sensor data to control fuel delivery, ignition timing, and transmission shift strategy, while the ECM focuses on engine‑specific functions such as idle control and emissions. Together they keep the powertrain running smoothly, and any malfunction can affect drivability. Understanding their role helps you appreciate why a correct install and post‑install procedure matter. replacement engine computers for Silverado ensure the vehicle returns to normal operation after a swap.
Where the PCM Is Located and What Replacement Involves
Both modules are mounted in the engine compartment, accessible after disconnecting the battery and removing the protective covers. The labor guide lists 0.8 hours for a gasoline PCM removal and 1.1 hours for a gasoline ECM removal. Light‑duty versions of each module use 1.4 hours. After the unit is removed, the replacement is bolted in place, and the battery connections are restored following the factory cautions about ignition state.

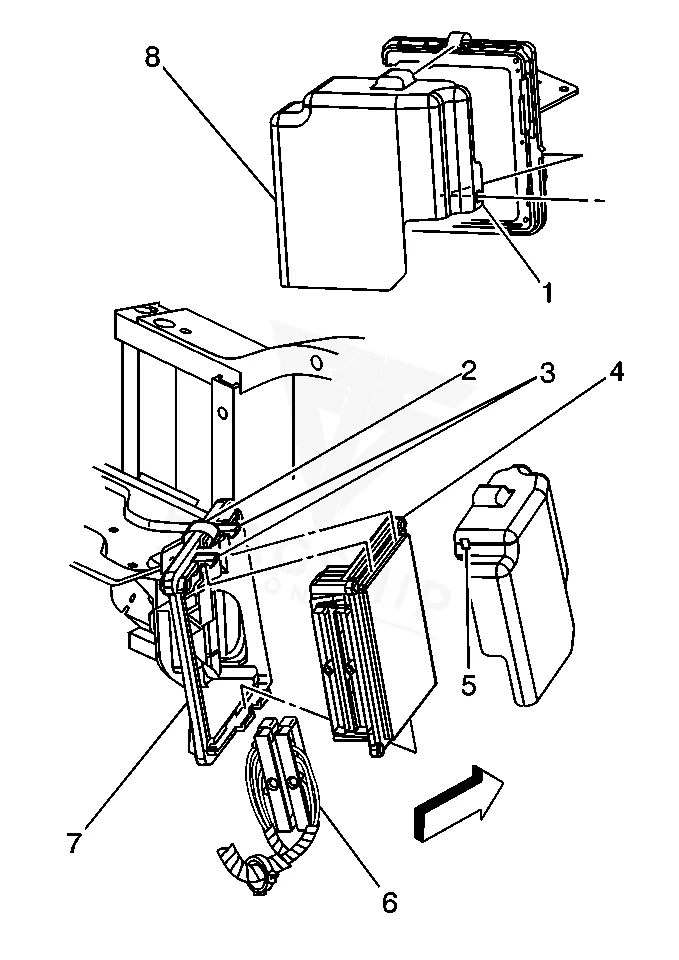

How to Reach the PCM on the 2001 Chevrolet Silverado
- Remove any debris from the ECM connector surfaces before.
- Disconnect the negative battery cable from the battery and.
- Release the ECM cover mounting holes (1,5) away.
- Release the ECM cover from the mounting.
- Remove the ECM cover.
- Disconnect the ECM harness connectors.
- Release the spring latch from the ECM.
- Release the ECM mounting tabs from the.
- Remove the ECM from the engine.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Light Duty | 1.4 hr |
| Powertrain Control Module R&R | GAS | 0.8 hr |
| Powertrain Control Module R&R | DIESEL | 1.4 hr |
| Powertrain Control Module Relearn | Light Duty | 0.5 hr |
| Powertrain Control Module Relearn | Medium/Heavy Truck | 0.5 hr |
| Engine Control Module R&R | Light Duty | 1.4 hr |
| Engine Control Module R&R | GAS | 1.1 hr |
| Engine Control Module R&R | DIESEL | 1.4 hr |
Programming Requirements After Replacement
Factory procedure calls for a Powertrain Control Module relearn of 0.5 hours after installation, and the ECM must not be powered while the ignition is on. Flagship One provides a VIN‑programmed replacement unit that already contains the correct calibration, so those steps are essentially completed before the part reaches you. a VIN-programmed replacement unit eliminates the need for on‑site EEPROM programming.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the Silverado include no‑start conditions, rough idle, unexpected stalling, and transmission shift irregularities. Scan tools often cannot communicate with the vehicle, and codes such as EEPROM not programmed may appear, indicating the module’s internal memory is not valid. Addressing these symptoms promptly can prevent further driveline damage.
Module Trouble Codes on the 2001 Chevrolet Silverado
The following internal trouble codes are documented for the 2001 Chevrolet Silverado and may appear when the PCM or ECM experiences a fault:
Factory Service Bulletins Worth Knowing
Service Bulletin #01-06-04-020 (Mar 16 2001) notes that some owners report the Service Engine Soon lamp illuminated and technicians may find DTC P1781 stored in the ECM, indicating a transmission control voltage issue. The bulletin recommends reprogramming the Engine Control Module.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 01-06-04-020 | Service Engine Soon Indicator Lamp On, DTC P1781 Set (Reprogram Engine Control Module) – (Mar 1 | Some customers may comment that the Service Engine Soon indicator lamp is illuminated. Technicians may find DTC P1781 (Transmission Control Module — Incorrect… |
Protecting the PCM in Your 2001 Chevrolet Silverado
- Maintain a healthy charging system to avoid voltage spikes.
- Keep all ground points and connector contacts clean and tight.
- Use proper battery handling to prevent jump‑start surges.
- Address stored diagnostic codes promptly.
- Inspect and preserve connector seals from moisture.
Frequently Asked Questions
What does a P0601 code mean for my 2001 Chevrolet Silverado?
P0601 indicates the ECM’s EEPROM is not programmed or has failed, which typically requires a replacement unit that is correctly programmed before installation.
Do I need to perform a relearn after installing a new PCM in my Silverado?
Yes, the factory procedure specifies a PCM relearn of about half an hour after the module is installed, unless the replacement is already VIN‑programmed.
Can I install the ECM with the ignition on?
No, the ignition must be off when disconnecting or reconnecting power to the ECM to avoid internal damage.
When the control module in your 2001 Chevrolet Silverado needs attention, you can choose a repair that follows the factory steps or opt for a refurbished replacement that arrives VIN‑programmed. Both paths aim to restore reliable operation while respecting the vehicle’s specific service requirements.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Chevrolet Silverado with a lifetime warranty, free shipping and no core charge. The full Chevrolet Silverado module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2001 Chevrolet Silverado involves careful handling and post‑install procedures. Flagship One’s pre‑programmed units can simplify the job, helping you get back on the road with confidence.
