2001 Buick LeSabre PCM Relearn & Replacement
In the 2001 Buick LeSabre, the Powertrain Control Module (PCM) manages engine timing, fuel delivery, and transmission shifts. A faulty PCM can cause misfires, stalling, or loss of communication with diagnostic tools.
Quick Summary
- PCM replacement takes approximately 0.5 hours for relearn and 1.4 hours for full reset.
- The module sits beside the air cleaner assembly, accessed by removing the air cleaner cover.
- Off-board programming is required if the vehicle is not present during replacement.
- Flagship One units arrive pre‑programmed, eliminating on‑site relearn steps.
- Proper connector security is essential to avoid programming failure.
If your 2001 Buick LeSabre is experiencing erratic engine behavior or diagnostic trouble codes, the PCM may be the culprit. Replacing or reprogramming the PCM can restore reliable engine performance and clear error codes. This guide explains where the module is located, how long the job takes, and the steps needed to complete a successful replacement, so you can decide whether to repair or use a refurbished unit.
What the PCM Does in a 2001 Buick LeSabre
The PCM in the 2001 Buick LeSabre coordinates engine and transmission functions, monitoring sensors and adjusting fuel, spark, and shift timing. replacement 2001 Buick LeSabre PCM ensures smooth power delivery and proper gear shifts. When the PCM fails, the vehicle may exhibit misfires, stalling, or a loss of communication with diagnostic tools, impacting both performance and safety.

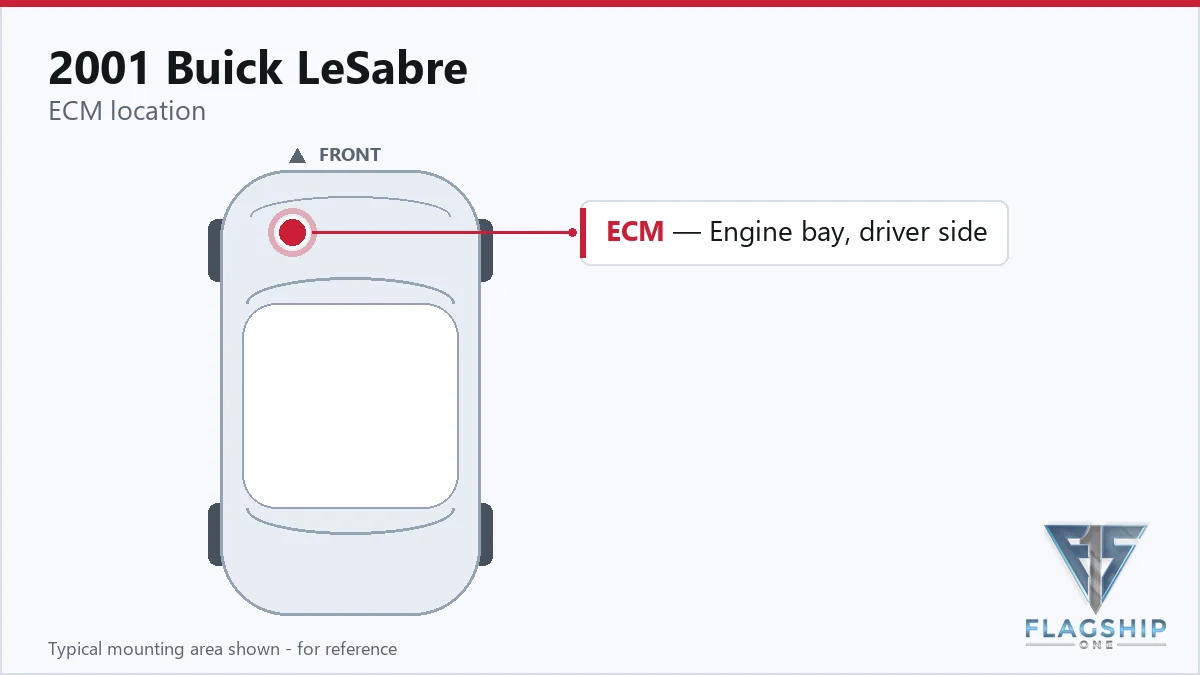

Where the PCM Is Located and What Replacement Involves
The PCM is positioned next to the air cleaner assembly. To replace it, remove the air cleaner cover, access the module, and follow the book times: 0.5 hours for relearn or 1.4 hours for a full reset. Secure all connections before proceeding.
How to Reach the PCM on the 2001 Buick LeSabre
- Disconnect the negative battery cable.
- Disconnect the idle air temperature (IAT) sensor electrical.
- Loosen the clamp securing the air intake duct to the air.
- Remove the air intake duct from the throttle body.
- Remove the two screws from the two air cleaner housing.
- Remove the air cleaner housing cover assembly.
- Disconnect the PCM connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure requires off‑board programming with Tech 2, selecting Reprogram ECU and the Off‑Board Programming Adapter. Flagship One units arrive as a VIN‑programmed replacement unit, so these steps are already completed. The installer should verify all PCM and DLC connections are secure and that the Techline software is current.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Common signs of a failing PCM include engine misfires, stalling, no-start conditions, and the appearance of trouble codes. On the 2001 Buick LeSabre, you might see codes such as PCM Internal Failure. The vehicle may also display a loss of communication with non‑TECH2 diagnostic equipment.
Module Trouble Codes on the 2001 Buick LeSabre
The following internal trouble codes are associated with the PCM in the 2001 Buick LeSabre:
Factory Service Bulletins Worth Knowing
The bulletin #04-06-04-024 addresses PCM communication issues with non‑TECH2 diagnostic tools, noting that these vehicles may not properly transmit freeze frame information. This bulletin is relevant for owners experiencing diagnostic errors.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 04-06-04-024 | Powertrain Control Module (PCM) Will Not Properly Communicate On-Board Diagnostic Freeze Frame | Some customers may comment that their vehicle’s engine is unable to be properly serviced or tested using non-TECH2® (Generic) service or test equipment. When… |
Protecting the PCM in Your 2001 Buick LeSabre
- Maintain a healthy charging system to prevent voltage spikes.
- Inspect and clean PCM and related connector grounds.
- Avoid using a jump‑starter that exceeds the vehicle’s voltage tolerance.
- Address any diagnostic codes promptly before they worsen.
- Keep connector seals intact to prevent moisture ingress.
Frequently Asked Questions
Will replacing the PCM fix my 2001 Buick LeSabre misfires?
If misfires are caused by a faulty PCM, replacement typically resolves the issue. However, confirm that no other components like spark plugs or fuel injectors are contributing to the problem.
Do I need a special tool to program the PCM on my 2001 Buick LeSabre?
The standard Tech 2 diagnostic tool with the Off‑Board Programming Adapter is used. Flagship One units are pre‑programmed, so the tool is only needed for verification.
What should I do if the PCM fails during a diagnostic session?
Do not turn off the ignition until the programming session completes. Verify all connections and ensure the diagnostic software is up to date to prevent data loss.
Choosing between a full repair and a refurbished replacement depends on your vehicle’s condition and budget. A refurbished PCM can restore performance without the cost of a new unit, while a repair ensures that the original module is restored to factory settings.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2001 Buick LeSabre with a lifetime warranty, free shipping and no core charge. The full Buick LeSabre module lineup covers other engine configurations as well.
Final Thoughts
For your 2001 Buick LeSabre, a PCM replacement can return reliable engine performance and clear diagnostic codes. Contact a qualified technician to evaluate whether a new or refurbished unit best meets your needs.
