1998 Buick LeSabre PCM Replacement Guide and ECM Repair
The Engine Control Module on your 1998 Buick LeSabre serves as the central computer for the 3.8L powertrain, governing fuel delivery, ignition timing, and emissions controls. When internal circuitry fails, these systems malfunction without warning, potentially stranding the vehicle.
Quick Summary
- The module is positioned next to the air cleaner housing, requiring air box removal for access.
- Battery disconnection is mandatory before any service work on this module.
- Static electricity poses a risk during handling; avoid contact with connector pins and circuit board components.
- Factory procedure requires recording remaining engine oil life before replacement; otherwise it resets to 100%.
- Module internal fault codes commonly indicate memory corruption or communication failures with downstream sensors.
Replacing the Engine Control Module on a 1998 Buick LeSabre with the 3.8L engine is a repair that can catch many owners off guard. This module acts as the brain for your vehicle’s powertrain, and when it fails internally, diagnostic trouble codes may appear with no apparent pattern, or communication with scan tools may be lost entirely. This guide walks through what the replacement process involves, where the module sits in your vehicle, and what programming steps the factory procedure mandates. Understanding these requirements helps you make an informed decision about repair versus replacement with a pre-programmed unit. Flagship One provides VIN-programmed replacements that arrive ready to install, eliminating the need to find a reprogramming tool or dealer for post-installation flashing.
What the PCM Does in a 1998 Buick LeSabre
The Engine Control Module in your 1998 Buick LeSabre manages the operation of the 3.8L V6 engine by processing input from numerous sensors and controlling fuel injectors, ignition coils, and emission components. This computer maintains proper air-fuel ratios, monitors exhaust gas recirculation, and coordinates transmission shift points. When internal processor or memory faults develop within the replacement engine computers for the Buick LeSabre, your vehicle may exhibit drivability problems that defy conventional diagnosis. Module-internal codes such as those listed for this vehicle often indicate the control unit itself has failed rather than external sensors. The PCM also stores adaptive fuel tables learned during normal operation; losing this data may affect driveability until the system can relearn.
Where the PCM Is Located and What Replacement Involves

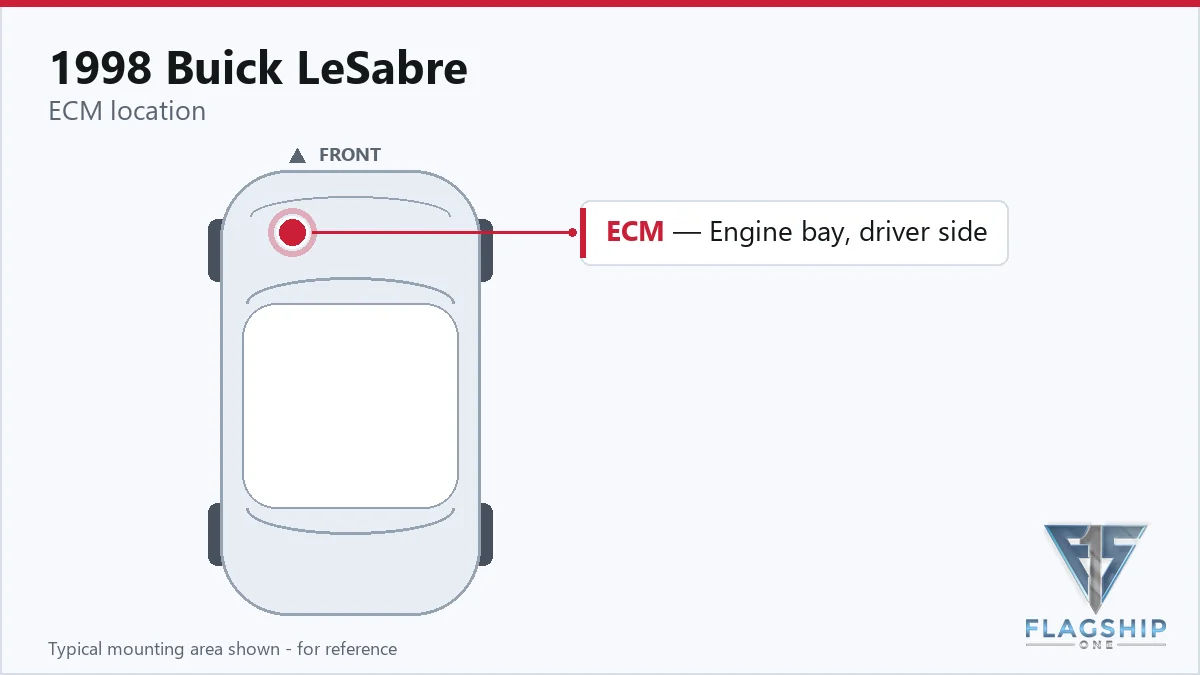

Factory service information places the control module adjacent to the air cleaner assembly on this vehicle. Access typically requires removing the air intake duct and air cleaner housing to reach the unit. Labor estimation for module removal and installation on the 3.8L engine is listed at 1.0 hours for PCM procedures and 1.1 hours for ECM procedures. These book times reflect the physical R&R operation and do not include post-installation programming steps. Technicians must disconnect the negative battery cable before beginning work and take precautions against electrostatic discharge throughout the procedure.
How to Reach the PCM on the 1998 Buick LeSabre
- Disconnect the negative battery cable.
- Remove the air cleaner assembly cover.
- Remove the PCM cover shield.
- Remove the PCM from the mounting bracket.
- Disconnect the harness connectors from the PCM.
- Remove the PCM from the engine compartment.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.0 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.1 hr |
Programming Requirements After Replacement
Following module installation, the factory procedure for this vehicle mandates recording the remaining engine oil life percentage before disconnecting power. If this step is skipped, the replacement module defaults to assuming 100% oil life. The system must also undergo a relearn procedure to calibrate the new module to your specific vehicle. When you purchase a pre-programmed replacement from Flagship One, the unit arrives with your VIN already flashed into memory, which means the basic immobilizer and calibration data are in place upon installation. This leaves only the relearn process and oil life entry as the primary post-installation tasks.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
A failing Engine Control Module on your 1998 Buick LeSabre may produce no-start conditions, intermittent stalling, or rough engine operation that mimics ignition or fuel pump problems. Multiple trouble codes often appear simultaneously across different categories, particularly codes indicating internal memory fault within the module itself. You may also notice a dead or unresponsive scan tool connection, as the computer cannot communicate properly with diagnostic equipment. Transmission shifting may become harsh or delayed, and the check engine light may illuminate for apparent sensor failures that persist after replacing those sensors. These symptoms typically develop without warning and may worsen as internal circuitry degrades further.
Module Trouble Codes on the 1998 Buick LeSabre
The following module-internal diagnostic trouble codes have been documented for this specific vehicle. These codes indicate various internal faults within the control module circuitry or memory rather than failures in external sensors or actuators. Code P0601 points to internal checksum failures, while P0602 indicates a programming error within the module. Codes in the P16xx and P16xx ranges cover communication failures and other internal functions.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P1619 | Module-internal fault | — |
| P1626 | Module-internal fault | — |
| P1629 | Module-internal fault | — |
| P1635 | Module-internal fault | — |
| P1639 | Module-internal fault | — |
| P1641 | Module-internal fault | — |
| P1646 | Module-internal fault | — |
| P1651 | Module-internal fault | — |
| P1652 | Module-internal fault | — |
| P1662 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
Factory service bulletin 99-06-04-053, issued October 1999, covers PCM reprogramming procedures for this vehicle family. A separate bulletin, 99-07-30-007 dated April 1999, addresses a shudder condition that may occur when reapplying throttle after stopping at speeds above a certain threshold. This shudder bulletin specifically calls for PCM reprogramming to correct the issue. Owners experiencing these conditions should reference the applicable bulletin with their service provider to determine whether reprogramming may resolve the concern without physical module replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
| 99-07-30-007 | Vehicle Shudder When Reapplying Throttle After Stopping (Reprogram PCM) – (Apr 20, 1999) | Some owners may comment about a vehicle shudder after slowing for a stop and reapplying the throttle at greater than 50 |
Protecting the PCM in Your 1998 Buick LeSabre
- Maintain the vehicle’s charging system with regular battery and alternator testing to prevent voltage fluctuations that stress module electronics.
- Keep all module electrical connectors clean and properly sealed to exclude moisture and contamination.
- Avoid jump-starting the vehicle improperly, as voltage spikes during boost starts can damage sensitive control modules.
- Address diagnostic trouble codes promptly rather than ignoring them, as repeated exposure to fault conditions may accelerate module degradation.
- Handle replacement modules with care, minimizing contact with static-generating materials and never touching connector pins or exposed circuit board components.
- Ensure any aftermarket accessories installed on the vehicle are properly fused and grounded to prevent electrical interference with the PCM.
Frequently Asked Questions
Will a used PCM from a junkyard work in my 1998 Buick LeSabre?
A used module would require VIN matching and reprogramming to function in your vehicle, which typically requires dealer-level equipment. Additionally, used modules may have the same internal faults as the unit being replaced. A refurbished unit sourced from a reputable supplier may offer better reliability assurance.
Why did multiple trouble codes appear at once on my 1998 LeSabre?
When the Engine Control Module develops internal faults, it often cannot process data from multiple sensor inputs correctly. This causes numerous codes to set simultaneously across different systems. If the codes involve internal module faults, replacing the module rather than individual sensors typically resolves the problem.
Do I need to reprogram my 1998 Buick LeSabre PCM after replacement?
Factory procedure requires a relearn process and recording the current engine oil life percentage into the new module. Pre-programmed replacement units from Flagship One arrive with your specific VIN and immobilizer data already configured, which simplifies installation compared to blank or universal replacement modules.
Deciding between repair and replacement for your 1998 Buick LeSabre involves weighing the cost of reprogramming against the lower initial price of a used module. Repair typically requires dealer equipment or an independent shop with the proper tools, and there is no guarantee the underlying fault will not recur. A pre-programmed replacement unit arrives ready to install, reducing labor time and eliminating the need to source reprogramming services. Consider the long-term reliability of each option for your specific situation and driving needs.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1998 Buick LeSabre with a lifetime warranty, free shipping and no core charge. The full Buick LeSabre module lineup covers other engine configurations as well.
Final Thoughts
The 1998 Buick LeSabre Engine Control Module replacement requires careful handling, proper battery disconnection, and attention to the factory post-installation procedure for engine oil life recording. Understanding the module’s location next to the air cleaner and the relearn requirements helps set realistic expectations for repair time and cost. Whether you pursue programming through a dealer or opt for a VIN-programmed replacement unit, addressing internal module faults promptly prevents cascading drivability issues in your LeSabre.
