2000 Buick Regal PCM Replacement & Reprogramming Guide
The powertrain control module (PCM) in your 2000 Buick Regal manages engine and transmission functions. Failures may cause erratic performance, stored trouble codes, or prevent the vehicle from starting.
Quick Summary
- Factory PCM is next to the air cleaner assembly in the 2000 Buick Regal.
- Replacement labor time is typically 0.9 hours for removal and installation.
- A relearn procedure of 0.5 hours is required after module replacement.
- Factory cautions include avoiding electrostatic discharge and recording oil life.
- Internal trouble codes like P0601 may indicate PCM failure.
If your 2000 Buick Regal is experiencing unexplained stalling, a no-start condition, or persistent check-engine lights, the powertrain control module (PCM) may be at fault. This critical component oversees engine and transmission operations, and its failure can disrupt multiple systems. Understanding its location, replacement process, and post-install requirements helps you make informed decisions about repairs. This guide covers what the PCM does, where it’s located, and the steps involved in replacing and reprogramming it, so you can address issues efficiently and avoid unnecessary complications.
What the PCM Does in a 2000 Buick Regal
The powertrain control module in your 2000 Buick Regal serves as the brain for engine and transmission management. It processes data from sensors to regulate fuel delivery, ignition timing, and shift points, ensuring optimal performance and emissions compliance. When this module malfunctions, you may notice poor drivability, stored trouble codes, or even a complete inability to start the vehicle. Replacing it involves installing a new replacement engine computers for the Regal, which must be programmed to match your vehicle’s specifications to function correctly. Without proper calibration, the module may not communicate with other systems, leading to further issues.

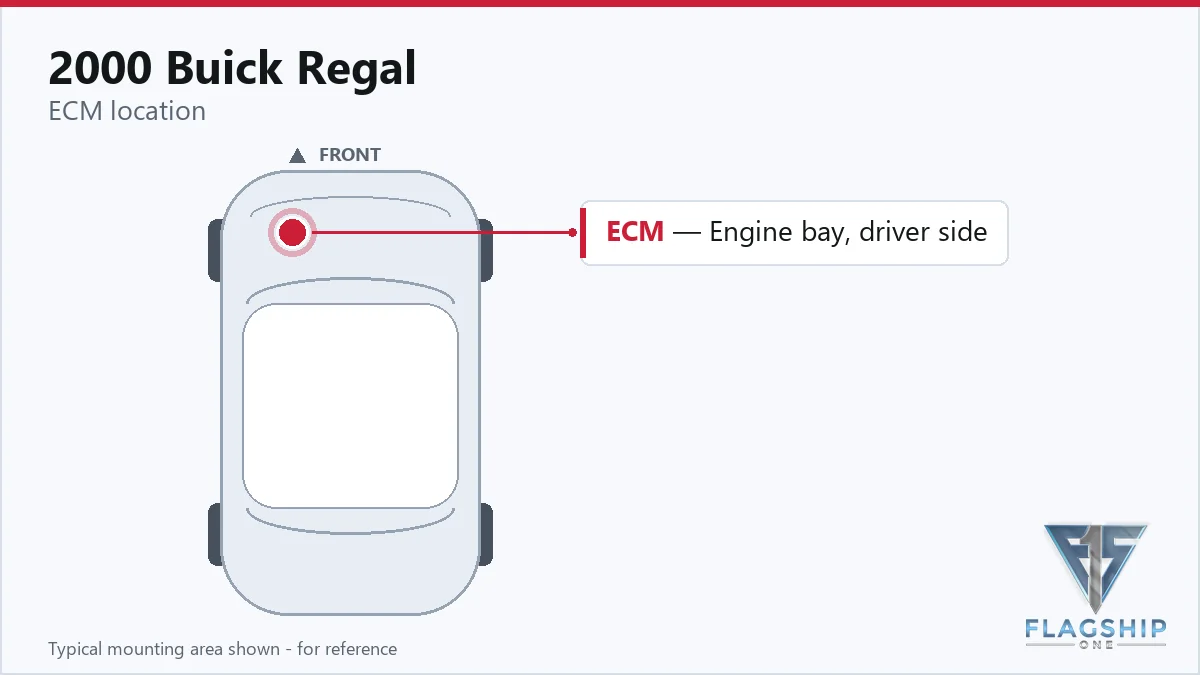

Where the PCM Is Located and What Replacement Involves
In the 2000 Buick Regal, the PCM is positioned next to the air cleaner assembly, making it relatively accessible for replacement. The factory procedure requires removing the old module and installing the new one, a process that typically takes 0.9 hours of labor. After installation, a relearn procedure of 0.5 hours is necessary to ensure the module synchronizes with the vehicle’s systems. When handling the PCM, avoid touching the connector pins or circuit board components to prevent electrostatic discharge damage. Always turn the ignition off before disconnecting or reconnecting the module or its power sources, such as the battery or fuse.
How to Reach the PCM on the 2000 Buick Regal
- Disconnect the negative battery cable.
- Disconnect the IAT sensor electrical connector.
- Remove the 3 bolts from the inner fender brace and.
- Remove the brace.
- Loosen the clamp securing the air intake duct to the air.
- Remove the air intake duct from the throttle body.
- Remove the 2 screws from the 2 air.
- Remove the air cleaner housing cover assembly.
- Disconnect the PCM connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | One | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
Programming Requirements After Replacement
After replacing the PCM in your 2000 Buick Regal, the factory requires reprogramming to restore vehicle-specific settings, including the remaining engine oil life. If this step is skipped, the system may default to 100% oil life, potentially leading to premature maintenance or engine wear. The procedure involves using a Tech 2™ scan tool and selecting the Off-Board Programming Adapter for module calibration. However, a VIN-programmed replacement unit arrives pre-configured for your vehicle, eliminating the need for additional programming steps and reducing the risk of errors during installation.
Symptoms of a Failing PCM
A failing PCM in your 2000 Buick Regal may cause a range of symptoms, including intermittent stalling, rough idling, or a no-start condition. You might also notice poor acceleration, erratic shifting, or the check-engine light illuminating with internal module codes. One common fault is an internal control module memory checksum error, which indicates corruption within the PCM’s memory. If your scan tool fails to communicate with the module, that’s another sign of potential failure. Addressing these issues promptly can prevent further drivability problems and avoid unnecessary repairs to other components.
Module Trouble Codes on the 2000 Buick Regal
The 2000 Buick Regal’s PCM may store specific internal trouble codes when it malfunctions. These codes help diagnose issues related to the module’s memory, communication, or processing functions. Reviewing them can confirm whether the PCM is the root cause of your vehicle’s symptoms.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P0620 | Module-internal fault | Full P0620 guide → |
| P062F | Internal EEPROM error | Full P062F guide → |
| P0650 | Module-internal fault | Full P0650 guide → |
| P1621 | Control module long-term memory performance | Full P1621 guide → |
| P1626 | Module-internal fault | — |
| P1630 | Module-internal fault | — |
| P1631 | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
General Motors issued service bulletin #99-06-04-053 to provide guidance on PCM reprogramming for vehicles like the 2000 Buick Regal. The bulletin outlines procedures for updating the module’s software to address known issues or improve performance. Reprogramming should only be performed when directed by a service procedure or a GM-issued bulletin to avoid unintended consequences.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
Protecting the PCM in Your 2000 Buick Regal
- Maintain a healthy charging system to prevent voltage spikes that may damage the PCM.
- Keep electrical connections clean and secure to avoid intermittent communication issues.
- Avoid jump-starting the vehicle with improper voltage, which can harm sensitive electronics.
- Address trouble codes promptly to prevent cascading failures in related systems.
- Ensure the PCM connector seals remain intact to protect against moisture and corrosion.
Frequently Asked Questions
Can I replace the PCM in my 2000 Buick Regal myself?
While the PCM is accessible next to the air cleaner, replacement involves handling sensitive electronics and requires a relearn procedure. If you’re not experienced with automotive electrical systems, professional installation is recommended to avoid damage or improper calibration.
Why does my 2000 Buick Regal need a PCM relearn after replacement?
The relearn procedure ensures the new PCM synchronizes with the vehicle’s sensors and systems. Without it, the module may not function correctly, leading to drivability issues or stored trouble codes.
What happens if the oil life isn’t programmed into the new PCM for my 2000 Buick Regal?
The system defaults to 100% oil life, which may delay necessary maintenance. This could lead to increased engine wear if oil changes aren’t performed at the correct intervals.
If your 2000 Buick Regal requires a PCM replacement, you have options between a new or refurbished module. Given the labor and programming requirements, choosing a unit pre-configured for your vehicle can simplify the process and reduce the risk of post-installation issues. Consider the time and tools needed for proper installation before deciding on the best approach for your situation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2000 Buick Regal with a lifetime warranty, free shipping and no core charge. The full Buick Regal module lineup covers other engine configurations as well.
Final Thoughts
The 2000 Buick Regal relies on its PCM to manage critical engine and transmission functions. If you’re experiencing symptoms like stalling, no-start conditions, or internal module codes, addressing the issue promptly can restore reliable performance. Whether you opt for professional installation or a DIY approach, understanding the process ensures a smoother repair experience.
