1998 Cadillac Eldorado PCM and ECM Replacement Guide
In the 1998 Cadillac Eldorado, the powertrain and engine control modules manage fuel delivery, ignition timing, and emission functions. Failure typically results from internal circuit loss, leading to loss of control, diagnostic codes, and potential drivability issues.
Quick Summary
- Removal requires access beside the air cleaner assembly.
- Factory labor times list 1.4 h for each module removal and 0.5 h for relearn.
- Capture freeze‑frame and failure records before any disconnection.
- Program the new unit with the latest Techline data and oil‑life value.
If your 1998 Cadillac Eldorado is experiencing erratic idle, stalling or a P0601 code, the control modules may need replacement. This guide explains where the PCM and ECM reside, what the factory expects after a swap, and how Flagship One components simplify the process. By the end, you will understand the steps to safely remove, install, and verify the new modules in your vehicle.
What the PCM Does in a 1998 Cadillac Eldorado
The powertrain control module in the 1998 Cadillac Eldorado oversees engine speed, fuel injection, and transmission shift timing, while the engine control module fine‑tunes combustion and emissions. Both computers are critical for smooth operation and emissions compliance. replacement control modules for the 1998 Cadillac Eldorado ensure the vehicle runs within factory specifications and avoids diagnostic trouble.

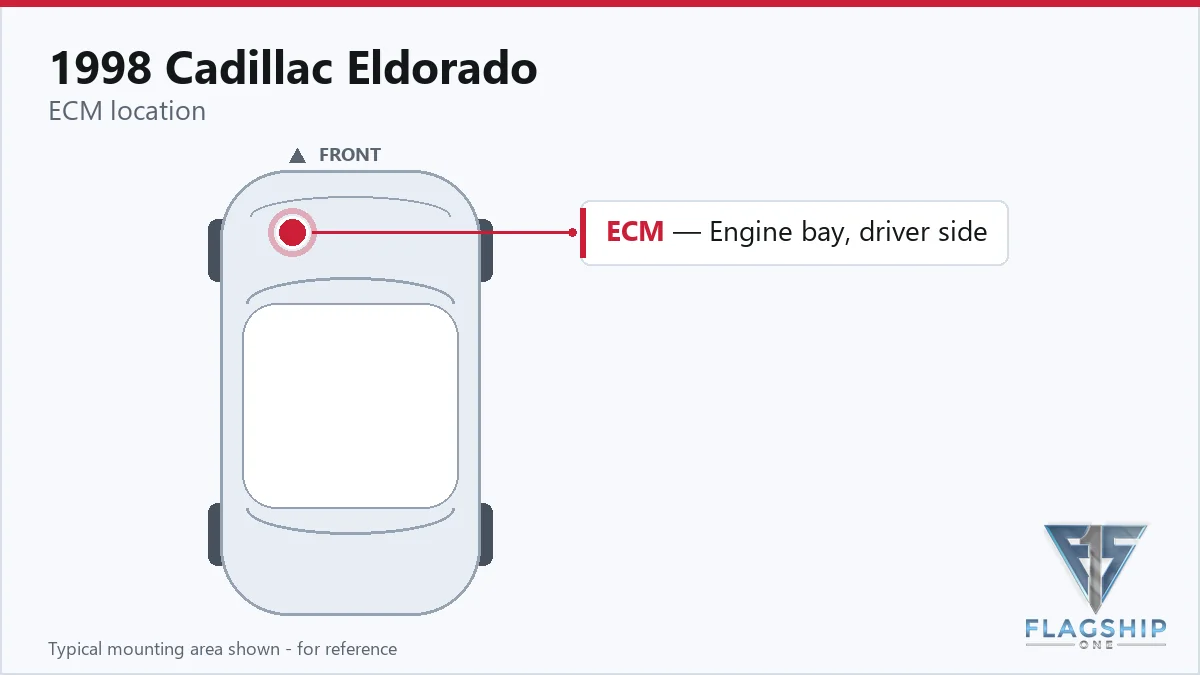

Where the PCM Is Located and What Replacement Involves
The factory removal procedure indicates the control module sits adjacent to the air cleaner assembly, allowing access without major disassembly. Removing the PCM or ECM typically takes about 1.4 hours, and reinstalling them requires an additional 0.5 hours for the relearn process. Ensure the ignition is locked before disconnecting power to protect internal circuitry.
How to Reach the PCM on the 1998 Cadillac Eldorado
- Position when disconnecting or reconnecting the battery cables, the.
- Disconnect the negative battery cable.
- Disconnect the IAT sensor connector.
- Remove the gusset (brace) from between the LH fender and the.
- Loosen the Intake Air duct clamp at the MAF sensor.
- Remove the Intake Air duct/air cleaner assembly.
- Remove the air cleaner assembly.
- Lift the air inlet assembly onto the radiator core.
- Open the air inlet housing to gain access to the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new unit, the factory requires a flash using the most recent Techline procedure and entry of the remaining engine oil life; otherwise the system defaults to 100 percent. Flagship One supplies a VIN‑programmed replacement unit that already includes the correct software and oil‑life data, eliminating the need for separate programming steps.
Symptoms of a Failing PCM
A failing PCM or ECM in this model often triggers no‑start conditions, rough idle, stalling, or transmission shift irregularities. The diagnostic scanner may report loss of communication or present code internal processor malfunction, indicating the module cannot execute its control algorithms properly.
Module Trouble Codes on the 1998 Cadillac Eldorado
The following internal trouble code(s) are documented for the 1998 Cadillac Eldorado:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Bulletin #99-06-04-053 (Oct 26 1999) covers PCM reprogramming, #83-81-32 (Sep 16 1998) details new PCM connector service kits, and #02-06-04-057E (Mar 2 2006) outlines labor assignments for all control module reprogramming.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
| 83-81-32 | INFO – NEW PCM CONNECTOR SERVICE KITS – (Sep 16, 1998) | — |
| 02-06-04-057 | Warranty Admin. – Labor Operation Assignments for All Control Module Reprogramming – (Mar 2, 20 | — |
Protecting the PCM in Your 1998 Cadillac Eldorado
- Maintain a healthy charging system to avoid voltage stress on the modules.
- Inspect and clean ground straps and connector pins regularly.
- Avoid high‑voltage spikes from jump‑starts or improper battery connections.
- Address diagnostic codes promptly to prevent prolonged stress.
- Keep connector seals dry and intact to protect against moisture.
Frequently Asked Questions
What does a P0601 code indicate on a 1998 Cadillac Eldorado?
It signals an internal processor error within the PCM or ECM, meaning the computer cannot complete its control functions.
Do I need special tools to remove the control module from a 1998 Cadillac Eldorado?
The module is reachable beside the air cleaner, and standard hand tools plus a scan tool for data capture are sufficient.
Can a VIN‑programmed replacement unit eliminate the post‑install programming step?
Yes, a Flagship One unit comes pre‑loaded with the correct software and oil‑life information, so the factory flash is not required.
When the original PCM or ECM fails, you can choose a new factory‑spec unit or a refurbished Flagship One replacement. Both options restore engine management, but the Flagship One part arrives pre‑programmed, reducing shop time and eliminating the need for a separate flash after installation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1998 Cadillac Eldorado with a lifetime warranty, free shipping and no core charge. The full Cadillac Eldorado module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in your 1998 Cadillac Eldorado can return reliable performance and clear fault codes. Consider a Flagship One pre‑programmed unit to streamline the repair and keep your vehicle running as intended.
