1997 Mercury Mystique PCM and ECM Replacement Guide

If your 1997 Mercury Mystique 2.0L is experiencing driveability issues that point to the engine computer, you are likely dealing with a failing powertrain control module (PCM). This guide explains what the PCM does in your Mystique, where it is located, how long replacement typically takes, and what the factory requires after installation. You will also learn about relevant service bulletins and how a pre-programmed replacement can simplify the repair. The goal is to give you the information you need to decide whether to repair or replace the module and to understand the steps involved so you can make an informed choice for your vehicle.

What the PCM Does in a 1997 Mercury Mystique

The powertrain control module (PCM) in your 1997 Mercury Mystique 2.0L acts as the central brain for the engine and transmission. It receives input from sensors such as the oxygen sensor, throttle position sensor, and crankshaft position sensor, then adjusts fuel injector pulse width, ignition timing, and transmission shift patterns in real time. Because the Mystique uses an EEC V system, the PCM also communicates with other modules on the vehicle network. When the PCM fails, it can cause a wide range of problems, from a no-start condition to erratic shifting. For this reason, replacement PCMs for the 1997 Mystique are a common repair item as the vehicle ages. Understanding what the module controls helps you recognize symptoms early and avoid being stranded.

Where the PCM Is Located and What Replacement Involves

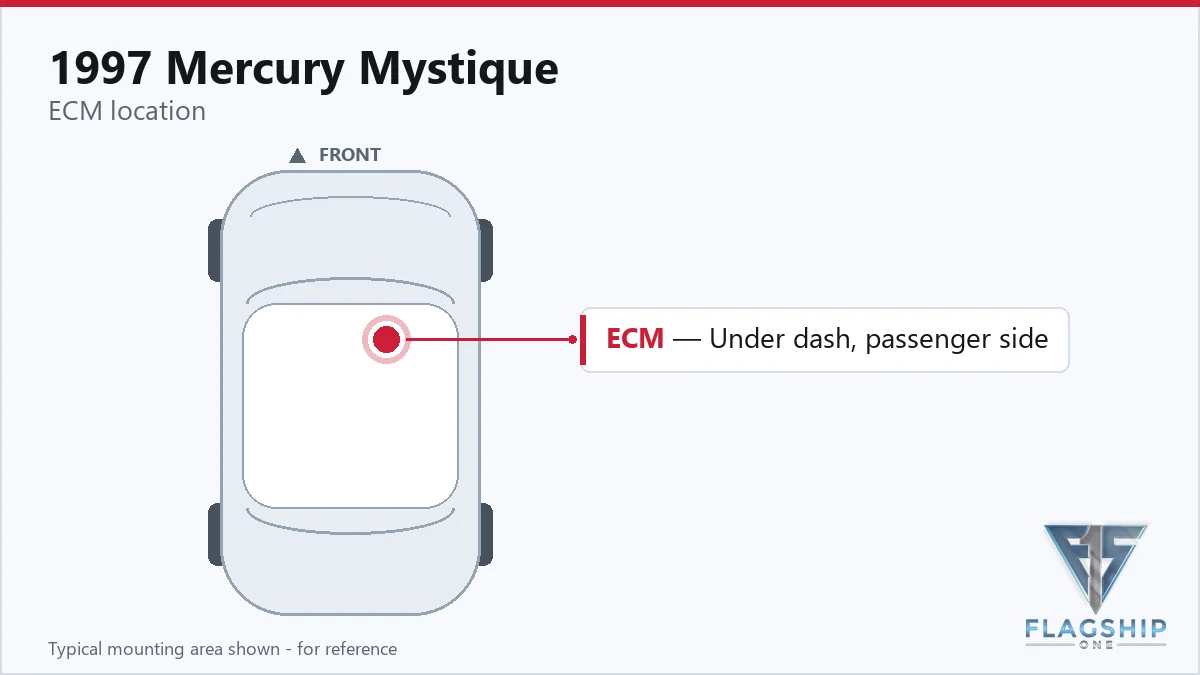

The PCM on your 1997 Mercury Mystique 2.0L is mounted behind the right (passenger) side of the dash panel. To access it, you need to loosen the powertrain control module bracket support nut, which is located on the right-hand lower side of the dash panel. Once the nut is loosened, the bracket can be moved aside to free the module. The factory book time for removing and replacing the PCM is 0.6 hours. After installation, the factory specifies a PCM relearn procedure that takes an additional 0.5 hours. Note that the labor time for an ECM (engine control module) removal and replacement is listed separately at 1.0 hours, but for this vehicle the PCM and ECM are the same unit. Take care when disconnecting the wiring harness to avoid damaging the connector pins or the module itself.

Programming Requirements After Replacement

After installing a new or replacement PCM in your 1997 Mercury Mystique 2.0L, the factory procedure requires a PCM relearn. This process typically involves driving the vehicle through a specific set of conditions so the module can adapt to the engine and transmission. The TSB #97-09-08 provides a service tip for reprogramming the PCM, and TSB #99-04-03 covers out-of-vehicle reprogramming for EEC V vehicles. However, when you purchase a VIN-programmed replacement unit from Flagship One, the module arrives already programmed with your vehicle’s original calibration. That means the dealer-level relearn and reprogramming steps are already completed, so you can install the module and start the engine without additional programming equipment or a trip to the dealership.

Symptoms of a Failing PCM

A failing PCM in your 1997 Mercury Mystique 2.0L can produce a variety of symptoms. The engine may crank but not start, or it may start and stall shortly after. You might notice rough idling, hesitation during acceleration, or a sudden loss of power. Transmission shifting can become erratic, with harsh or delayed shifts, because the PCM controls the shift solenoids. The check engine light may illuminate, and a scan tool may show communication errors or internal module faults. One common diagnostic trouble code is internal control module memory checksum error, which indicates the PCM’s internal memory has failed. Other symptoms include the cooling fan running constantly, the fuel pump not priming, or the vehicle going into a reduced-power limp mode. If you experience several of these issues together, the PCM is a likely suspect.

Factory Service Bulletins Worth Knowing

Three factory service bulletins apply to the PCM on your 1997 Mercury Mystique 2.0L. TSB #97-09-08 provides a service tip for reprogramming the powertrain control module. TSB #99-04-03 covers out-of-vehicle reprogramming procedures for EEC V vehicles, which includes your Mystique. TSB #98-24-02 addresses PCM reprogramming information specifically when replacing the CD4E transaxle. These bulletins indicate that the manufacturer recognized the need for updated calibration and reprogramming in certain situations, and they may be relevant if you are replacing the PCM or transaxle.

Protecting the PCM in Your 1997 Mercury Mystique

• Keep the battery and charging system in good condition; voltage spikes from a failing alternator can damage the PCM.
• Inspect the PCM ground connections and main wiring harness connectors for corrosion or looseness, especially in areas exposed to moisture.
• Avoid jump-starting the vehicle with a running donor vehicle; connect cables only with both vehicles off to prevent voltage surges.
• Address any check engine light or driveability codes promptly; ignoring them can allow a minor issue to damage the PCM.
• Ensure the PCM connector seals are intact and the module is properly secured to prevent vibration damage and water intrusion.

Frequently Asked Questions

How do I know if the PCM on my 1997 Mercury Mystique 2.0L is bad?

Common signs include a no-start condition, stalling, erratic transmission shifting, and trouble codes such as P0601. If the scan tool cannot communicate with the PCM or shows internal faults, the module is likely defective. A professional diagnosis can confirm.

Can I replace the PCM on my 1997 Mercury Mystique myself?

Yes, the PCM is accessible behind the right side of the dash panel. The factory book time for removal and replacement is 0.6 hours. You will need to loosen the bracket support nut and disconnect the wiring harness. After installation, a relearn procedure is required, but a pre-programmed unit from Flagship One eliminates that step.

What is the difference between a PCM and an ECM on a 1997 Mercury Mystique?

For your 1997 Mercury Mystique 2.0L, the PCM (powertrain control module) and ECM (engine control module) refer to the same unit. The labor times list both names, but they are the same computer that controls both engine and transmission functions.

When your 1997 Mercury Mystique 2.0L needs a PCM, you have two main options: have a shop install a new module and then pay for the dealer relearn, or choose a refurbished replacement that arrives pre-programmed. Flagship One offers a VIN-programmed unit that matches your vehicle’s original calibration, so you can install it and drive without additional programming. This approach saves time and avoids the extra labor cost of the relearn procedure.

Flagship One stocks a refurbished, VIN-programmed PCM for the 1997 Mercury Mystique with a lifetime warranty, free shipping and no core charge. The full Mercury Mystique module lineup covers other engine configurations as well.

Final Thoughts

The PCM in your 1997 Mercury Mystique 2.0L is a critical component that controls engine and transmission operation. Recognizing symptoms like no-start, stalling, or shifting problems early can help you avoid being stranded. Replacement is straightforward with the right part, and a pre-programmed unit from Flagship One simplifies the process by eliminating the factory relearn step. Keep your Mystique running reliably with a quality replacement.
