1996 Mercury Mystique PCM Replacement and Relearn Guide
In the 1996 Mercury Mystique, the powertrain control module (PCM) manages fuel injection, ignition timing and transmission shift strategy. A malfunction can cause loss of engine power, stalling, or an inability to start, often triggered by sensor faults or internal circuit failure.
Quick Summary
- PCM removal typically requires 0.6 hours of labor.
- Relearning the PCM after install adds about 0.5 hours.
- Engine control module replacement is longer, around 1.0 hour.
- Factory service bulletins detail reprogramming steps for this model.
When a 1996 Mercury Mystique exhibits erratic engine behavior, the powertrain control module often becomes the focus of diagnosis. This guide explains what the PCM does, where it lives, how long a replacement usually takes, and what programming is required afterward. By following the outlined steps, you can ensure a proper fix and reduce the chance of recurring issues.
What the PCM Does in a 1996 Mercury Mystique
The powertrain control module in the 1996 Mercury Mystique acts as the vehicle’s brain, interpreting sensor data to control fuel delivery, spark timing and transmission shift points. Its proper operation is essential for smooth acceleration, fuel efficiency and emissions compliance. A failure may interrupt these functions, leading to drivability problems. Understanding its role helps you see why correct installation and programming matter. replacement powertrain control modules for the 1996 Mercury Mystique are built to match these responsibilities.
Where the PCM Is Located and What Replacement Involves

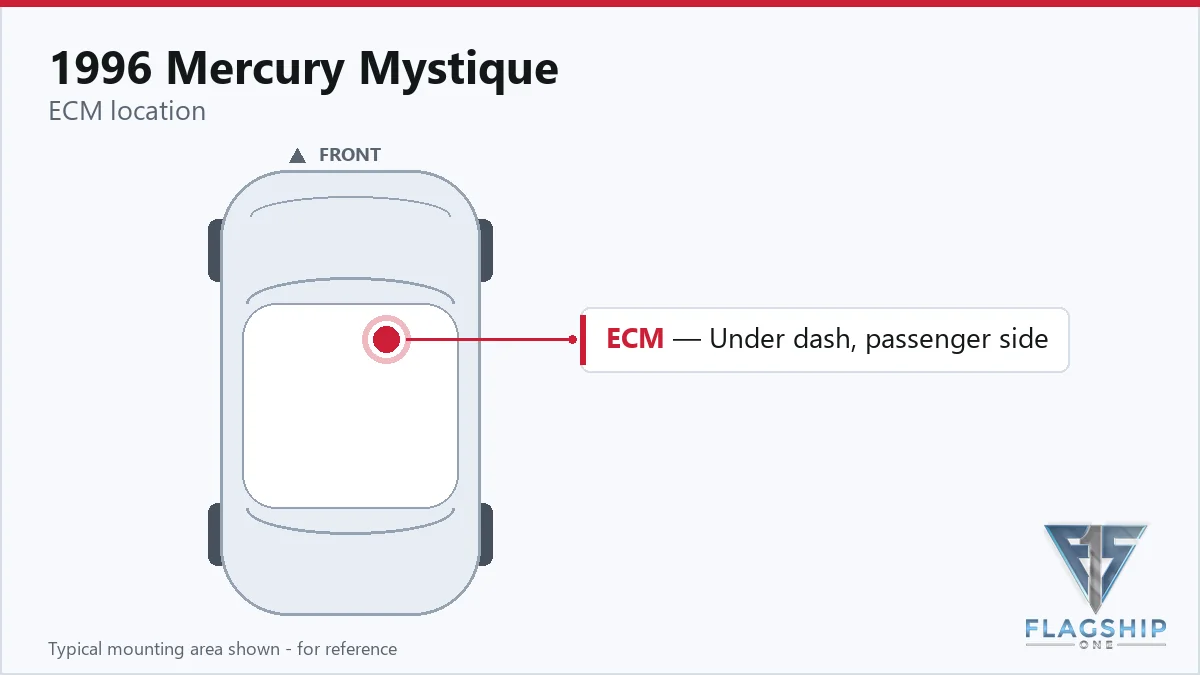

The PCM is mounted on the right‑hand lower side of the dash panel, secured by a bracket support nut. Access involves loosening this nut before the module can be withdrawn. The factory labor guide lists 0.6 hours for removal and replacement, while the relearn procedure adds another 0.5 hours. No additional torque specifications are provided in the source data.
How to Reach the PCM on the 1996 Mercury Mystique
- Disconnect battery ground cable.
- Position power steering oil reservoir (3A697) out of the way.
- Loosen engine control sensor wiring to PCM connector retainer bolt.
- Remove engine control sensor wiring connector from PCM (12A650).
- Loosen powertrain control module bracket support nut, located on RH lower side of dash panel.
- Remove powertrain control module bracket support (12B522) and PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.0 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure calls for a reprogramming step to align the module with the vehicle’s VIN and calibration data. Flagship One units arrive pre‑loaded, so the reprogramming is effectively completed at delivery. a VIN-programmed replacement unit eliminates the need for on‑site coding.
Symptoms of a Failing PCM
Typical signs of a PCM problem in the 1996 Mercury Mystique include engine no‑start, random stalling, rough idle and loss of transmission shift control. You may also see communication loss with scan tools or fault codes such as code P0601 appearing during diagnostics. These symptoms often point to the module’s internal processing failing or losing power.
Factory Service Bulletins Worth Knowing
Bulletin 97-09-08 outlines the service tip for reprogramming the PCM, while 99-04-03 provides out‑of‑vehicle reprogramming instructions for EEC‑V vehicles. Bulletin 98-24-02 discusses PCM reprogramming when replacing the transaxle. These documents guide technicians through the required software updates.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 97-09-08 | POWERTRAIN CONTROL MODULE – REPROGRAM POWERTRAIN CONTROL MODULE (PCM) – SERVICE PROCEDURES – SE | — |
| 99-04-03 | EEC V VEHICLES ONLY – OUT-OF-VEHICLE – REPROGRAMMING POWERTRAIN CONTROL MODULES (PCMS) | — |
| 98-24-02 | CD4E – POWERTRAIN CONTROL MODULE (PCM) REPROGRAMMING INFORMATION WHEN REPLACING TRANSAXLE – TRA | — |
Protecting the PCM in Your 1996 Mercury Mystique
- Maintain a healthy charging system to avoid voltage drops.
- Ensure all ground points and connector contacts stay clean and tight.
- Avoid jump‑starts that can introduce voltage spikes to the PCM.
- Address any diagnostic trouble codes promptly before they worsen.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
What are the typical labor hours for replacing the PCM in a 1996 Mercury Mystique?
Factory labor data indicates about 0.6 hours for removal and installation, plus an additional 0.5 hours for the relearn process.
Do I need special tools to access the PCM on a 1996 Mercury Mystique?
The primary requirement is a tool to loosen the bracket support nut on the right‑hand lower dash side; no other specialized equipment is listed.
Can a faulty PCM cause transmission shifting issues in my 1996 Mercury Mystique?
Yes, because the PCM controls shift timing, a malfunction can lead to harsh or delayed shifts, especially under load.
