1997 Geo Prizm PCM Replacement and Relearn Guide
In the 1997 Geo Prizm, the Powertrain Control Module (PCM) governs engine timing, fuel delivery, and transmission shift strategy. A failure often results in loss of power, rough idle, or communication loss with diagnostic tools, requiring removal and replacement.
Quick Summary
- PCM sits under the center console, beneath the entertainment unit.
- Removal typically takes about 1.4 hours; reinstall adds another 0.5‑hour relearn.
- Factory service bulletins address PCM reprogramming and connector kits.
- Flagship One units arrive VIN‑programmed, eliminating post‑install steps.
When a 1997 Geo Prizm experiences erratic engine behavior or transmission shudder, the powertrain control module often becomes the focus. This guide walks you through locating the PCM, the labor involved in swapping it, and the essential relearn procedures. By the end, you will understand what the module does, how to replace it safely, and why a VIN‑programmed replacement can simplify the process.
What the PCM Does in a 1997 Geo Prizm
The Powertrain Control Module in a 1997 Geo Prizm processes sensor data to control fuel injection, ignition timing, and shift timing for the automatic transmission. Its proper operation is critical for smooth acceleration and emissions compliance. A malfunction can trigger a range of fault codes and performance loss. Understanding its role helps you appreciate why a correct install matters, especially when dealing with 1997 Geo Prizm replacement PCM during service.
Where the PCM Is Located and What Replacement Involves

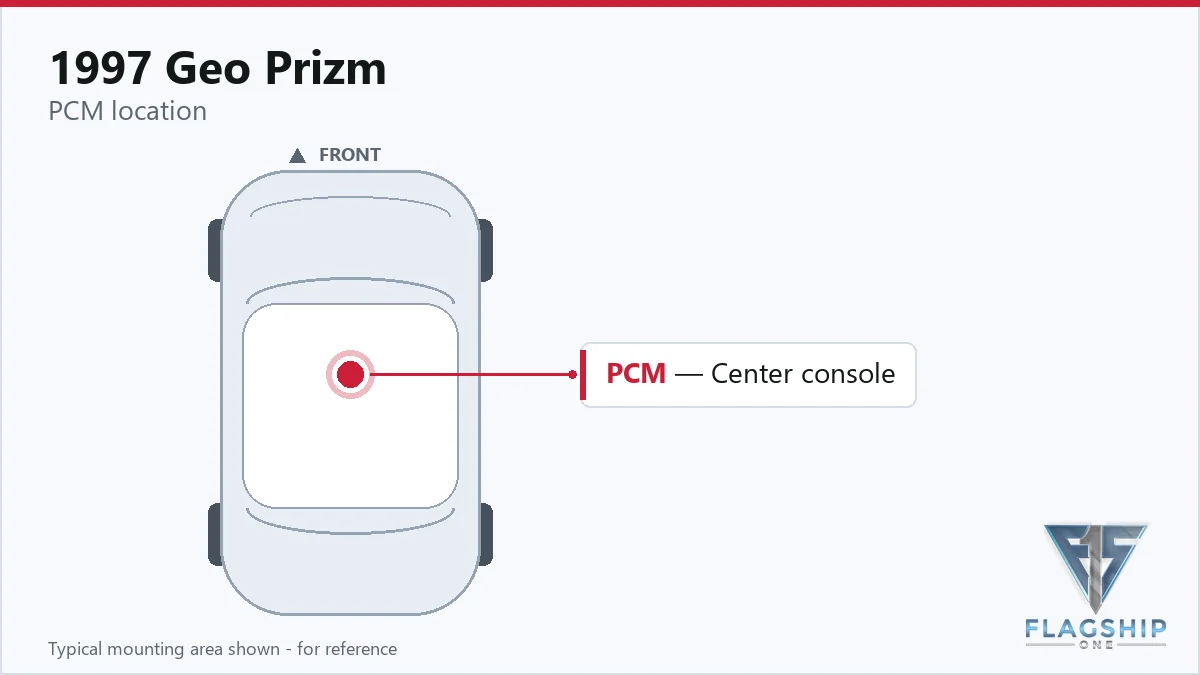

The PCM is positioned in the center console below the entertainment center that houses the radio and CD player. Access requires removal of the console trim, after which the module can be unbolted and disconnected. The factory book time for removal and replacement is listed as 1.4 hours, and the subsequent relearn step adds another 0.5 hours. Always follow the battery disconnect caution before beginning work.
How to Reach the PCM on the 1997 Geo Prizm
- Disconnect the negative battery cable.
- Remove the carpet retainer from the carpet retaining.
- Pull back the carpet from the floor under the glove.
- Remove the 2 bolts.
- Remove the ECM/PCM with carpet retainer.
- Disconnect the 3 electrical connectors from the.
- Remove the one screw and carpet retaining bracket from the.
- Remove the plastic cover from the top of the ECM/PCM.
- Position the ECM/PCM into the mounting.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.7 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure calls for a Powertrain Control Module Relearn lasting about half an hour. Flagship One supplies units that arrive pre‑programmed to match your vehicle, so the required a VIN-programmed replacement unit eliminates the need for that relearn step on your shop floor.
Symptoms of a Failing PCM
Typical signs of a failing PCM in a 1997 Geo Prizm include a no‑start condition, rough idle, unexpected gear shifts, and the appearance of diagnostic trouble codes such as processor communication error. You may also notice intermittent loss of scan‑tool communication or a sudden surge in fuel consumption.
Factory Service Bulletins Worth Knowing
Service Bulletin #99-06-04-053, dated Oct 26 1999, provides guidance on PCM reprogramming. Bulletin #83-81-32, dated Sep 16 1998, introduces new PCM connector service kits to address connector wear.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
| 83-81-32 | INFO – NEW PCM CONNECTOR SERVICE KITS – (Sep 16, 1998) | — |
Protecting the PCM in Your 1997 Geo Prizm
- Maintain a healthy charging system to avoid voltage irregularities.
- Ensure all ground straps and connector pins are clean and tight.
- Avoid jump‑starting the vehicle without proper voltage regulation.
- Address any fault codes promptly before they worsen.
- Inspect connector seals regularly for signs of wear or corrosion.
Frequently Asked Questions
What are the common causes of PCM failure in a 1997 Geo Prizm?
Typical causes include exposure to extreme temperatures, voltage spikes from the charging system, and corrosion at the connector pins. Regular electrical system checks can help identify these issues early.
Do I need special tools to replace the PCM in my 1997 Geo Prizm?
Standard hand tools are sufficient for removal and installation, but you must follow the battery disconnect caution and have access to the center console area to reach the module.
Can I use a used PCM instead of a new one for my 1997 Geo Prizm?
A used PCM may work if it matches the vehicle’s VIN and has been properly programmed, but a VIN‑programmed replacement ensures compatibility and eliminates the need for post‑install relearn.
When the PCM in your 1997 Geo Prizm needs service, you can choose a repair that follows the factory labor times or opt for a refurbished replacement that arrives ready to install. Both approaches address the same underlying issue while keeping your vehicle running as intended.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1997 Geo Prizm with a lifetime warranty, free shipping and no core charge. The full Geo Prizm module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM in a 1997 Geo Prizm restores proper engine and transmission control. Whether you follow the factory steps or select a pre‑programmed unit, the goal is a reliable driving experience. Contact Flagship One for more details on compatible modules.
