1996 Geo Prizm PCM Replacement Guide: Location, Labor, and Process

When the check engine light stays on, your 1996 Geo Prizm runs rough, or the engine refuses to start, the Powertrain Control Module often becomes the primary suspect. This computerized brain controls how your 1.6L engine operates, making decisions every second based on data from numerous sensors. Understanding what this component does, where it lives in your vehicle, and what replacement involves helps you make informed decisions about repairs. This guide covers the essential facts about PCM replacement for the 1996 Geo Prizm, including labor estimates, location details, and factory-recommended procedures. Whether you are diagnosing a problem yourself or preparing for a shop visit, the information here gives you a clear picture of what to expect during the repair process. Knowledge about this critical module helps you understand why proper diagnosis matters before replacing expensive components.

What the PCM Does in a 1996 Geo Prizm

The Powertrain Control Module in your 1996 Geo Prizm functions as the central nervous system for the engine management system. This computer receives data from the oxygen sensor, mass air flow sensor, throttle position sensor, coolant temperature sensor, and numerous other inputs to calculate the optimal fuel injector pulse width and ignition timing for every driving condition. The 1.6L four-cylinder engine in your Prizm depends entirely on these calculations to run smoothly and efficiently. Without proper signals from the PCM, the engine would run poorly or not at all because the fuel injection system has no way to determine how much fuel to deliver without guidance from the computer. The module also controls emissions equipment operation, including the evaporative emissions system and upstream oxygen sensor heating. Replacing engine computers for the Prizm requires matching not only the physical connector but also the programming specific to your vehicle identification number. The PCM maintains a calibration map that translates sensor readings into actuator commands, essentially teaching the engine how to respond to driver inputs and environmental conditions. This sophisticated control allows the 1.6L engine to meet federal emissions standards while delivering acceptable performance and fuel economy for a compact sedan of this era.

Flagship One keeps Geo Prizm replacement engine computers in stock for exactly this failure pattern.

Where the PCM Is Located and What Replacement Involves

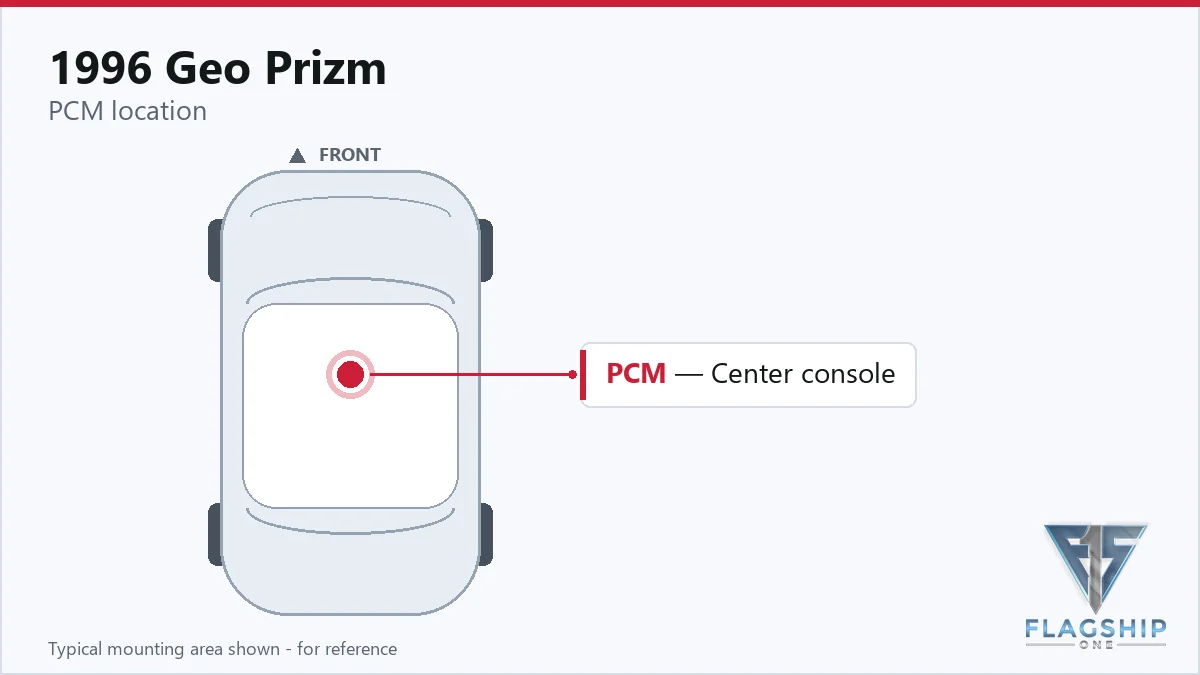

The Powertrain Control Module in a 1996 Geo Prizm is mounted inside the center console beneath the entertainment center, which includes the radio, cassette player, and optional CD player. This interior location means access requires removing trim panels and potentially the entire entertainment unit assembly to reach the module. The console sits between the front seats, placing the PCM in an area protected from engine bay heat but potentially exposed to spills from cup holders or moisture from the heating and air conditioning system. Labor estimates for PCM removal and reinstallation are 1.4 hours according to factory documentation, with an additional 0.5 hours required for system relearn procedures after installation. The relearn process allows the new module to adapt to your specific engine characteristics. Working in the center console area requires care to avoid damaging the electrical harness or the plastic bezels holding the stereo equipment. Any disconnected battery cable must be reconnected properly after the work is complete to restore power to the new control module. Testing the installation involves checking for communication with diagnostic scan tools and verifying that the engine starts and runs normally.

Programming Requirements After Replacement

After installing a replacement Powertrain Control Module in your 1996 Geo Prizm, the factory service procedure requires performing a relearn procedure to allow the new computer to adapt to your specific engine. This process synchronizes the module with the unique characteristics of your 1.6L engine and its sensor suite. The relearn typically involves a specific driving cycle or idle procedure outlined in factory service documentation. Without completing this step, the engine may run poorly until the computer learns the proper fuel mixture and timing adjustments for your vehicle. A VIN-programmed replacement unit from Flagship One arrives configured specifically for your vehicle identification number, which eliminates the need for separate programming at a dealership or specialty shop. The factory caution also specifies disconnecting the negative battery cable before working on the control module to prevent electrical damage and ensure personal safety during the repair process.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

A failing Powertrain Control Module in the 1996 Geo Prizm often announces its problems through several distinct symptoms that should prompt further investigation. The most concerning sign is a no-start condition where the engine cranks normally but receives no fuel or spark, leaving you stranded without warning. Many owners first notice an illuminated check engine light that persists even after clearing codes with a scan tool. The engine may stumble during acceleration, particularly when climbing hills or carrying loads, because the PCM cannot properly adjust fuel delivery. Stalling at idle represents another common complaint when the module fails to maintain the correct idle speed and fuel mixture for stationary operation. Some drivers report completely dead communication with diagnostic scan tools, meaning the scanner cannot establish a data link with the vehicle computer. In automatic transmission models, the PCM also controls shift quality, so harsh or delayed shifting may indicate a problem with the module affecting transmission calibration. Misfire codes set in random cylinders often appear when the PCM loses the ability to properly sequence fuel injection or calculate spark timing.

Factory Service Bulletins Worth Knowing

Protecting the PCM in Your 1996 Geo Prizm

• Maintain your vehicle charging system in good working order with properly tensioned belts and correct voltage output to prevent electrical stress on the PCM
• Keep all electrical grounds clean and tight at both the engine and body locations to ensure reliable signal quality for the control module
• Avoid jump-starting your vehicle incorrectly by connecting cables positive to positive and negative to negative to prevent voltage spikes that can damage electronics
• Address any check engine light or driveability symptoms promptly rather than continuing to drive with known problems that may stress the module
• Protect the PCM connector and wiring from moisture damage by ensuring door seals and floor gaskets remain intact and functional
• Use quality replacement parts and proper repair procedures if your vehicle requires work on sensors or actuators to prevent cascading electrical failures

Frequently Asked Questions

How do I know if my 1996 Geo Prizm needs a new PCM or just a sensor repair?

Proper diagnosis requires checking all power and ground circuits to the module first, then verifying sensor inputs with a scan tool or oscilloscope before concluding the PCM itself has failed. Internal module codes often point to processor or memory problems within the computer rather than external sensor faults.

Can I replace the PCM in my 1996 Geo Prizm with a used unit from a junkyard?

A used module may require VIN programming to match your specific vehicle, and its condition and repair history remain unknown. A VIN-programmed replacement unit from a reputable supplier typically offers better long-term reliability than an untested salvage yard computer.

Will my 1996 Geo Prizm run after the PCM is replaced?

After installation of a properly programmed replacement module, your vehicle should start and run normally after completing the relearn procedure. The new computer needs to adapt to your specific engine characteristics through a brief calibration period.

What causes the PCM to fail in a 1996 Geo Prizm?

Common failure causes include heat damage from poor grounding, voltage spikes from charging system problems, water intrusion through the console area, and natural degradation of internal electronic components over time. Preventing these conditions extends module service life.

Do I need to take my 1996 Geo Prizm to a dealer for PCM programming?

Units that arrive pre-programmed with your vehicle identification number eliminate the need for dealer programming. You can install the module and perform the relearn procedure following factory service procedures without specialized equipment.

When your 1996 Geo Prizm requires a replacement Powertrain Control Module, you face a choice between repair and purchasing a refurbished unit. Repair may be possible if the damage is limited to the connector or external components, while a complete replacement becomes necessary when internal module failures occur. The location inside the center console means labor costs factor significantly into your total expense. A properly programmed replacement unit specific to your vehicle identification number provides the most reliable long-term solution. Considering the age of this vehicle, evaluating whether repair investment makes sense compared to the overall value of the car helps guide your decision.

Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Geo Prizm with a lifetime warranty, free shipping and no core charge. The full Geo Prizm module lineup covers other engine configurations as well.

Final Thoughts

The 1996 Geo Prizm relies on its Powertrain Control Module to manage the 1.6L engine operation, making replacement a significant but manageable repair when properly diagnosed. Understanding the module location in the center console, the required labor steps, and the relearn procedure prepares you for what the repair involves. Whether you handle the installation yourself or have a professional perform the work, knowing these details helps ensure a successful outcome for your Geo Prizm.
