1997 Ford Aspire PCM and ECM Replacement Service Guide
The powertrain control module (PCM) on your 1997 Ford Aspire serves as the central computer managing the fuel injection system, ignition timing, and emissions controls. When this module fails, your vehicle may experience drivability issues or fail to start entirely.
Quick Summary
- The PCM controls fuel delivery, ignition timing, and emissions systems on your 1.3L Aspire
- Static electricity can damage electronic control modules during handling
- The PCM is located beneath the left side of the instrument panel
- Book time for PCM replacement ranges from 0.4 to 0.9 hours depending on procedure
The powertrain control module in your 1997 Ford Aspire is a critical component that manages engine and transmission functions. When this module fails or develops internal faults, your vehicle may exhibit drivability symptoms ranging from hard starting to complete no-start conditions. Replacing an engine computer is not a simple swap—it requires careful handling due to static sensitivity, and the new module must typically undergo a relearn procedure to restore proper communication with vehicle sensors. This guide walks you through what to expect from replacement, the factory procedures involved, and how Flagship One simplifies the process with pre-programmed units that arrive ready for installation.
What the PCM Does in a 1997 Ford Aspire
The powertrain control module on your 1997 Ford Aspire functions as the brain of the 1.3L engine management system. This unit processes input from numerous sensors—including the mass airflow sensor, coolant temperature sensor, and oxygen sensors—to calculate optimal fuel delivery and ignition timing in real time. It also controls the automatic transmission shift points on models so equipped. Because the PCM interfaces with virtually every major electrical system in the vehicle, a failing or corrupted module can produce wide-ranging symptoms from intermittent stalling to triggered diagnostic trouble codes. If your Aspire has experienced a no-start condition or persistent check engine light, the PCM is a prime suspect. Professional replacement using replacement engine computers for the Aspire ensures proper hardware specifications and mounting configuration.
Where the PCM Is Located and What Replacement Involves

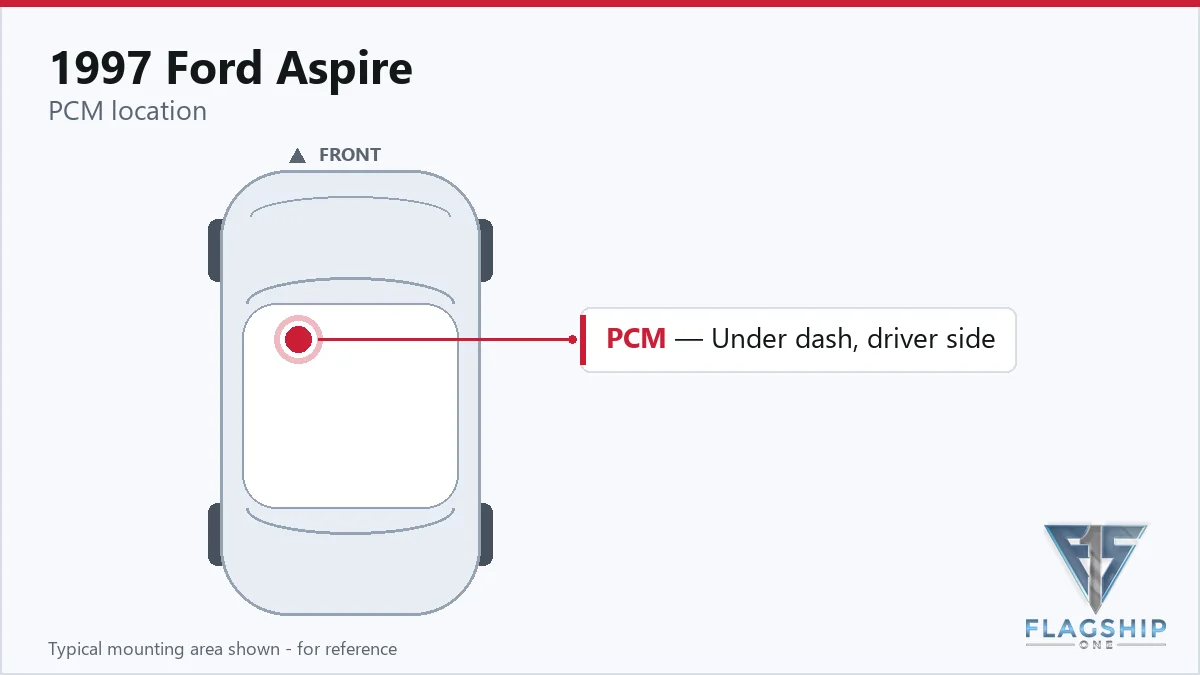

According to factory information, the powertrain control module (part number 12A650) on your 1997 Ford Aspire is located underneath the left-hand side of the instrument panel, requiring removal of lower trim panels for access. The book time for PCM removal and reinstallation alone is 0.4 hours, while complete replacement including all mounting hardware and electrical connections is 0.9 hours. If your repair procedure includes the relearn process, plan for an additional 0.5 hours of labor. During replacement, technicians must observe static-sensitive handling precautions to avoid damaging the new module. The vehicle must be powered down completely before disconnecting the old PCM, and all electrical connections should be inspected for corrosion or damage before installing the replacement unit.
How to Reach the PCM on the 1997 Ford Aspire
- Disconnect the battery ground cable.
- Remove the three PCM nuts.
- Pull the PCM down to access the electrical connectors.
- Disconnect the PCM electrical connectors.
- Remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
Programming Requirements After Replacement
After installing a new PCM in your 1997 Ford Aspire, the factory service procedure requires a relearn process to calibrate the module to your vehicle’s specific sensors and calibration data. This relearn procedure takes approximately 0.5 hours of book time and ensures that the fuel injection and ignition timing operate correctly with your specific engine. Without this step, the vehicle may run poorly or fail to start. Flagship One addresses this by shipping a VIN-programmed replacement unit that is pre-configured with your vehicle’s exact specifications, reducing the post-install procedure to a basic systems check rather than a full relearn in most cases.
Symptoms of a Failing PCM
When the powertrain control module on a 1997 Ford Aspire begins to fail, common symptoms include a no-start condition where the engine cranks but will not fire, intermittent stalling especially at idle, and rough running that feels like a misfire. Diagnostic trouble codes that may appear include loss of communication with the scan tool, failed sensor readings, and codes related to fuel delivery or emissions system performance. In some cases, the check engine light may illuminate continuously or flash, and transmission shifting may become erratic or unresponsive. The P1794 code, which relates to battery voltage sensor circuit malfunction stored in continuous memory, has been reported on this model and can indicate underlying PCM integrity issues. If your Aspire exhibits any of these symptoms, a thorough diagnostic scan of the module should be performed before assuming the hardware itself is faulty.
Factory Service Bulletins Worth Knowing
Factory TSB 96-24-05 addresses diagnostic trouble code P1794 stored in continuous memory on the 1997 Ford Aspire. This bulletin relates to Malfunction Indicator Lamp illumination caused by battery voltage sensor circuit issues. The technical service bulletin applies specifically to the 1.3L engine equipped Aspire and outlines proper diagnostic procedures to verify the fault before replacing the PCM. Technicians following this bulletin will first test the battery voltage sensor circuit and related wiring before concluding that PCM replacement is necessary.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 96-24-05 | DIAGNOSTIC TROUBLE CODE (DTC) P1794 STORED IN CONTINUOUS MEMORY – LAMP – MALFUNCTION INDICATOR | — |
Protecting the PCM in Your 1997 Ford Aspire
- Regularly inspect your vehicle’s charging system to ensure the alternator is maintaining proper voltage
- Check and clean battery ground connections and PCM ground points annually
- Avoid jump-starting other vehicles or using boost packs without following proper procedures
- Address any illuminated check engine lights promptly before internal PCM damage occurs
- Inspect PCM electrical connectors for corrosion or moisture intrusion and seal any damaged boots
Frequently Asked Questions
How do I know if my 1997 Ford Aspire needs a PCM replacement?
Common signs include a no-start condition, persistent check engine light that cannot be cleared, intermittent stalling, or transmission shifting problems. A diagnostic scan tool that can communicate with the PCM will reveal fault codes indicating module internal failures.
Do I need to have the new PCM programmed for my Aspire?
Yes, the factory procedure requires a relearn process after PCM installation. Flagship One minimizes this by shipping units pre-programmed with your VIN and vehicle-specific calibration data, though a basic systems verification is still recommended.
Will a used PCM from a salvage yard work in my 1997 Ford Aspire?
A used PCM requires programming to match your specific vehicle’s VIN and calibration, and may have existing internal faults. Additionally, older salvage units may have the same degradation issues that caused the original module to fail.
Replacing the powertrain control module on your 1997 Ford Aspire requires either a new OEM unit or a quality refurbished replacement. Both options involve the static-sensitive handling requirements and the post-install relearn procedure. Flagship One specializes in providing engine computers that are pre-programmed to your VIN, eliminating much of the complexity associated with this repair. Whether you choose new or refurbished, ensure the replacement unit is specifically calibrated for the 1.3L Aspire application.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1997 Ford Aspire with a lifetime warranty, free shipping and no core charge. The full Ford Aspire module lineup covers other engine configurations as well.
Final Thoughts
The 1997 Ford Aspire relies on its powertrain control module for proper engine and transmission operation. When symptoms of module failure appear, understanding the replacement process, programming requirements, and static-handling precautions helps you make informed repair decisions. Flagship One stocks VIN-programmed replacement units ready for installation on your Aspire, backed by technical support to ensure a successful repair.
