1997 Chevrolet S10 PCM and ECM Service Guide
In the 1997 Chevrolet S10 the Powertrain Control Module and Engine Control Module manage fuel injection, ignition timing and emissions. A failure in either unit can cause loss of power, stalling, or diagnostic trouble codes such as P0601, indicating internal PCM communication problems.
Quick Summary
- PCM and ECM replacement times differ by access point, with under‑hood jobs typically faster.
- Both modules require a 0.5‑hour relearn after installation to restore proper operation.
- Improper handling of the PCM connector pins can introduce electrostatic damage.
- Crankshaft sensor changes mandate a specific learning procedure for accurate misfire detection.
When a 1997 Chevrolet S10 experiences erratic idle, stalling or a P0601 code, the powertrain and engine control modules are likely suspects. This guide explains what these computers do, where they live, and the steps needed after replacement. You will learn the labor expectations, safety cautions, and how Flagship One’s VIN‑programmed units simplify the post‑install procedures.
What the PCM Does in a 1997 Chevrolet S10
The Powertrain Control Module in a 1997 Chevrolet S10 directs fuel delivery, ignition timing and emission controls, while the Engine Control Module fine‑tunes engine performance and coordinates sensor data. Together they ensure the engine runs smoothly across all speeds and loads. Proper operation is essential for fuel efficiency and emissions compliance. 1997 Chevrolet S10 PCM is critical because any disruption can trigger misfire detection errors and diagnostic codes.
Where the PCM Is Located and What Replacement Involves

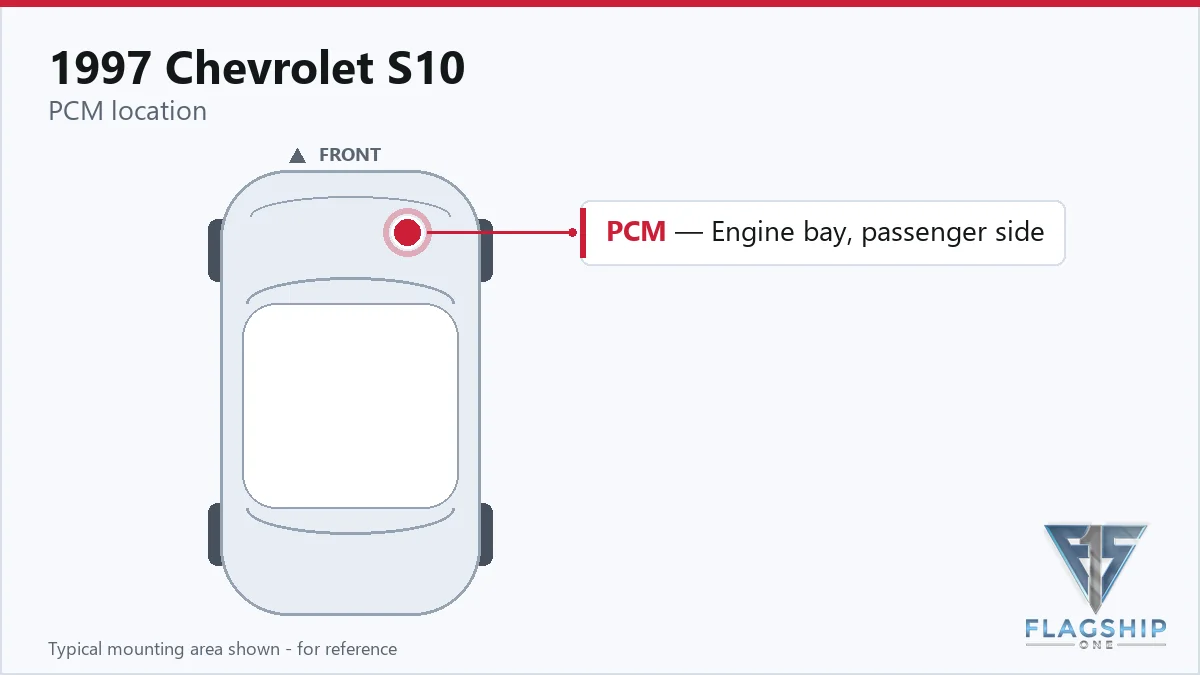

The PCM resides beneath the right front fender, serving as the central hub for the fuel injection system. Accessing it from under the hood typically requires about 1.0 hour of labor, while reaching it through the instrument panel can take up to 1.8 hours. The ECM is located similarly, with an under‑hood removal time of roughly 0.9 hour and an instrument panel route of about 1.8 hours. After either module is removed, a 0.5‑hour relearn procedure is needed to complete the installation.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Under Hood | 1.0 hr |
| Powertrain Control Module R&R | Under Inst. Panel | 1.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | Under Hood | 0.9 hr |
| Engine Control Module R&R | Under Inst. Panel | 1.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Following a PCM or ECM swap, the factory procedure calls for a relearn of the module to synchronize sensor inputs and control strategies. Flagship One units arrive pre‑programmed to the vehicle’s VIN, so the required relearn step is already satisfied. a VIN-programmed replacement unit eliminates the need for additional programming time at the shop.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the 1997 Chevrolet S10 include a no‑start condition, intermittent stalling, rough idle, and loss of power during acceleration. Diagnostic scans often reveal the internal fault code code P0601, indicating a communication issue within the powertrain controller. In some cases, the scan tool may lose communication entirely, or the transmission may shift harshly due to missed sensor data.
Module Trouble Codes on the 1997 Chevrolet S10
The following internal trouble codes are documented for the 1997 Chevrolet S10 and relate directly to the PCM and ECM functions.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Service Bulletin #99-06-04-053, dated October 26, 1999, provides information on PCM reprogramming for this model.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
Protecting the PCM in Your 1997 Chevrolet S10
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all ground connections are clean and secure.
- Use proper jump‑start procedures to protect electronic modules.
- Address any diagnostic codes promptly before they worsen.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What labor time is required to replace the PCM on a 1997 Chevrolet S10?
If you access the PCM under the hood, the factory book time is about one hour; reaching it through the instrument panel typically takes around 1.8 hours.
Do I need to perform a relearn after installing a new ECM in my 1997 Chevrolet S10?
Yes, a 0.5‑hour relearn procedure is recommended to ensure the new ECM synchronizes correctly with the engine sensors.
Can electrostatic discharge damage the PCM during replacement?
The factory cautions against touching connector pins or soldered components on the PCM board, as static discharge could impair its operation.
When the PCM or ECM fails in a 1997 Chevrolet S10, you can either have a new factory unit installed or choose a refurbished replacement that meets the same specifications. Both approaches require the same labor and relearn steps, but a refurbished unit from Flagship One arrives VIN‑programmed, reducing shop time and potential errors.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1997 Chevrolet S10 with a lifetime warranty, free shipping and no core charge. The full Chevrolet S10 module lineup covers other engine configurations as well.
Final Thoughts
Understanding the role and location of the PCM and ECM in your 1997 Chevrolet S10 helps you address symptoms quickly and choose the right repair path. Consider a VIN‑programmed replacement to streamline the post‑install process.
