1996 Chevrolet S10 Powertrain Control Module Service Manual

If your 1996 Chevrolet S10 with the 4.3L V6 is experiencing starting problems, intermittent stalling, or unexpected transmission behavior, the Powertrain Control Module may be the culprit. The PCM serves as the brain of your vehicle’s powertrain, managing critical functions that affect engine performance, fuel efficiency, and shifting quality. Unlike simple sensor failures that trigger diagnostic codes without disabling the vehicle, an internal PCM failure can leave your S10 stranded or unable to start. This guide explains what the Powertrain Control Module does in your specific vehicle, where it is located, the labor involved in replacement, and the factory-recommended procedures you or your technician should follow. You will also learn about common failure symptoms, the factory caution statements that protect both you and the module during service, and whether a new or refurbished replacement makes sense for your situation.

What the PCM Does in a 1996 Chevrolet S10

The Powertrain Control Module in your 1996 Chevrolet S10 is the primary computer responsible for managing the entire powertrain system. Unlike older vehicles that used separate computers for engine and transmission control, the PCM integrates both functions into a single unit mounted on the right-hand fender well. This module receives input from dozens of sensors throughout the engine and transmission, processing this data in real time to adjust fuel injection pulse width, ignition timing, torque converter clutch engagement, and shift firmess. The PCM also monitors emissions control systems and can trigger the check engine light when malfunction is detected. replacement engine computers for the S10 are available from suppliers like Flagship One when internal failure makes repair impossible. Because the module maintains adaptive learning data for your specific drivetrain, any replacement must be programmed to recognize your vehicle’s unique VIN and configuration. This is why PCM replacement is more involved than simply swapping a part—the new module must be calibrated to work with your 4.3L engine and transmission combination.

Where the PCM Is Located and What Replacement Involves

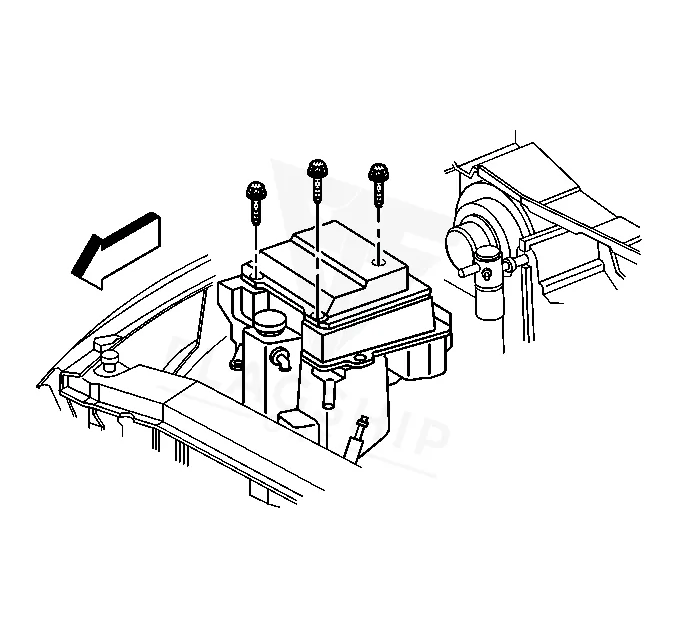

The Powertrain Control Module on the 1996 Chevrolet S10 is mounted on the right-hand side fender well, which provides relatively straightforward access compared to modules located beneath dashboards or seats. However, working in this location requires careful attention to factory cautions about electrostatic discharge. The book time for PCM replacement varies depending on access method: under-hood location removal and reinstallation requires 1.0 hours for the powertrain version or 0.9 hours for the engine-only version, while modules mounted behind the instrument panel require 1.8 hours due to the additional disassembly involved. After the physical replacement is complete, an additional 0.5 hours is allocated for the PCM relearn procedure, which allows the new module to calibrate to your vehicle’s specific sensors and drivetrain characteristics. Your technician will need to disconnect the negative battery terminal before beginning work, as the factory caution specifically states that turning off the ignition key when disconnecting or reconnecting battery power prevents system damage. The module should be handled by its edges only—do not touch the connector pins or soldered components on the circuit board, as this can cause electrostatic discharge damage that immediately defeats the purpose of your new replacement.

Programming Requirements After Replacement

After replacing the PCM on your 1996 Chevrolet S10, the factory service procedure requires performing a relearn procedure so the new module can adapt to your vehicle’s specific engine and transmission characteristics. This relearn process takes approximately 0.5 hours and allows the computer to establish new fuel trims, transmission shift adaptions, and idle air control values tailored to your 4.3L engine. However, when you purchase a replacement unit from Flagship One, the module arrives a VIN-programmed replacement unit that has already been configured with your specific vehicle identification number and is ready for installation. This means the relearn procedure is significantly simplified—your technician still needs to perform the system checks to ensure proper communication, but the time-consuming VIN programming step that dealerships often charge for has already been completed before the module ships. This pre-programming eliminates the need for your shop to use expensive factory programming equipment or software subscriptions.

Symptoms of a Failing PCM

When the Powertrain Control Module fails internally on your 1996 Chevrolet S10, the symptoms tend to be more severe than typical sensor failures. The most common complaint is a no-start condition where the engine cranking sounds normal but the vehicle simply will not run, indicating the PCM is not providing fuel or spark commands. Intermittent stalling while driving is another frequent symptom, particularly if the failure is partial—the module may function normally for a period then suddenly drop into a failure mode. Check engine light illumination with multiple trouble codes setting simultaneously can also point toward module failure, especially if the codes include communication faults or indicate that scan tools cannot establish data link with the PCM. Transmission functions may be affected as well, causing harsh shifting, failure to shift into overdrive, or the transmission remaining in a single gear. In some cases, the engine may run but exhibit extreme roughness, misfire symptoms, or poor throttle response. internal memory failure in the PCM is a specific code documented for this vehicle that directly indicates the module has an internal fault and requires replacement rather than repair.

Module Trouble Codes on the 1996 Chevrolet S10

The 1996 Chevrolet S10 with the 4.3L engine may develop internal trouble codes that indicate specific PCM failures requiring module replacement rather than simple sensor repair. These codes differ from standard OBD-II diagnostic codes in that they originate from within the module itself.

Factory Service Bulletins Worth Knowing

Factory service bulletin #99-06-04-053, issued October 26, 1999, covers PCM reprogramming procedures for certain 1996 and 1997 model year vehicles. This bulletin provides dealers and authorized service facilities with updated programming procedures and software calibration information. If your 1996 S10 is experiencing drivability issues that have not responded to sensor or wiring repairs, your technician may want to verify whether an updated calibration is available through proper service channels. However, bulletin information is typically for dealer use rather than vehicle owner reference, and the primary solution for internal PCM failure remains module replacement rather than reprogramming.

Protecting the PCM in Your 1996 Chevrolet S10

• Maintain your vehicle’s charging system—alternator output should stay within specification to prevent voltage spikes that can damage the PCM
• Keep battery terminals and ground connections clean and tight; loose grounds can cause voltage irregularities that stress the module
• Avoid jump-starting other vehicles from your S10 battery, as voltage spikes during boost starts can reach the PCM through the electrical system
• Address check engine lights promptly rather than driving with illuminated warning lamps; continuing to operate with active faults may accelerate module stress
• Inspect and maintain connector seals at the PCM location; moisture intrusion can cause corrosion and short circuits
• When performing any electrical work on your S10, always disconnect the negative battery terminal first to prevent transient voltage damage

Frequently Asked Questions

Will a PCM from a different model year work in my 1996 Chevrolet S10?

No. The PCM must be matched to your specific vehicle’s VIN and engine configuration. Using a module from a different year or model may cause communication failures or drivability issues. Replacement units must be programmed for your 1996 S10’s 4.3L engine and transmission combination.

Can I replace the PCM on my 1996 S10 myself, or do I need a professional?

While mechanically skilled DIYers can perform the physical replacement, the PCM relearn procedure typically requires diagnostic equipment. Additionally, factory cautions about electrostatic discharge must be followed precisely. Most owners benefit from professional installation to ensure proper handling and programming.

How do I know if my S10’s problem is the PCM versus a simpler sensor issue?

If your S10 exhibits multiple simultaneous symptoms—no-start, intermittent stalling, transmission shifting problems, and multiple check engine codes—a PCM failure is likely. A professional scan tool can check for communication with the module; if data link cannot be established, the PCM has likely failed internally.

Does the new PCM need to be programmed by a dealership?

Not necessarily. When you purchase a replacement PCM from Flagship One, the unit arrives pre-programmed with your specific VIN. Your technician performs a relearn procedure to establish baseline calibrations, but expensive dealership programming equipment is not required.

What could cause my PCM to fail prematurely on a 1996 S10?

Common causes include voltage spikes from a faulty alternator, loose battery connections creating electrical transients, repeated jump-start events, moisture intrusion at the fender well location, and excessive heat exposure. Maintaining clean grounds and a healthy charging system extends PCM service life.

When your 1996 Chevrolet S10 requires PCM replacement, you have two primary options: purchasing a new module from the dealer at significant cost, or choosing a professionally refurbished replacement unit. Refurbished units from reputable suppliers undergo internal circuit testing and come programmed to your VIN, eliminating the programming delays and expenses associated with dealer parts. Given the module’s location on the fender well and the complexity of the relearn procedure, professional installation is often worthwhile to ensure the job is completed correctly the first time. Consider your vehicle’s overall condition and your budget when deciding between repair and replacement options.

Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Chevrolet S10 with a lifetime warranty, free shipping and no core charge. The full Chevrolet S10 module lineup covers other engine configurations as well.

Final Thoughts

The Powertrain Control Module in your 1996 Chevrolet S10 is a critical component that manages your vehicle’s engine and transmission functions. When internal failure occurs, the symptoms can be immediate and severe—your S10 may not start or drive properly. By understanding the module’s location, the factory cautions that protect both you and the component, and the programming requirements after replacement, you can make informed decisions about repair. Whether you choose professional dealer service or a quality refurbished replacement from Flagship One, addressing PCM failure promptly restores your S10’s reliability and drivability.
