1996 Volkswagen Cabrio Engine Control Module Replacement And Programming Guide
The engine control module manages fuel injection and ignition timing for your 1996 Volkswagen Cabrio. Internal memory failures may trigger specific diagnostic trouble codes. When this computer malfunctions, you could experience no-start conditions or erratic engine operation requiring professional attention.
Quick Summary
- The factory location is within the plenum chamber on the right side.
- Book time for removal and installation is listed at 0.3 hours.
- Immobilizer adaptation is required when replacing the engine control module.
- Internal memory faults may generate codes like P0604 or P0605.
Working on the electronic systems of your 1996 Volkswagen Cabrio requires understanding the central computer responsible for engine management. You may be investigating a no-start condition or diagnosing stored fault codes related to controller memory. You will learn about the function of the unit, where it resides, factory labor estimates, and specific adaptation procedures involving the immobilizer system. Understanding these requirements helps you prepare for a successful repair job. Proper handling ensures the new component communicates correctly with existing vehicle security features. We focus on factual data regarding location and programming needs to assist your decision-making process.
What the PCM Does in a 1996 Volkswagen Cabrio
This computer regulates fuel delivery and monitors sensor inputs to maintain optimal performance for your 1996 Volkswagen Cabrio. It processes data from the oxygen sensor and controls the evaporative emissions system components. If the internal processor fails, the engine may not run correctly or at all. Mechanics often recommend checking power and ground connections before assuming total unit failure. When replacement becomes necessary, you need compatible hardware that matches your specific engine configuration. You can find replacement engine computers for Cabrio that meet factory specifications for this model year. The unit stores adaptive learning values that adjust to driving habits over time. Loss of this data may require a relearn procedure to restore smooth idle quality. Security features are integrated directly into the module architecture to prevent unauthorized operation.
Where the PCM Is Located and What Replacement Involves

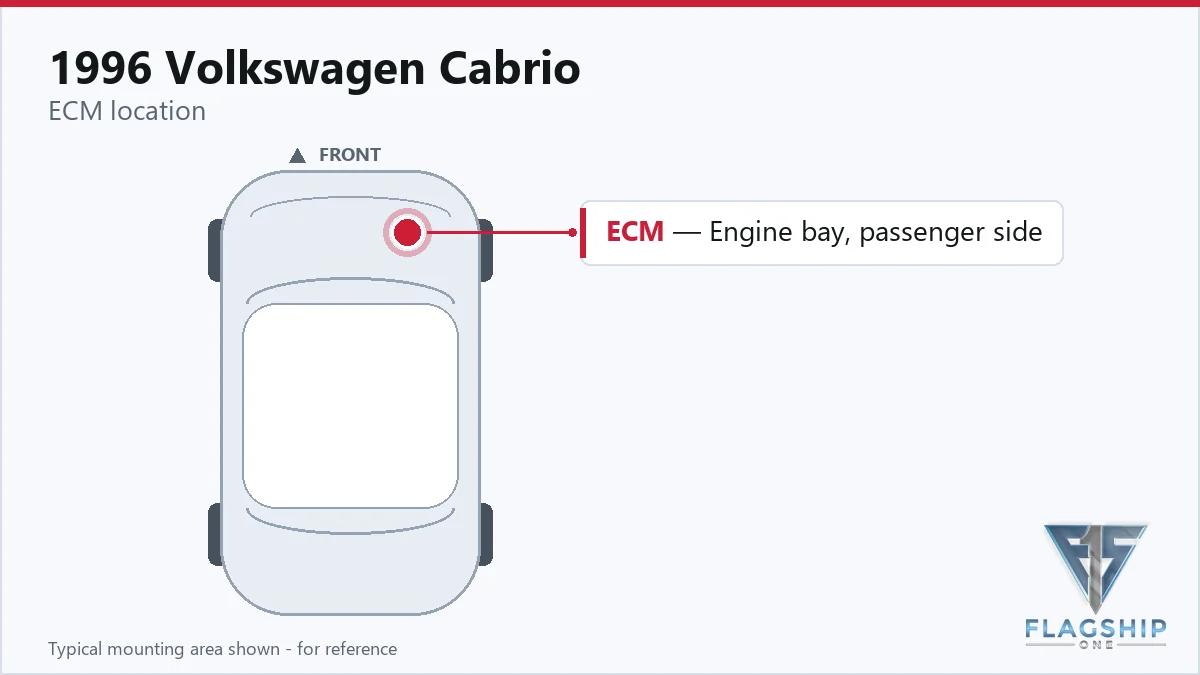

Factory documentation indicates the engine control module sits within the plenum chamber on the right side of the engine bay. Accessing this component involves removing it from this specific area near the fuel delivery components. The book time for removing and installing the ECM is listed at 0.3 hours. Additional time may be needed for resetting or relearning procedures after physical installation occurs. A separate labor entry suggests 0.5 hours for the powertrain control module relearn process. You should anticipate these steps when planning your repair schedule. The location places the unit near emissions components like the EVAP canister. Another labor entry lists 0.3 hours for an engine control module reset procedure. Technicians may also perform a relearn requiring 0.5 hours depending on the specific service path. Ensure all electrical connectors are secure before completing the installation process.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.3 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory service information specifies immobilizer adaptation upon ECM replacement for models with Immobilizer 3 or 4. This procedure ensures the security system recognizes the new computer component properly. Bulletin number 96-07-42 addresses this requirement across all affected models in the lineup. You typically need specialized tools to complete this adaptation process manually. However, Flagship One units arrive VIN-programmed so those steps are already done. You receive a VIN-programmed replacement unit that bypasses the need for manual immobilizer matching. This simplifies the installation process significantly for your 1996 Volkswagen Cabrio. The internal memory contains the necessary security data before shipment occurs. You avoid potential errors associated with manual adaptation procedures using scan tools. Proper programming ensures the engine starts and runs without security interruptions.
Symptoms of a Failing PCM
Common signs of module failure include unexpected stalling or a no-start condition despite having fuel and spark. You might notice the engine runs roughly or lacks power during acceleration phases. Scan tools may fail to communicate with the computer entirely in severe cases. Internal memory faults often trigger specific diagnostic trouble codes stored within the system. For example, you might see internal random access memory fault indicating a processor integrity issue. Other codes like P0605 or P0606 suggest problems with the read-only memory or monitoring circuits. These errors prevent the 1996 Volkswagen Cabrio from operating safely on the road. Shifting issues may occur if the transmission relies on data from this controller. Ignoring these warnings could lead to complete engine shutdown while driving. Professional diagnosis helps confirm whether the unit itself requires replacement.
Module Trouble Codes on the 1996 Volkswagen Cabrio
Several internal fault codes are documented for the engine control module in this vehicle. These errors point to memory integrity problems within the computer hardware itself. Mechanics use these identifiers to distinguish between sensor failures and processor defects. The following list represents known issues associated with the controller architecture.
| Code | Meaning | Full Guide |
|---|---|---|
| P0604 | Internal RAM error | Full P0604 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Technical service bulletin 96-07-42 applies to all models equipped with Immobilizer 3 or 4 systems. The document outlines the immobilizer adaptation procedure required when replacing the ECM. This ensures the security module recognizes the new engine computer correctly. Failure to perform this step may result in a no-start condition. The bulletin number TT 96-07-42 references the same adaptation requirement for technicians. You should verify your vehicle matches the immobilizer system version before proceeding. Proper adaptation links the key transponder to the replacement control unit. This process is critical for maintaining vehicle security and operability after service.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 96-07-42 | TT 96-07-42 All Models With Immobilizer 3 or 4, Immobilizer Adaptation When Replacing the ECM | — |
Protecting the PCM in Your 1996 Volkswagen Cabrio
- Maintain charging-system health to prevent voltage spikes damaging the computer.
- Keep connector seals intact to avoid moisture intrusion into the harness.
- Address diagnostic codes promptly to prevent further internal component stress.
- Ensure clean grounds and connectors for stable signal communication paths.
- Avoid jump-start voltage spikes by following proper cable connection procedures.
Frequently Asked Questions
Where is the ECM located on a 1996 Volkswagen Cabrio?
The factory overview places the module in the plenum chamber on the right side. Access requires working near the fuel injection and emissions components.
Does the 1996 Volkswagen Cabrio require programming after ECM replacement?
Yes, immobilizer adaptation is typically required for models with Immobilizer 3 or 4. Flagship One units come pre-programmed to handle this requirement.
What labor time is booked for ECM removal on a 1996 Volkswagen Cabrio?
Book time for removing and installing the ECM is listed at 0.3 hours. Additional time may be needed for reset or relearn procedures.
You may choose to repair your existing unit or opt for a refurbished replacement depending on your situation. Refurbished options often provide a faster solution than troubleshooting internal circuit board faults. For the 1996 Volkswagen Cabrio, ensuring compatibility with the immobilizer system is the priority. We offer detailed information to help you weigh these repair path options effectively.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Volkswagen Cabrio with a lifetime warranty, free shipping and no core charge. The full Volkswagen Cabrio module lineup covers other engine configurations as well.
Final Thoughts
Replacing the engine computer in your 1996 Volkswagen Cabrio involves specific location and programming steps. Understanding the labor times and immobilizer requirements prepares you for a successful repair. You can proceed with confidence knowing the necessary adaptation data is handled. Review the technical details provided to ensure your vehicle returns to proper operation.
