1996 Chevrolet Corsica PCM Replacement and Programming Guide
The Powertrain Control Module in your 1996 Chevrolet Corsica with the 3.1L engine is the onboard computer responsible for managing fuel delivery, ignition timing, and emissions functions. When this module fails, your vehicle may experience stalling, hard starting, or a complete no-start condition. Internal memory faults can also trigger diagnostic codes and prevent proper communication with a scan tool.
Quick Summary
- The PCM sits underhood ahead of the right strut tower, close to the coolant reservoir.
- Book labor time for module removal and replacement is 1.3 hours, with an additional 0.5 hours for relearn.
- Factory bulletins address PCM reprogramming and replacement connector service kits for this vehicle.
- Internal trouble code P0601 has been documented for this module.
- Electrostatic discharge and add-on electrical accessories can damage or disrupt the PCM.
When your 1996 Chevrolet Corsica begins stalling unexpectedly or refuses to start, the Powertrain Control Module is one component that deserves attention. This onboard computer governs critical engine and transmission functions, and when it malfunctions, the symptoms can be frustrating and difficult to pin down. Understanding what this module does, where it lives in your vehicle, and what happens after a replacement helps you make informed repair decisions. You will learn how the PCM integrates with your 3.1L engine, what factory cautions apply during service, and how a pre-programmed replacement can simplify the process. Whether you are diagnosing a persistent check-engine light or planning a module swap, having the right background information makes the job more manageable and helps you avoid common pitfalls that can damage sensitive electronics.
What the PCM Does in a 1996 Chevrolet Corsica
The Powertrain Control Module in your 1996 Chevrolet Corsica serves as the central brain for the 3.1L powertrain, continuously processing input from sensors such as the crankshaft position sensor, mass airflow sensor, and oxygen sensors to regulate fuel injector pulse width, ignition advance, and idle speed. It also monitors emission-control components and stores diagnostic trouble codes when it detects operating parameters outside expected ranges. Because this module manages so many interdependent systems, a fault inside it can produce a wide range of drivability problems that often mimic other mechanical or electrical failures. The PCM communicates with a scan tool through a standardized diagnostic port, and loss of that communication is a strong indicator of internal module failure. When replacement becomes necessary, choosing replacement engine computers for the Corsica ensures the new module matches your vehicle’s specific calibration and software. The factory cautions that the electronic components inside the control system often operate on very low voltage, making them vulnerable to damage from electrostatic discharge and improper electrical connections.
Where the PCM Is Located and What Replacement Involves

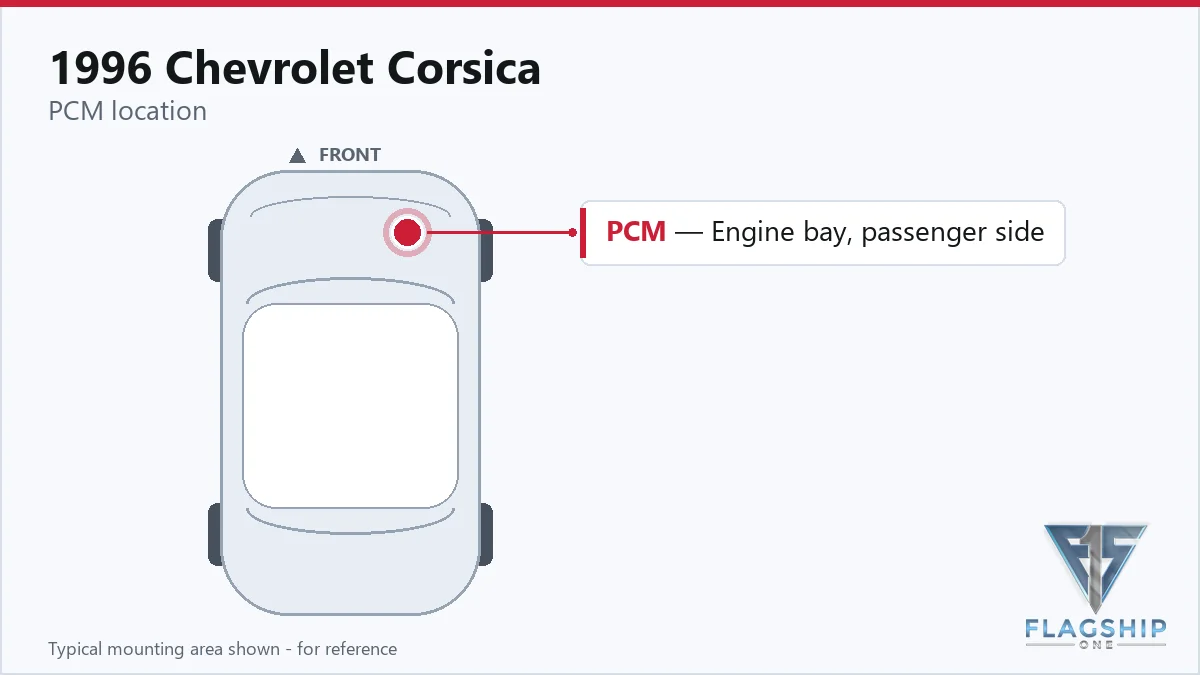

In your 1996 Chevrolet Corsica, the PCM is mounted underhood, positioned in front of the right strut tower near the engine coolant reservoir. This location places the module in a relatively accessible area of the engine compartment, though care should be taken when disconnecting the wiring harness to avoid stressing the connector pins. The published book time for removing and replacing the module is 1.3 hours, which covers the physical swap of the unit. After installation, a separate relearn procedure carries a book time of 0.5 hours, during which the new module is introduced to the vehicle’s immobilizer and idle parameters. During handling, avoid touching the connector pins or any soldered components on the circuit board, as the factory warns that electrostatic discharge can permanently damage the low-voltage electronics inside the module.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.3 hr |
| Powertrain Control Module R&R | All configurations | 1.3 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After a new PCM is installed in your 1996 Chevrolet Corsica, the factory procedure calls for a relearn process that carries a book time of 0.5 hours. This step allows the replacement module to synchronize with your vehicle’s onboard systems so that idle quality and operating parameters settle correctly. Without this procedure, the engine may run roughly or fail to start. Flagship One addresses this requirement by shipping a VIN-programmed replacement unit that already contains your vehicle’s calibration data, meaning the relearn and programming steps are typically completed before the part arrives at your door. You still need to perform the basic relearn after installation, but the core programming work is already handled.
Symptoms of a Failing PCM
A failing PCM in the 1996 Chevrolet Corsica can produce a variety of drivability symptoms that often overlap with other engine or electrical problems. Common signs include intermittent stalling, a no-start condition, rough idle, misfire codes that do not resolve with typical repairs, and complete loss of scan-tool communication when you attempt to read live data. Some owners report that the check-engine light illuminates and stays on without an obvious external cause. When the module develops an internal memory fault, the diagnostic system may log PCM internal memory checksum error, which points specifically to a problem within the controller rather than a downstream sensor or actuator. Because the PCM governs both fuel and ignition functions, a partial failure can cause hesitation, poor fuel economy, or erratic transmission behavior in vehicles where the module also controls shift timing.
Module Trouble Codes on the 1996 Chevrolet Corsica
The following module-internal trouble code has been documented for the 1996 Chevrolet Corsica. This code relates specifically to a fault within the PCM itself rather than an external sensor or wiring issue, and it typically indicates that the module may need replacement rather than a simple repair.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Two factory service bulletins are relevant to the PCM on your 1996 Chevrolet Corsica. Bulletin number 99-06-04-053, dated October 26, 1999, provides information regarding PCM reprogramming procedures. Bulletin number 83-81-32, dated September 16, 1998, covers new PCM connector service kits that became available for servicing damaged or corroded harness connectors. Both bulletins highlight that the manufacturer recognized connector and programming concerns with this module family, and a qualified technician can use these references to address related issues during diagnosis or replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 99-06-04-053 | Info – PCM Reprogramming – (Oct 26, 1999) | — |
| 83-81-32 | INFO – NEW PCM CONNECTOR SERVICE KITS – (Sep 16, 1998) | — |
Protecting the PCM in Your 1996 Chevrolet Corsica
- Maintain a healthy charging system, as overcharging or voltage spikes from a failing alternator can damage the PCM.
- Keep battery terminals and ground connections clean and tight to ensure stable voltage delivery to the module.
- Avoid jump-starting the vehicle in a way that reverses polarity or creates voltage surges, which can harm sensitive electronics.
- Address stored trouble codes promptly rather than ignoring them, as unresolved issues can stress the module over time.
- Inspect the PCM connector seals for cracks or displacement, and replace them if moisture intrusion is evident.
- Route any add-on electrical accessories directly to the battery for both power and ground, as the factory recommends, to minimize interference with powertrain operation.
Frequently Asked Questions
Where is the PCM located in the 1996 Chevrolet Corsica?
The PCM is mounted underhood in front of the right strut tower, near the engine coolant reservoir. This position makes it relatively accessible for inspection and replacement, though you should handle the module carefully to avoid electrostatic discharge damage to the connector pins or circuit board.
What is the book labor time for replacing the PCM in a 1996 Chevrolet Corsica?
The published book time for removing and replacing the PCM is 1.3 hours. A separate relearn procedure carries an additional 0.5 hours of book time, which covers the steps needed to synchronize the new module with your vehicle’s systems after installation.
What does trouble code P0601 mean for my 1996 Chevrolet Corsica?
Code P0601 indicates an internal memory checksum error within the PCM, meaning the module has detected a problem with its own stored data. This code typically points to a fault inside the controller itself rather than an external sensor or wiring issue, and replacement of the module is often the recommended repair path.
If your 1996 Chevrolet Corsica is showing signs of PCM failure, you have options ranging from a professional diagnostic visit to a pre-programmed replacement module. A refurbished unit that arrives already programmed to your VIN can save you the trip to a dealership for flashing, though the basic relearn step still applies after installation. Flagship One supplies programmed replacement modules tailored to your specific vehicle, helping you get back on the road with less downtime.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Chevrolet Corsica with a lifetime warranty, free shipping and no core charge. The full Chevrolet Corsica module lineup covers other engine configurations as well.
Final Thoughts
Your 1996 Chevrolet Corsica relies on a healthy PCM to keep the 3.1L engine running smoothly and efficiently. Recognizing the symptoms of module failure, understanding the factory cautions, and knowing the replacement and relearn times help you approach the repair with confidence. If you suspect your PCM is failing, consider a VIN-programmed replacement from Flagship One to simplify the process.
