1995 Chevrolet Monte Carlo PCM Replacement Guide
In the 1995 Chevrolet Monte Carlo the Powertrain Control Module (PCM) manages fuel delivery, ignition timing, and emission functions. A failure typically results in loss of engine control, causing stalling, rough idle, or a complete no‑start condition.
Quick Summary
- PCM sits under the dash on the passenger side, requiring panel removal.
- Factory procedure demands the ignition switch be OFF before any power disconnection.
- Relearn steps include a 0.5‑hour Powertrain Control Module relearn and a 0.5‑hour Engine Control Module relearn.
- Engine Control Module removal and replacement takes about 1.1 hours of labor.
When a 1995 Chevrolet Monte Carlo begins to exhibit hard starting, intermittent stalling, or a loss of power, the PCM often becomes a suspect. Understanding where the module lives, how it functions, and what the factory expects after a swap can save you time and prevent further damage. This guide walks you through the location, removal steps, required relearn procedures, and common symptoms so you can approach the repair with confidence and avoid costly missteps.
What the PCM Does in a 1995 Chevrolet Monte Carlo
The Powertrain Control Module in a 1995 Chevrolet Monte Carlo acts as the vehicle’s central computer, interpreting sensor data to control fuel injection, ignition timing, and emission systems. It continuously monitors engine speed, coolant temperature, and throttle position to adjust performance in real time. When the module fails, the engine may run lean, stall, or refuse to start because it cannot execute the precise commands needed for combustion. Proper operation is essential for fuel efficiency and emissions compliance. For this model, the typical replacement part is a replacement powertrain control module for the Monte Carlo that matches the factory specifications and software version.
Where the PCM Is Located and What Replacement Involves
The PCM for the 1995 Monte Carlo is mounted inside the passenger compartment beneath the instrument panel. Access requires removal of the lower dash trim and possibly the steering column cover to reach the module. Once exposed, the connector is unplugged, the mounting bolts are removed, and the unit is taken out. Installation reverses the steps, ensuring the connector seats fully and bolts are torqued to factory specifications. The labor guide lists 0.5 hours for the Powertrain Control Module relearn, 1.1 hours for Engine Control Module removal and replacement, and another 0.5 hours for the Engine Control Module relearn, reflecting the typical time needed for a complete swap.
How to Reach the PCM on the 1995 Chevrolet Monte Carlo
- Remove the coolant tank reservoir.
- Remove the air cleaner intake duct.
- Remove the right side splash shield.
- Remove the plastic ECM cover.
- Detach the harness connectors from the ECM.
- Remove the ECM-to-bracket retaining screws and remove the ECM, then remove.
- Position the ECM in the vehicle and install the ECM-to-bracket retaining.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.1 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory requires a Powertrain Control Module relearn followed by an Engine Control Module relearn, each taking about half an hour according to the labor guide. These procedures ensure the new unit learns the vehicle’s idle parameters and sensor calibrations. Flagship One units arrive VIN‑programmed, so the relearn steps are already completed, eliminating the need for additional on‑vehicle programming.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
A faulty PCM in a 1995 Monte Carlo may cause the engine to crank without firing, sudden stalling at idle, or erratic power loss during acceleration. You might also notice a lack of communication with scan tools, making diagnostics difficult. In some cases, the vehicle may trigger a Powertrain Control Module internal processor fault that appears on the check engine light, indicating the module’s internal processor has encountered an error.
Protecting the PCM in Your 1995 Chevrolet Monte Carlo
- Maintain a healthy charging system to avoid voltage fluctuations.
- Keep ground straps and connector pins clean and free of corrosion.
- Avoid jump‑starting the vehicle with high‑voltage spikes.
- Address any check‑engine codes promptly before they worsen.
- Inspect and replace damaged connector seals when needed.
- Regularly check battery voltage and replace weak batteries.
Frequently Asked Questions
What are the signs that the PCM needs replacement in a 1995 Monte Carlo?
Typical signs include a no‑start condition, intermittent stalling, rough idle, and loss of communication with diagnostic tools. These symptoms often point to the PCM when other components have been ruled out.
Can I replace the PCM myself on a 1995 Monte Carlo?
Yes, if you are comfortable removing dash trim and handling electrical connectors. Remember to keep the ignition switch OFF before disconnecting power, as required by the factory caution.
Do I need special tools to reinstall the PCM?
Standard hand tools are sufficient for bolt removal and connector handling. Ensure you torque the mounting bolts to the factory specification, which is typically listed in the service manual.
How long does a professional shop usually take to replace the PCM?
Labor guides estimate about 1.1 hours for the Engine Control Module removal and replacement, plus additional time for the relearn procedures, totaling roughly two hours of work.
Will a VIN‑programmed replacement eliminate all post‑install steps?
A VIN‑programmed unit from Flagship One includes the necessary software calibration, so the standard relearn procedures are already completed, simplifying the installation.
When the PCM in your 1995 Monte Carlo fails, you can choose a brand‑new factory‑spec unit or a refurbished replacement that meets the same performance standards. Both options require the same removal steps, but a refurbished unit from Flagship One arrives VIN‑programmed, removing the need for additional relearn time. Weigh the cost and warranty coverage to decide which path best fits your repair plan.

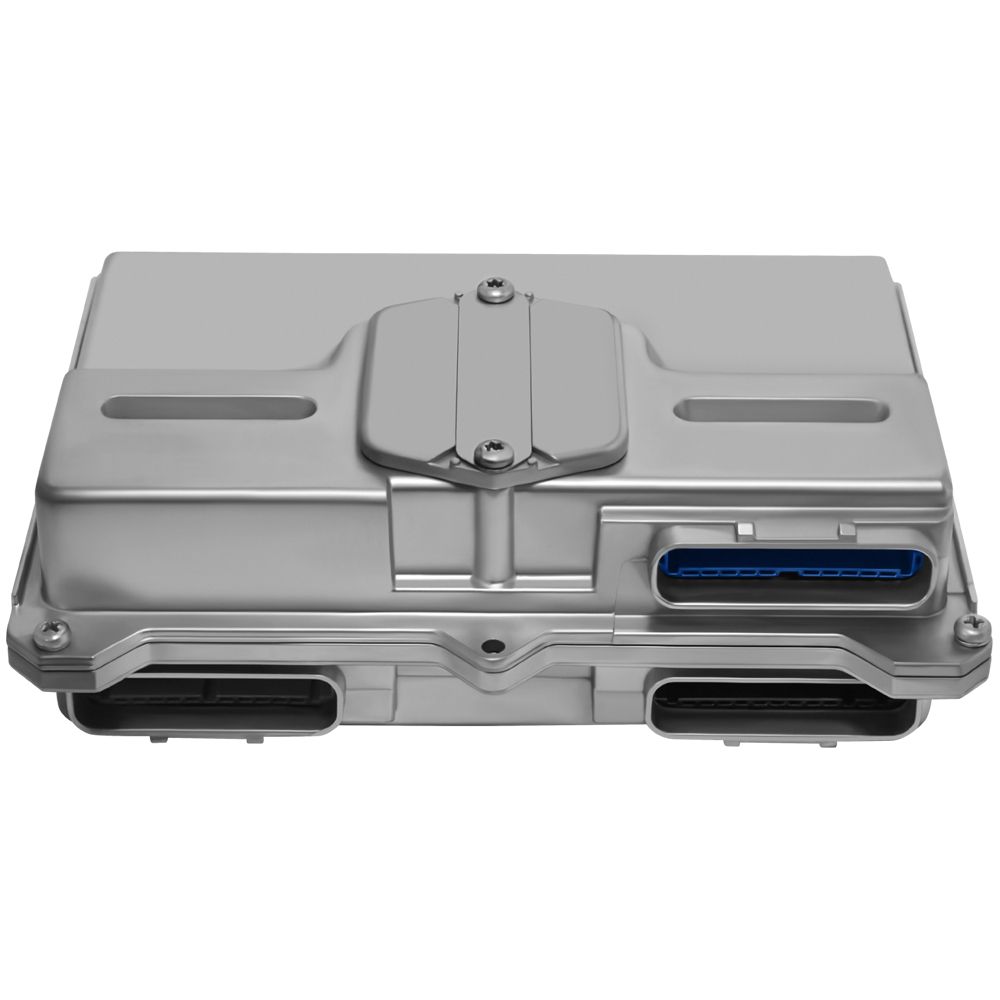

Flagship One stocks a refurbished, VIN-programmed PCM for the 1995 Chevrolet Monte Carlo with a lifetime warranty, free shipping and no core charge. The full Chevrolet Monte Carlo module lineup covers other engine configurations as well.
Final Thoughts
If your 1995 Chevrolet Monte Carlo is showing PCM‑related symptoms, a proper diagnosis and replacement can restore reliable engine control. Consider a VIN‑programmed replacement to streamline the process and get back on the road faster.
