1994 Ford Crown Victoria PCM Replacement Guide
In the 1994 Ford Crown Victoria the Powertrain Control Module (PCM) serves as the central computer that manages engine timing, fuel delivery, and transmission shift logic. Failure typically results from internal circuit damage, causing loss of communication with diagnostic tools and erratic engine behavior.
Quick Summary

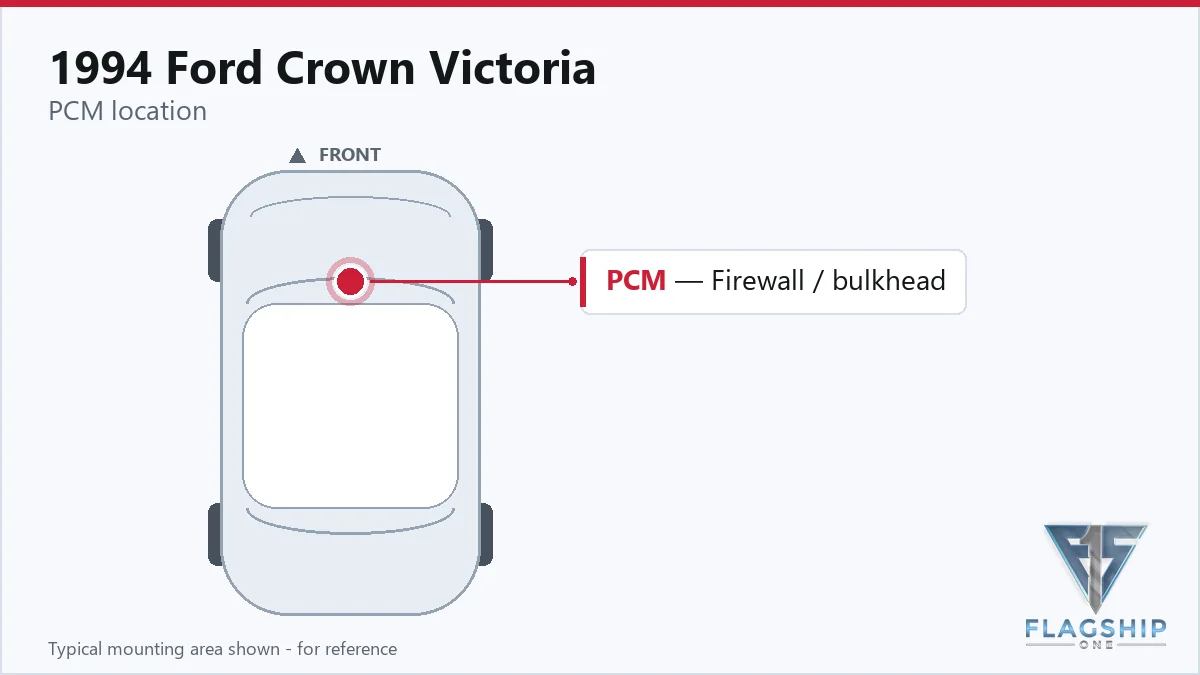

- PCM location is on the driver’s side firewall near the master cylinder.
- Factory service bulletins address reprogramming and specific shift‑upshift hesitation issues.
- Typical labor for removal and installation is 1.0 hour, plus 0.5 hour for diagnosis.
- Flagship One units arrive pre‑programmed to the vehicle VIN, eliminating re‑flash steps.
When a 1994 Ford Crown Victoria begins to exhibit erratic shifting, stalling, or a dead scan‑tool connection, the Powertrain Control Module often becomes the focal point of investigation. Understanding what the PCM does, where it lives, and how to replace it can save you time and prevent unnecessary component swaps. This guide walks you through the module’s function, its physical location, the labor involved, relevant service bulletins, and the programming steps required after a swap. By the end, you will know how to diagnose PCM‑related issues, what to expect during removal and installation, and why a VIN‑programmed replacement from Flagship One may streamline the repair.
What the PCM Does in a 1994 Ford Crown Victoria
The Powertrain Control Module in a 1994 Ford Crown Victoria acts as the brain of the powertrain, interpreting sensor data to control fuel injection, ignition timing, and transmission shift points. It continuously monitors inputs such as crankshaft position, throttle position, and vehicle speed to execute precise commands that keep the engine running smoothly and the transmission shifting correctly. Because it governs both engine and transmission, any malfunction can manifest as a range of drivability problems, from rough idle to hard shifting or even a complete no‑start condition. Proper operation is essential for emissions compliance and fuel efficiency, making the PCM a critical component in this vehicle’s overall performance. For those seeking alternatives, you may explore 1994 Ford Crown Victoria replacement PCM options that meet factory specifications.
What Replacing the PCM Involves
How to Reach the PCM on the 1994 Ford Crown Victoria
- Remove the powertrain Control Module Seal.
- Remove the powertrain Control Module Bracket.
- Remove the powertrain Control Module.
- Remove the powertrain Control Module Bracket Clip.
- Remove the dash Panel.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.0 hr |
| Powertrain Control System Diagnosis & Testing | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once the PCM is installed, the factory procedure calls for reprogramming the module to match the vehicle’s VIN and calibration data. Flagship One units arrive as a VIN-programmed replacement unit so the reflash step is already completed, allowing you to focus on mechanical installation and final verification without additional software steps.
Symptoms of a Failing PCM
Typical signs of a failing PCM in a 1994 Ford Crown Victoria include a dead scan‑tool connection, random stalling, rough idle, and shift timing irregularities. Drivers may notice a hesitation or soft feel during 1‑2 or 3‑4 upshifts, which aligns with documented service bulletins. Diagnostic trouble codes such as communication fault often appear, indicating internal module communication issues. In some cases the MIL lights up without obvious engine performance loss, prompting further investigation. These symptoms collectively point to a loss of control authority within the powertrain system, underscoring the need for prompt diagnosis and repair.
Module Trouble Codes on the 1994 Ford Crown Victoria
The following internal trouble codes have been recorded for the PCM in this vehicle:
Factory Service Bulletins Worth Knowing
Bulletin 97-09-08 outlines the reprogramming steps required for the PCM. Bulletin 95-08-03 addresses delayed or soft upshifts in 4.6L engines and recommends PCM replacement when the issue persists. Bulletin 95-10-02 provides revised connector retention and seal information for the ignition control module, which can affect PCM communication. These service tips guide technicians through reflash procedures and hardware updates specific to the 1994 Crown Victoria.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 97-09-08 | POWERTRAIN CONTROL MODULE – REPROGRAM POWERTRAIN CONTROL MODULE (PCM) – SERVICE PROCEDURES – SE | — |
| 95-08-03 | 3.8L AND 4.6L ENGINES – 4R70W – DELAYED/SLOW/SOFT OR HESITATION/SAG ON 1-2 AND/OR 3-4 UPSHIFTS | — |
| 95-10-02 | “MALFUNCTION INDICATOR LAMP” (MIL) ILLUMINATED – DISTRIBUTORLESS IGNITION SYSTEM (DIS) ONLY – I | — |
Protecting the PCM in Your 1994 Ford Crown Victoria
- Maintain a healthy charging system to avoid voltage fluctuations.
- Ensure all ground points and connector pins are clean and free of corrosion.
- Avoid jump‑starting the vehicle with excessive voltage spikes.
- Address any diagnostic codes promptly to prevent further damage.
- Inspect connector seals regularly and replace if worn.
- Keep the PCM wiring harness protected from heat and abrasion.
Frequently Asked Questions
What are common diagnostic codes for a PCM failure in a 1994 Ford Crown Victoria?
Codes such as P0600 through P0609 and P0620 series are frequently logged when the PCM loses internal communication or fails to process sensor data.
Is reprogramming required after installing a new PCM in my 1994 Crown Victoria?
Factory guidelines call for a VIN‑specific reflash, but a Flagship One unit arrives pre‑programmed, eliminating the need for an on‑site reprogramming step.
How long does it typically take to replace the PCM on this vehicle?
The labor guide assigns one hour for removal and installation, plus an additional half hour for diagnosis and testing.
Can a failing PCM cause transmission shift problems in the Crown Victoria?
Yes, because the PCM controls shift timing, internal faults can lead to delayed or harsh upshifts, especially in the 4R70W transmission.
What should I check before concluding the PCM is at fault?
Verify battery voltage, inspect ground connections, and clear any stored codes to ensure the issue isn’t caused by peripheral electrical problems.
When the PCM in your 1994 Ford Crown Victoria shows signs of failure, you can either pursue a repair through a dealer or consider a refurbished replacement that matches factory specifications. Both approaches aim to restore reliable engine and transmission control, but a pre‑programmed unit may reduce shop time and eliminate the need for on‑site reflash. Evaluate your budget, warranty preferences, and the availability of a VIN‑programmed replacement to choose the best path forward.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1994 Ford Crown Victoria with a lifetime warranty, free shipping and no core charge. The full Ford Crown Victoria module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module is vital to the operation of your 1994 Ford Crown Victoria. Whether you opt for a repair or a Flagship One replacement, ensuring proper installation and programming will help keep your vehicle running smoothly. Contact a qualified technician to assess the best solution for your situation.
