1994 Dodge Dakota PCM & ECM Replacement Guide
The Powertrain Control Module (PCM) in your 1994 Dodge Dakota manages engine and transmission functions. When this computer fails, your vehicle may not start, run poorly, or set internal fault codes that prevent normal operation.
Quick Summary

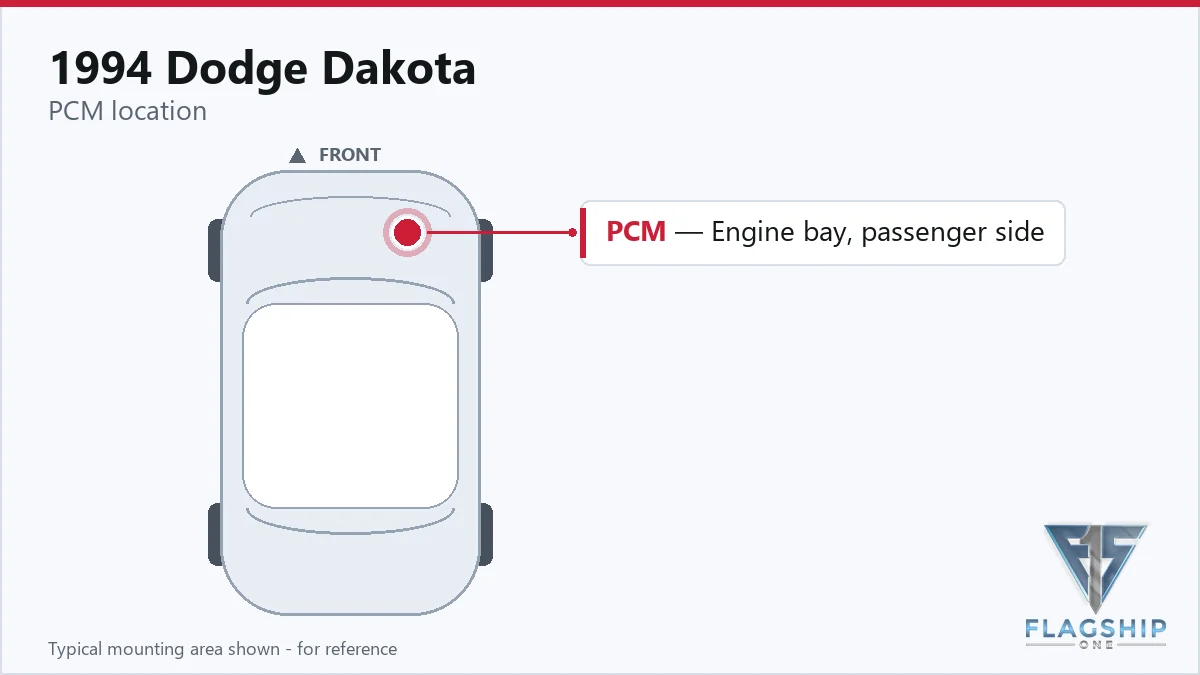

- The PCM on a 1994 Dodge Dakota sits on the right inner fender in the engine compartment
- Replacement requires disconnecting the battery and carefully handling the hall effect pick-up leads
- After replacement, a relearn procedure must be performed using dealer-grade diagnostic equipment
- Flagship One supplies VIN-programmed replacement units, eliminating the need for manual programming at installation
- Factory bulletin #18-037-05 addresses flash programming recovery procedures for this vehicle
If your 1994 Dodge Dakota has developed starting problems, running issues, or diagnostic trouble codes that point toward the computer, you are likely dealing with a failed Powertrain Control Module. This guide explains what the PCM does in your specific truck, where it is mounted, what replacement involves, and how the programming process works. Whether you are diagnosing a no-start condition or planning a repair, understanding the module’s role and the factory service procedure helps you make informed decisions about repair versus replacement options.
What the PCM Does in a 1994 Dodge Dakota
The Powertrain Control Module in your 1994 Dodge Dakota functions as the primary computer for the engine and transmission. This unit, originally termed the SBEC or engine controller, processes input from various sensors throughout the powertrain and adjusts fuel delivery, ignition timing, and transmission shift points accordingly. When this computer malfunctions, the engine may run roughly, stall unexpectedly, or fail to start entirely. Because the module controls multiple vehicle systems, a faulty PCM can produce symptoms that seem unrelated to each other. Replacement engine computers for the Dakota are available as new or refurbished units, with VIN-programmed options offering plug-and-play installation.
Flagship One keeps Dodge Dakota replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves
The PCM on your 1994 Dodge Dakota is mounted on the right inner fender well within the engine compartment, a location that provides reasonable access for replacement. The labor guide allocates 0.5 hours for removing and reinstalling the module, though actual time varies based on connector condition and bolt accessibility. Before beginning work, disconnect the negative battery cable as the factory caution specifies. The hall effect pick-up assembly leads can be damaged during installation if not properly seated, so take care when reconnecting the wiring harness. After the module is secured and all connections are tight, reconnect the battery to begin the post-replacement procedure.
How to Reach the PCM on the 1994 Dodge Dakota
- Disconnect negative battery cable at battery.
- Remove air cleaner duct from the PCM.
- PCM mounting screws.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a replacement PCM in your 1994 Dodge Dakota, the factory procedure requires a relearn process to calibrate the new module to your specific vehicle. This relearn step, which takes approximately 0.5 hours according to the labor guide, uses dealer-level diagnostic equipment to establish communication between the new computer and the rest of the powertrain. Without this step, the engine may run poorly or not at all. Flagship One addresses this requirement by shipping their replacement units VIN-programmed, meaning the module arrives pre-configured for your specific truck and performs the essential programming before it reaches your door.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the Powertrain Control Module on a 1994 Dodge Dakota fails, the vehicle typically exhibits a range of drivability problems that often point directly to the computer. A no-start condition is common, where the engine cranks but receives no fuel or spark due to the module failing to process sensor inputs. Stalling and rough idle occur when the computer cannot maintain proper fuel delivery or ignition timing. Misfire codes may appear even though spark plugs and wires test good, because the module is not correctly managing combustion events. In some cases, the scan tool cannot communicate with the vehicle at all, indicating a dead or failed module. Transmission shifting issues also manifest when the PCM cannot properly control shift solenoids and torque converter lockup.
Factory Service Bulletins Worth Knowing
Factory service bulletin #18-037-05 addresses flash programming failure recovery using the DRBIII diagnostic tool. This bulletin provides guidance for technicians when the PCM fails to accept new programming or when communication errors occur during the flash procedure. The document outlines steps to recover from programming failures and ensure the module functions correctly after software updates.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-037-05 | 18-037-05 Flash Programming Failure Recovery Using DRBIII® | — |
Protecting the PCM in Your 1994 Dodge Dakota
- Maintain proper charging system voltage to prevent low-voltage conditions that stress the PCM circuitry
- Ensure all ground connections are clean and secure, as poor grounding can cause erratic module operation
- Avoid jump-starting the vehicle with high voltage spikes that can damage sensitive computer circuits
- Address diagnostic trouble codes promptly rather than ignoring warning signs of module stress
- Inspect and seal connector housings periodically to prevent moisture intrusion that leads to corrosion
- Use quality replacement parts when repairing sensor or actuator issues that could send abnormal signals to the module
Frequently Asked Questions
Will any used PCM work in my 1994 Dodge Dakota?
No. The replacement module must be programmed for your specific vehicle identification number or it will not communicate with your truck’s systems. An unprogrammed unit will cause the engine to either not start or run poorly.
Can I replace the PCM myself on my 1994 Dodge Dakota?
Replacement is straightforward for someone with moderate mechanical experience, but the post-installation relearn procedure requires dealer-grade diagnostic equipment. If you purchase a VIN-programmed unit from Flagship One, the programming is completed before shipment, simplifying the installation process.
How do I know if my 1994 Dodge Dakota has a PCM problem versus another issue?
Symptoms like no-start, intermittent stalling, multiple random misfire codes, or a scan tool that cannot communicate with the vehicle strongly point to the PCM. However, a thorough diagnosis should rule out simpler causes like failed sensors, bad grounds, or wiring problems first.
When your 1994 Dodge Dakota requires a new Powertrain Control Module, you have two primary paths: repair the existing unit or install a replacement. Refurbished modules offer a cost-effective solution but may require programming at a dealership. New VIN-programmed replacement units arrive ready to install, eliminating the need for dealer visits and specialized equipment. Consider your budget, timeline, and access to diagnostic tools when choosing which approach suits your situation best.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1994 Dodge Dakota with a lifetime warranty, free shipping and no core charge. The full Dodge Dakota module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module is the brain of your 1994 Dodge Dakota, and when it fails, your truck’s operation is directly affected. Understanding the module’s location, the programming requirements, and the factory service procedures helps you navigate the replacement process with confidence. Whether you choose a professionally refurbished unit or a new VIN-programmed replacement, addressing PCM failure promptly restores your vehicle’s reliability and drivability.
