1994 Dodge Caravan Powertrain and Engine Control Module Relearn Guide
In the 1994 Dodge Caravan, the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing, and transmission shifting. A failure in either unit can disrupt engine start, cause stalling, or produce communication loss with diagnostic tools, leading to drivability problems.
Quick Summary
- Relearn procedures typically require about half an hour of labor per module.
- The PCM sits under the hood on the driver’s side inner fender panel.
- Factory programming is needed after removal, but Flagship One units arrive VIN‑programmed.
- Bulletin #18-037-05 addresses flash programming recovery for similar issues.
When a 1994 Dodge Caravan experiences no‑start conditions or irregular shifting, the underlying cause often points to the powertrain or engine control modules. Understanding how these computers function and what steps are required after replacement can save time and avoid unnecessary diagnostics. This guide explains the location, labor expectations, programming needs, and common symptoms so you can address the issue with confidence.
What the PCM Does in a 1994 Dodge Caravan
The PCM and ECM in a 1994 Dodge Caravan act as the vehicle’s electronic brain, continuously monitoring sensor data to control fuel injection, ignition timing, and transmission gear changes. Their proper operation is essential for reliable performance and emissions compliance. A malfunction may interrupt power distribution or data flow, leading to drivability loss. The modules are integral to the vehicle’s control strategy, and 1994 Dodge Caravan replacement PCM ensures the system can be re‑learned after service.
Where the PCM Is Located and What Replacement Involves

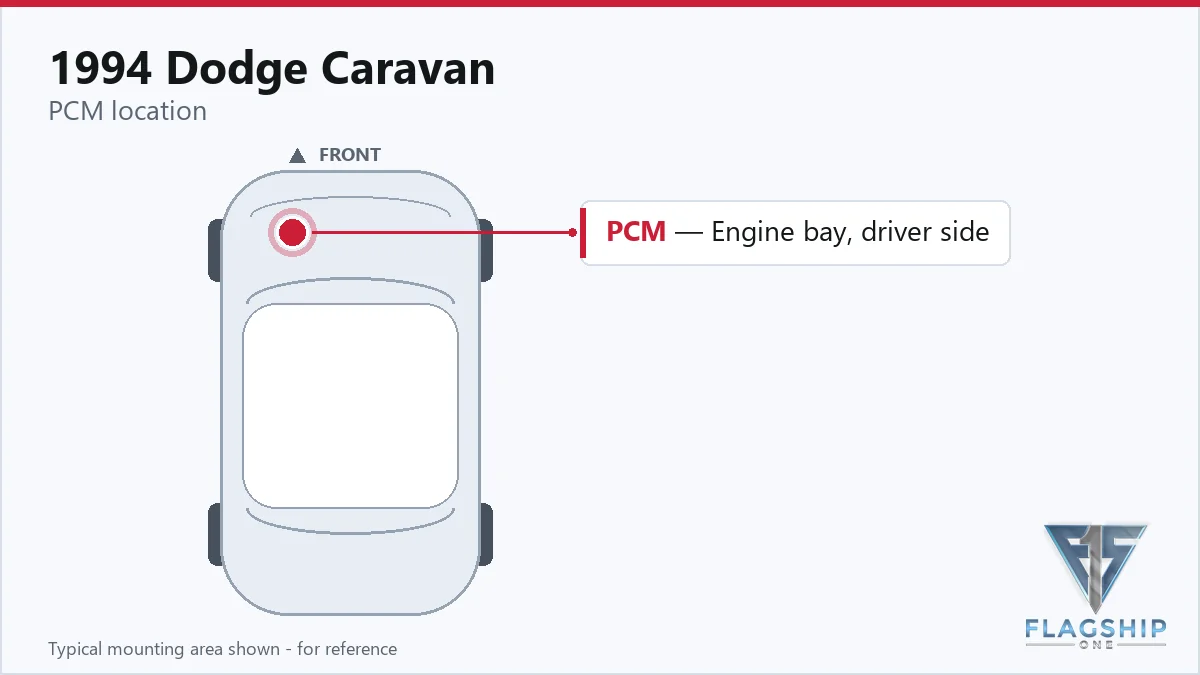

The powertrain control module is positioned under the hood on the driver’s side inner fender panel of the 1994 Dodge Caravan. Access typically involves removing the panel cover and disconnecting the wiring harness. Replacement work follows the book time of 0.5 hours for a PCM relearn or 0.6 hours for a PCM removal and reinstall. No additional torque specifications are provided, so standard connector re‑securement is recommended.
How to Reach the PCM on the 1994 Dodge Caravan
- Remove air cleaner.
- Depress tab on top of solenoid and slide the so- lenoid downward out of mounting bracket.
- Disconnect idle air control motor connector.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | Caravan | 0.5 hr |
| Engine Control Module Relearn | Grand Caravan | 0.5 hr |
| Engine Control Module R&R | Caravan | 0.5 hr |
| Engine Control Module R&R | Grand Caravan | 0.5 hr |
| Powertrain Control Module Relearn | Caravan | 0.5 hr |
| Powertrain Control Module Relearn | Grand Caravan | 0.5 hr |
| Powertrain Control Module R&R | Caravan | 0.6 hr |
| Powertrain Control Module R&R | Grand Caravan | 0.6 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM, the factory procedure calls for a relearn cycle to synchronize the module with the vehicle’s sensors and transmission. Flagship One units arrive pre‑programmed to the vehicle’s VIN, so the required a VIN-programmed replacement unit eliminates the need for on‑site flash programming.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 1994 Dodge Caravan include a complete no‑start condition, intermittent stalling, erratic transmission shifting, and loss of communication with a scan tool. You may also encounter diagnostic trouble codes such as anchor text that indicate timing control problems.
Factory Service Bulletins Worth Knowing
Bulletin #18-037-05 describes a flash programming failure recovery method using the DRBIII® tool. This service bulletin provides guidance for situations where the module does not accept new software during replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-037-05 | 18-037-05 Flash Programming Failure Recovery Using DRBIII® | — |
Protecting the PCM in Your 1994 Dodge Caravan
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean ground straps and connector pins regularly.
- Avoid jump‑start voltage spikes that can damage electronic modules.
- Address any diagnostic codes promptly before they worsen.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What labor time is typical for a PCM relearn on a 1994 Dodge Caravan?
The book time for a powertrain control module relearn on this vehicle is generally listed as 0.5 hours.
Where is the PCM located on a 1994 Dodge Caravan?
The PCM is mounted under the hood on the driver’s side inner fender panel.
Do I need special equipment to program a replacement PCM in a 1994 Dodge Caravan?
Factory procedures require a relearn step, but a Flagship One unit arrives VIN‑programmed, eliminating the need for on‑site flash tools.
When the PCM or ECM fails in a 1994 Dodge Caravan, you can choose a repair that follows the factory relearn schedule or opt for a refurbished replacement that arrives pre‑programmed. Both paths restore module functionality, but a VIN‑programmed unit may reduce shop time and simplify the process.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1994 Dodge Caravan with a lifetime warranty, free shipping and no core charge. The full Dodge Caravan module lineup covers other engine configurations as well.
Final Thoughts
Addressing PCM or ECM issues in your 1994 Dodge Caravan promptly can prevent further drivability loss. Whether you repair or replace, the right approach restores reliable performance and keeps the vehicle on the road.
