1993 Dodge Caravan PCM and ECM Relearn Procedures
In the 1993 Dodge Caravan, the powertrain control module and engine control module manage engine timing, fuel delivery, and transmission shifting. A failure in either unit can cause loss of power, stalling, or loss of diagnostic communication, requiring relearn or replacement procedures.
Quick Summary
- Relearn tasks typically take about half an hour per module.
- The PCM sits under the hood on the driver’s side inner fender panel.
- Factory programming is required after any module swap.
- Flagship One units arrive pre‑programmed to the vehicle’s VIN.
When a 1993 Dodge Caravan experiences symptoms like a no‑start condition or erratic shifting, the powertrain or engine control module may need attention. This guide explains what the modules do, where they are located, and what steps are required to relearn or replace them. By following the outlined procedures, you can ensure the vehicle returns to reliable operation without unnecessary trial and error.
What the PCM Does in a 1993 Dodge Caravan
The powertrain control module in a 1993 Dodge Caravan coordinates fuel injection, ignition timing, and transmission control to keep the engine running smoothly. It works together with the engine control module, which focuses on engine‑specific functions such as idle control and emissions. Proper communication between these units is essential for reliable performance. replacement powertrain control modules for the 1993 Dodge Caravan ensures the vehicle meets factory specifications after service.
Where the PCM Is Located and What Replacement Involves

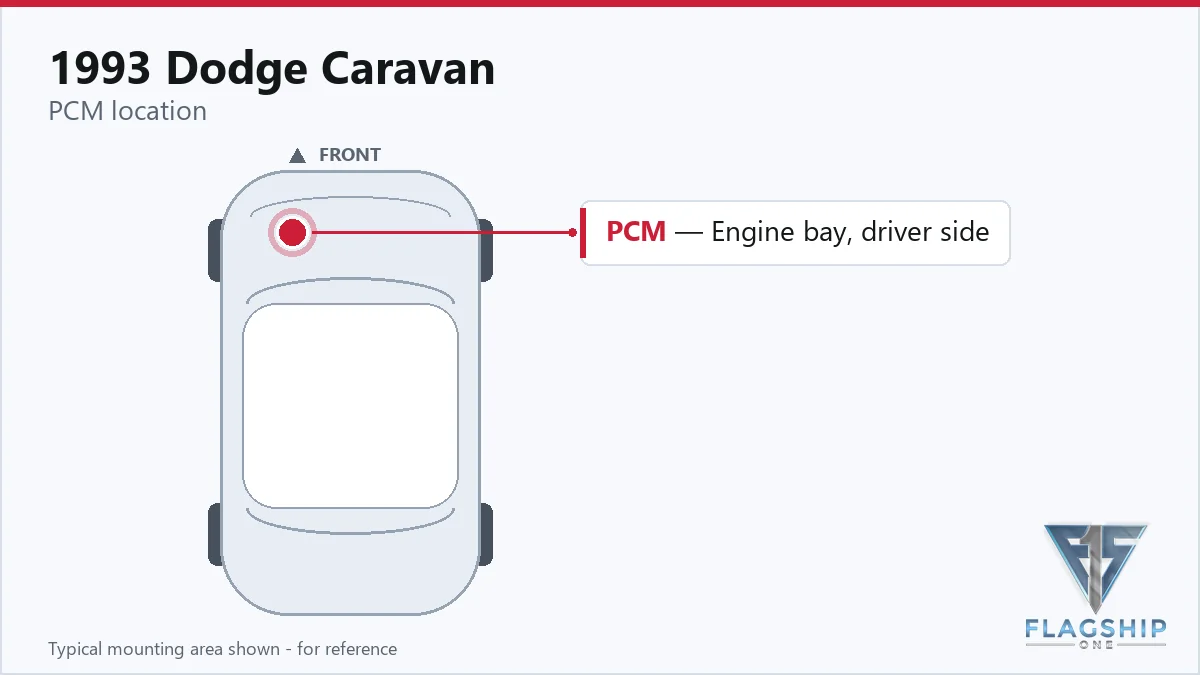

The PCM is mounted under the hood on the driver’s side inner fender panel of the 1993 Dodge Caravan. Access typically involves removing the inner fender cover and disconnecting the electrical connector. Replacing the module requires about 0.6 hours of labor for removal and installation, while a relearn operation adds another 0.5 hours. The ECM is similarly accessible and requires 0.5 hours for both removal and relearn.
How to Reach the PCM on the 1993 Dodge Caravan
- Remove air cleaner.
- Depress tab on top of solenoid and slide the so- lenoid downward out of mounting bracket.
- Disconnect idle air control motor connector.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | Caravan | 0.5 hr |
| Engine Control Module Relearn | Grand Caravan | 0.5 hr |
| Engine Control Module R&R | Caravan | 0.5 hr |
| Engine Control Module R&R | Grand Caravan | 0.5 hr |
| Powertrain Control Module Relearn | Caravan | 0.5 hr |
| Powertrain Control Module Relearn | Grand Caravan | 0.5 hr |
| Powertrain Control Module R&R | Caravan | 0.6 hr |
| Powertrain Control Module R&R | Grand Caravan | 0.6 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM, the factory procedure includes a relearn cycle to synchronize the module with the vehicle’s existing sensors and actuators. Flagship One provides a VIN‑programmed replacement unit, so the required calibration is already completed before installation. This eliminates the need for additional on‑site programming steps.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 1993 Dodge Caravan include a complete no‑start condition, intermittent stalling, rough idle, and loss of communication with a scan tool. You may also notice unexpected shifting behavior or a sudden loss of power during acceleration. These issues often point to a module that needs to be relearned or replaced.
Factory Service Bulletins Worth Knowing
Service bulletin #18-037-05 addresses flash programming failure recovery using the DRBIII® tool. The bulletin outlines steps to recover a failed flash update on the PCM, helping technicians avoid a full module replacement when possible.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 18-037-05 | 18-037-05 Flash Programming Failure Recovery Using DRBIII® | — |
Protecting the PCM in Your 1993 Dodge Caravan
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean all ground connections and connector pins regularly.
- Avoid jump‑starting the vehicle, which can introduce voltage spikes.
- Promptly address any diagnostic codes that appear.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What does a PCM relearn involve on a 1993 Dodge Caravan?
A relearn aligns the new or serviced module with the vehicle’s sensors and actuators. The process typically takes about half an hour and restores proper engine and transmission operation.
Can I replace the ECM myself on a 1993 Dodge Caravan?
Yes, the ECM is accessible under the hood and can be removed and installed with basic hand tools. Expect about 0.5 hours of labor for the swap and another 0.5 hours for the relearn.
Do I need special equipment to program a new PCM in this vehicle?
Factory programming is required, but Flagship One units arrive VIN‑programmed, so no additional equipment is needed after installation.
When your 1993 Dodge Caravan needs a PCM or ECM service, you can choose between a fresh factory‑new unit or a refurbished replacement that meets original specifications. Both options require the same relearn steps, but a pre‑programmed replacement can reduce shop time and simplify the process.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1993 Dodge Caravan with a lifetime warranty, free shipping and no core charge. The full Dodge Caravan module lineup covers other engine configurations as well.
Final Thoughts
Addressing PCM or ECM issues on your 1993 Dodge Caravan promptly helps maintain reliable performance. Consider a VIN‑programmed replacement to streamline the repair and get back on the road sooner.
