1993 Mazda MX-5 Miata PCM Replacement Guide
The power‑train control module in the 1993 Mazda MX-5 Miata manages engine timing, fuel delivery, and ignition. A malfunction can cause rough idle, stalling, or loss of power, and may prevent the engine from starting altogether.
Quick Summary
- The PCM resides behind the center console and under the front console.
- Failure often results in no‑start conditions or erratic engine behavior.
- Replacement requires accessing both console areas and disconnecting the wiring harness.
- Flagship One units are delivered VIN‑programmed, eliminating post‑install coding.
- Maintain clean grounds and stable voltage to extend PCM life.
When a 1993 Mazda MX-5 Miata begins to exhibit intermittent stalling, rough idle, or refuses to start, the power‑train control module is a common suspect. This guide explains what the module does, where it lives in your Miata, and how a replacement can bring the engine back to smooth operation. You will learn the steps required to remove the original unit, understand the factory programming expectations, and see practical tips to keep the new module functioning reliably for years to come.
What the ECM Does in a 1993 Mazda MX-5 Miata
In the 1993 Mazda MX-5 Miata, the power‑train control module interprets sensor data to regulate fuel injection, ignition timing, and idle control. It also monitors emissions output and coordinates the engine’s response to driver inputs. Because the Miata relies on precise timing for its lightweight chassis, a healthy module is essential for both performance and emissions compliance. The module communicates with the vehicle’s diagnostics port, allowing fault detection and data logging. When the unit fails, the engine may run poorly or not start at all, and the diagnostic system may lose communication. Understanding its role helps you appreciate why a proper replacement is critical. For owners seeking a direct swap, replacement engine computers for the 1993 Mazda MX-5 Miata provide a compatible solution without extensive rewiring.

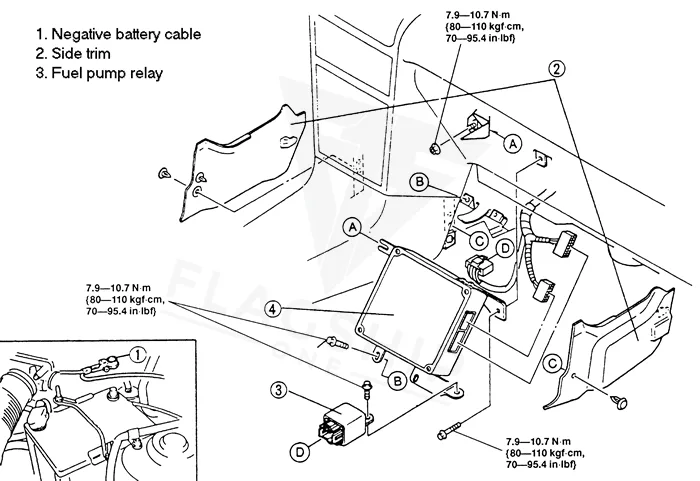

Where the ECM Is Located and What Replacement Involves
The PCM in a 1993 Mazda MX-5 Miata is typically found under the front console and also behind the center console. Accessing the unit generally requires removing the trim panels that cover these areas, then disconnecting the main power connector and the sensor harnesses. Because the module sits in two separate locations, you may need to work from both the passenger side footwell and the dashboard to fully detach it. Once the wiring is unplugged, the module can be lifted out of its mounting bracket. Installation is the reverse of removal, ensuring all connectors are seated firmly and any mounting hardware is reinstalled to factory torque specifications if provided.
How to Reach the ECM on the 1993 Mazda MX-5 Miata
- Disconnect the negative battery cable.
- Remove the rear console.
- Remove the ashtray.
- Remove the front console to gain access to the module.
- Remove the ECM mounting bolts/nuts, and disconnect the module electrical.
- Position the module, and install the mounting nuts.
- Remove both center console side trim panels to gain.
- Remove the module mounting bolts/nuts, and disconnect.
- Remove the center console assembly, by pulling it.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
Programming Requirements After Replacement
After installing a new PCM in the 1993 Mazda MX-5 Miata, the factory service procedure normally calls for a VIN‑specific calibration to align the module with the engine’s characteristics. Flagship One units arrive already VIN‑programmed, so that step is completed before the part reaches your garage. This eliminates the need for a separate programming session with a dealer‑level scan tool, allowing you to focus on mechanical installation and final verification of sensor operation.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing ECM
Owners of a 1993 Mazda MX-5 Miata may notice that the engine cranks but does not fire, or that it stalls shortly after starting. Other common signs include a rough idle that fluctuates with throttle input, intermittent loss of power during acceleration, and the absence of any communication when a scan tool is connected. These behaviors often point to a PCM that is no longer processing sensor signals correctly, resulting in fuel or spark delivery issues that prevent smooth engine operation.
Protecting the ECM in Your 1993 Mazda MX-5 Miata
- Inspect and clean the battery terminals to ensure a stable voltage supply.
- Verify that all ground straps and connector pins are free of corrosion.
- Avoid jump‑starting the vehicle with high‑current sources that could spike the PCM.
- Address any diagnostic trouble codes promptly to prevent prolonged exposure.
- Keep the connector seals dry and intact to protect against moisture intrusion.
- Regularly check the charging system output to maintain proper electrical health.
Frequently Asked Questions
Can a 1993 Mazda MX-5 Miata run without a functioning PCM?
The engine management system relies on the PCM for fuel and spark timing, so the vehicle will typically not run or will run very poorly without a functional module.
Do I need special tools to replace the PCM in a 1993 Mazda MX-5 Miata?
Standard hand tools are sufficient for removing the console trim and disconnecting the wiring harnesses; no specialized equipment is required for the mechanical portion of the swap.
Is factory re‑programming required after installing a new PCM in my Miata?
Factory procedures call for VIN‑specific programming, but Flagship One provides units that are already programmed, eliminating that step.
What are the signs that my Miata’s PCM is failing versus a sensor issue?
A failing PCM often produces multiple, unrelated symptoms such as no‑start, erratic idle, and loss of scan‑tool communication, whereas a sensor problem typically triggers a specific fault code and a single related symptom.
How long should I expect the PCM replacement to take on a 1993 Mazda MX-5 Miata?
The job generally involves removing interior trim and disconnecting connectors, which can be completed in a few hours by a technician familiar with the vehicle’s layout.
When the PCM in your 1993 Mazda MX-5 Miata shows signs of failure, you can choose between a brand‑new factory unit or a refurbished Flagship One replacement. Both options restore the engine’s control functions, but the Flagship One part arrives pre‑programmed, saving time on the shop floor. Consider your budget, warranty preferences, and the convenience of a ready‑to‑install unit when deciding which path best fits your repair plan.
Flagship One stocks a refurbished, VIN-programmed ECM for the 1993 Mazda MX-5 Miata with a lifetime warranty, free shipping and no core charge. The full Mazda MX-5 Miata module lineup covers other engine configurations as well.
Final Thoughts
Replacing the power‑train control module in a 1993 Mazda MX-5 Miata can resolve no‑start and erratic running issues, returning the car to its original performance. Evaluate both new and refurbished options to choose the solution that aligns with your needs and keep the vehicle reliable for the road ahead.
