1992 Mitsubishi Galant PCM and ECM Replacement Guide
In the 1992 Mitsubishi Galant, the Powertrain Control Module and Engine Control Module manage fuel delivery, ignition timing, and emission functions. Failure of either unit can disrupt engine operation, cause loss of power, or trigger communication errors with diagnostic tools.
Quick Summary
- PCM removal typically requires about one hour of labor.
- ECM replacement generally takes around seven‑tenths of an hour.
- A post‑install relearn for the PCM adds roughly half an hour.
- Both modules are mounted in locations shared with Mirage and Diamante trims.
When a 1992 Mitsubishi Galant begins to exhibit hard starts, sudden stalls, or an inability to communicate with a scan tool, the powertrain control electronics are often the first suspects. This guide walks you through the purpose of the PCM and ECM in this specific model, where the units reside, the labor involved in swapping them, and the programming steps that follow. By the end, you will understand what each module does, how to access it, the time you can expect for a professional replacement, and why a VIN‑programmed unit from Flagship One can simplify the process.
What the PCM Does in a 1992 Mitsubishi Galant
The Powertrain Control Module in a 1992 Mitsubishi Galant acts as the central computer that coordinates fuel injection, ignition timing, and emission controls. It receives input from sensors such as the throttle position, coolant temperature, and oxygen sensors, then commands actuators to keep the engine running smoothly. The Engine Control Module performs a similar role, focusing on engine‑specific parameters and supporting the PCM’s broader duties. Together, they ensure the vehicle meets performance and emissions standards, and they maintain proper communication with the transmission controller. A failure in either module can cause a cascade of issues, from rough idle to complete loss of drive. Understanding the function of these computers helps you diagnose problems more accurately. For owners seeking replacements, 1992 Mitsubishi Galant replacement PCM offers a direct path to restored functionality.

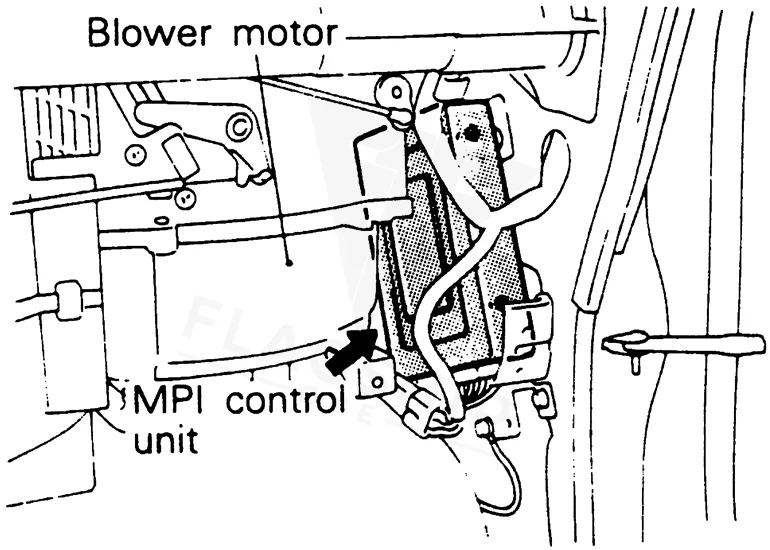

Where the PCM Is Located and What Replacement Involves
The PCM in the 1992 Mitsubishi Galant is mounted in the same area used on the Mirage and Diamante versions, making access similar across those trims. To replace the unit, you typically disconnect the battery, remove any covering brackets, and unplug the connector harness. The labor estimate for removing and reinstalling the PCM is listed as one hour in the service guide. Once the old module is out, the new unit is positioned in the same mounting location, fastened, and the electrical connector is reattached. The ECM follows a comparable procedure but requires less time, with a book time of seven‑tenths of an hour. No additional torque specifications are provided in the available data, so standard hand‑tightening to secure the module is recommended.
How to Reach the PCM on the 1992 Mitsubishi Galant
- Disconnect the negative battery cable.
- Remove the glove box, right side kickpanel and lower panel assemblies.
- Unplug the connectors and remove fasteners.
- Disconnect negative battery cable.
- Remove both center console side panels.
- Unplug the wiring connector and remove the mounting hardware.
- Remove the passenger side lower instrument panel and shower duct.
- Remove the glove box striker, glove box, glove box outer casing and the.
- Unplug wiring connector and remove mounting hardware.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.0 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory service routine calls for a relearn process that restores the module’s adaptive memory and sensor calibrations. This procedure is documented as a half‑hour of labor. Flagship One’s units arrive already VIN‑programmed, so the relearn step is effectively completed at the factory. That means the technician can focus on the physical swap and a brief verification, rather than spending additional time on programming. Using a a VIN-programmed replacement unit eliminates the need for on‑site coding and reduces the chance of errors during the post‑install process.
Symptoms of a Failing PCM
When the PCM or ECM begins to fail in a 1992 Mitsubishi Galant, owners may notice the engine refusing to start, sudden stalls while driving, or a rough idle that fluctuates with load changes. Diagnostic scans often return communication errors, and the vehicle may display a generic check‑engine light. In some cases, the scan tool will report a specific fault such as communication error P0601, indicating the computer is not responding correctly. Additional signs include erratic transmission shifting, loss of power during acceleration, and occasional misfire detections that appear without a clear mechanical cause. These symptoms reflect the modules’ role in managing engine and drivetrain functions, and they typically worsen as the internal circuitry degrades.
Protecting the PCM in Your 1992 Mitsubishi Galant
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections regularly.
- Use proper jump‑start techniques to prevent voltage spikes.
- Address any check‑engine codes promptly before they worsen.
- Keep connector seals clean and free of corrosion.
- Avoid exposing the module to excessive moisture or debris.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 1992 Mitsubishi Galant?
The service guide estimates about one hour for removing and reinstalling the PCM, plus an additional half‑hour for the relearn procedure.
Is the ECM replacement time different from the PCM in this vehicle?
Yes, the ECM swap is listed as seven‑tenths of an hour, which is slightly shorter than the PCM replacement time.
Can I use a used PCM from another 1992 Mitsubishi Galant?
A used unit may work, but it will require programming to match your vehicle’s VIN, a step that Flagship One’s new units already include.
What should I look for if the scan tool shows a communication error?
A communication error often points to a PCM or ECM fault. Verify connector integrity, check battery voltage, and consider replacing the affected module if the error persists.
Do I need any special tools to access the PCM in the Galant?
Standard hand tools are sufficient. The module is located in the same area as on Mirage and Diamante models, so removing any cover brackets and unplugging the harness is all that is required.
When the powertrain computers in your 1992 Mitsubishi Galant need attention, you can choose a brand‑new, VIN‑programmed replacement from Flagship One or a refurbished unit that meets the same specifications. Both options restore the vehicle’s electronic control functions, but the new unit eliminates any lingering programming steps. Evaluate your budget and the expected lifespan of each choice before deciding which path best fits your repair plan.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1992 Mitsubishi Galant with a lifetime warranty, free shipping and no core charge. The full Mitsubishi Galant module lineup covers other engine configurations as well.
Final Thoughts
A failing PCM or ECM can leave a 1992 Mitsubishi Galant stranded or running poorly. By understanding the modules’ roles, location, and required labor, you can make an informed decision about replacement. Flagship One’s VIN‑programmed units simplify the post‑install steps, helping you get back on the road with confidence.
