1991 Lexus LS400 Engine Control Module and PCM Replacement Guide
The engine control module in the 1991 Lexus LS400 manages critical fuel delivery and ignition timing functions for the 4.0L engine. When this internal computer fails, your vehicle may experience stalling, a persistent no-start condition, or erratic engine performance that prevents daily driving.
Quick Summary
- The 1991 Lexus LS400 utilizes an engine control module to regulate 4.0L V8 engine functions.
- Factory wiring guides indicate the engine ECU is positioned within the instrument panel.
- Professional replacement of the engine control module typically requires 0.8 hours of labor.
- A relearn procedure taking 0.5 hours is often necessary after installing a new module.
- Because this vehicle predates OBD-II, diagnostic data relies on proprietary internal codes.
When a luxury sedan from the early nineties begins to exhibit drivability issues, the root cause often points to electronic management rather than simple mechanical wear. In the 1991 Lexus LS400, the engine control module serves as the central brain for the 4.0L V8, dictating how well the motor runs on a daily basis. If you are experiencing hard starting, inconsistent idling, or sudden stalls, the onboard computer may be losing its ability to process sensor data accurately. Understanding how this system operates in your vehicle takes the guesswork out of the diagnostic process. You will discover exactly where the unit resides, what kind of labor times to expect during a swap, and why proper programming matters for a successful repair. Rather than throwing parts at the problem, gaining a clear picture of the computer’s role helps you make an informed decision about replacement. Whether you are tracing an electrical gremlin or preparing for a full module swap, this guide provides the specific details needed to get your 1991 Lexus LS400 back on the road with confidence.
What the PCM Does in a 1991 Lexus LS400
The engine control module in the 1991 Lexus LS400 acts as the primary decision-maker for the 4.0L V8 powertrain. It continuously processes inputs from various sensors monitoring airflow, coolant temperature, and throttle position to calculate the optimal fuel injector pulse width and ignition timing advance. Without this constant calculation, the engine cannot maintain the smooth idle or progressive throttle response expected from a premium sedan. A malfunctioning unit often loses the ability to read these sensor inputs correctly, which may lead to a rich or lean running condition that degrades both performance and fuel economy over time. Because the 1991 Lexus LS400 predates the OBD-II standard, the diagnostic data available to technicians is more limited than in later models, making the internal logic of the module even more critical to overall vehicle operation. When the original unit begins to fail, securing 1991 Lexus LS400 engine computers becomes a priority to restore proper fuel metering and spark control. The module also regulates idle speed and various emission controls, meaning a defect can directly cause the engine to stall at intersections or refuse to start altogether. Ensuring this computer functions perfectly is vital for maintaining the reliable performance your vehicle was designed to deliver, preventing cascading issues with secondary engine management systems. In the 1991 Lexus LS400, the module must coordinate seamlessly with the electronic controlled transmission to ensure smooth gear shifts and torque converter lockup. When the computer begins to degrade, these shift patterns may become harsh or erratic, mimicking a mechanical transmission failure when the root cause is actually electronic. By controlling both the air-fuel mixture and the transmission solenoids, the module ensures the entire drivetrain operates as a unified system. Replacing a degraded unit restores this crucial communication pathway.
Where the PCM Is Located and What Replacement Involves

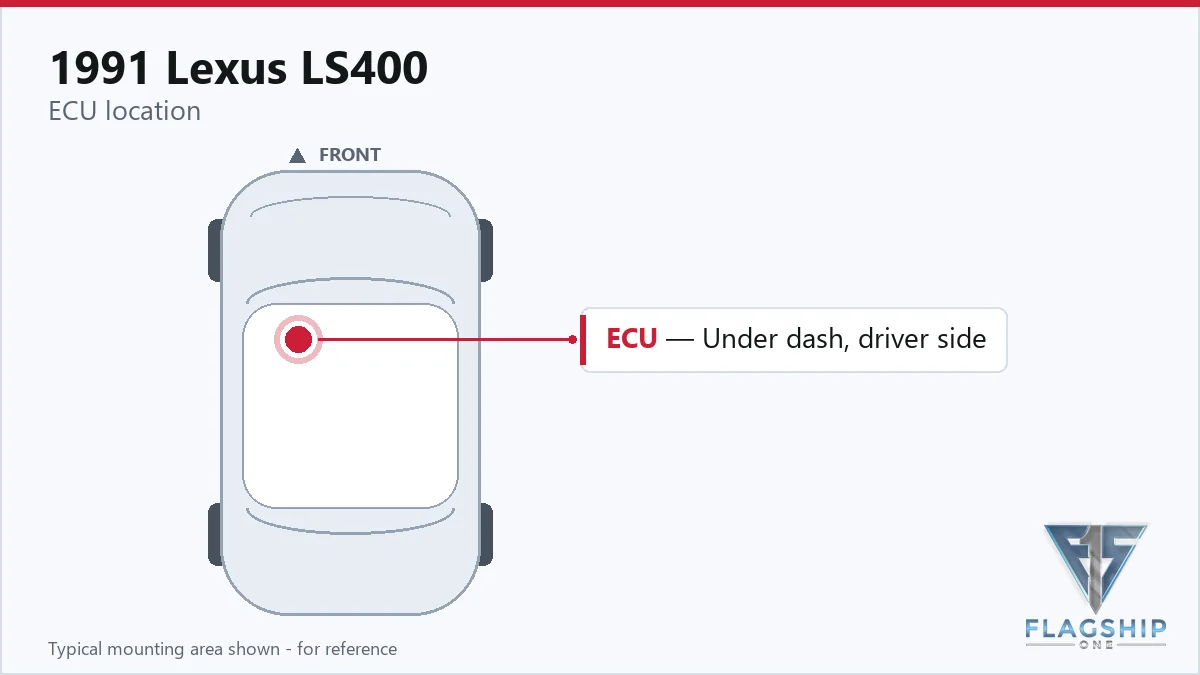

According to the factory wiring guide component grid, the engine ECU in the 1991 Lexus LS400 is located inside the instrument panel. Accessing this unit typically involves removing decorative trim panels and possibly sections of the dashboard to reach the mounting area. The industry standard book time for an engine control module removal and replacement is 0.8 hours, while a powertrain control module removal and replacement is listed at 0.9 hours. Because the module resides within the dashboard, technicians must carefully navigate the surrounding wiring harnesses to avoid damaging the vehicle’s electrical system. Once the old unit is disconnected and unbolted, the new module can be seated in the factory location. Following the physical swap, a relearn procedure is necessary to sync the computer with the vehicle. The book time for a powertrain control module relearn is 0.5 hours, and the engine control module relearn also requires 0.5 hours.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new engine computer in the 1991 Lexus LS400, the factory service procedure dictates a specific relearn process to synchronize the hardware with the vehicle. The book time for an engine control module relearn is 0.5 hours, which accounts for the idle air learning and system recalibration required to ensure the engine runs correctly. A powertrain control module relearn similarly requires 0.5 hours of labor to properly align the transmission and engine parameters. Without completing these steps, your vehicle may experience unstable idling or shifting irregularities. Choosing a pre-programmed replacement ECU bypasses these time-consuming dealership procedures entirely. Because the unit arrives flashed to your specific vehicle identification number, the essential startup parameters and immobilizer data are already written to the module. This means you can install the computer and start the engine without needing to perform the factory relearn sequence, saving you both time and labor costs compared to a blank module.
Symptoms of a Failing PCM
When the engine control module in the 1991 Lexus LS400 begins to fail, the symptoms often manifest as noticeable drivability issues that gradually worsen over time. One of the most common indicators is a persistent no-start condition, where the starter motor cranks the engine but the computer fails to trigger the fuel injectors or ignition coils. You may also experience random stalling, particularly when coming to a stop at an intersection or during low-speed maneuvering, which can create hazardous traffic situations. Misfires are another frequent symptom, causing the 4.0L V8 engine to run roughly or hesitate during acceleration as the module struggles to calculate the correct timing advance. In some cases, the automatic transmission may exhibit harsh or erratic shifting because the failing computer cannot properly communicate with the electronic controlled transmission solenoids. Communication issues are also prevalent; a technician might find that a diagnostic scan tool cannot establish a connection with the engine computer, preventing any data retrieval. Since the 1991 Lexus LS400 predates the standardized OBD-II protocol, pinpointing these faults can be especially challenging without the proper proprietary diagnostic equipment. If your vehicle displays these electrical gremlins alongside poor fuel economy or intermittent power loss, the engine control module is a likely suspect that warrants immediate professional evaluation to prevent further drivability degradation.
Protecting the PCM in Your 1991 Lexus LS400
- Maintain your charging system properly, as a failing alternator can send voltage spikes that damage the engine computer.
- Keep battery terminals and chassis ground connections clean to ensure stable electrical flow to the module.
- Avoid using high-voltage jump-starts on your vehicle, which can instantly overload the sensitive internal circuitry.
- Address any engine drivability symptoms promptly before electrical stress causes permanent damage to the computer.
- Inspect the wiring harness connector seals to prevent moisture intrusion that causes corrosion on the module pins.
- Ensure the battery is securely fastened, as a loose battery can shift and short out the electrical system.
Frequently Asked Questions
What is the standard labor time to replace the engine control module in a 1991 Lexus LS400?
The industry standard book time for an engine control module removal and replacement on the 1991 Lexus LS400 is 0.8 hours. An additional 0.5 hours is typically required to complete the engine control module relearn procedure.
Where is the engine ECU located in the 1991 Lexus LS400?
According to the factory wiring guide component grid, the engine ECU is positioned within the instrument panel. Accessing it requires removing sections of the dashboard trim to reach the mounting location.
Can a faulty engine control module cause shifting problems in the 1991 Lexus LS400?
Yes, the engine computer communicates directly with the electronic controlled transmission, and a failing module may disrupt shift solenoid operation. This disruption often results in harsh or erratic shifting that mimics a mechanical transmission failure.
Does the 1991 Lexus LS400 use standard OBD-II diagnostic codes?
No, the 1991 Lexus LS400 predates the OBD-II mandate and uses proprietary internal fault codes instead. Diagnosing issues requires specific procedures rather than standard P-codes found in later model years.
Is a relearn procedure necessary after installing a replacement engine computer in the 1991 Lexus LS400?
The factory service procedure specifies a relearn process taking 0.5 hours to synchronize the engine control module with the vehicle. However, a VIN-programmed unit from Flagship One arrives with these parameters already set, typically eliminating the need for this step.
Deciding between repairing a failing computer or opting for a refurbished replacement for your 1991 Lexus LS400 depends on the severity of the internal damage. While some electrical faults can be traced and repaired by a specialist, a remanufactured unit often provides a more reliable long-term solution for the 4.0L engine. Choosing a pre-programmed replacement ensures your sedan gets back on the road without the extended downtime of custom circuit board repairs.

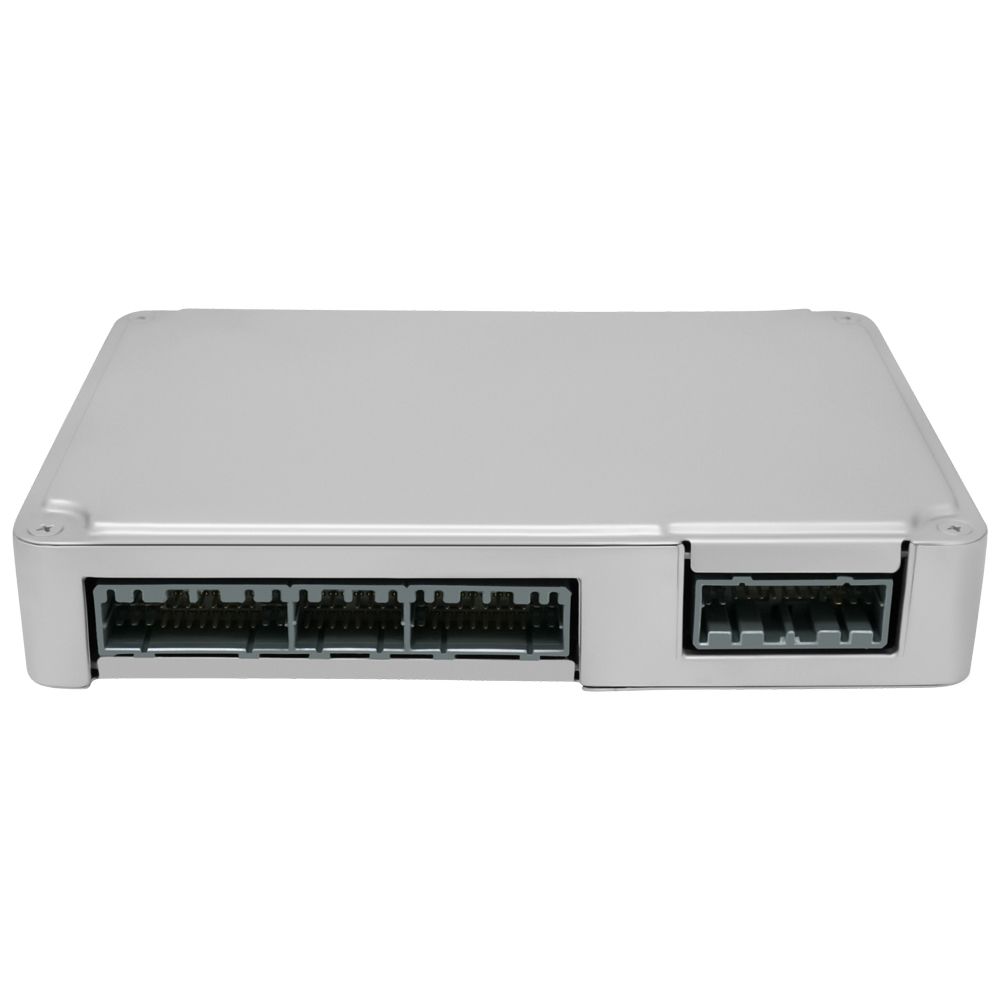

Flagship One stocks a refurbished, VIN-programmed PCM for the 1991 Lexus LS400 with a lifetime warranty, free shipping and no core charge. The full Lexus LS400 module lineup covers other engine configurations as well.
Final Thoughts
Addressing engine control module failures promptly restores the smooth performance expected from your 1991 Lexus LS400. Understanding the location within the instrument panel and the labor times involved prepares you for a straightforward replacement process. By recognizing the symptoms early, you can avoid the inconvenience of a sudden no-start situation. When you are ready to resolve those persistent drivability issues, explore the available replacement options designed specifically for your vehicle.
