1995 Lexus LS400 PCM and ECM Relearn Procedures
In the 1995 Lexus LS400, the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing, and emission controls. When either unit fails, the engine may not start, stall unexpectedly, or run rough, and diagnostic communication can be lost.
Quick Summary
- PCM relearn takes about half an hour of labor.
- ECM removal and replacement typically requires just over an hour.
- Both modules are located in the instrument panel according to the factory wiring guide.
- Flagship One units arrive VIN‑programmed, eliminating post‑install programming steps.
When a 1995 Lexus LS400 begins to exhibit no‑start conditions, stalling, or irregular power delivery, the electronic brain that controls the engine may be at fault. The PCM and ECM work together to regulate fuel, spark, and emissions, and any failure can quickly affect drivability. This guide explains what these modules do, where they live in your vehicle, the labor involved in swapping them, and how Flagship One’s pre‑programmed replacements simplify the process. By the end, you’ll understand the diagnostic clues, the necessary factory procedures, and the practical steps to keep your LS400 running smoothly.
What the PCM Does in a 1995 Lexus LS400
The powertrain control module in the 1995 Lexus LS400 monitors sensor data and commands the fuel injectors, ignition coils, and transmission solenoids to meet performance and emissions targets. The engine control module performs a similar role, focusing on engine‑specific parameters such as timing, idle speed, and fuel trims. Together they ensure the V8 operates within design limits. When either unit loses calibration or develops internal faults, the vehicle may experience hard starts, misfires, or loss of communication with a scan tool. The PCM and ECM are integral to the vehicle’s overall control strategy, and maintaining their proper function is essential for reliable operation. 1995 Lexus LS400 engine computers are the direct replacements you would consider for a failing unit.
Where the PCM Is Located and What Replacement Involves
The factory wiring guide places the engine control unit inside the instrument panel, meaning access requires removal of dash components to reach the module. Replacing the PCM involves a relearn procedure that the service manual estimates at 0.5 hours of labor, while swapping the PCM itself is rated at 1.3 hours. The ECM removal and reinstall are each listed at 1.1 and 0.5 hours respectively. Technicians typically disconnect the battery, remove the instrument cluster, and then disconnect the module’s harness before unbolting the unit. After the new module is seated, the harness is reconnected, and the dash is reassembled.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.3 hr |
| Engine Control Module R&R | All configurations | 1.1 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM in the 1995 Lexus LS400, the factory process requires a relearn of the powertrain control module to synchronize sensor baselines and fuel strategies. The service guide specifies a 0.5‑hour relearn for the PCM and a similar period for the ECM. Flagship One units arrive already VIN‑programmed, so those relearn steps are completed before the part reaches you. This means the installer can focus on the physical replacement and final verification without additional coding. a VIN-programmed replacement eliminates the need for on‑site programming tools.
Symptoms of a Failing PCM
A failing PCM or ECM in a 1995 Lexus LS400 often reveals itself through a combination of drivability issues. You may notice the engine refusing to start, rough idle, sudden stalling while cruising, or a loss of power under load. Diagnostic trouble codes related to sensor mismatches or internal module faults can appear, and the scan tool may lose communication entirely. In some cases, the transmission may shift harshly because the PCM also controls shift timing. These symptoms tend to appear gradually as the module’s internal memory degrades, making early detection important to avoid being stranded.
Protecting the PCM in Your 1995 Lexus LS400
- Maintain a healthy charging system to avoid voltage fluctuations that can stress the modules.
- Inspect and clean ground connections and harness connectors regularly.
- Avoid jump‑starting the vehicle with excessive voltage spikes.
- Address any diagnostic codes promptly rather than postponing repairs.
- Keep connector seals intact to prevent moisture intrusion.
- Periodically verify battery voltage levels before major service.
Frequently Asked Questions
What labor time is required to replace the PCM in a 1995 Lexus LS400?
The service manual lists about one and a third hours for removal and installation, plus an additional half hour for the required relearn procedure.
Can a faulty ECM cause transmission shifting problems in my LS400?
Yes, because the PCM also manages shift timing, a malfunctioning ECM can affect transmission behavior, leading to harsh or delayed shifts.
Is it necessary to use a scan tool after installing a new module?
While Flagship One units are VIN‑programmed, a scan tool can verify that communication is restored and that no residual codes remain.
What are common signs that the LS400’s PCM needs replacement?
Typical indications include intermittent no‑start conditions, rough idle, loss of power, and persistent diagnostic codes that persist after resetting.
Will replacing the ECM affect emissions compliance for the LS400?
A properly programmed replacement will meet the original emissions specifications, but any deviation during installation could affect compliance.
When the PCM or ECM in your 1995 Lexus LS400 shows signs of failure, you can choose between a factory‑refurbished unit or a Flagship One replacement. Both options restore the vehicle’s control functions, but the Flagship One part arrives pre‑programmed to the VIN, which can reduce shop time and potential errors. Evaluating the condition of your existing module and your workshop’s capabilities will help you decide which path best fits your repair schedule.

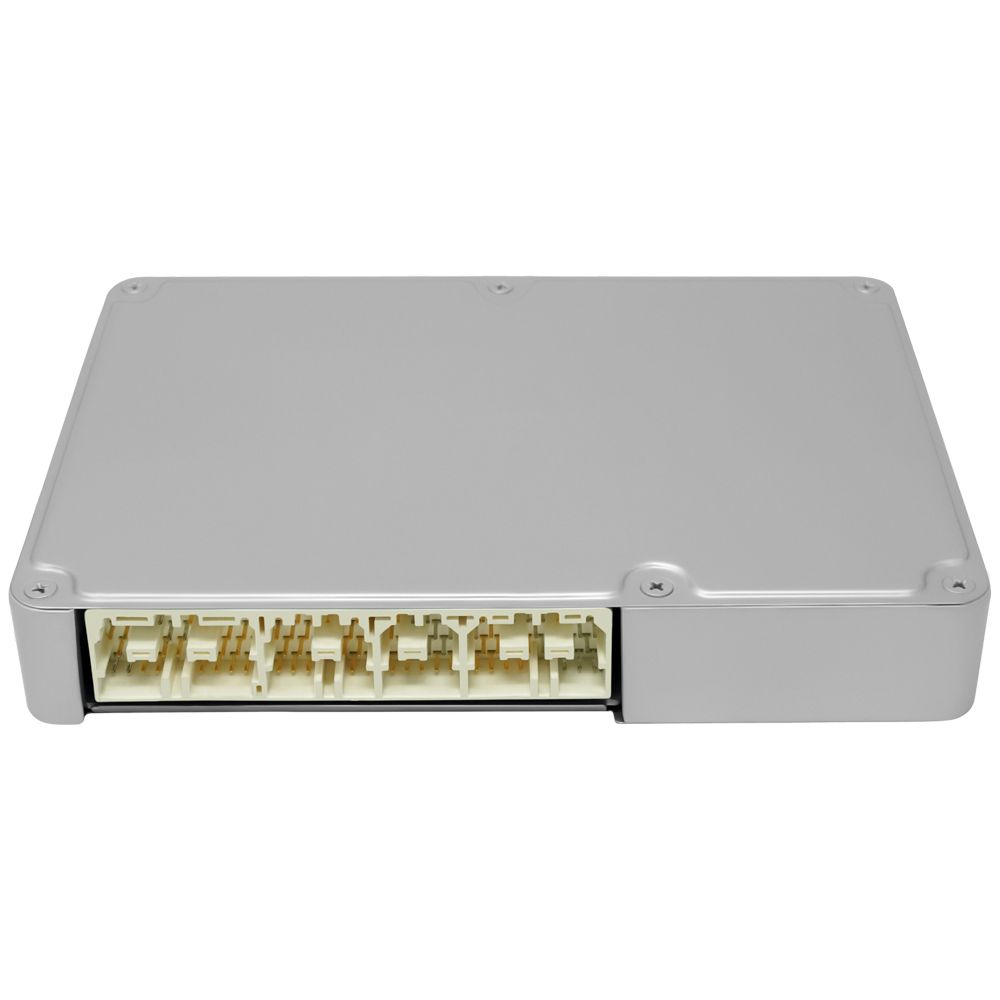

Flagship One stocks a refurbished, VIN-programmed PCM for the 1995 Lexus LS400 with a lifetime warranty, free shipping and no core charge. The full Lexus LS400 module lineup covers other engine configurations as well.
Final Thoughts
Understanding how the PCM and ECM operate in your 1995 Lexus LS400 empowers you to address symptoms quickly and choose the right replacement. Whether you opt for a refurbished unit or a Flagship One solution, proper installation and verification will keep your LS400 performing as designed.
