1990 Toyota Celica 1.6L Engine Computer Replacement and Programming
The engine control module in the 1990 Toyota Celica 1.6L manages fuel delivery, ignition timing, and idle control. When it fails, the engine may crank without starting, run roughly, or stall unexpectedly, often leaving the vehicle undrivable.
Quick Summary
- The factory wiring guide locates the engine ECU inside the instrument panel.
- Book time for module removal and replacement is 1.4 hours.
- A post-installation relearn procedure typically takes 0.5 hours.
- Flagship One units arrive programmed to your VIN, so the relearn step is already completed.
When a 1990 Toyota Celica with the 1.6-liter engine develops hard-starting, intermittent stalling, or a complete no-start, the engine control module often becomes a prime suspect. This computer, sometimes called the ECM or ECU, orchestrates critical engine functions. If it fails, the car may leave you stranded. Replacing the module yourself is a practical repair, but the factory service information calls for a specific relearn routine after installation. Understanding what the module does, where it lives, and how to handle the swap can save you time and frustration. This guide walks you through the module’s role, its location, the replacement process, and how a pre-programmed unit streamlines the job so you can get your vehicle back on the road quickly.
What the PCM Does in a 1990 Toyota Celica
The engine control module in the 1990 Toyota Celica 1.6L is the central processor that reads data from sensors—such as the throttle position, coolant temperature, and oxygen sensor—and adjusts the air/fuel mixture and spark timing accordingly. It also governs the idle air control valve to maintain a steady idle speed. Because this is a pre-OBD-II vehicle, the module relies on manufacturer-specific diagnostic protocols rather than standardized P-codes. A malfunctioning unit can misinterpret sensor signals, leading to poor performance or a no-start condition. When the original module cannot be repaired, installing replacement engine computers for the Celica restores proper engine management and drivability.
Where the PCM Is Located and What Replacement Involves

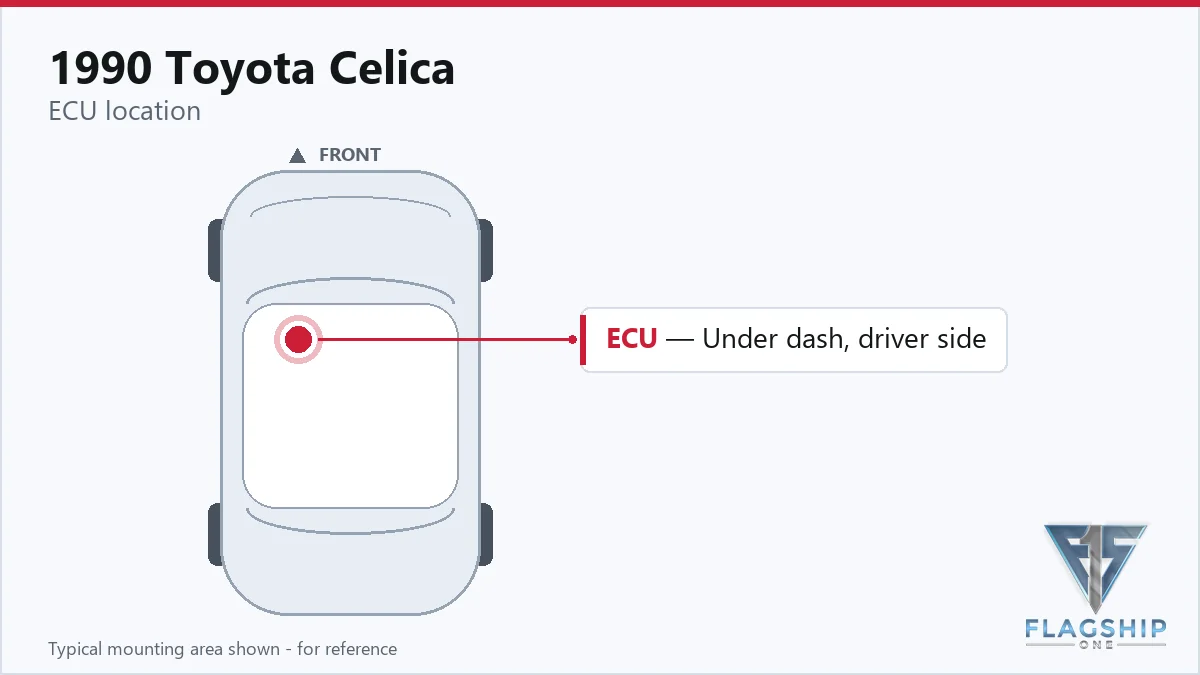

The factory wiring guide’s component grid places the engine ECU in the instrument panel. Accessing it typically involves removing the lower dash trim panels and possibly the glove box assembly to reach the mounting bracket. The module is secured with fasteners and connected by a multi-pin harness. Book time for engine control module removal and replacement is 1.4 hours. If the vehicle’s documentation lists a separate powertrain control module, that unit’s R&R is 1.5 hours, but for this 1.6L engine, the primary computer is the ECM. After physically installing the replacement, the factory procedure requires a relearn that takes 0.5 hours to allow the module to adapt to the engine’s sensors and actuators.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
The factory service information for the 1990 Toyota Celica 1.6L specifies an engine control module relearn procedure after replacement. This 0.5-hour process lets the new computer calibrate idle speed, ignition timing, and fuel trims. When you order a VIN-programmed replacement unit from Flagship One, that relearn is already performed on the bench using your vehicle’s specific data. The module arrives ready to install, so you can skip the post-installation adaptation step and avoid a trip to the dealer for programming.
Symptoms of a Failing PCM
A failing engine control module in the 1990 Toyota Celica 1.6L often produces symptoms that mimic other issues. The engine may crank but refuse to start, or it may start and then stall shortly after. Intermittent misfires, rough idling, and hesitation under acceleration are common. You might notice the check engine light illuminating, though retrieving codes requires a manufacturer-specific scan tool rather than a generic OBD-II reader. In some cases, the module can cause transmission shifting irregularities if it influences the powertrain control logic. Because these signs overlap with sensor or wiring faults, professional diagnosis is recommended before condemning the computer.
Protecting the PCM in Your 1990 Toyota Celica
- Keep the battery and charging system in good condition to avoid voltage spikes that can damage the module.
- Inspect and clean engine ground connections regularly to ensure stable electrical reference.
- Avoid jump-starting with high-voltage boosters or reversed cables, which can fry sensitive electronics.
- Address any drivability issues promptly to prevent a failing sensor from overloading the module’s drivers.
- Ensure all wiring harness connectors are fully seated and free of corrosion or moisture.
- Replace worn spark plugs and wires to reduce electromagnetic interference that may affect the computer.
Frequently Asked Questions
How can I tell if the engine control module is the cause of my 1990 Toyota Celica’s no-start?
A no-start can stem from many sources, but if you have spark, fuel pressure, and a good crank signal yet the injectors aren’t pulsing, the ECM may be at fault. A professional diagnostic scan for manufacturer-specific codes can help isolate the module. Also, check for signs of internal corrosion or burnt components on the circuit board.
Does a replacement ECM for the 1990 Celica 1.6L require dealer programming?
The factory procedure includes a 0.5-hour relearn to adapt the new module to the engine. However, if you purchase a VIN-programmed unit from Flagship One, that step is already completed, so no additional programming or dealer visit is necessary.
Where exactly is the engine computer located in the 1990 Toyota Celica?
According to the factory wiring guide, the engine ECU is mounted in the instrument panel. You’ll need to remove the lower dash trim on the passenger side to access it. The module is held in place by a bracket and connected by a single large harness.
Replacing the engine control module in a 1990 Toyota Celica 1.6L can be a straightforward repair, but sourcing a reliable unit matters. While some shops offer repair services for the original module, a refurbished replacement that arrives pre-programmed to your VIN often provides a faster, more dependable solution. This approach eliminates the guesswork of component-level fixes and the need for post-install programming.
Flagship One stocks a refurbished, VIN-programmed PCM for the 1990 Toyota Celica with a lifetime warranty, free shipping and no core charge. The full Toyota Celica module lineup covers other engine configurations as well.
Final Thoughts
A faulty engine computer doesn’t have to mean the end of your 1990 Toyota Celica 1.6L. With the module located in the instrument panel and a book time of 1.4 hours for replacement, the job is manageable. Choosing a VIN-programmed unit removes the factory relearn hurdle, so you can get your Celica running smoothly again without extra steps.
