1996 Toyota Celica Engine Computer: Replacement & Programming Guide
The Engine Control Module in your 1996 Toyota Celica is the primary computer that manages the 1.8L 5S-FE engine’s fuel injection, ignition timing, and emissions systems. Common failure causes include heat damage, voltage spikes from jump starts, and corrupted memory.
Quick Summary
- The 1996 Toyota Celica uses an ECM located in the instrument panel that controls the 1.8L 5S-FE engine
- Factory book time for ECM R&R is 1.5 hours; relearn procedures add 0.5 hours
- A VIN-programmed replacement unit arrives ready to install, bypassing dealer programming
- Toyota service bulletin EG009-97 covers fuel cut logic changes for 1996-97 Celica models
If your 1996 Toyota Celica won’t start, runs poorly, or has illumination of the check engine light, the Engine Control Module may be the culprit. This guide explains what the ECM does in your specific vehicle, where it’s located, and what replacement involves. You’ll learn the factory labor times, why a VIN-programmed replacement can save you money, and how to recognize symptoms of module failure. Whether you’re diagnosing a no-start condition or planning a repair, the information here helps you understand the process and make informed decisions about your vehicle’s engine computer.
What the PCM Does in a 1996 Toyota Celica
The Engine Control Module in your 1996 Toyota Celica serves as the brain of the 1.8L four-cylinder engine. This computer controls fuel injection pulse width, ignition timing advance, idle air control, and the evaporative emissions system. It receives input from dozens of sensors—including the mass air flow, coolant temperature, and oxygen sensors—and adjusts engine operation in real time to maintain driveability while meeting emissions standards. When this module fails or develops internal memory corruption, the engine may run poorly, stall, or not start at all. Replacement engine computers for the Celica must be programmed with the vehicle’s unique VIN and calibration data to function properly.
Flagship One keeps Toyota Celica replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves

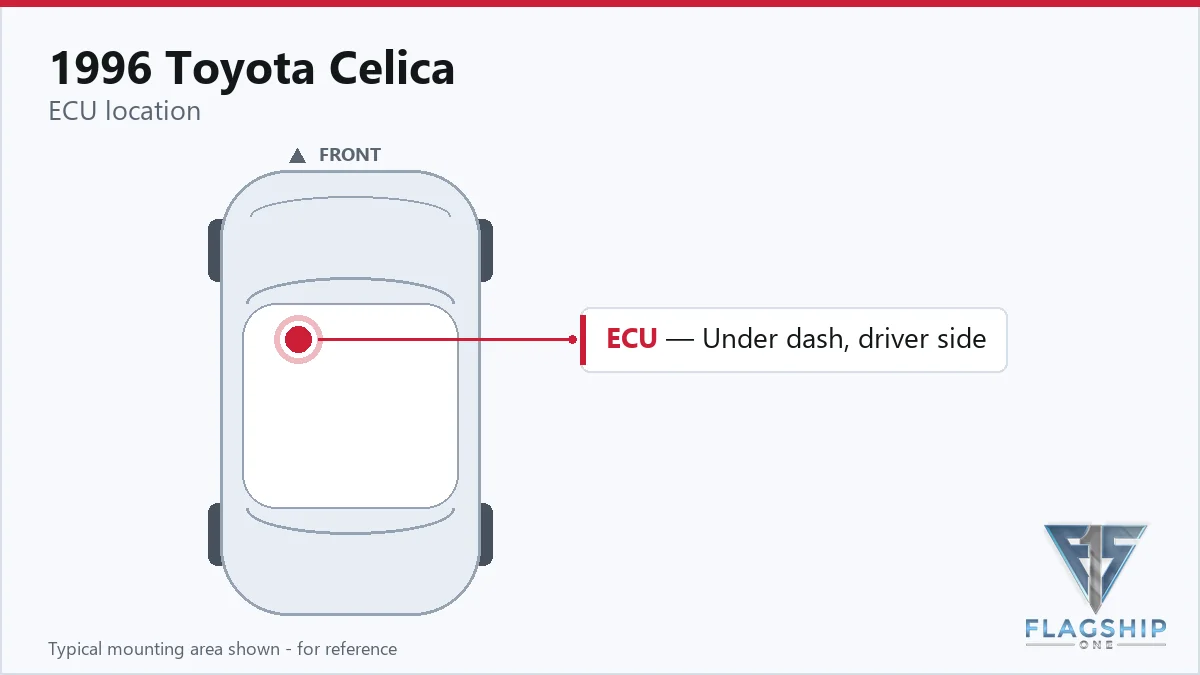

The factory wiring information places the engine ECU in the instrument panel area, requiring removal of dashboard trim panels for access. The replacement process involves disconnecting the battery, removing the failed module, transferring the mounting hardware and connectors, and installing the new unit. Book time for ECM R&R on this vehicle is 1.5 hours. After installation, the new module must communicate with the engine sensors and undergo a relearn procedure. Plan for additional time if accessories or trim pieces require removal to reach the original location.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a replacement ECM, the factory procedure requires a relearn process to allow the new module to adapt to your vehicle’s specific engine characteristics. This relearn procedure takes 0.5 hours per the service manual. Flagship One sends you a VIN-programmed replacement unit, meaning the calibration and vehicle identification are already loaded before the module arrives. This eliminates the need for dealer programming sessions—you install the unit, reconnect the battery, and the engine computer is ready to operate your 1996 Toyota Celica.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the ECM fails on a 1996 Toyota Celica, several patterns commonly emerge. A no-start condition where the engine cranks but won’t run often points to loss of fuel pump control or ignition output from the module. Intermittent stalling during warmup may indicate temperature sensor circuit issues within the ECM. Misfire codes such as P0300 through P0304 frequently appear when the module cannot properly control fuel delivery. In some cases, the scan tool cannot communicate with the ECM at all, suggesting internal failure. Automatic transmission shifting problems may also occur since the ECM shares data with the transmission control module on this vehicle.
Factory Service Bulletins Worth Knowing
Toyota service bulletin EG009-97 addresses the 1996 Camry and 1996-97 Celica equipped with the 5S-FE engine. This bulletin covers changes to the ECM TAU (Time Accumulation) fuel cut logic. The update modifies how the module manages fuel cutoff during deceleration conditions. If your vehicle falls within this production range and exhibits deceleration stalling or unusual fuel economy changes, the ECM may need calibration update or replacement to correct the issue.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| EG009-97 | :EG009-97: 96 Camry & 96-97 Celica 5S-FE ECM TAU Fuel Cut Logic Changed | — |
Protecting the PCM in Your 1996 Toyota Celica
- Maintain healthy charging system voltage—weak alternators cause low voltage that stresses the ECM over time
- Keep battery terminals clean and tight; loose connections create voltage spikes during cranking
- Avoid jump-starting from another vehicle when possible; surge voltages can damage module circuits
- Address check engine light codes promptly rather than driving with known sensor failures
- Inspect engine compartment ground straps annually; poor grounding causes electrical irregularities
- Keep ECM connector seals intact to prevent moisture intrusion and corrosion
Frequently Asked Questions
Will any 1996 Toyota Celica ECM fit my vehicle?
No. The ECM must be matched to your vehicle’s VIN and calibration. Using a unit from a different Celica or engine variant will cause drivability issues or no-start conditions.
Can I replace the ECM myself or do I need a dealer?
A competent DIY mechanic can replace the ECM with basic tools. However, dealer programming is normally required for the relearn process. Purchasing a VIN-programmed unit from Flagship One lets you skip this dealer step.
How do I know if my Celica has an ECM or PCM problem versus a sensor issue?
Start with basic checks—battery voltage, fuse condition, and sensor connector integrity. If scan tool communication fails entirely or internal fault codes like P0601 appear, the module itself is likely failed.
When your 1996 Toyota Celica’s ECM requires replacement, you have two main paths: repair the existing module or install a refurbished replacement. Repair involves sending your unit out for circuit board work, while replacement offers a faster solution with a VIN-programmed unit ready to install. For this specific model year and engine combination, a pre-programmed replacement eliminates the dealer relearn procedure entirely, getting you back on the road faster.

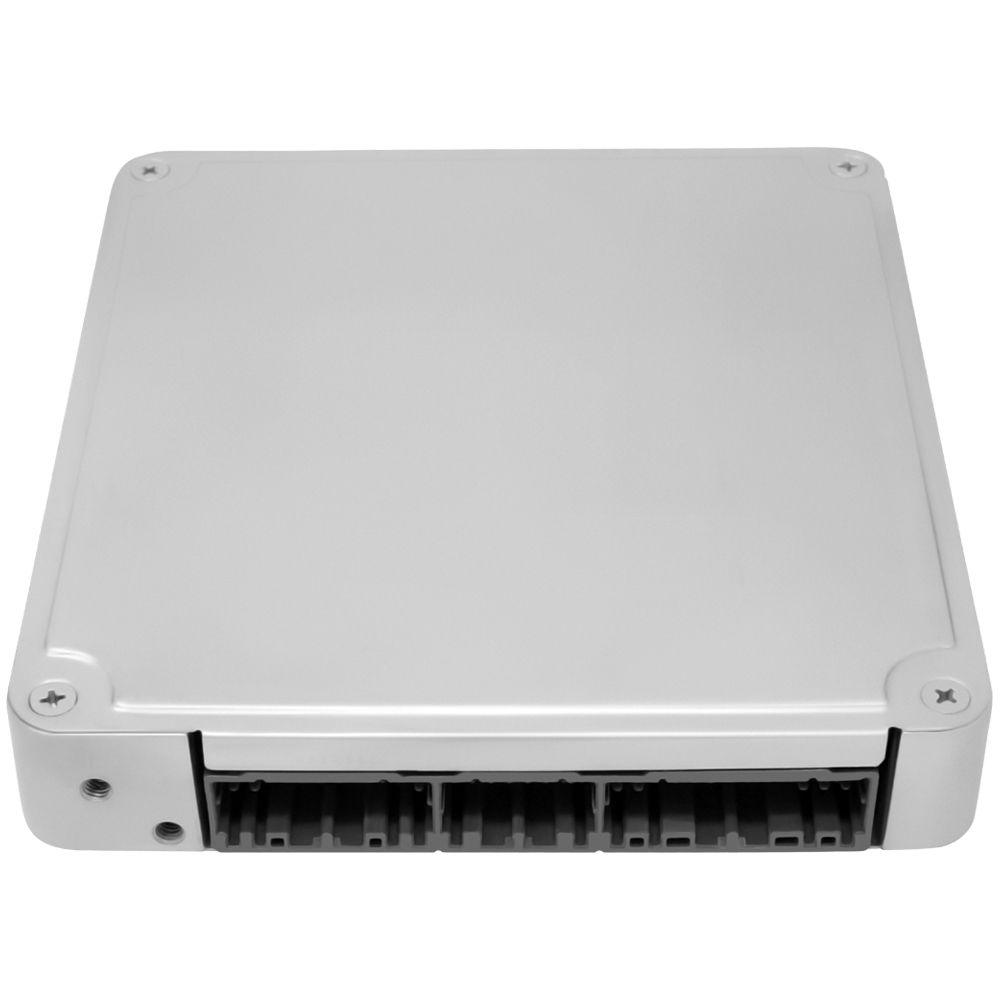

Flagship One stocks a refurbished, VIN-programmed PCM for the 1996 Toyota Celica with a lifetime warranty, free shipping and no core charge. The full Toyota Celica module lineup covers other engine configurations as well.
Final Thoughts
The 1996 Toyota Celica relies on its Engine Control Module to manage the 1.8L engine’s operation. If you’re experiencing no-start, stalling, or check engine light issues, the ECM may be the cause. A VIN-programmed replacement unit arrives ready to install, saving you dealer programming costs. Address module failures promptly to avoid being stranded and to prevent potential damage to other engine components.
